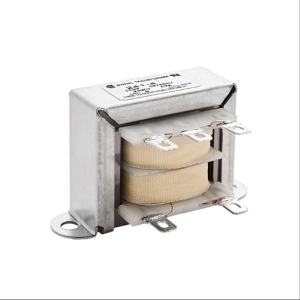

Introducing the BEL/SIGNAL TRANSFORMER 241-4-56, a high-quality power transformer designed for reliable electrical isolation and efficient power transfer. Manufactured in the Dominican Republic (COO: DO), this laminated power transformer is suitable for various industrial and electronic applications requiring robust performance and compliance with safety standards.
Product Features
Power Rating: 6 VA
Chassis Mount Construction with split bobbin design for superior isolation and low capacitive coupling
Dielectric Strength: 2500 Vrms Hipot
Primaries: Single or dual primaries (115 V or 115/230 V, 50/60 Hz)
Secondary: Single center-tapped secondary
Terminals: Solder lug / quick connect type terminals
Insulation Class: B (130°C), UL 1446 E66312
Agency Certifications: UL recognized (UL 506 / UL 5085-1, File # E63829), CSA certified (C22.2 #66.1, File # 221070)
RoHS Compliant: Yes
Package Type: Black (BLK)
ECCN: EAR99
UOM: Each (EA)
Technical Specifications
Power
2.4 VA to 100 VA
Dielectric Strength
2500 Vrms Hipot
Primaries
Single or dual primaries (115 V or 115/230 V - 50/60 Hz)
Secondary
Single center tapped secondary
Terminals
Solder lug / quick connect type terminals
Insulation
Class B (130°C)
Agency Certifications
UL 506 / UL 5085-1, CSA C22.2 #66.1
Mechanical and Dimensional Details
Size
Dimensions (W x H x A x B x ML)
Weight
Size 4
2.37" x 1.31" x 1.43" x 1.71" x 2.00" (60.3mm x 33.3mm x 36.2mm x 43.4mm x 50.8mm)
0.44 lbs (0.20 kg)
Additional Information
For detailed specifications and datasheets, please visit the product datasheet.
Custom versions are available upon request. For more details, search the internet for the part number 241-4-56.
Note: Datasheet was not processed; please search the internet for the part number for more details.
