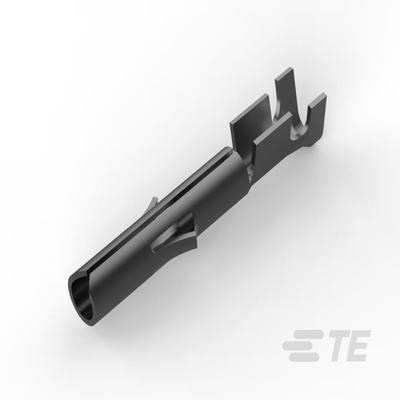

The TE CONNECTIVITY/AMP BRAND Connector Accessory (Part Number: 350851-1) is a high-quality pin and socket connector designed for precise electrical connections in various electronic applications. Manufactured in China (COO: CN), this connector is RoHS compliant and suitable for wire-to-board configurations.
Key Features
Compact design with a mated height of 19.4 mm
Power circuit connector with a 5.0 mm contact centerline
Compatible with wires ranging from 24-16 AWG and PCB board thickness up to 1.6 mm
Designed for power circuits in home appliances, especially gas appliances
Features four keying options per housing, improving assembly efficiency and preventing mismating
Includes a clear clicking sound for easier contact insertion
Double lock plate ensures complete loading of contacts and protects locking levers from tangling
Housing lances help prevent tangling of wired contacts
Releases bubbles created during potting (PC board coating) process
Technical Specifications
Voltage Rating: 300 VAC
Current Rating: Max 10A (varies with contact and wire used)
Operating Temperature Range: -30°C to +105°C
Applicable Wire: 24-16 AWG
Applicable PC Board Thickness: 1.6 mm
Recognized under Underwriters Laboratories Inc. Component Program (File No. E28476)
Certified by Canadian Standards Association (File No. LR7189)
Product Details
Product Category
Connector | Pin & Socket Connectors
Product Type
Connector
Package Type
REEL
UOM
EA
ECCN
EAR99
Part Number
350851-1
Manufacturer
TE CONNECTIVITY/AMP BRAND
Country of Origin
CN
Datasheet & Additional Resources
For detailed specifications and technical information, please refer to the datasheet.
Images
Disclaimer
Datasheet was not processed please search the internet for the part number for more details.
