3DXTech SIMUBONE BONE MODELING FILAMENT

SKU: 3D3027-1.75

Regular price ₹ 8,539.99
Sale price ₹ 8,539.99 Regular price ₹ 11,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Size:
This is a pre order item. Ships in 2-4 weeks.

SimuBone® Bone Modeling Filament

SimuBone® Bone Modeling Filament allows you to print realistic bone models for clinical and educational use. Our formulation is based on easy to print PLA coupled with specialty additives that gives your part the look and feel of real bone. Our filament is easy to print on practically any 3D printer and mates perfectly with our AquaTek™ X1 water soluble support for printing complex parts with dual extruder printers.

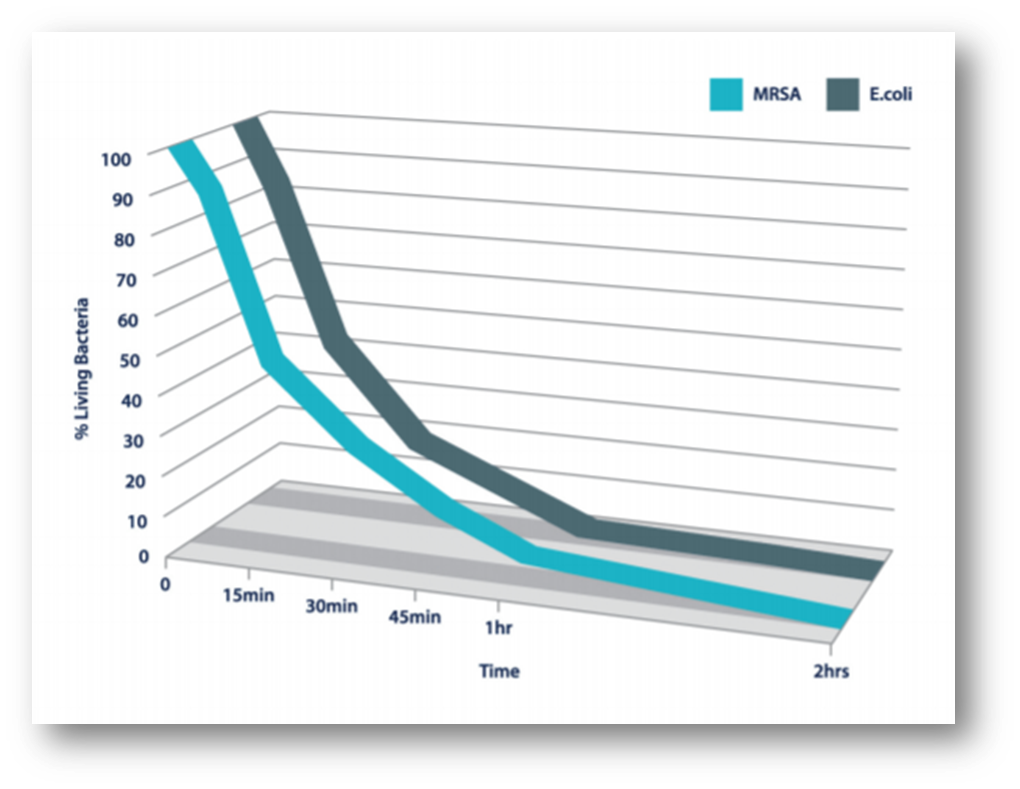

ISO Certified Anti-bacterial: We understand that these parts are likely to be handled by many people, so we formulated the polymer to be ISO certified anti-bacterial. Our ISO certified formulation uses a FDA-approved nano-silver antibacterial additive to achieve ISO 22196:2011 certification for eliminating 99.9% of bacteria for the lifetime of the printed part. Furthermore, our SimuBone® resin is produced in an ISO 13485 compliant facility and is ideal for use in healthcare clinical and education settings. Our formulation is PLA-based and is therefore non-toxic and biodegradable.

View the Simubone® presentation for more information.

Please note: SimuBone® was created for educational and preoperative planning purposes only and is not intended or suitable for implantation.


Extruder Temp: 220-240°C Bed Temp: 23-60°C Heated Chamber: Not Required Nozzle Specs: No special concerns

 Supports: X1 Water Soluble Support

Drying Specs: 65°C for 4+ hours Layer Height: No concern

Bed Adhesion

Magigoo Bed Prep


Benefits of PETG Include:

  • Insurance reimbursable since 2019 [CPT® Category III Codes Available Upon Request]
  • Simulates the look and feel of bone for pre-operative planning and training
  • Low-cost alternative to expensive and difficult to obtain cadaver bone
  • Formulated for ideal sawing, drilling, and screw retention
  • ISO Certified Antibacterial – ideal for parts that will pass through many hands in educational and clinical settings
  • Radio opaque additive allows for enhanced visibility on X-ray and CT Scan
  • Easy to print on practically any 3D printer (PLA-based formulation)
  • No offensive odors or moisture absorption problems to ease printing in office environments
  • Pairs well with our X1 Water Soluble Support for printing complex parts

    Filament Specifications:

    1.75mm and 2.85mm +/- 0.05mm in diameter

    Recommended Print Settings:

    • Extruder: 220-240°C
    • Bed Temp: 23-60°C
    • Fan Speed:  50-100%
    • Bed Prep: Magigoo Bed Prep Adhesive gives us the best results
    • Heated Chamber: Not required
    • Supports: Water soluble AquaTek X1 USM works great for complex parts.
    • Drying Instructions: 65°C for 4 hours.
