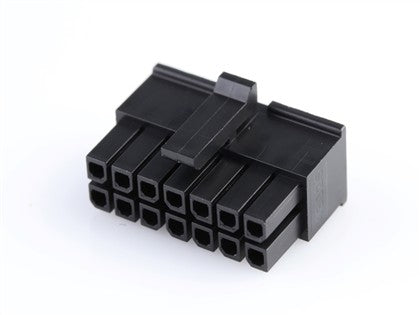

The MOLEX 43025-1400 is a high-quality Micro-Fit 3.0 Receptacle Housing designed for power and signal applications. This dual-row connector features 14 circuits, providing reliable connections in various electronic assemblies. Manufactured in China, it adheres to RoHS compliance standards, ensuring environmentally responsible manufacturing.
Key Features
Part Number: 43025-1400
Manufacturer: MOLEX
Country of Origin: CN (China)
Product Type: Connector
Product Category: Headers & Wire Housings
Series: 43025
Application: Power, Wire-to-Board, Wire-to-Wire
Number of Circuits: 14
Number of Rows: 2
Color: Black
Material: Nylon (UL 94V-0, Low-Halogen)
Pitch: 3.00mm
Gender: Receptacle
Locking Mechanism: Yes
Polarized to Mating Part: Yes
Operating Temperature Range: -40°C to +105°C
RoHS Compliant: Yes
ECCN: EAR99
UOM: EA (Each)
Package Type: Bag
Technical Specifications
Flammability
94V-0
Certifications
CSA LR19980, UL E29179
Maximum Circuits
14
Temperature Range
-40°C to +105°C
Compatibility & Mating Components
Mates with Micro-Fit 3.0 Dual Row Plug Housings (Part 43020)
Mates with Micro-Fit 3.0 Dual Row Headers (Part 43045)
Mates with Micro-Fit 3.0 Dual Row Test Plugs (Part 44242)
Use with pre-crimped leads and crimp terminals for secure connections. Compatible with various Micro-Fit 3.0 series components.
Additional Resources
For detailed drawings, 3D models, specifications, and compliance information, please refer to the Datasheet.
Disclaimers
Datasheet was not processed please search the internet for the part number 43025-1400 for more details.
