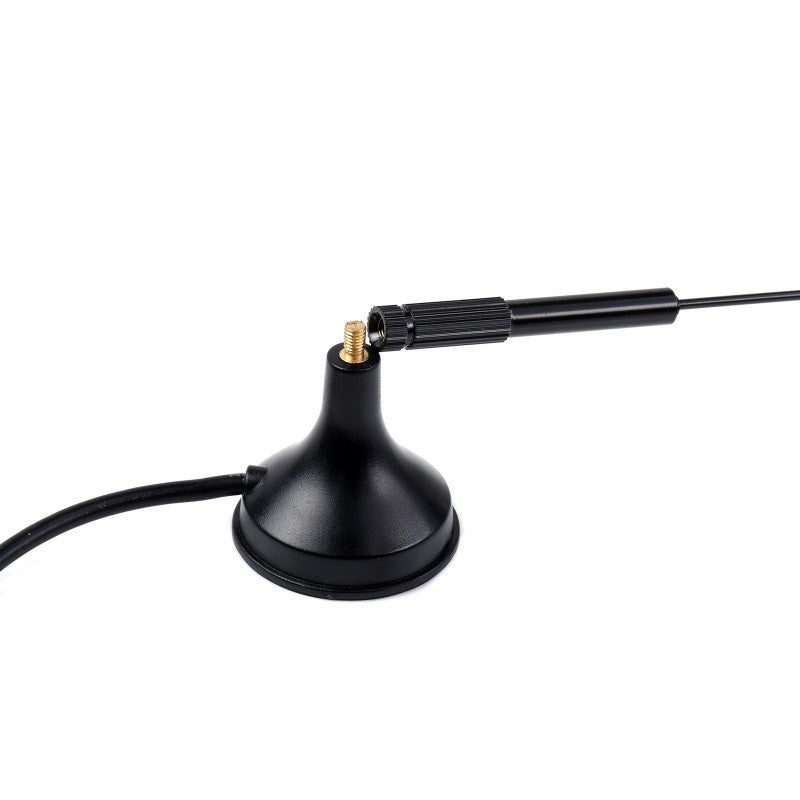

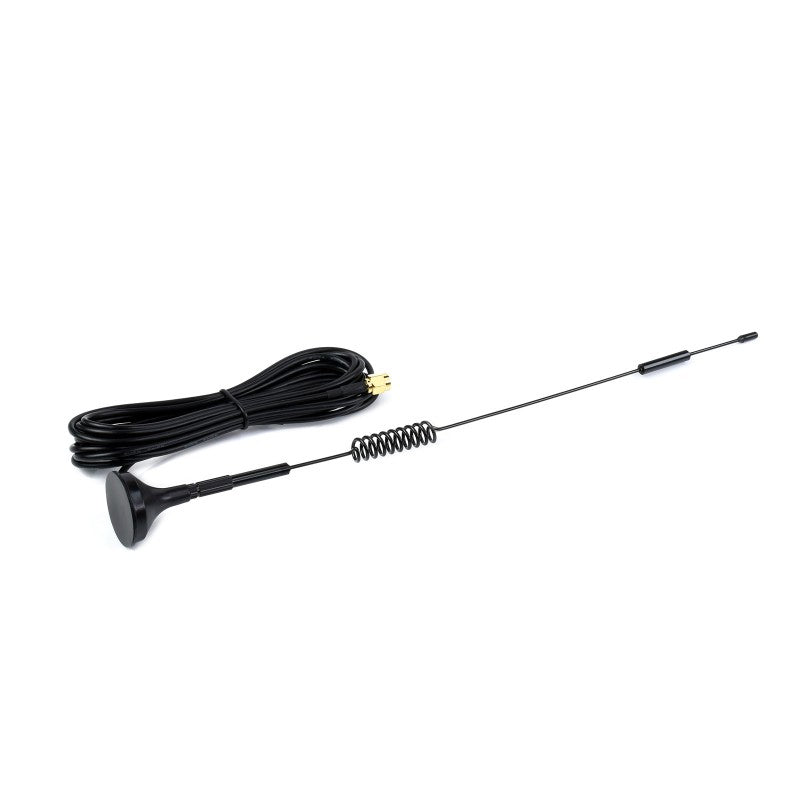

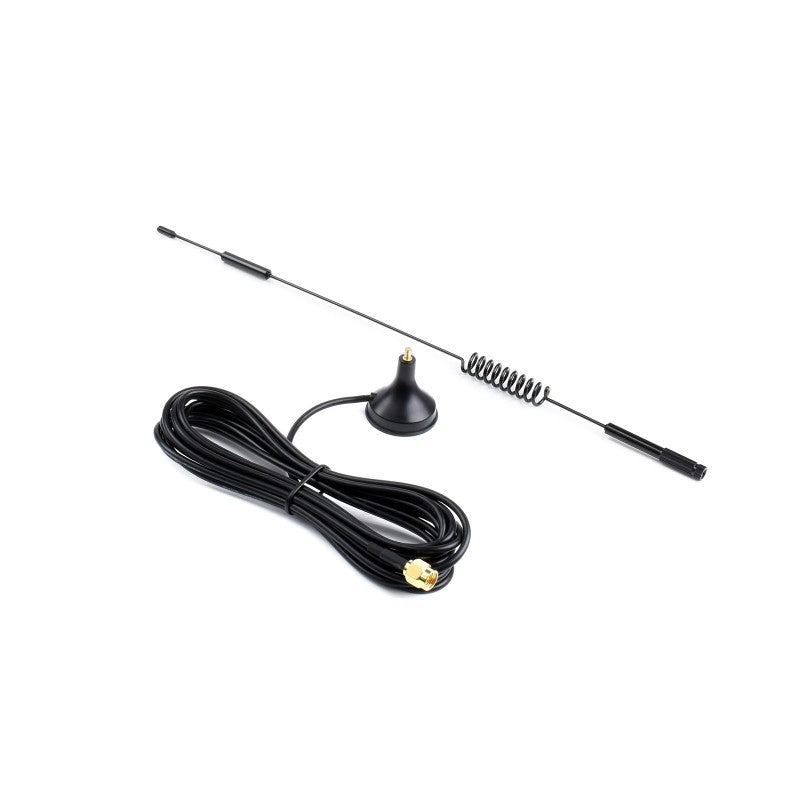

4G High Gain SMA Outdoor Waterproof Antenna
4G High Gain SMA Antenna For Outdoor Condition, 4G/3G/2G/LPWA Support, Waterproof, Magnetic Base
Specifications
NETWORK SUPPORT
4G/3G/2G/LPWA
GAIN
12DBI
FREQUENCY RANGE
700~2700 MHz
CONNECTOR
SMA inner pin
BAND WIDTH
2300 MHz
INPUT POWER
10W MAX
OUTPUT IMPEDANCE
50Ω
ANTENNA HEIGHT
32 cm
VSWR
≤ 1.5
CABLE LENGTH
~3m
POLARISATION
Vertical
COLOR
Black
WATERPROOF
IP65
OPERATING TEMP.
-40℃ ~ +85℃
Outline Dimensions
