586-1103-101F
Product Description

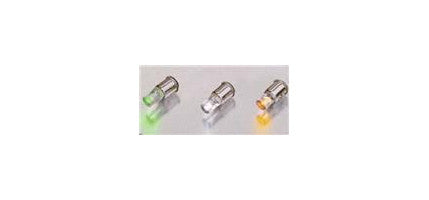

The LED Replacement Lamps - Based LEDs from DIALIGHT CORPORATION are high-quality optoelectronic components designed for reliable illumination in various applications. These T1 3/4 MIDGET flange LEDs are polarized and available in multiple colors, including red, green, yellow, blue, and white, with operating voltages of 6V, 14V, and 28V DC.
Key features include:
Single chip based LED design for consistent performance
RoHS compliant for environmentally responsible manufacturing
Operating temperature range: -40°C to +80°C
Storage temperature range: -40°C to +100°C
Replaces incandescent lamps such as models 327, 328, 330, 345, 349, 350, 376, 377, 380, 381, 382, 385, 387, and 7341
Compatible with transparent lenses to optimize light output
Available in a package type: BAG
Specifications
Part Number
Color
Peak Wavelength (nm)
Voltage (VDC)
Current TYP. (mA)
Intensity TYP. (mcd)
RoHS Compliant
586-1101-101F
Red
639
6
10
775
Yes
586-1102-101F
Green
520
6
10
600
Yes
586-1103-101F
Yellow
592
6
10
775
Yes
586-1105-101F
Blue
467
6
10
210
Yes
586-1106-101F
White
*
6
10
460
Yes
586-1101-103F
Red
639
14
10
775
Yes
586-1102-103F
Green
520
14
10
600
Yes
586-1103-103F
Yellow
592
14
10
775
Yes
586-1105-103F
Blue
467
14
10
210
Yes
586-1106-103F
White
*
14
10
460
Yes
586-1101-105F
Red
639
28
10
775
Yes
586-1102-105F
Green
520
28
10
600
Yes
586-1103-105F
Yellow
592
28
10
775
Yes
586-1105-105F
Blue
467
28
10
210
Yes
586-1106-105F
White
*
28
10
460
Yes
Dimensions are provided in inches [mm].
Additional Details
Part Number: 586-1103-101F
Manufacturer: DIALIGHT CORPORATION
Country of Origin: MY
Unit of Measure: Each (EA)
ECCN: EAR99
Package Type: BAG
Datasheet: Download Datasheet
Note: Operation at voltages higher than recommended should not exceed 10% above the specified voltage. Use transparent lenses to optimize light output. For more details, please refer to the datasheet or search the internet for the part number.
