AMPHENOL FCI Connectors 15P BtB RECPT DR SMT .76 AU HORIZONTAL (Part Number: 71609-315LF)
Enhance your electronic assembly with the high-quality board-to-board (BtB) connector from AMPHENOL FCI, designed for reliable and efficient connections in various electronic applications. This connector features a horizontal mount design with 15 positions, ensuring secure and stable electrical contact.
Product Features:
Part Number: 71609-315LF
Manufacturer: AMPHENOL FCI
Country of Origin: France (FR)
Package Type: Tube
RoHS Compliant: Yes
ECCN: EAR99
UOM: Not specified
Product Category: Connectors | Board to Board & Mezzanine Connectors
Connector Type: 15-Pin Back-to-Back Receptacle, Surface Mount (SMT)
Contact Finish: Gold (Au) on contacts
Mounting Style: Horizontal
Technical Specifications:
Number of Positions: 15
Contact Finish: Gold (Au)
Mounting Type: Surface Mount (SMT)
Package: Tube
RoHS Compliant: Yes
ECCN: EAR99
Datasheet & Additional Information
For detailed technical specifications and application guidelines, please refer to the official datasheet: Download Datasheet.

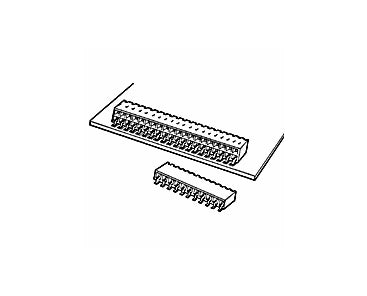

Images
Note: Datasheet was not processed, please search the internet for the part number for more details.
