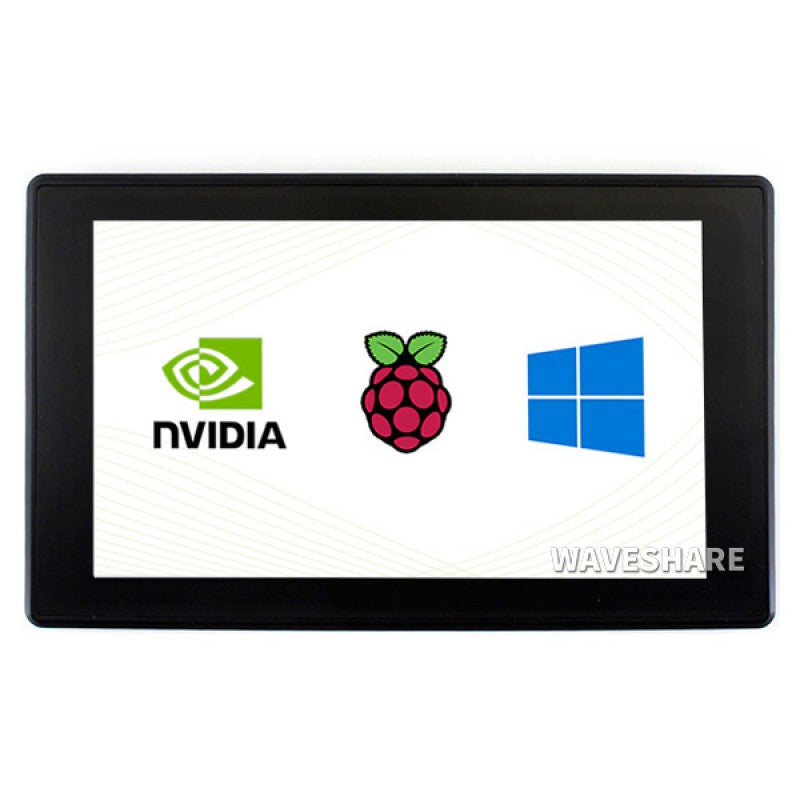

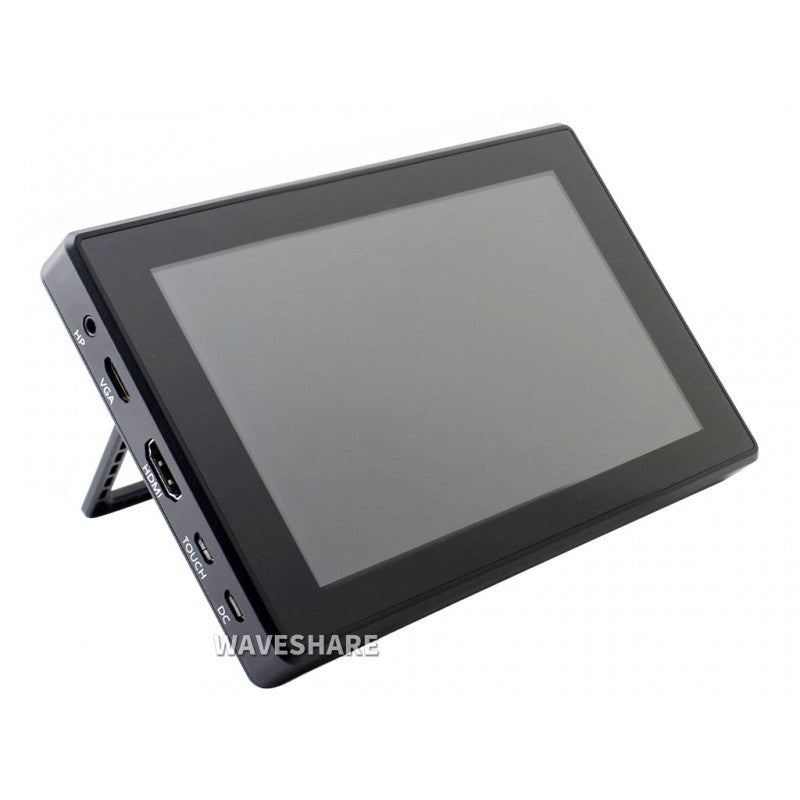

7inch Capacitive Touch Screen LCD (H) With Case And Toughened Glass Cover, 1024Ć600, HDMI, IPS
1024 Ć 600, 7-inch Capacitive Touch Screen LCD, HDMI interface, supports various systems. Toughened glass capacitive touch panel, 6H hardness. It supports Raspberry Pi and can also be used as a computer monitor.
Features
- 7inch IPS screen, 1024 x 600 hardware resolution, configurable by software (up to 1920 x 1080).
- Toughened glass capacitive touch panel, 6H hardness (case version only).
- When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie.
- Use with Windows PC, support Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch.
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
- It has a 3.5mm audio jack and supports HDMI audio output.
- Supports VGA inputĀ (specific cableĀ is required and should be purchase separately).

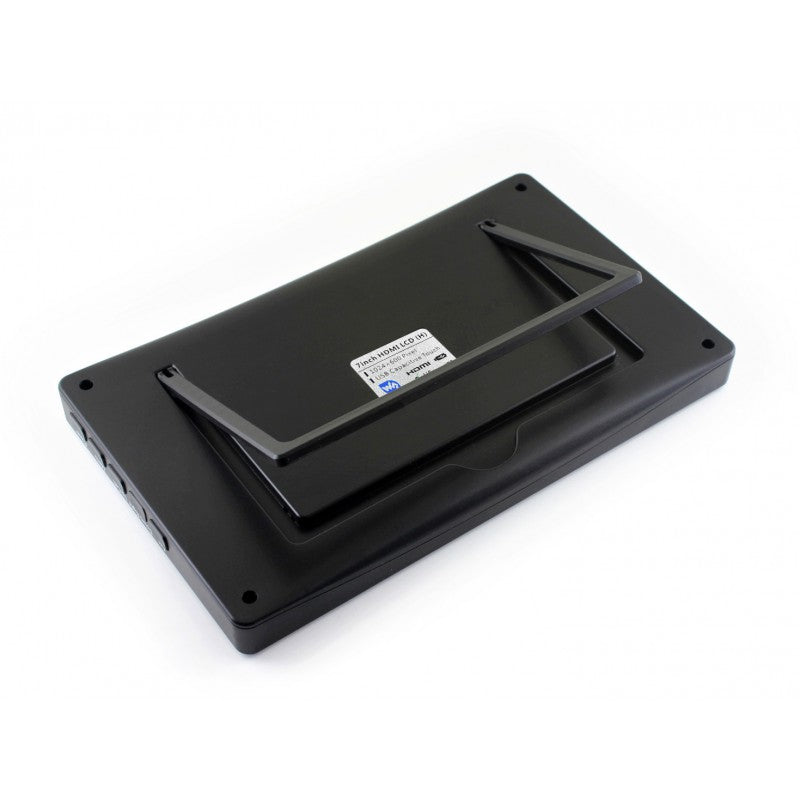

- High-quality PC case, optional tilt angle: 30Ā°/50Ā°(case version only).
Resources
Wiki:Ā www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case)
Salient Features:
Note: This introduction is based on the 7inch HDMI LCD (H) (with case)

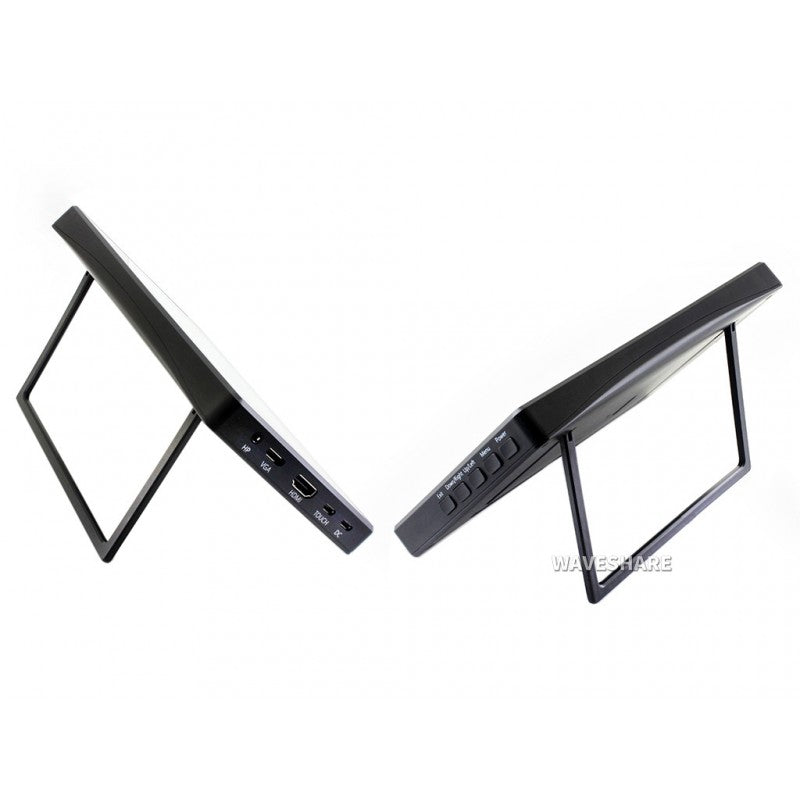

- Power: Open or Close LCD display
- Menu: Open OSD menu (It can also work as "OK button" after entering the menu )
- Up/Left: Direction button
- Down/Right: Direction button
- Exit: it can also work as Return after entering the menu
You can use the "Power" button to close the LCD display for reducing consumption if it will be idle for a long time.
Open the OSD menu by pressing the "Menu" button, then use the "OK button" and "Direction button" to change the configuration, and finally, use the "Return button" to exit.
Package Includes:
- 1x 7inch HDMI LCD (H) (with case)
- 1x HDMI cable
- 1x HDMI to Micro HDMI Adapter
- 1x USB type A plug to micro B plug cable
- 1x Quick start sheet
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display - IPS Panel

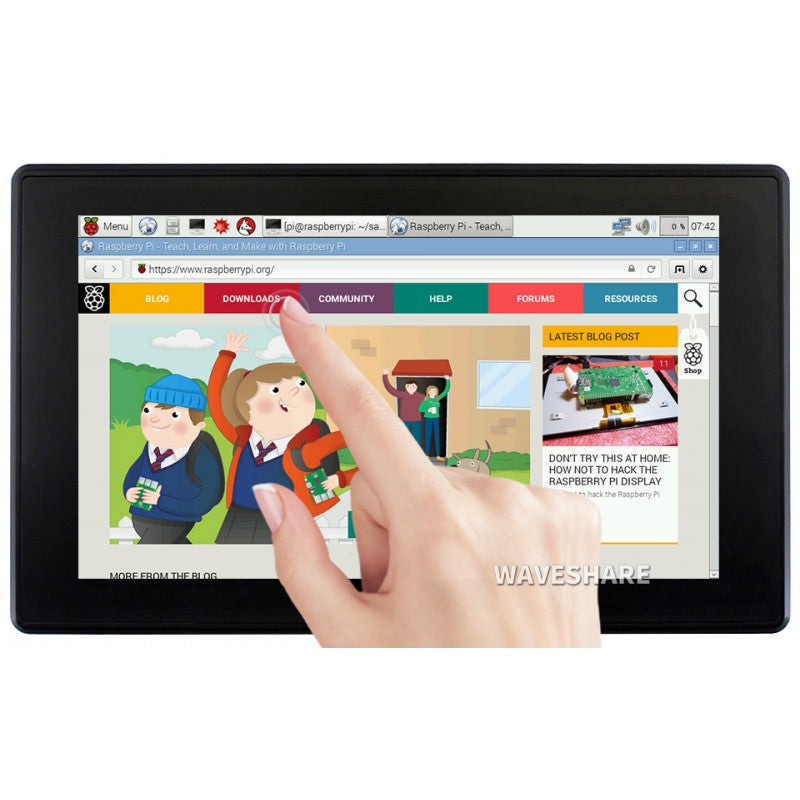

Touch Control

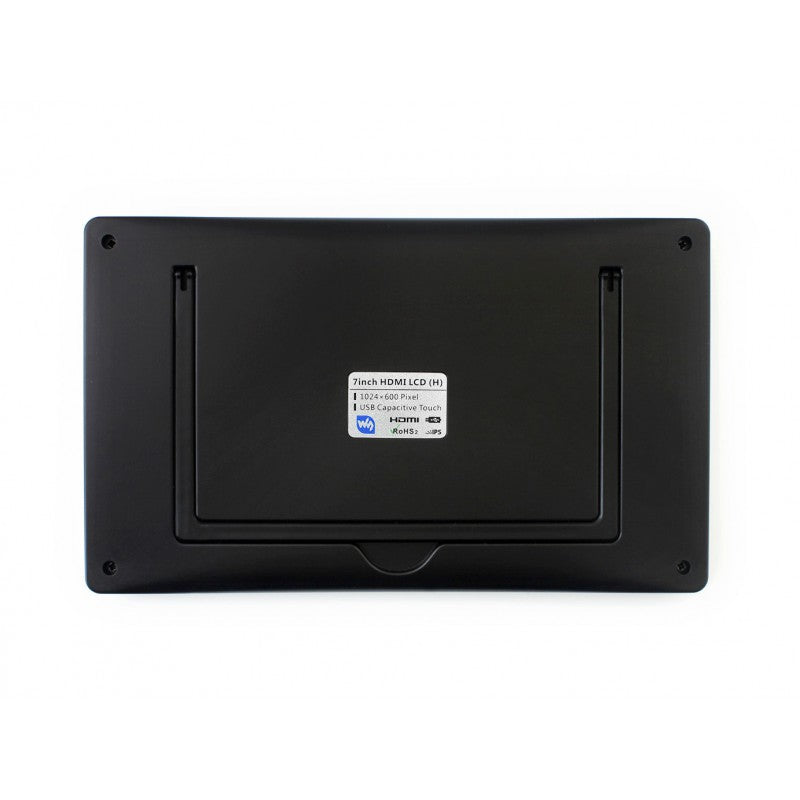

Appearance And Dimensions
Ā
Package Contents:
Weight:Ā 0.52 kg
- 7inch HDMI LCD (H) (with case) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB type A plug to micro B plug cable x1
What devices can I connect to this LCD panel?
It supports Raspberry Pi OS Ubuntu Kali and Retropie and can be used with Windows PCs (Windows 7 to Windows 11) as an HDMI monitor.
Does the touch panel support multi touch?
The touch panel supports 5 point capacitive touch. The case version uses a toughened glass with 6H hardness.
What are the display resolution options and how can I adjust them?
The native resolution is 1024x600. It can be software configured up to 1920x1080.
What is included in the package?
Includes 7 inch HDMI LCD with case, HDMI cable, HDMI to Micro HDMI adapter, USB A to micro B cable, and a quick start sheet.
How do I use the on screen display and save power?
Open the OSD menu by pressing Menu, use the OK and direction buttons to adjust settings, and exit with Return. To save power, press the Power button to switch off the display.
