Advanced ThinkRobotics NVIDIA Jetson Nano Deployment Kit (B01-4GB)

This Advanced ThinkRobotics NVIDIA Jetson Nano Development Kit (4GB) comes with an interface rich J202 carrier board from SEEED studio, with Jetpack preinstalled.

This is product is manufactured in India, with more than 40% local procurement.

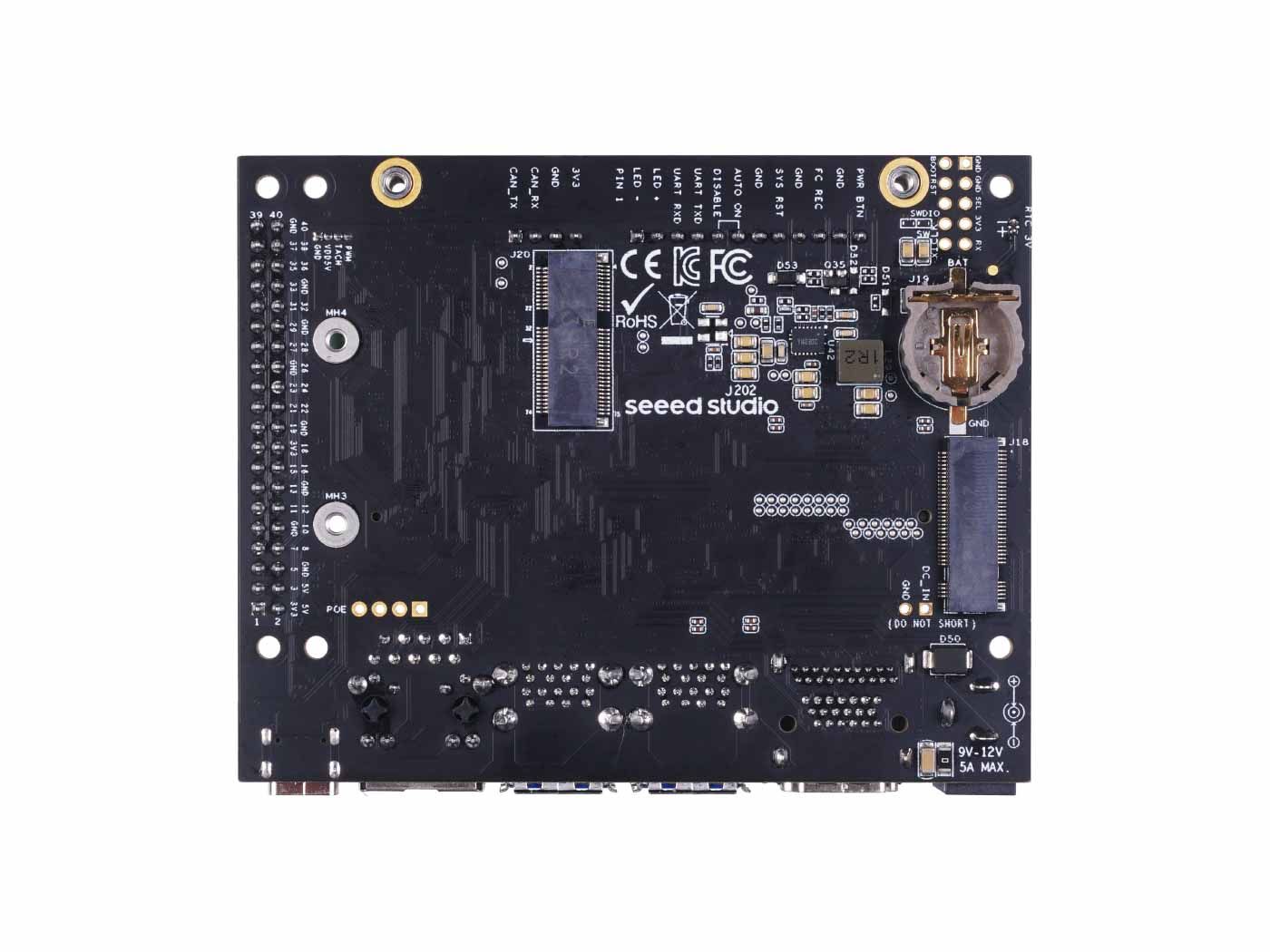

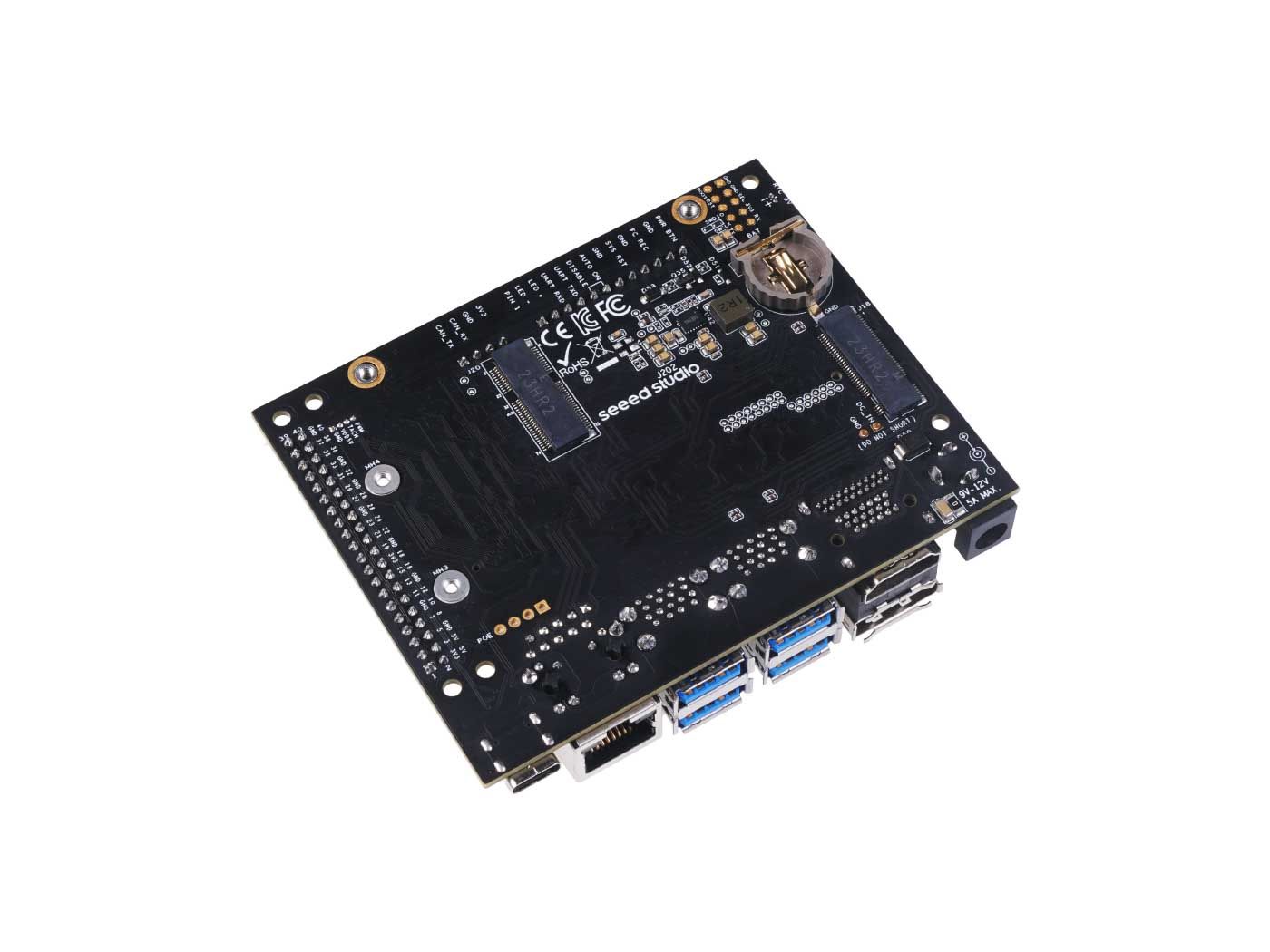

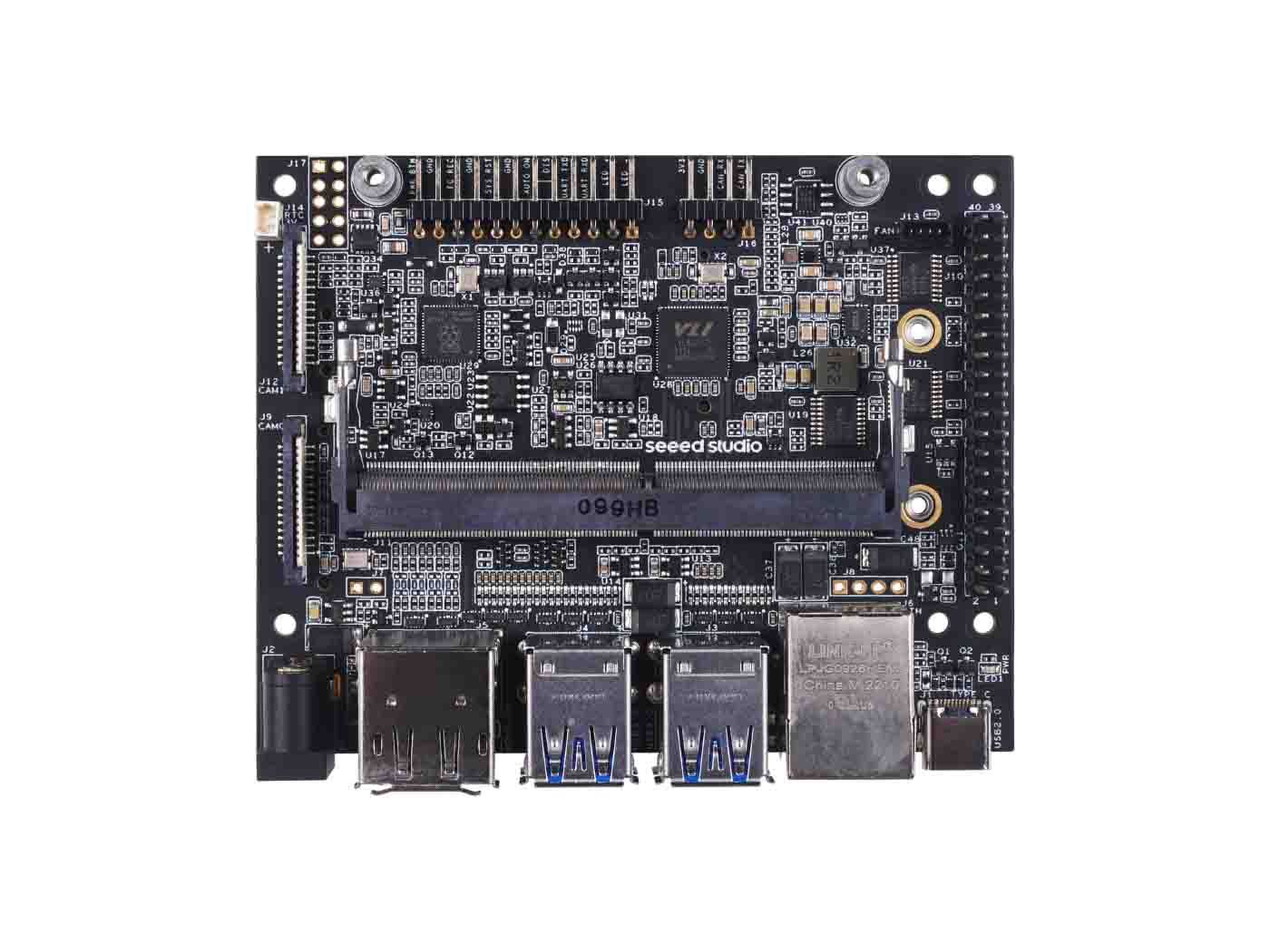

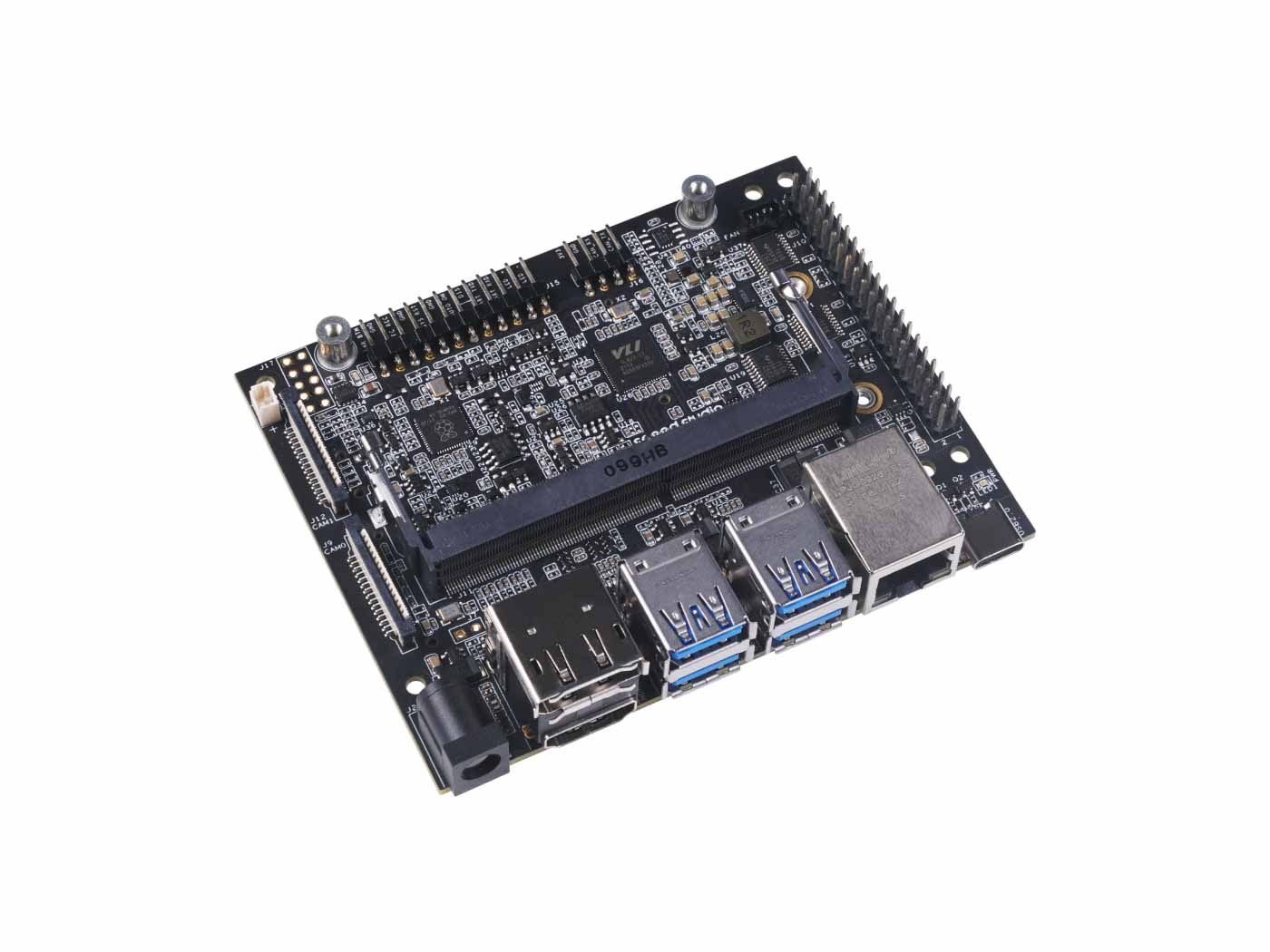

The reComputer J202 carrier board has nearly the same design and function as NVIDIA® Jetson Xavier NX™ carrier board, perfectly works with Jetson Nano/Xavier NX module, and consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.

The carrier board can work as NVIDIA Jetson Xavier NX Dev Kit carrier board alternative, accelerating your next AI application development and deployment.

NOTE: DELIVERY TIME CAN VARY BETWEEN 7 to 10 BUSINESS DAYS. For assembly, programming and case design, please contact us.

The carrier board and modules come with a 1 year manufacturer's limited warranty supported by ThinkRobotics.

Please note Case Options:

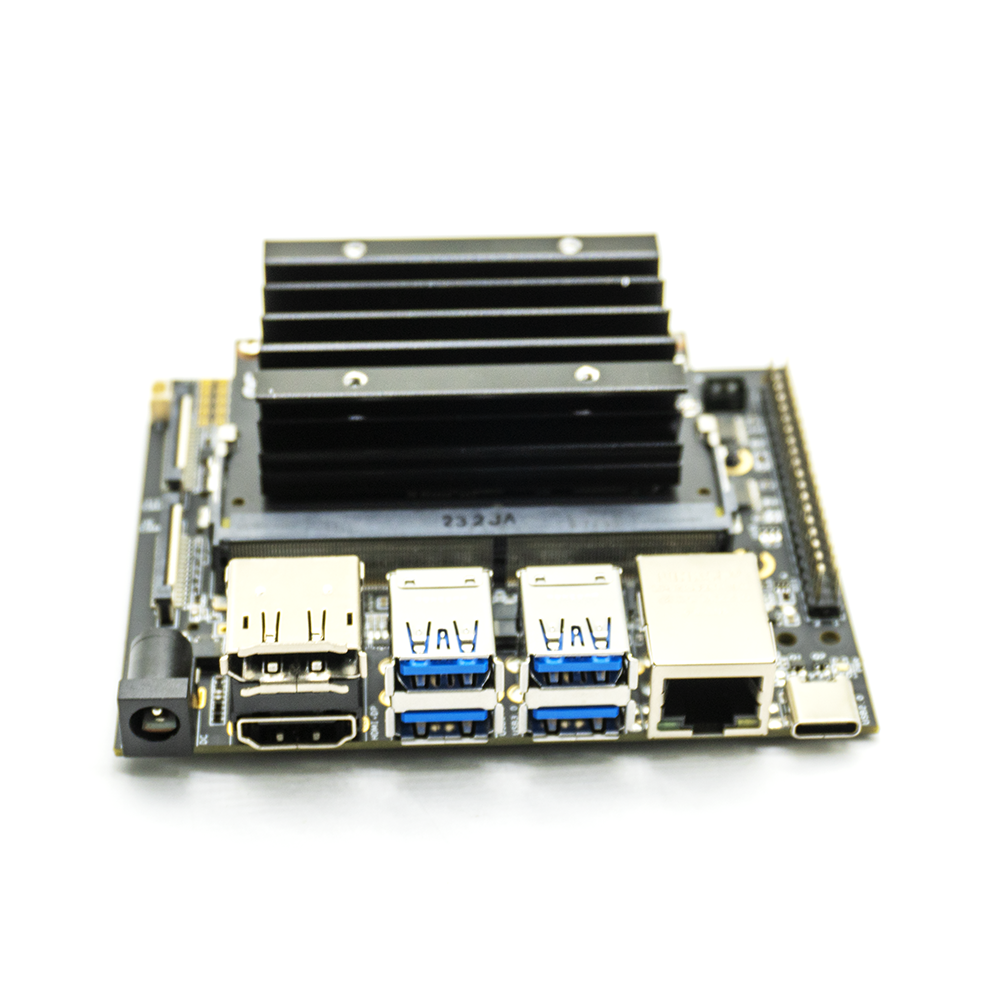

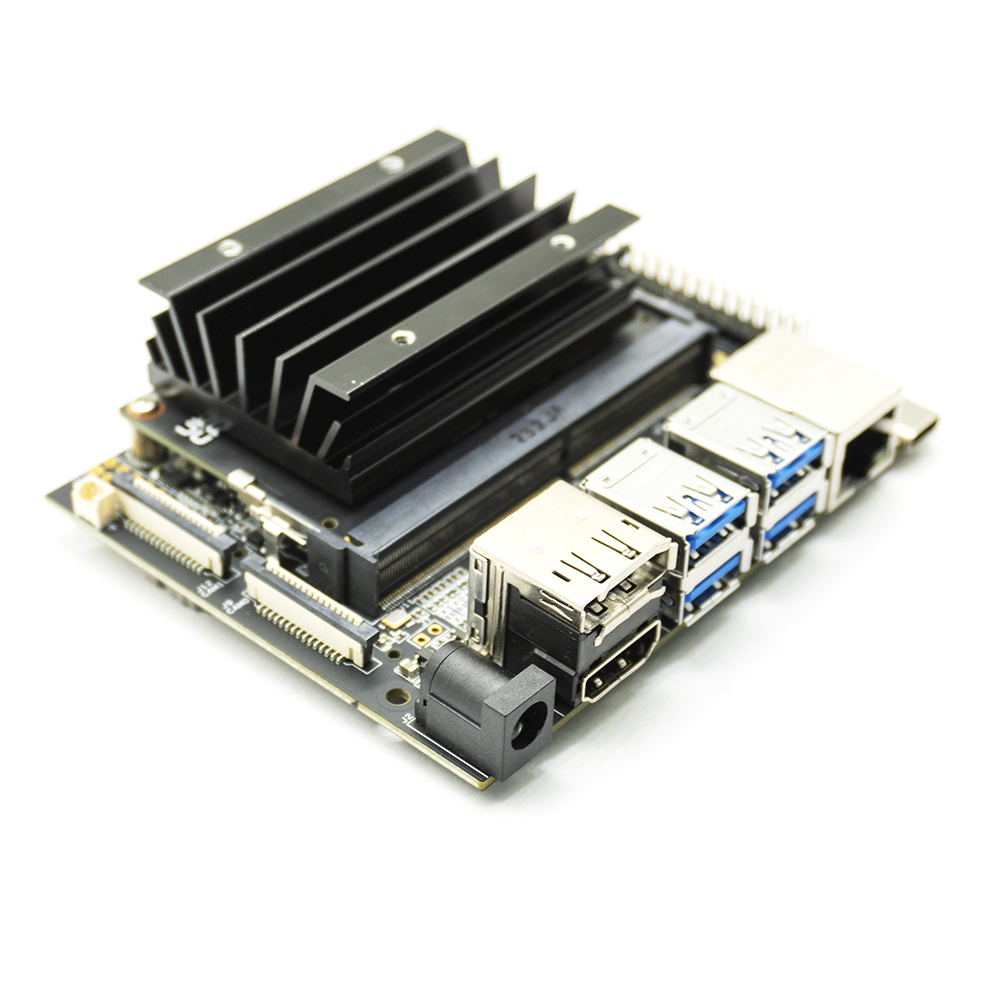

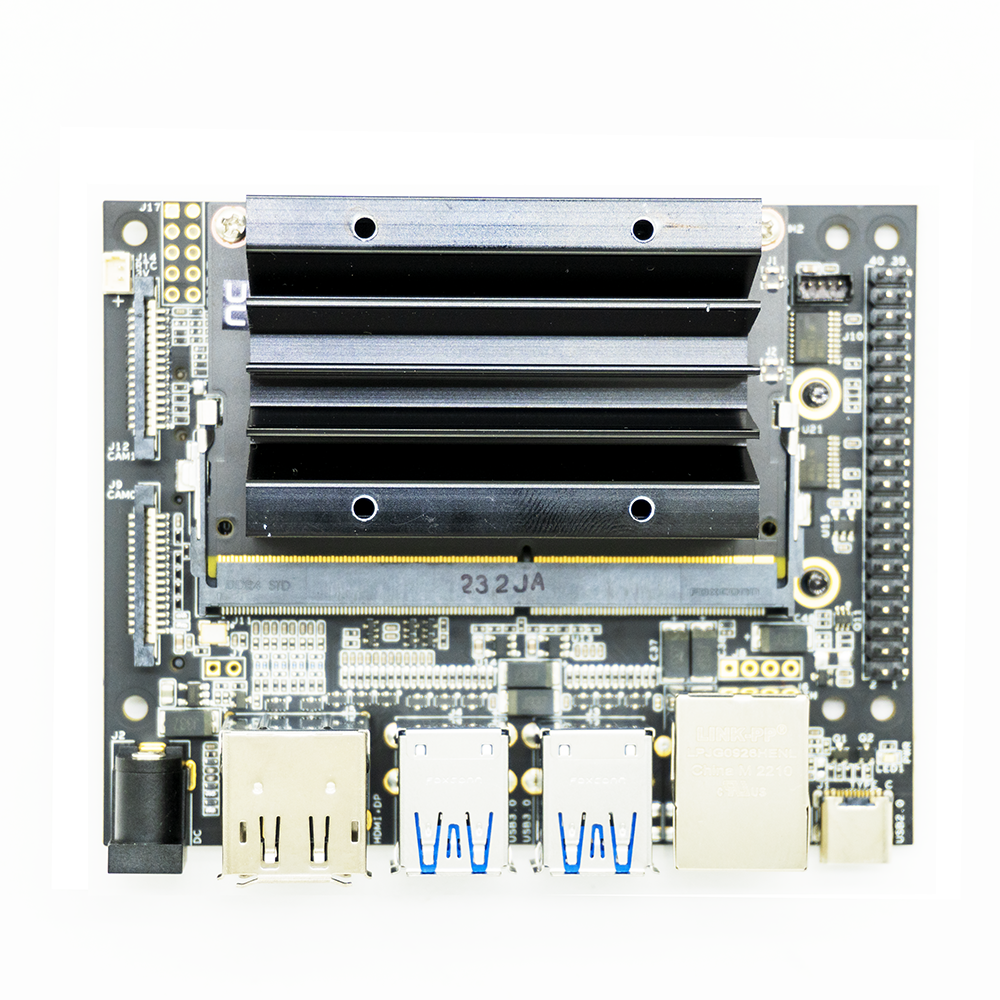

• Passive HeatSink comes with a PLA 3D Printed Plastic Case
• Active HeatSink comes with a CF Nylon 3D Printed Case


Features

• Perfectly suited: Design for Jetson Nano/Xavier NX (260-pin SODIMM).
• Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.
• Rich peripherals: Higher performance stability consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
• High versatility: Suitable for complicated AI graphical applications.
• Comprehensive certificates: FCC, CE, RoHS, KC

Description

reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1 Gen 2, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.

Functionality

With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.

Specifications:

• Module Compatibility: Jetson™ Nano/ Xavier NX

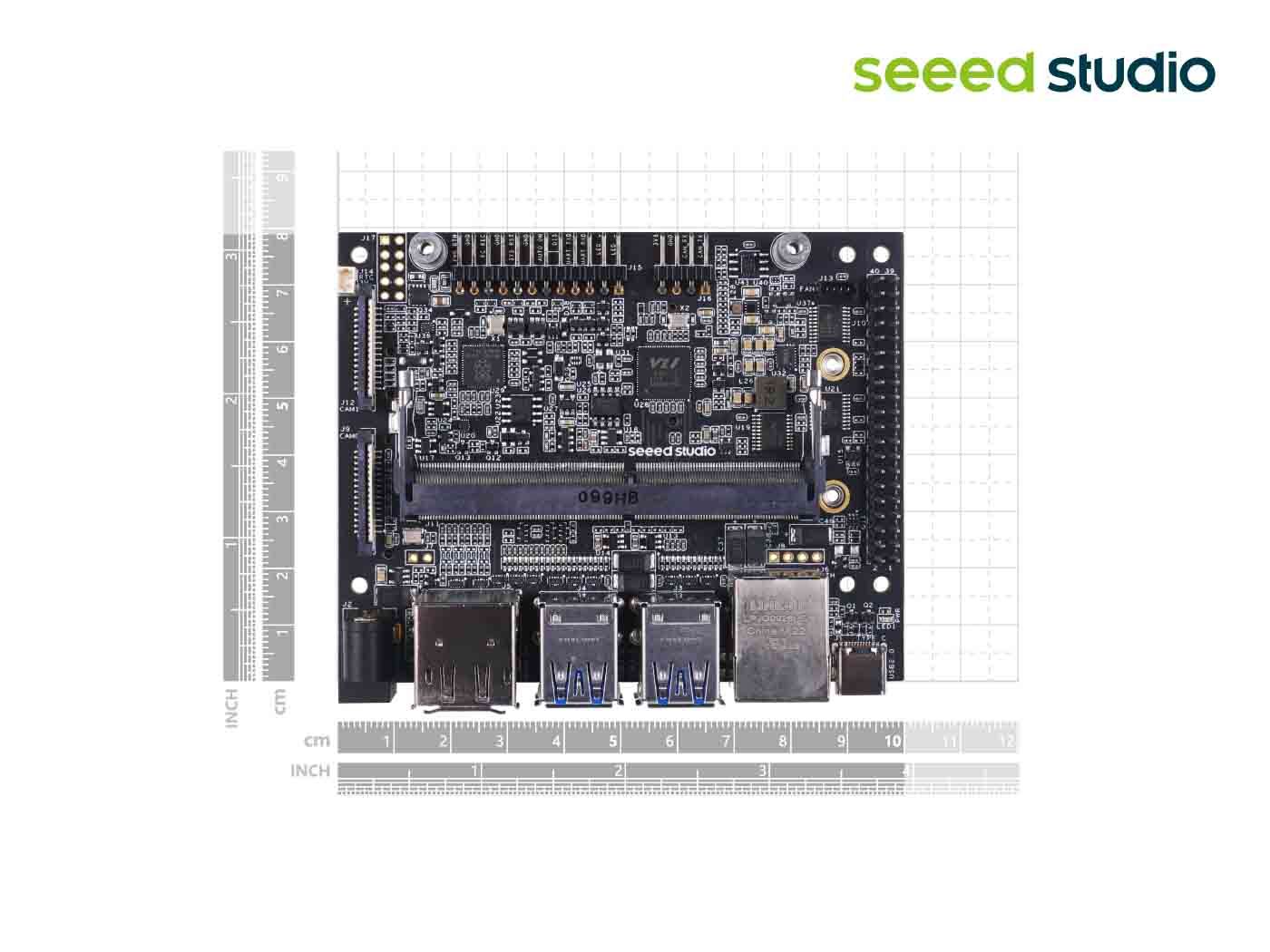

• PCB Size / Overall Size: 100mm X 80mm
• Display: 1x HDMI and 1x DP
• CSI Camera: 2
• Ethernet: 1x Gigabit Ethernet (10/100/1000M)
• USB: 4x USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano); 1x USB Type-C (Device mode)
• 1x M.2 Key E, 1x M.2 Key M

• FAN: 1x fan connector
• 1x CAN
• Multifunctional Port: 1x 40-Pin, 1x 12-Pin
• RTC: RTC 2-pin, RTC socket(reserved)
• Power supply: 12V/6A(Barrel Jack 5.5/2.1mm)



Edge AI Applications

Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.

• Pedestrian detection by Edge Impulse

• Hard hat detection and build custom PPE detection

• Pose Estimation with alwaysAI

• Visual anomaly detection using NVIDIA Deepstream IoT

• Retail store items detection

• Wildfire detection

• Animal detection

Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!

Please also check out Seeed wiki guide including getting started with Jetson Nano and also building different projects.

Comparison with NVIDIA Xavier NX Dev Kit carrier boards

 Hardware Overview
