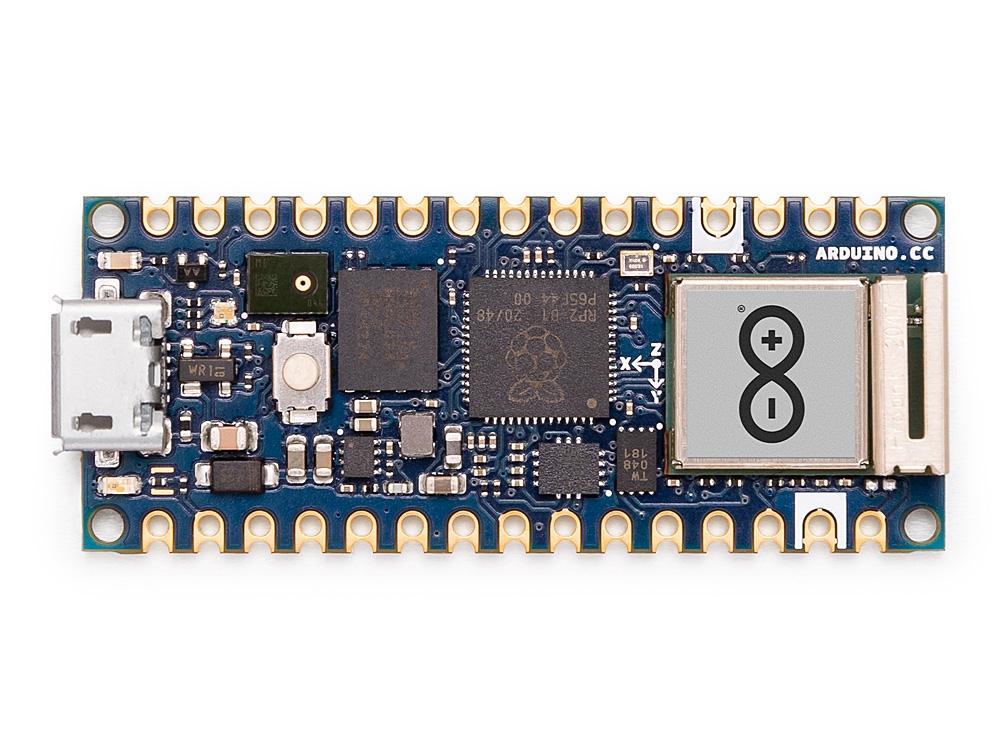

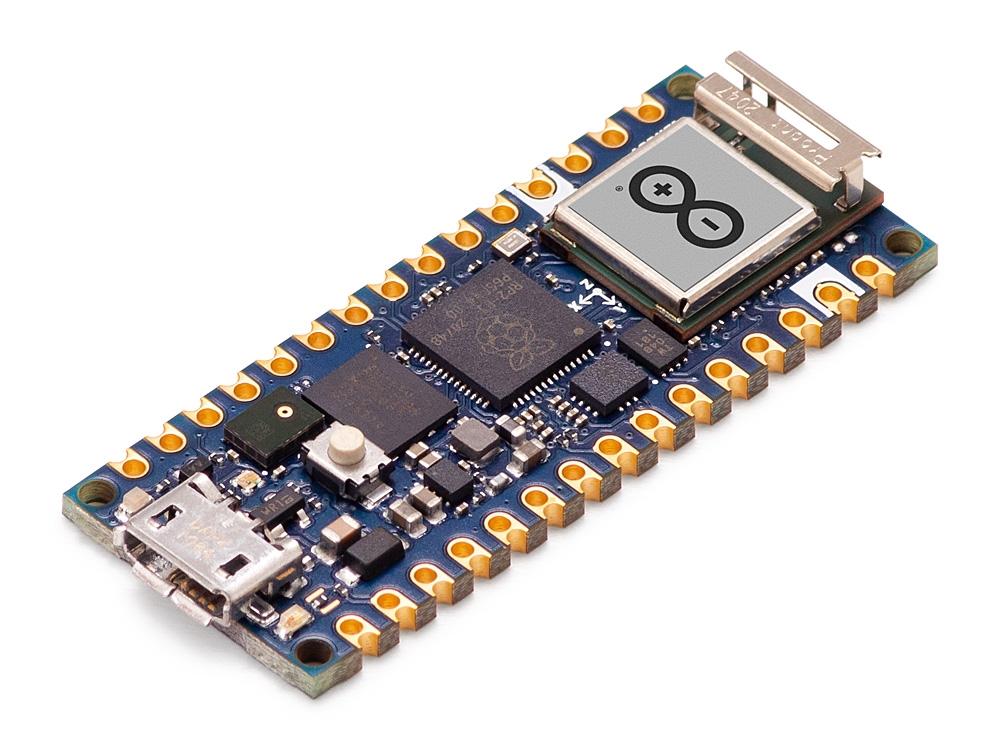

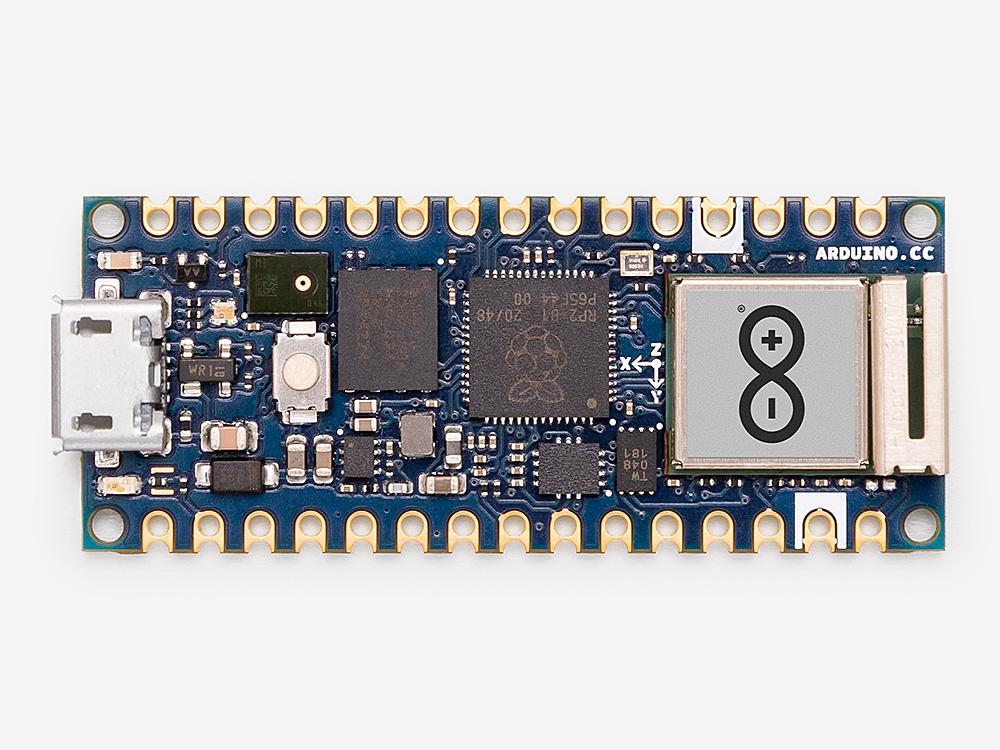

Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features.
The brain of the board is the the Raspberry Pi® RP2040 silicon; a dual-core Arm Cortex M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.
But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.
It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.
The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.
Arduino IoT Cloud Compatible
Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
The u-blox NINA-W102 radio module makes this the only connected RP2040 option. It gives you full WiFi 802.11b/g/n connectivity, along with Bluetooth® and Bluetooth® Low Energy v4.2
SENSOR OVERLOAD
Packed onto this tiny board are a couple of very useful sensors. A built-in mic is there for sound activation, audio control and even AI voice recognition. The six-axis smart IMU with AI capabilities tells the board which way it’s moving, and adds fall sensing and double-tap activation.
HARD WORKING HARDWARE
It might be a small board, but the Nano RP2040 Connect packs a hardware punch. It matches the established Arduino Nano form factor, making it the perfect upgrade for projects of all sizes.
MORE MEMORY
With 16MB flash memory that’s external to the microprocessor, there’s bags of room for your code and storage needs.
POWER PINS
The programmable I/O pins have functions that bigger boards only dream of; 22 digital, 20 with PWM and 8 analog.
RASPBERRY PI® PICO COMPATIBLE
Smart software options for a very smart device. It has full support for the entire RP2040 software ecosystem.
ARDUINO LOVER
Supports the Arduino programming language, the IDE 2.0 and all those awesome libraries.
PYTHON POWER
Full support for MicroPython (available in September, 2021). Get a Nano RP2040 Connect, and it comes with a FREE OpenMV license for machine vision projects.
ARDUINO CLOUD READY
Program and operate the Nano RP2040 Connect directly from your web browser. Fully compatible from day one. Upload your sketches over-the-air with instant remote control from the free Arduino IoT Remote smartphone app.
The Arduino Nano RP2040 Connect is also available with header pins pre-installed.
Technical Specifications
Board
Nano RP2040 Connect
SKU: ABX00052
Microcontroller
Raspberry Pi® RP2040
USB connector
Micro USB
Pins
Built-in LED pin
13
Digital I/O Pins
20
Analog Input Pins
8
PWM pins
20 (Except A6, A7)
External interrupts
20 (Except A6, A7)
Connectivity
Wi-Fi
Nina W102 uBlox module
Bluetooth®
Nina W102 uBlox module
Secure element
ATECC608A-MAHDA-T Crypto IC
Sensors
IMU
LSM6DSOXTR (6-axis)
Microphone
MP3DT06JTR
Communication
UART
Yes
I2C
Yes
SPI
Yes
Power
Circuit operating voltage
3.3V
Input Voltage (VIN)
5-21V
DC Current per I/O pin
4 mA
Clock speed
Processor
133 MHz
Memory
AT25SF128A-MHB-T
16MB Flash IC
Nina W102 uBlox module
448 KB ROM, 520KB SRAM, 16MB Flash
Dimensions
Weight
6 g
Width
18 mm
Length
45 mm
Documentation
OSH: Schematics
Arduino NanoRP2040 Connect is open-source hardware! You can build your own board using the following files:
Batteries: the Nano RP2040 Connect has no battery connector, nor charger. You can connect any external battery of your liking as long as you respect the voltage limits of the board.
Does the Nano RP2040 have I2C pins? / Can I use I2C communication with the Nano RP2040?
- I2C pins: Pins A4 and A5 have an internal pull up and default to be used as an I2C Bus so usage as analog inputs is not recommended.
- Operating voltage: The operating voltage for Nano RP2040 Connect is 3.3V
What is the 5V pin for?

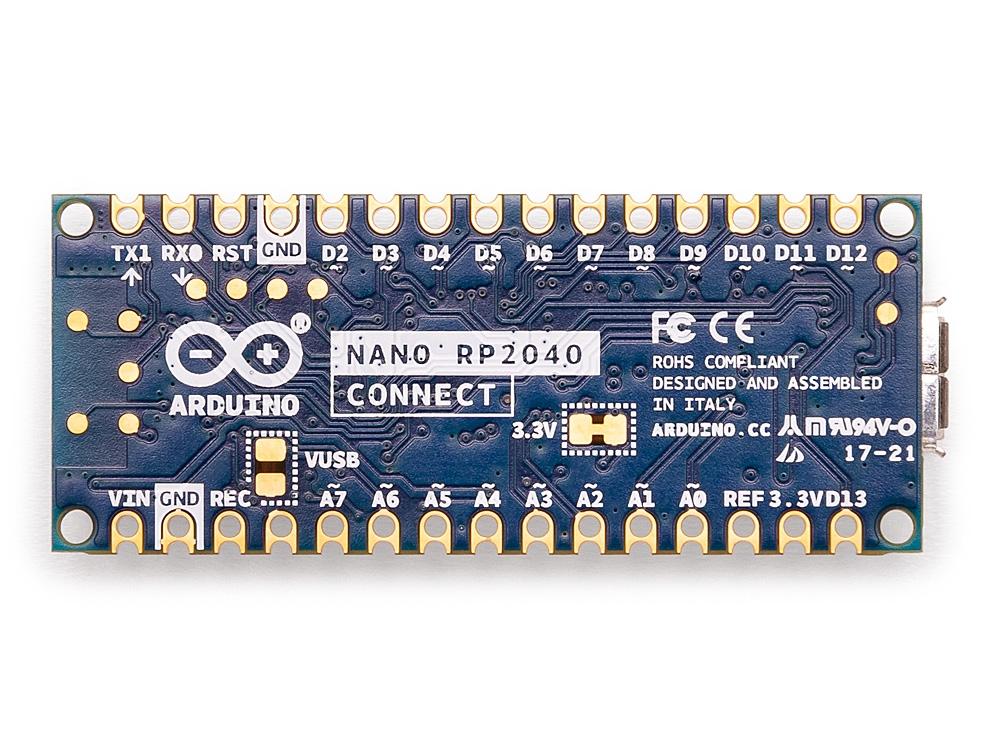

5V: This pin outputs 5V from the board when powered from the USB connector. Note: for it to work, you need to short their VBUS jumper on the back of the board. If you power the board from the VIN pin, you won’t get any regulated 5V and even if you do the solder bridge.
Does the Nano RP2040 have PWM pins?
PWM: All pins except for A6 and A7 are available for PWM.
How can I use the embedded RGB LED?
RGB: The RGB LEDs are connected through the Wi-Fi module, so it is required to include the WiFiNINA library to use it.
