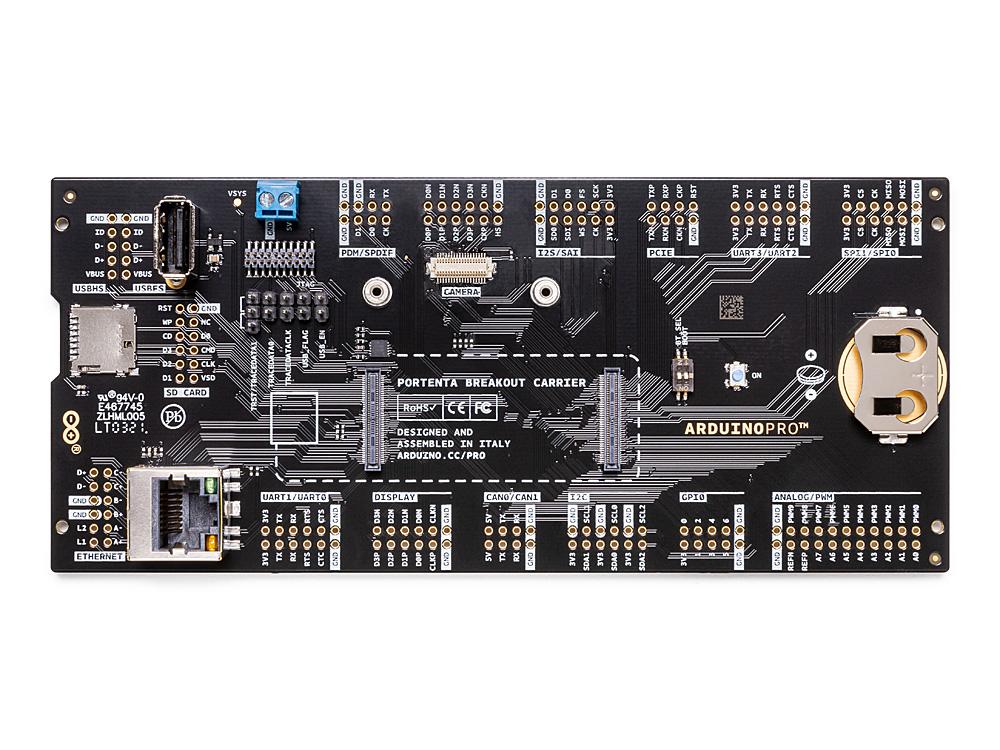

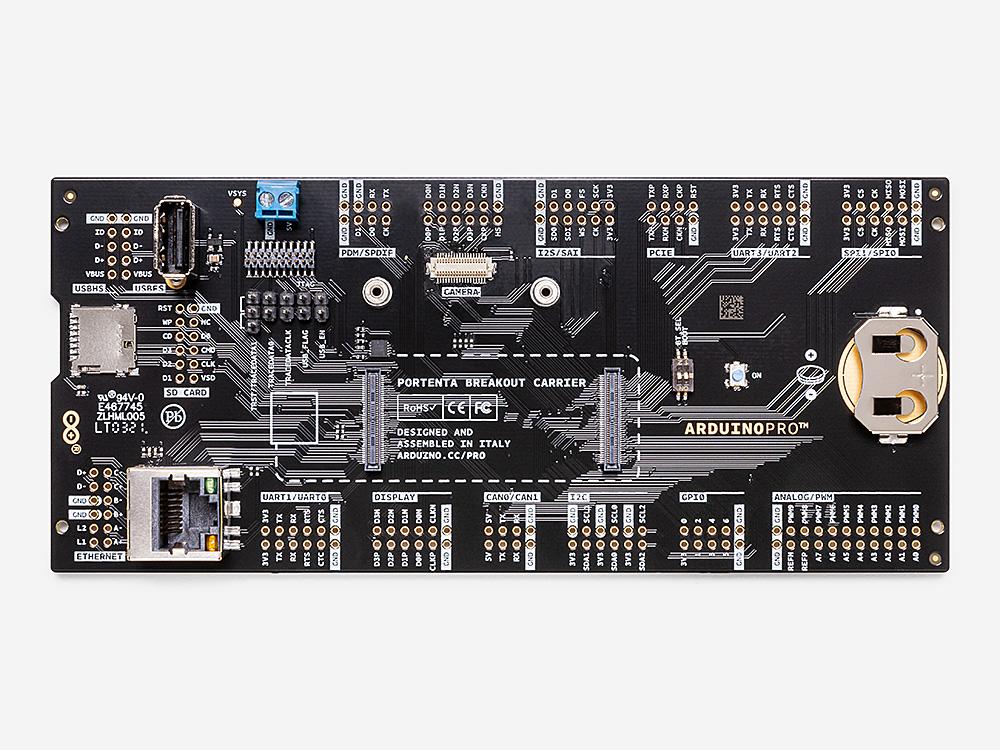

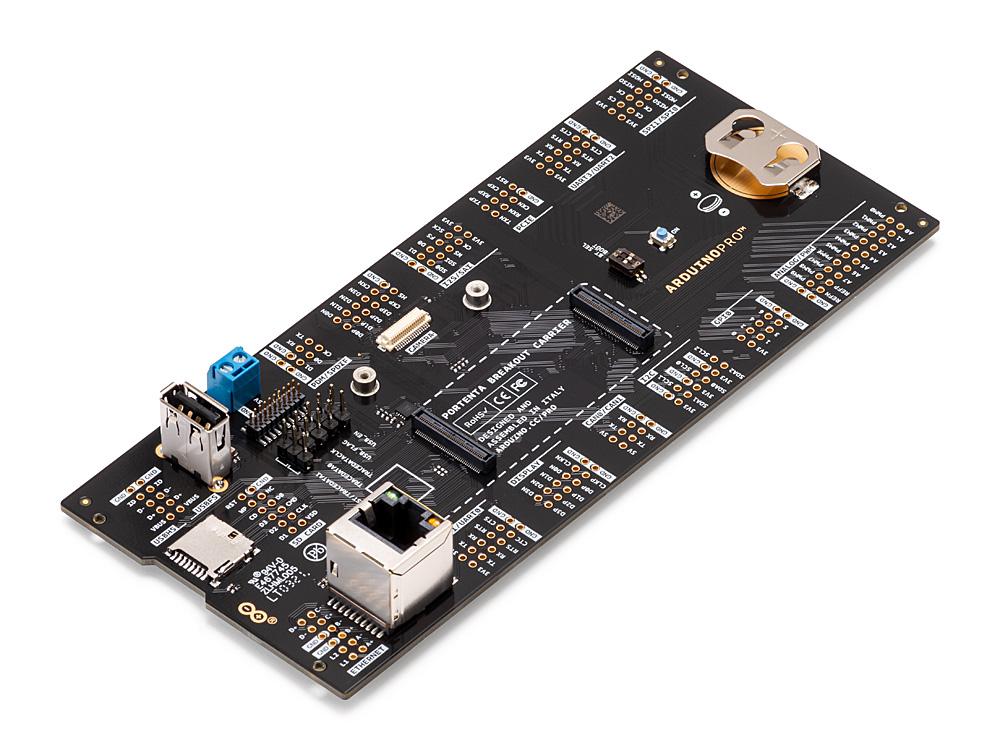

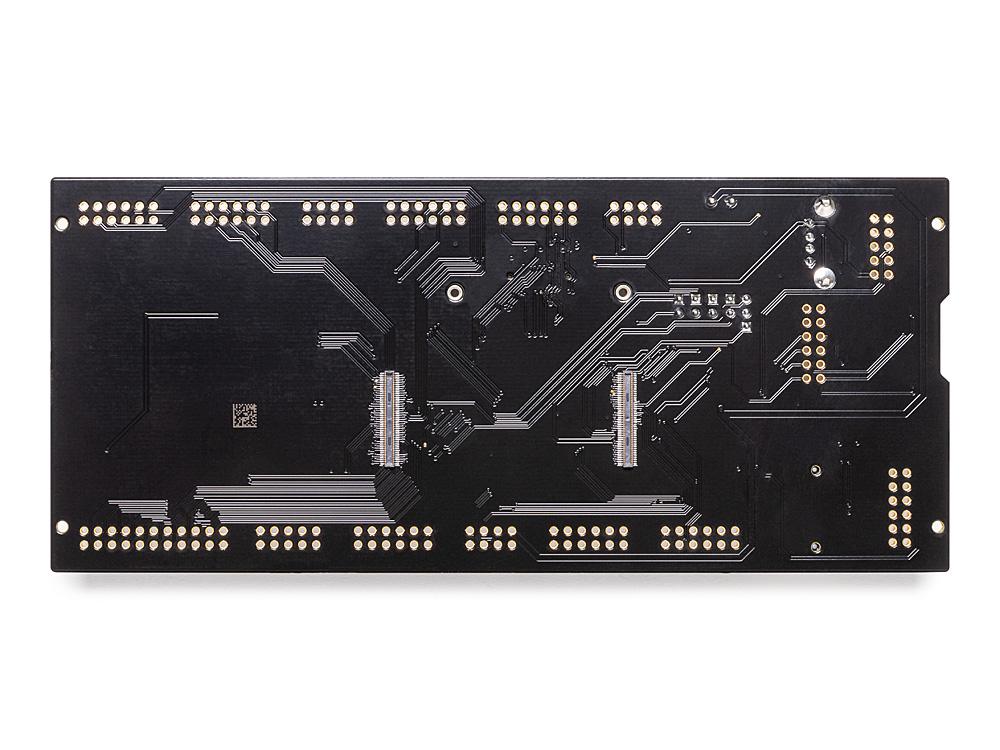

Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7).
It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.
Target areas
Prototyping
Application examples
This product is designed to work alongside the Portenta family. Please check the Getting Started guide of your Portenta board.
Product Development: The Portenta Breakout board reduces development time for industrial grade solution automation based on the Portenta line.
OpenMV: Connectivity to the OpenMV Global Shutter Camera Module is provided on the Portenta Breakout board allowing for rapid development of machine vision applications alongside the Portenta family.
Technical Education: The Portenta Breakout board can act as the first point of entry for technician education in industrial grade control and embedded systems.
Features
Power ON Button
Boot mode DIP switch
Connectors - USBA - RJ45 up to 1Gb/s - Micro SD card - OpenMV shutter module - MIPI 20T JTAG with trace capability
Power - CR2032 RTC Lithium Battery backup - External power terminal block
I/O - Break out all Portenta High Density connector signals - Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals
Compatibility - Standard Portenta High Density connector pinout
Safety information - Class A
Technical Specifications
USB port
USBA
Ethernet
RJ45 up to 1Gb/s
Memory slot
Micro SD card
Camera connector
OpenMV shutter module
Debug
MIPI 20T JTAG with trace capability
Connectors
HD male/female
RTC power battery
CR2032
Length
164 mm
Width
72 mm
Weight
0,069 Kg
Accessories
8-, 10-, 12- and 22-pin headers/connectors with 2.54 mm pitch
20 pin JTAG programmer
OpenMV Global Shutter Camera Module
Documentation
Learn More
For the full technical documentation, tutorials and much more, visit Arduino Docs.
