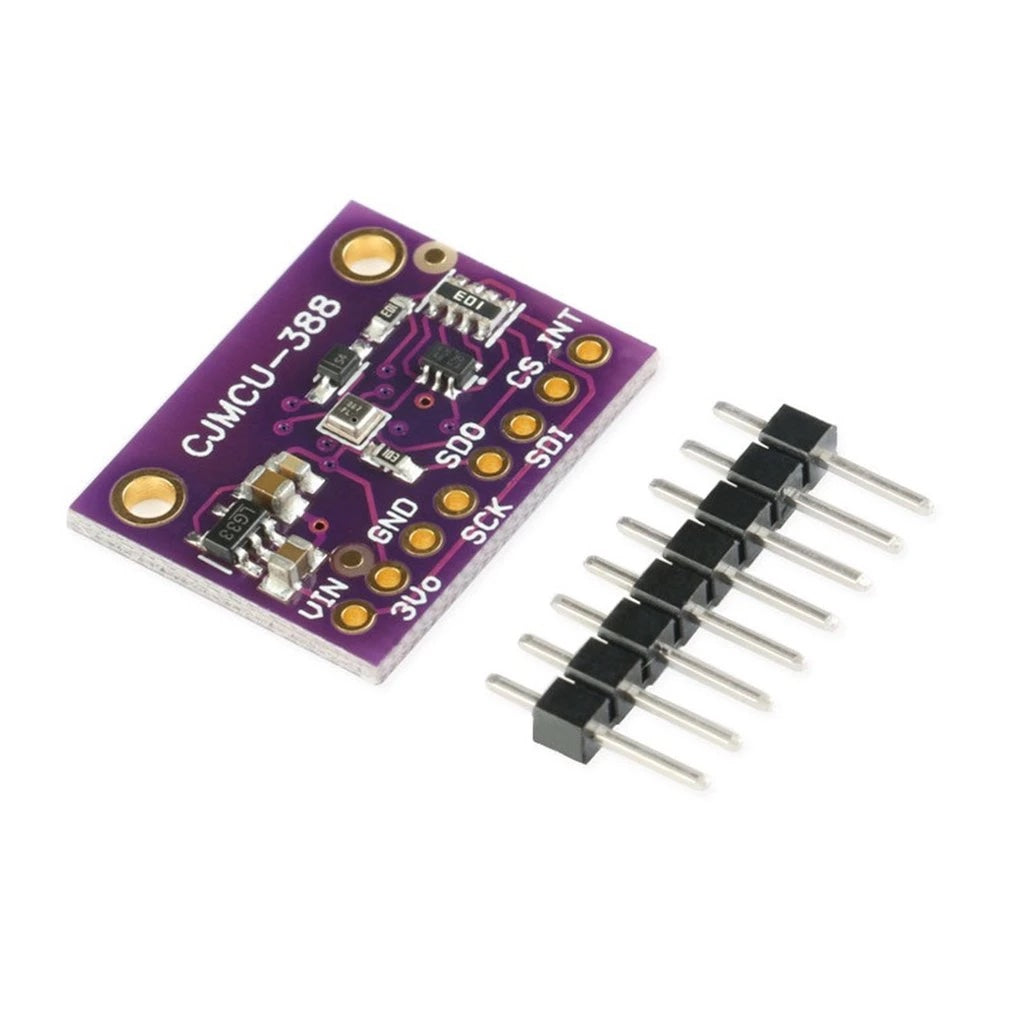

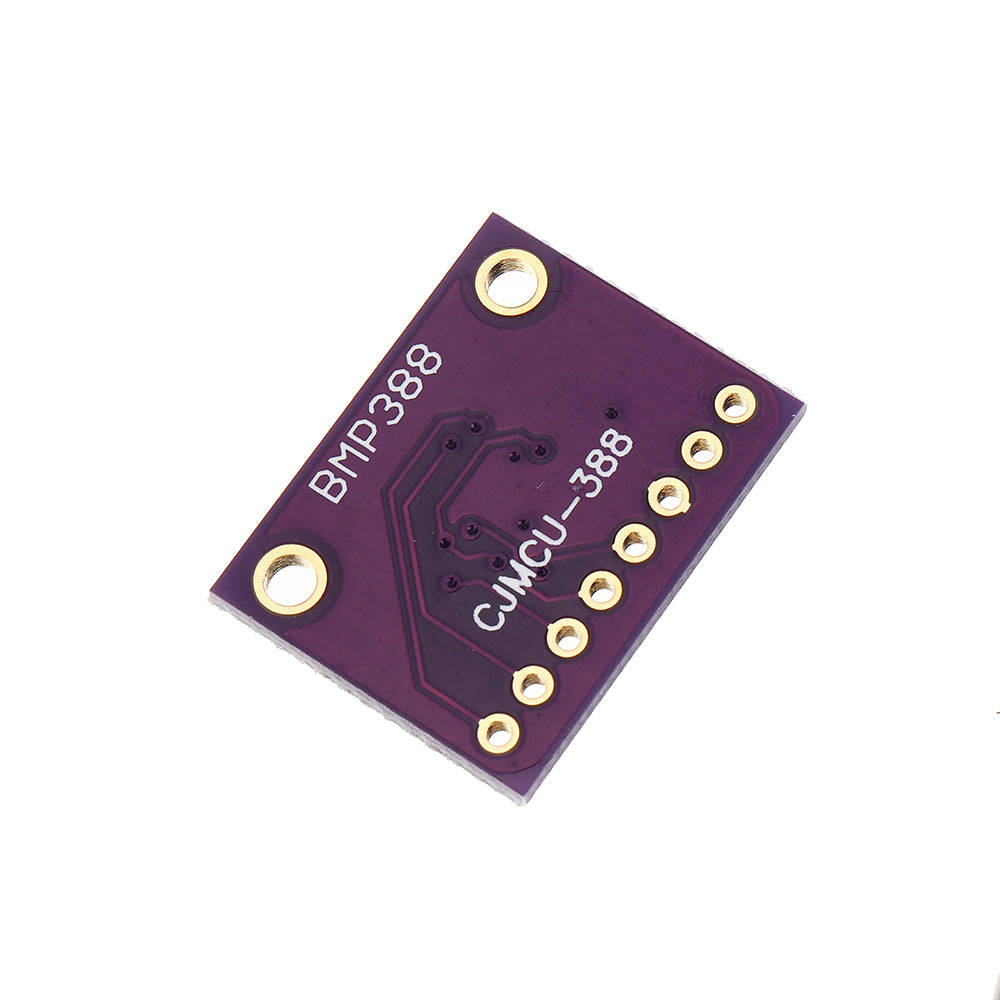

BMP388 Atmospheric Pressure Sensor Module

The BMP388 is a very small, precise, low power, low noise absolute barometric pressure sensor. It enables accurate altitude tracking and is perfectly suited for drone applications. By making accurate steering significantly easier, the BMP388 enhances the drone flying experience. It is compatible for use with other Bosch sensors such as the BMI088 for better performance, robustness and stability. The BMP388 sensor excites with an outstanding design flexibility. Additionally, it provides a single package solution that is easy to integrate into other existing and upcoming devices such as smart homes, industrial products and wearables.

Application:

• Vertical speed indication (eg rise/fall speed)
• Internet of Things
• Enhanced GPS navigation
  (For example, the first time to repair the improvement, dead reckoning, slope detection). Indoor navigation positioning (Flor detection, elevator detection)
• Outdoor navigation, leisure and sports applications. Weather forecast
• Healthcare applications (eg spirometry)
• Fitness applications such as enhanced calorie testing
• AR&VR application
• Environmental awareness
• Target device
• Flying drone
• Mobile phones, tablets, GPS devices and other mobile phones. Navigation System
• Portable medical device
• Family weather station
• Watch
• Large household appliances
•


Specifications:

• Relative accuracy: typical value ± 8 pa, equal to ± 0.50 m   (700...900 hpa, 25....40°C)
• Supply voltage: 1.71V to 3.6V
• Digital interface: I2C (up to 3.4 MHz) and SPI (3-wire and 4-wire, up to 10 MHz)
• VDDIO interface voltage range: 1.2 V to 3.6 V
• Current consumption: 3.4 microamps at 1 Hz pressure and temperature  2.0 microamps in sleep mode
• Working range: -40 ‒ +85 °C, 300‒1250 hPa
