Cooling Fan Expansion Board For RDK X3 Development Board

SKU: WVSH0520

₹ 449.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
Cooling Fan Expansion Board For RDK X3 Development Board₹ 449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Cooling Fan Expansion Board For RDK X3

Aluminium heatsink + Cooling fan

Dual cooling design, stackable with other expansion boards

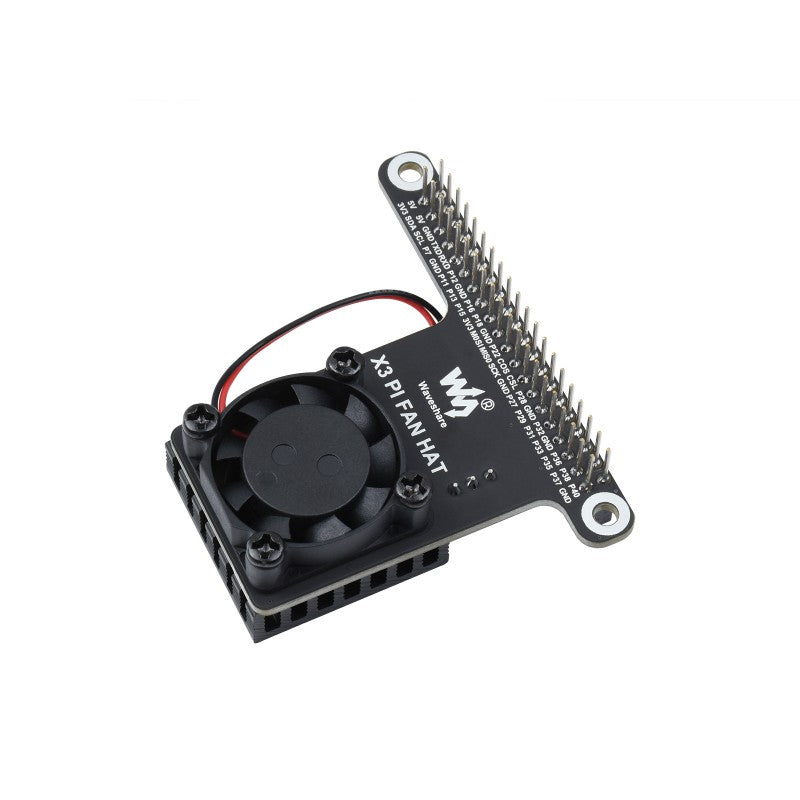

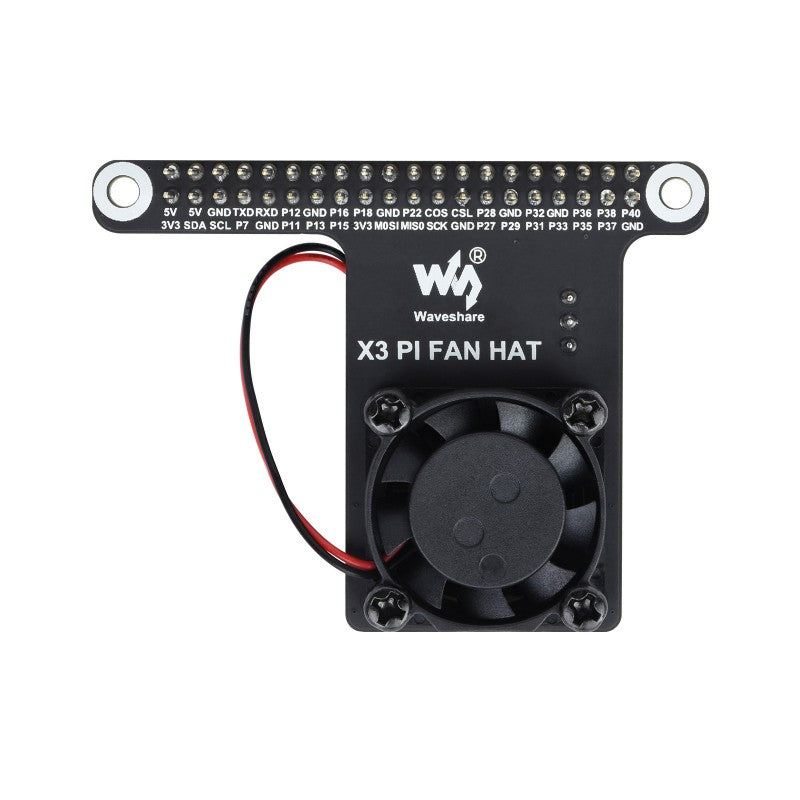

Cooling Fan Expansion Board for RDK X3 Development Board, front view



Specifications

Supported RDK X3 Development Board
Power supply DC 5V input
Rated speed 5000 ± 10% RPM
General Reserved IO control interface
Interface 2.54 mm pitch header
Dimensions 65.00 × 49.90 mm



Designed for RDK X3 Development Board

Perfectly matches the dimensions and mounting holes of RDK X3, easy to use

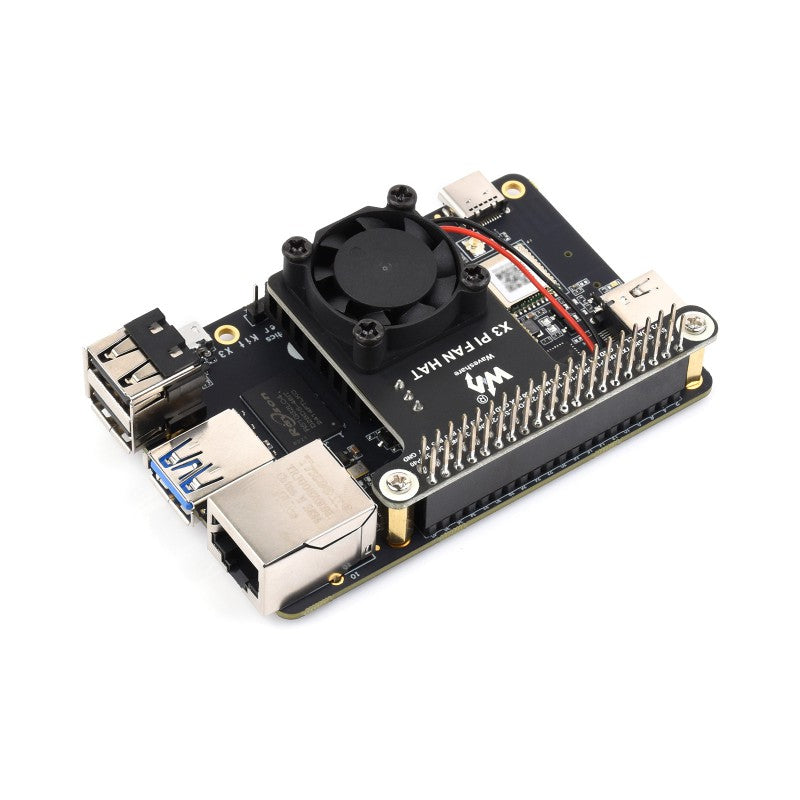

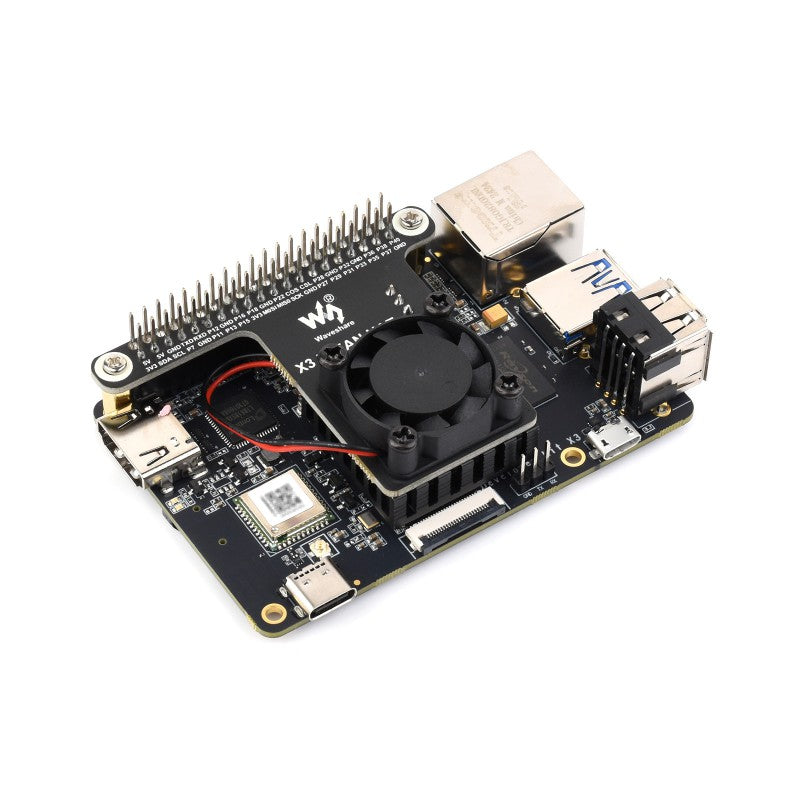

Cooling Fan Expansion Board connecting with RDK X3 Development Board



Dual Cooling Design

Adopts Aluminium heatsink + Cooling fan design for better Heat Dissipation

Cooling Fan Expansion Board for RDK X3 Development Board, dual cooling design



With Thermal Silicone Pad

Cooling Fan Expansion Board for RDK X3 Development Board, with thermal silicone pad



Cooling Solution Comparing

Cooling Fan Expansion Board for RDK X3 Development Board, cooling solution comparing



Easy to Stack External Expansion Boards

Standard 40PIN GPIO stackable header, with clear silkscreen labels for easier wiring and peripheral expansion

Cooling Fan Expansion Board for RDK X3 Development Board, onboard 40PIN GPIO stackable header



Product Show

Cooling Fan Expansion Board for RDK X3 Development Board, product show



Outline Dimensions

Cooling Fan Expansion Board for RDK X3 Development Board, outline dimensions



Package Content

Weight: 0.03 kg

X3 PI FAN HAT x1

X3 PI FAN HAT

What is the main purpose of this expansion board?
It provides a dual cooling solution with an aluminium heatsink and fan to improve heat dissipation on the RDK X3, and it is designed to be stackable with other expansion boards.
Which devices is it compatible with?
It is designed for the RDK X3 Development Board and matches its dimensions and mounting holes, while stackable with other expansions via the 40PIN GPIO header.
How is power supplied and how are connections made?
Power is supplied via DC 5V input and connections use a 2.54 mm pitch header with silkscreen labels for easy wiring.
How do I install and stack it with other boards?
Align with the RDK X3, mount using the mounting holes, and connect through the standard GPIO header to stack with other expansion boards.
Is there a warranty or return policy for this item?
Warranty details are not provided in the listing. For returns, please follow the sellers policy.
