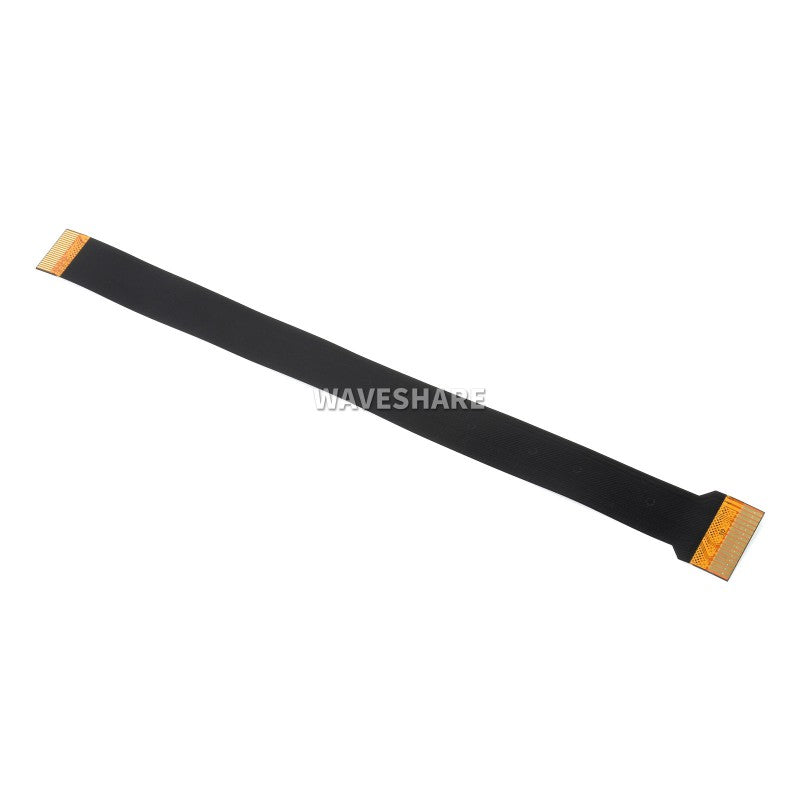

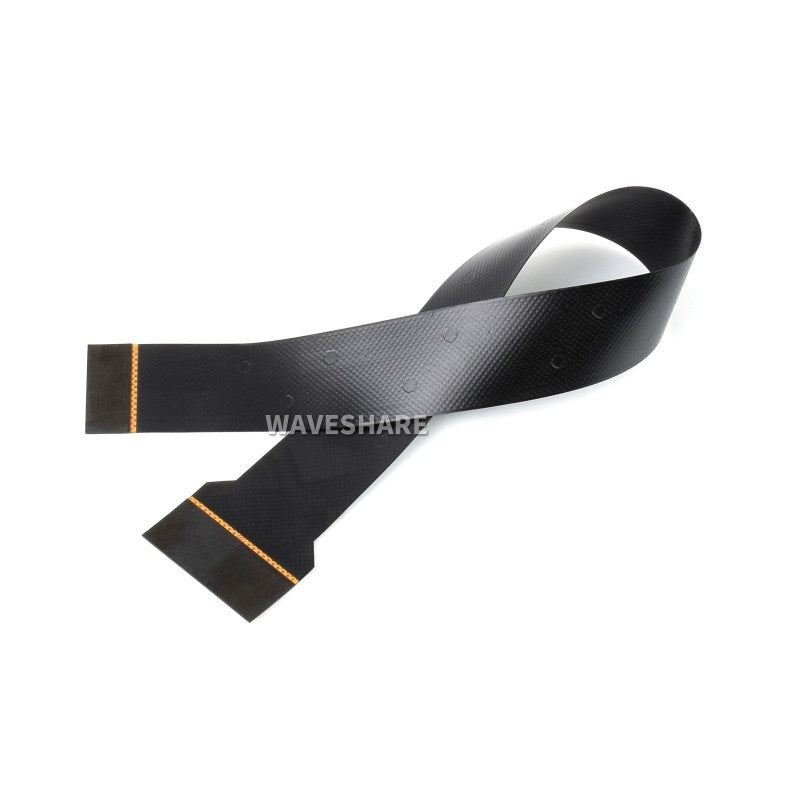

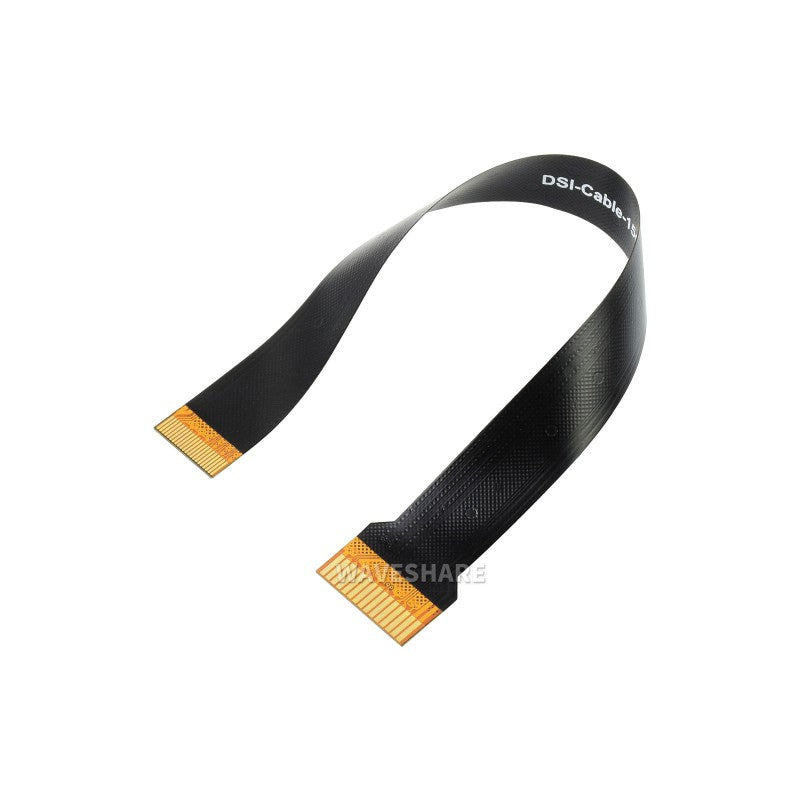

DSI Flexible Flat Cable 15cm
22Pin To 15Pin
EMI Shielding, More Stable
Black EMI Shielding Film On Both Sides, Enhancing Anti-Interference Performance
More Stable Signal Transmission
Specifications
Application Examples
Connecting DSI Display To Raspberry Pi Official CM4 IO Board
Connecting DSI Display To Waveshare CM4 PoE IO Board
for reference ONLY, CM4, IO boards, and displays are NOT included.
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
