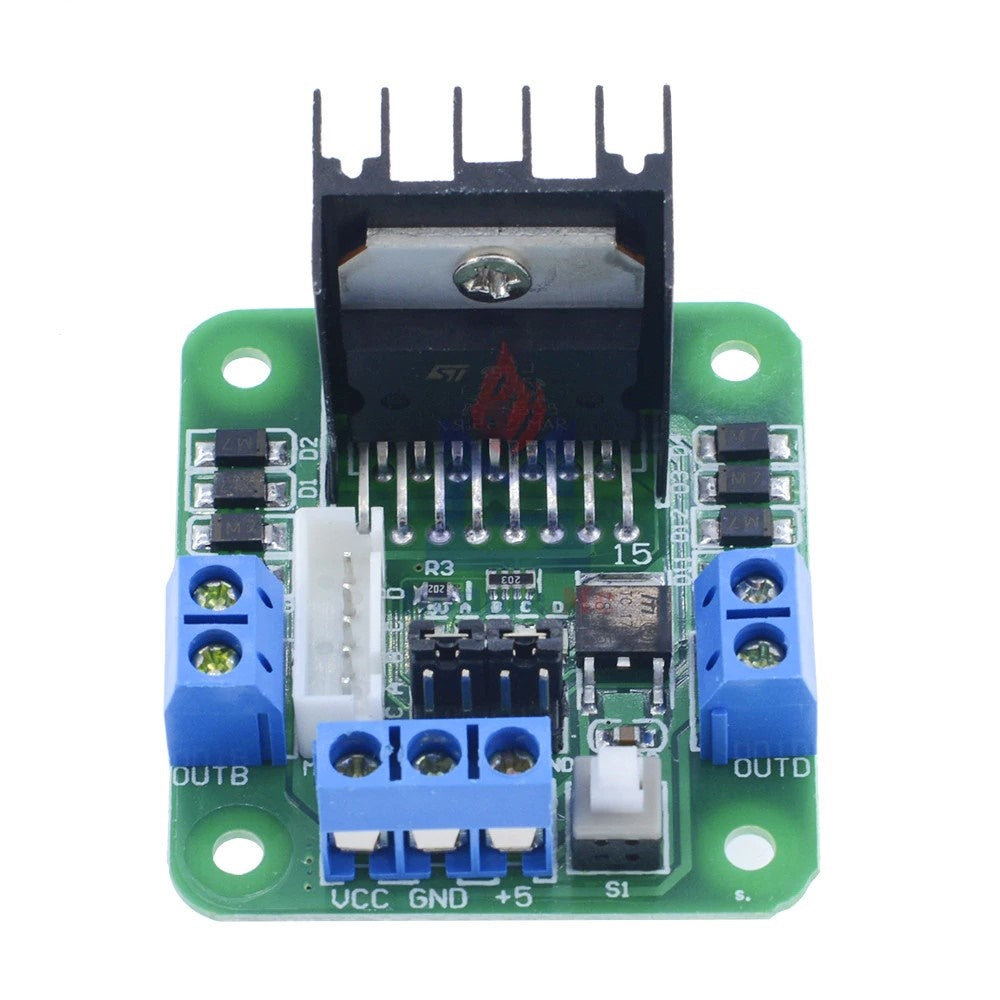

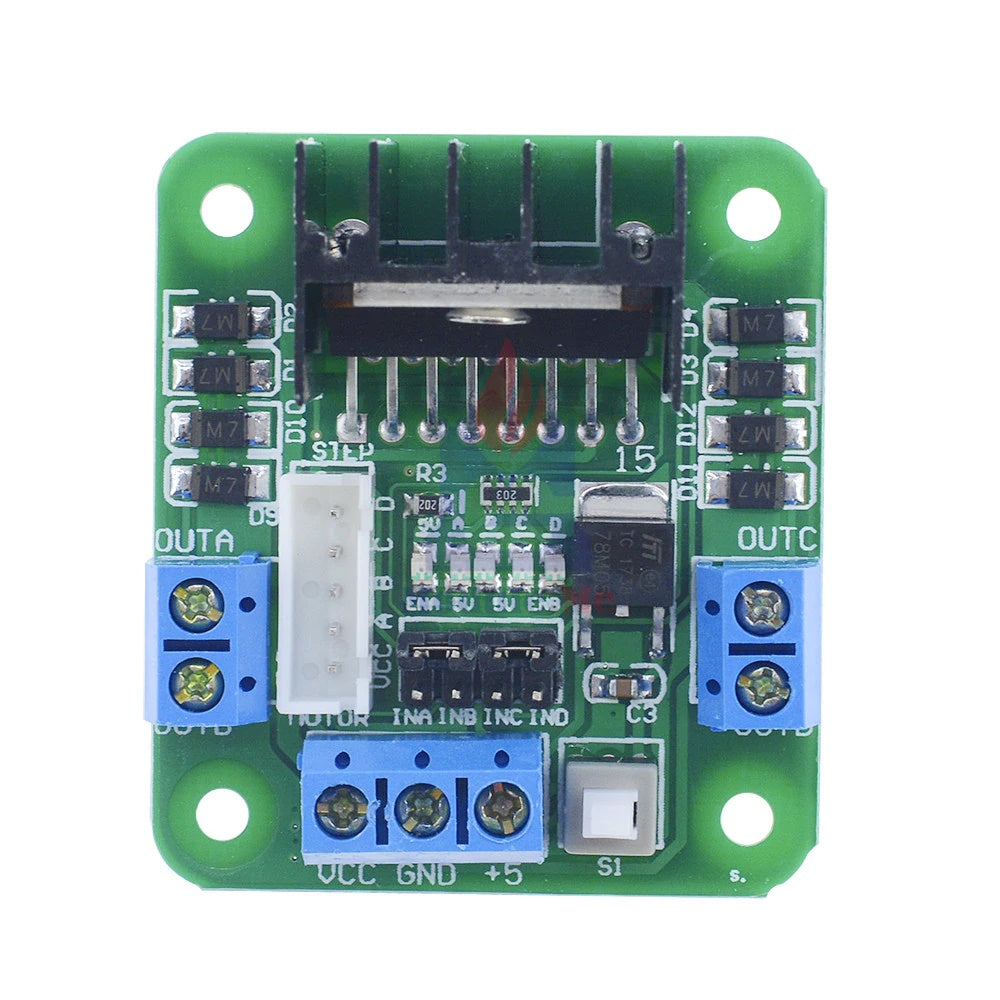

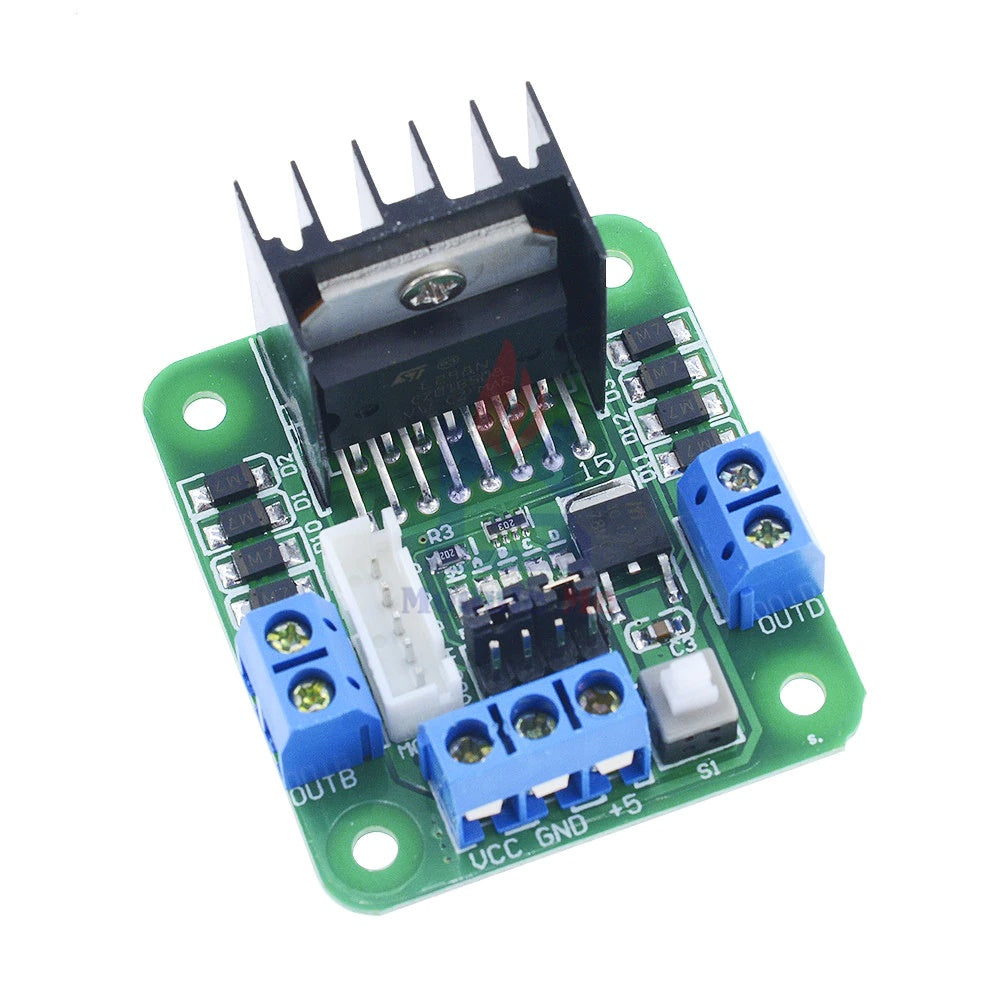

L298D Dual H Bridge 20W 2A Motor Driver Module For Arduino

Details:

• Double bridge unit H
• Chip L298N (new ST)
• logical voltage 5 V
• Drive voltage 5 V-35 V
• Logic current 0mA-36mA
• Drive current 2A (maximum single bridge)
• Storage temperature-20 to + 135
• Maximum power 25 W
• Weight 30g
• Size: 43 * 43 * 27mm

Using L298N made by ST company as the control chip, the module has such features as strong driving. Capacity, low calorific value and strong anti-interference capacity. This module can use built-in 78M05 for electrical work through a part of driving power supply. but to avoid the damage

From the voltage stabilizer chip, use an external 5 V logic source When using more than 12 V driving voltage. Using the large capacity filter capacitor, this module can follow the current to protect the diodes, and improve the reliability

This module is integrated with a built-in 5 V power. when the drive voltage is 7 V-35 V,  You can enable the 5 V logic power supply, after the power supply, do not enter  Voltage on the interface + 5 V power supply, but you can carry the 5 V for external use.  When ENA enable IN1 IN2 control OUT1 OUT2.  When ENB allow IN3 IN4 control OUT3 OUT4.
