ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor
ESP32-S3 RGB LED Matrix Board
Based on ESP32-S3, 17 × multi-function GPIO pins | 240 MHz Xtensa 32-Bit LX7 Dual-Core Processor
Board Specifications
Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use
Onboard QMI8658C attitude sensor

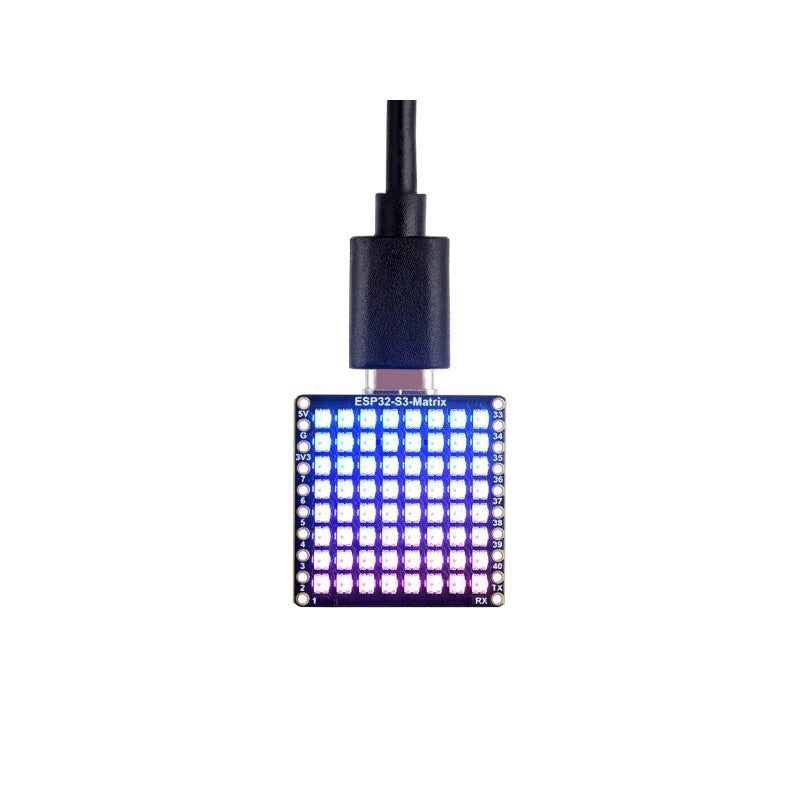

Onboard 8 × 8 RGB LED matrix for colorful lighting display
Adapting Dout pin for extending RGB matrix
17 × multi-function GPIO pins
Rich peripheral interfaces for achieving various functions flexibly
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
QMI8658C Gyroscope Sensor
Onboard QST Attitude Sensor To Realize Accurate Attitude Tracking And Motion Control

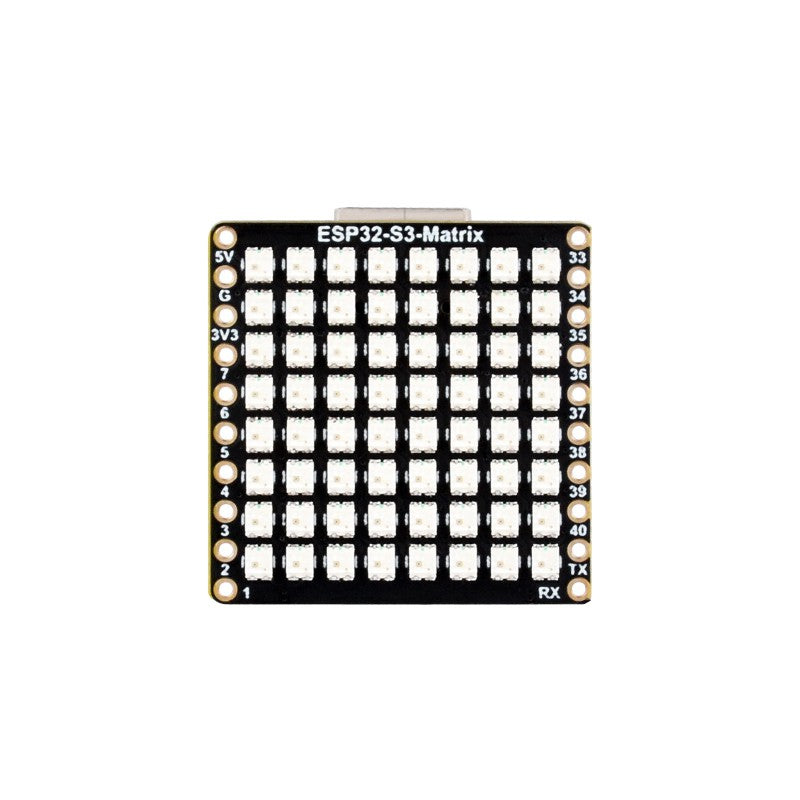

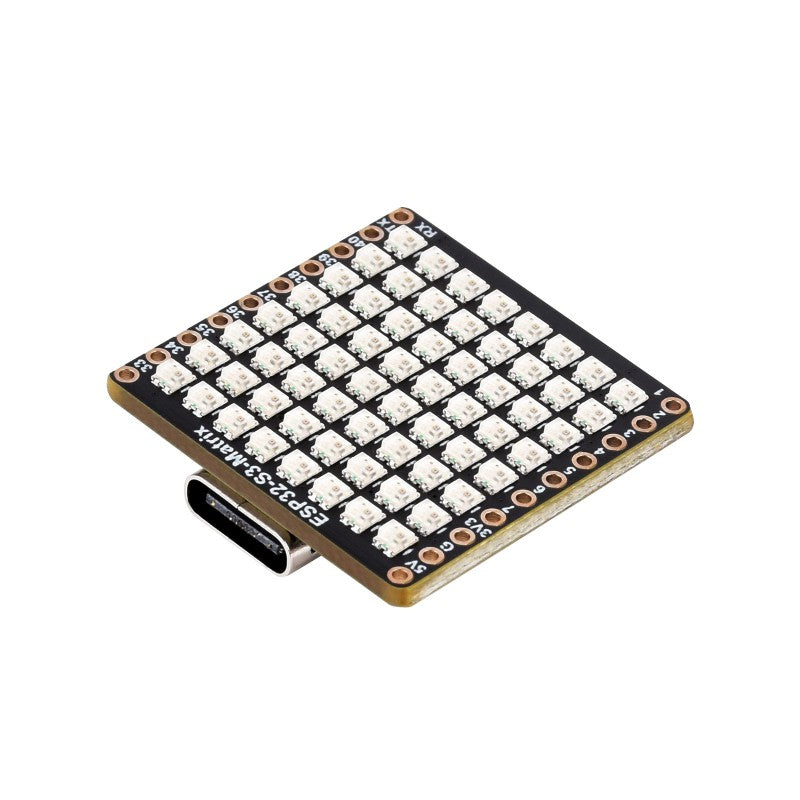

Onboard 8×8 RGB LED Matrix
For Colorful Lighting Display
Designed For AIoT Applications
Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
WIFI And BLE 5 Support
ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
Supports ESP-IDF, Arduino, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
17 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

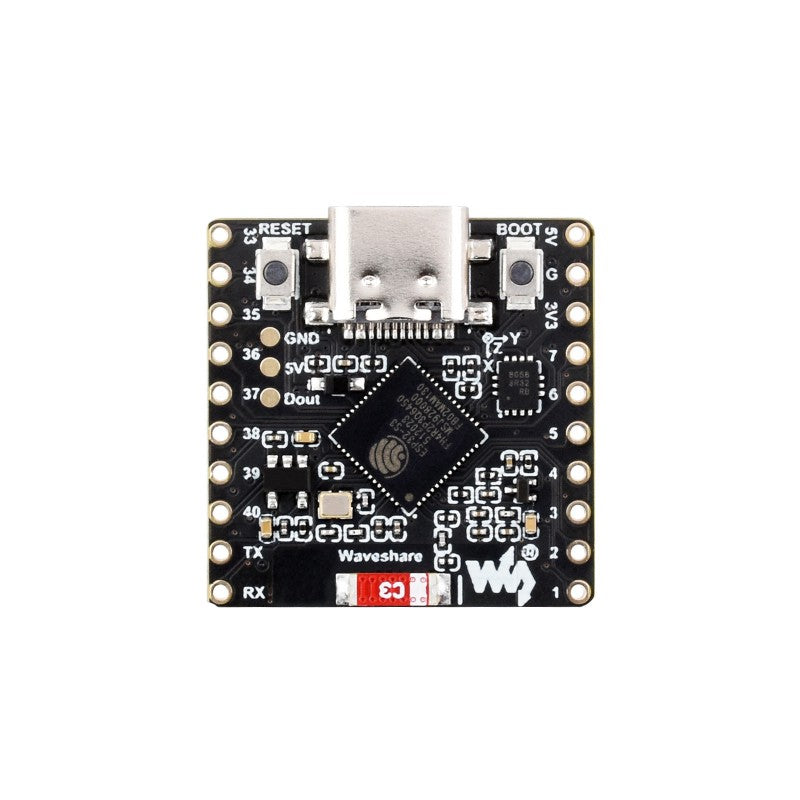

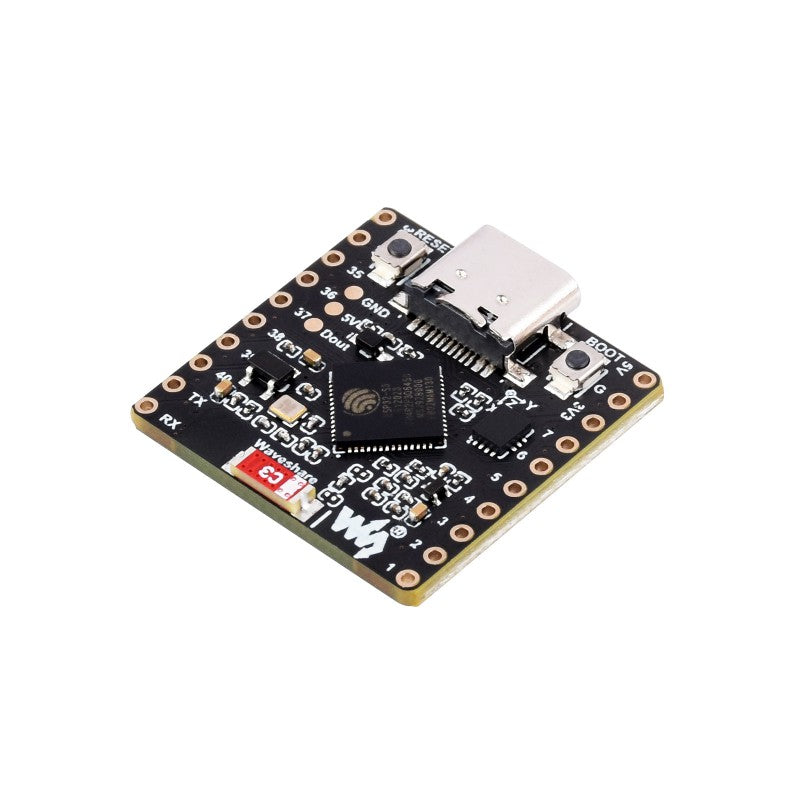

What's On Board
USB Type-C connector 8×8 RGB LED Matrix
BOOT button
RESET button
ME6217C33M5G
QMI8658C
ESP32-S3
Dout pin
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/ESP32-S3-Matrix
Package Contains:
Weight: 0.003 kg
ESP32-S3-Matrix x1
