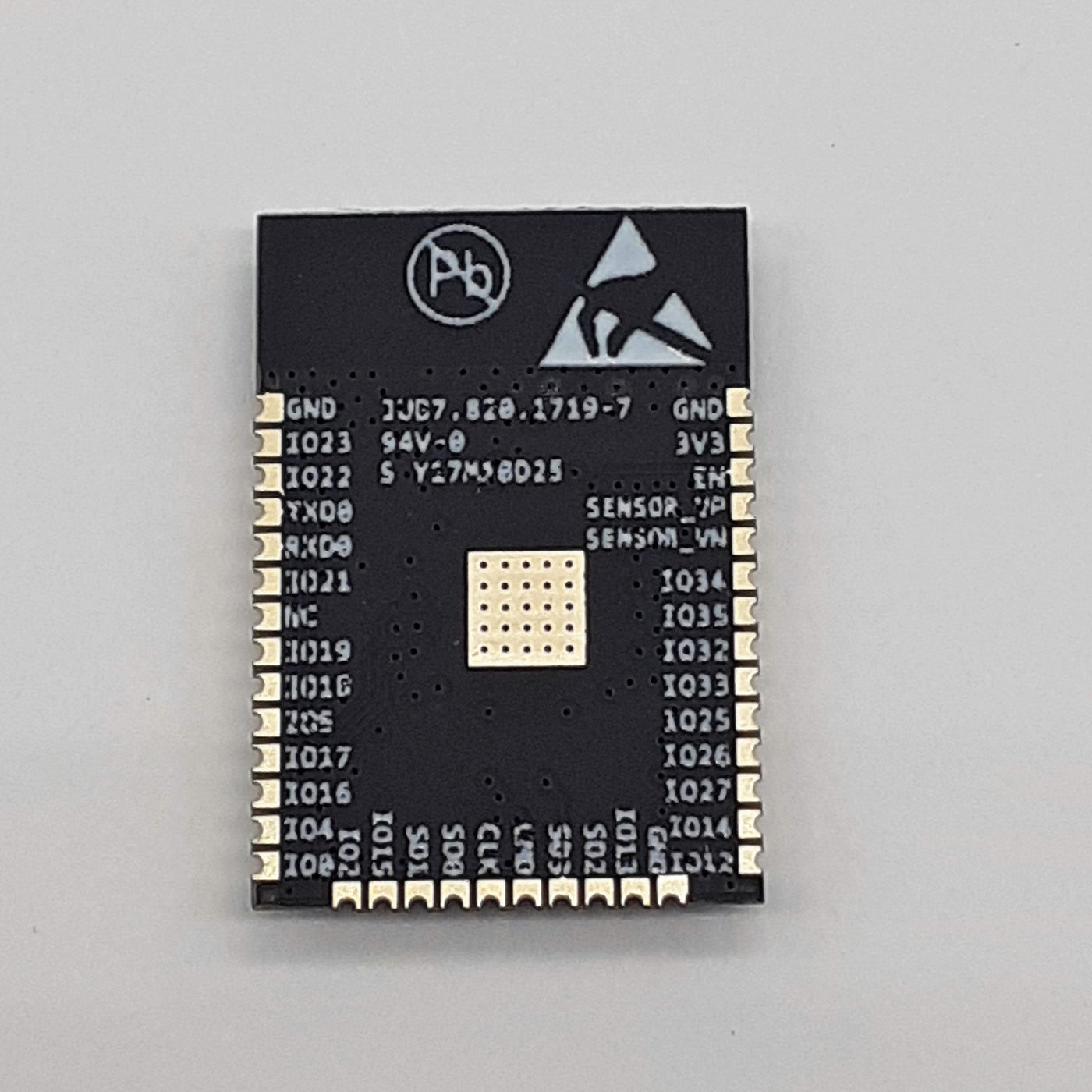

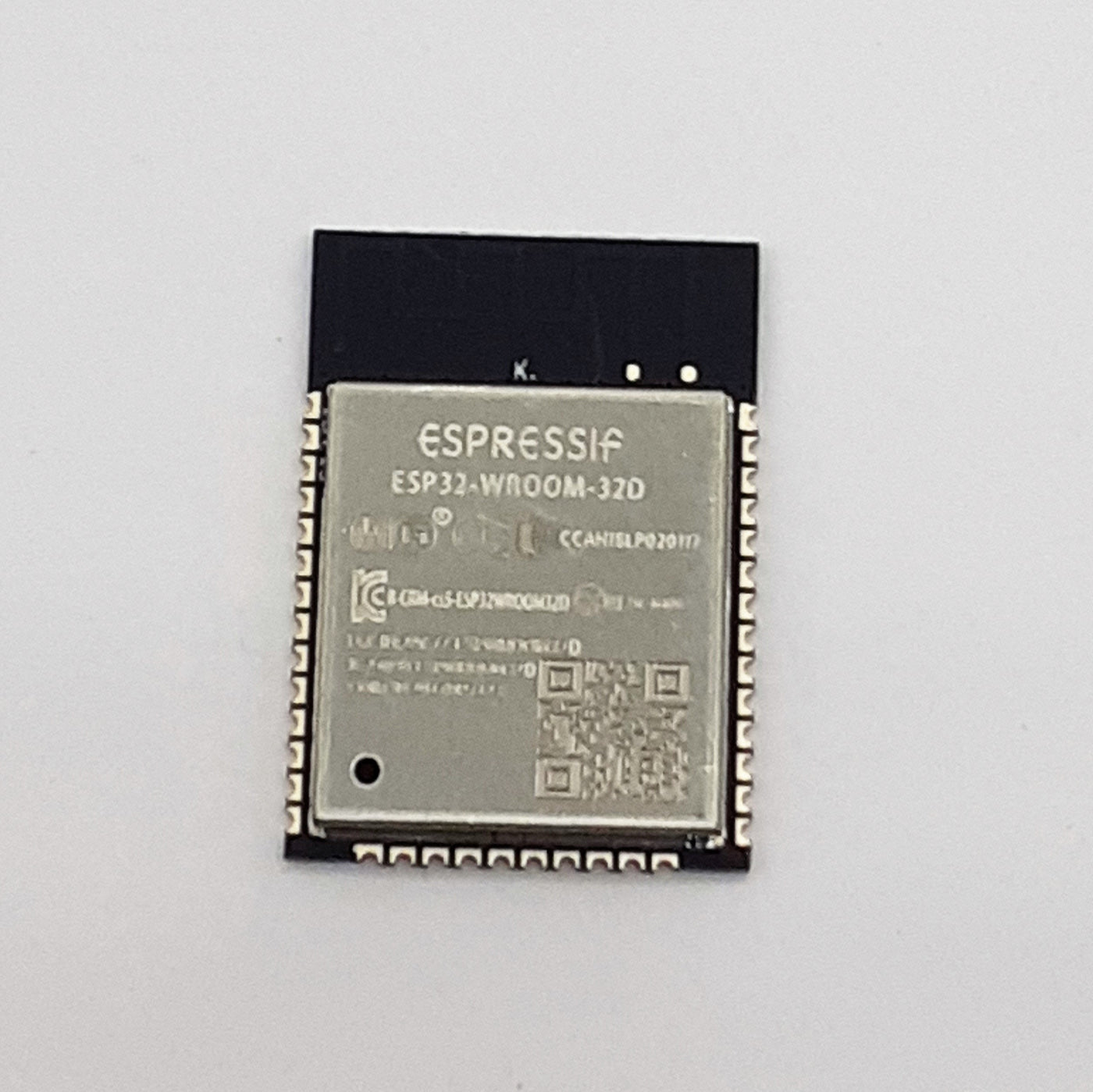

This is ESP WROOM 32 MCU Module. ESP WROOM 32 is a powerful, generic WiFi-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.
At the core of this module is the ESP32S chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz.
The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C.
Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA.
In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range.
I had used a lots of LoRa module till now, but it's really the best among all of them! the 1262 is a great upgrade in terms of output power and configuration. we can configure the output power, bandwidth, spreading factor and a tons of other things, which are not possible to configure on previous modules. the radiolib library works preety good with it and it also supports rssi and snr like features, which are very crucial when you are seriously researching on antenna or range related works! that's why I eventually like this module more then ebyte LoRas. To me this is the best module in IN8 68MHz, which is completly legal and free to use in India upto 1W! And also thanks to thinkrobotics, I got it in just 1 working day, and your packaging was also too good! Love your service, and keep this modules available on your websight. Your pricing of this module is too good, and I'll buy many of these modules. Thank you!
I had used a lots of LoRa module till now, but it's really the best among all of them! the 1262 is a great upgrade in terms of output power and configuration. we can configure the output power, bandwidth, spreading factor and a tons of other things, which are not possible to configure on previous modules. the radiolib library works preety good with it and it also supports rssi and snr like features, which are very crucial when you are seriously researching on antenna or range related works! that's why I eventually like this module more then ebyte LoRas. To me this is the best module in IN8 68MHz, which is completly legal and free to use in India upto 1W! And also thanks to thinkrobotics, I got it in just 1 working day, and your packaging was also too good! Love your service, and keep this modules available on your websight. Your pricing of this module is too good, and I'll buy many of these modules. Thank you!
Team is suppotive and solves all the queries .
The product is good and will surely help me in my project...looking forward for more trades with think robotics.
