G5LE-14-DC24

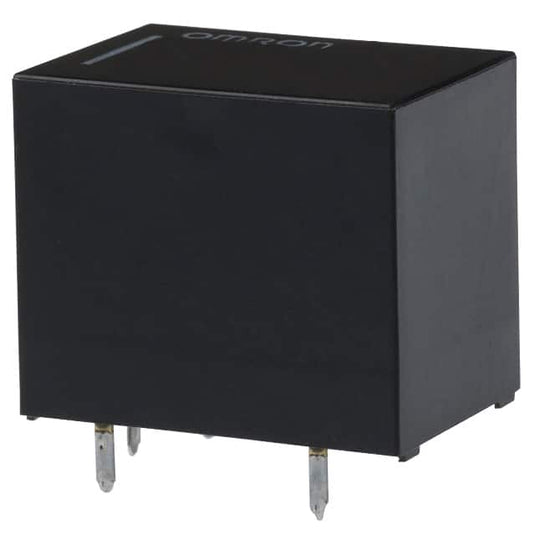

OMRON ELECTRONIC COMPONENTS G5LE-14-DC24 Power PCB Relay
Enhance your electronic systems with the reliable and high-performance G5LE-14-DC24 Power PCB Relay from OMRON ELECTRONIC COMPONENTS . Designed for a wide range of applications including home appliances, office automation equipment, and vending machines, this relay offers robust switching capabilities and durable construction.
Product Features
Type: Cubic, Single-pole Power Relay
Contact Ratings: 10 A at 120 VAC, 8 A at 30 VDC (resistive load)
Maximum Switching Voltage: 250 VAC, 125 VDC (30 VDC when UL/CSA standard is applied)
Operate Time: Max. 10 ms
Release Time: Max. 5 ms
Ambient Operating Temperature: -25°C to 85°C
Insulation Resistance: Min. 100 MΩ
Dielectric Strength: 2000 VAC between coil and contacts; 750 VAC between contacts of same polarity
RoHS Compliant: Yes
Standards: UL, CSA, EN, VDE, TÜV certified
Electrical Characteristics
Item
Standard Type
High Capacity Type
Contact Resistance
Max. 100 mΩ
-
Operate Time
Max. 10 ms
-
Release Time
Max. 5 ms
-
Insulation Resistance
Min. 100 MΩ
-
Dielectric Strength (Coil-Contacts)
2,000 VAC, 50/60 Hz for 1 min
-
Impulse withstand voltage
4,500 V (1.2/50 μs)
-
Vibration Resistance
Destruction: 10-55-10 Hz, 0.75 mm amplitude
Shock Resistance
Destruction: 1,000 m/s²
Durability (Mechanical)
10 million operations min.
Durability (Electrical)
100,000 operations min.
Ambient Temperature
-25°C to 85°C
Product Specifications
Part Number: G5LE-14-DC24
Manufacturer: OMRON ELECTRONIC COMPONENTS
Country of Origin: MY
UOM: EA
ECCN: EAR99
Package Type: PCB Mounting
Datasheet: Download Datasheet
Additional Details
This relay conforms to RoHS standards and is suitable for applications requiring reliable switching with high durability. For optimal performance, please refer to the datasheet for detailed usage precautions and wiring instructions.
Note: The datasheet was not processed; please search the internet for the part number G5LE-14-DC24 for more details.
