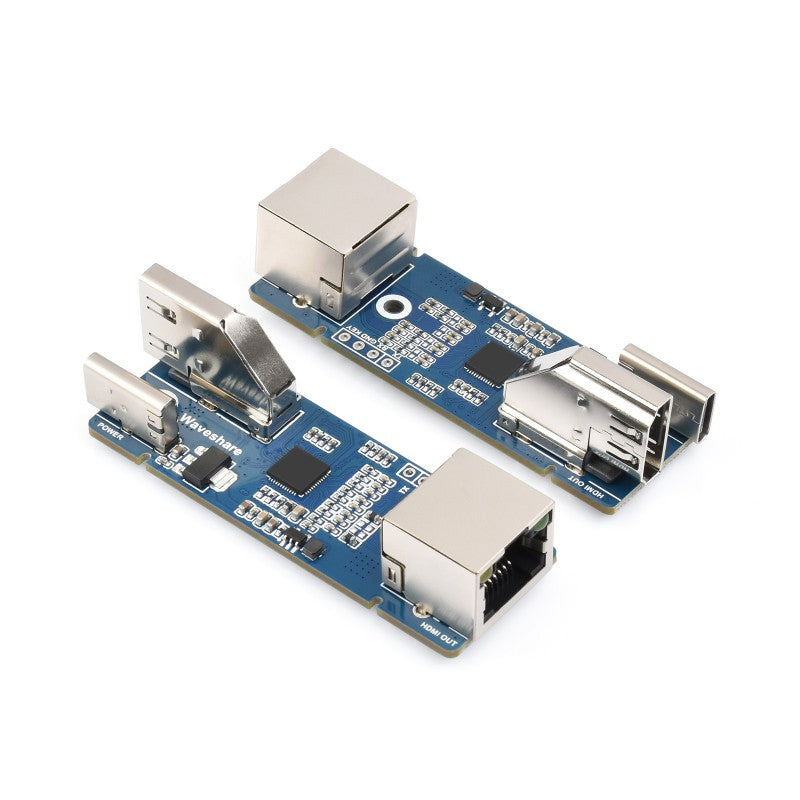

HDMI Signal Extender, 1080P lossless transmission - 50m

SKU: WVSH0061

ā‚¹ 2,049.99 ā‚¹ 2,599.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
HDMI Signal Extender, 1080P lossless transmission - 50mā‚¹ 2,049.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Ā

HDMI Signal Extender

Transmission Distance Up To 50m Via Network Cable, High-Definition & Lossless

Ā Ā

Ā

Specifications

TRANSMISSION STANDARD HDMI1.4B
VIDEO INPUT 1080p/1080i/720p/576p/576i/480p/480i
SIGNAL TRANSMISSION Supports using CAT-5E/6 network cable (CAT-6 recommended) instead of HDMI cable, the distance between transmitter and receiver up to 50m
POWER INPUT Type-C port (DC 5V 1A)
APPLICABLE SCENARIOS Security monitoring, Video conference, Multimedia teaching, Home theater, etc.


Ā

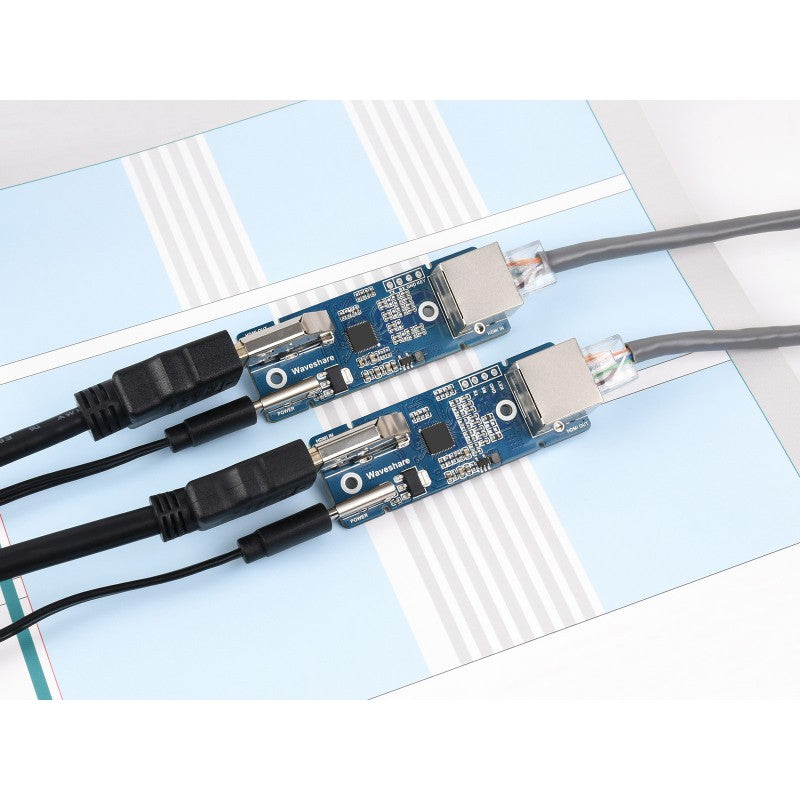

Connection Example

  • for reference only, the HDMI cables, network cable, and power supply are not included.
  • The RJ45 port on both boards uses a private protocol, and cannot be connected to a switch or router in between.

Ā

Supports 1080P HD Quality Transmission

Clearer & Smoother Image, With No Delay In Sound

Note: The quality of the network cable will affect the signal transmission quality, it is recommended to use CAT-6 network cable for better transmission.


Ā

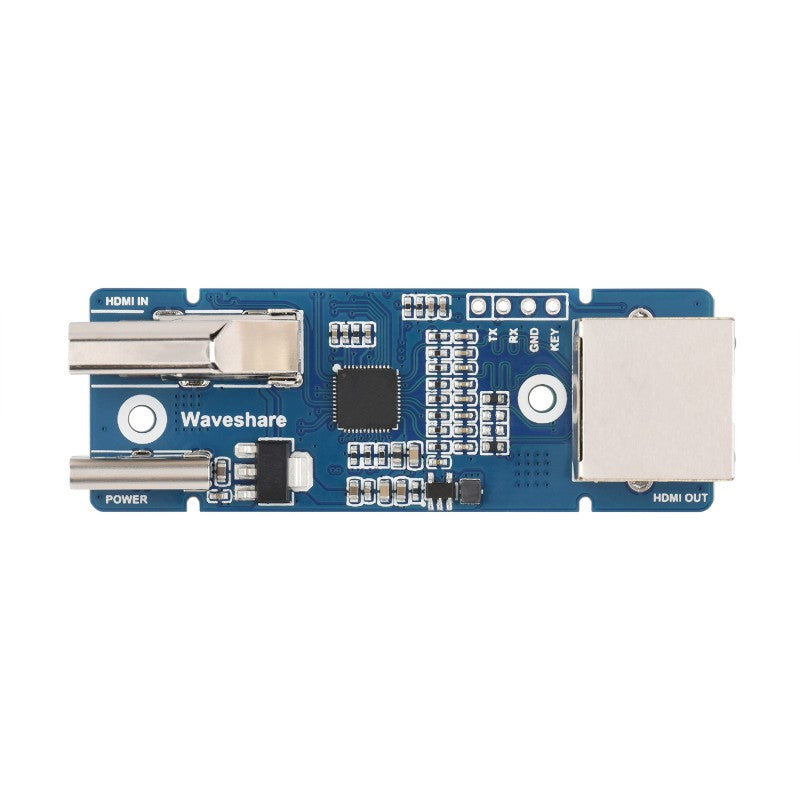

Onboard Interface


Ā

Application Scenarios


Ā

Dimensions

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/HDMI-EXTENDER-KIT

Ā

Package Contains:

HDMI-EXTENDER-KIT x1

What is the maximum transmission distance and what cable type is required?
The transmitter and receiver can communicate up to 50 meters when using CAT-5E or CAT-6 network cables; CAT-6 is recommended for best performance.
Does the device support audio without delay when transmitting video?
Yes, it supports 1080p video and there is no delay in audio per the product description.
How is the extender powered and what is included in the power setup?
Power is supplied via a Type-C port with DC 5V 1A; the power supply is not included in the package.
Can the RJ45 connection be placed behind a network switch or router?
No, the RJ45 port uses a private protocol and cannot be connected to a switch or router between the transmitter and receiver.
What are typical use scenarios and what is included in the package?
Common uses include security monitoring, video conference, multimedia teaching, and home theater. The package includes the HDMI-EXTENDER-KIT and does not include HDMI cables, network cables, or power supply.
