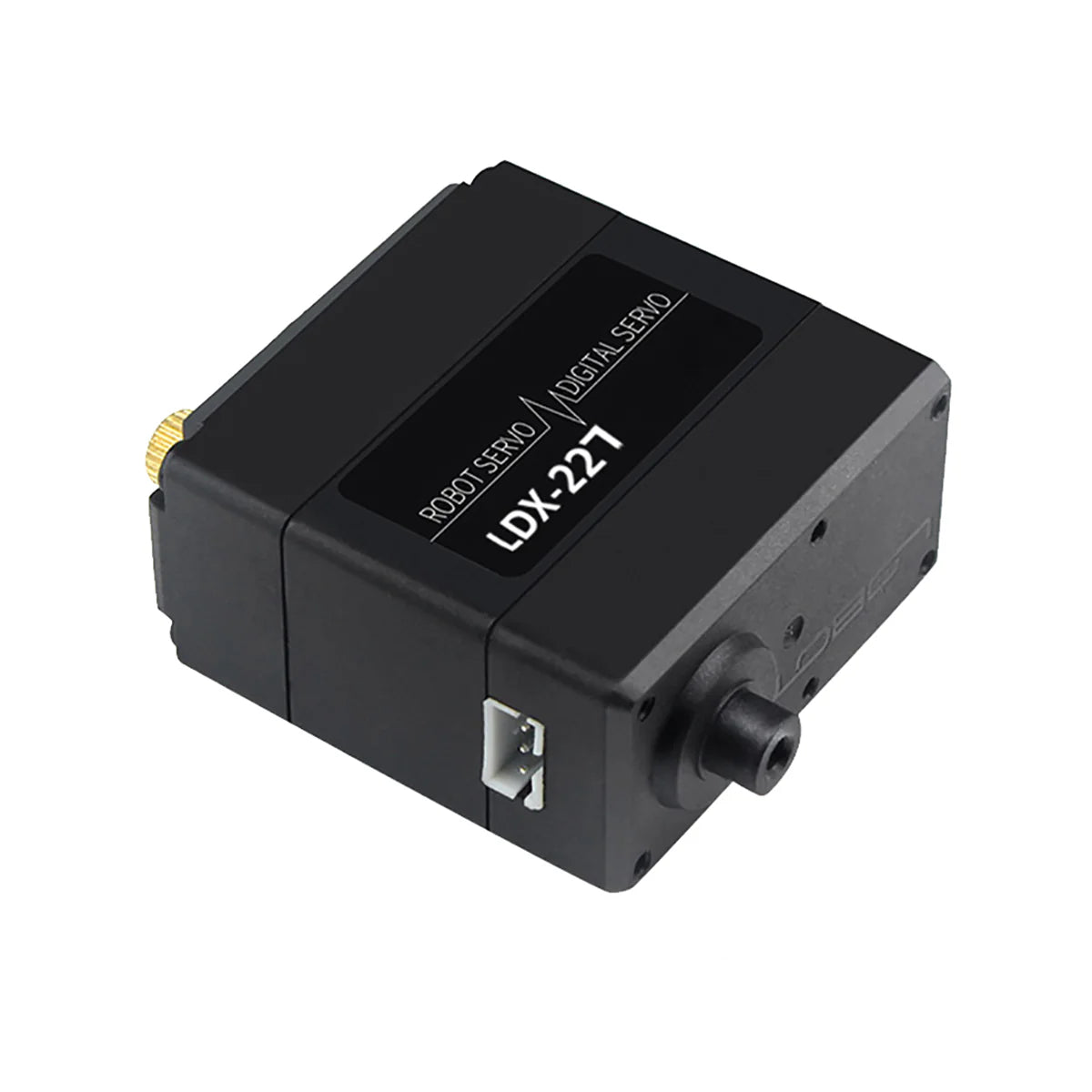

Hiwonder LDX-227 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 270 degrees.
Ā
Ā

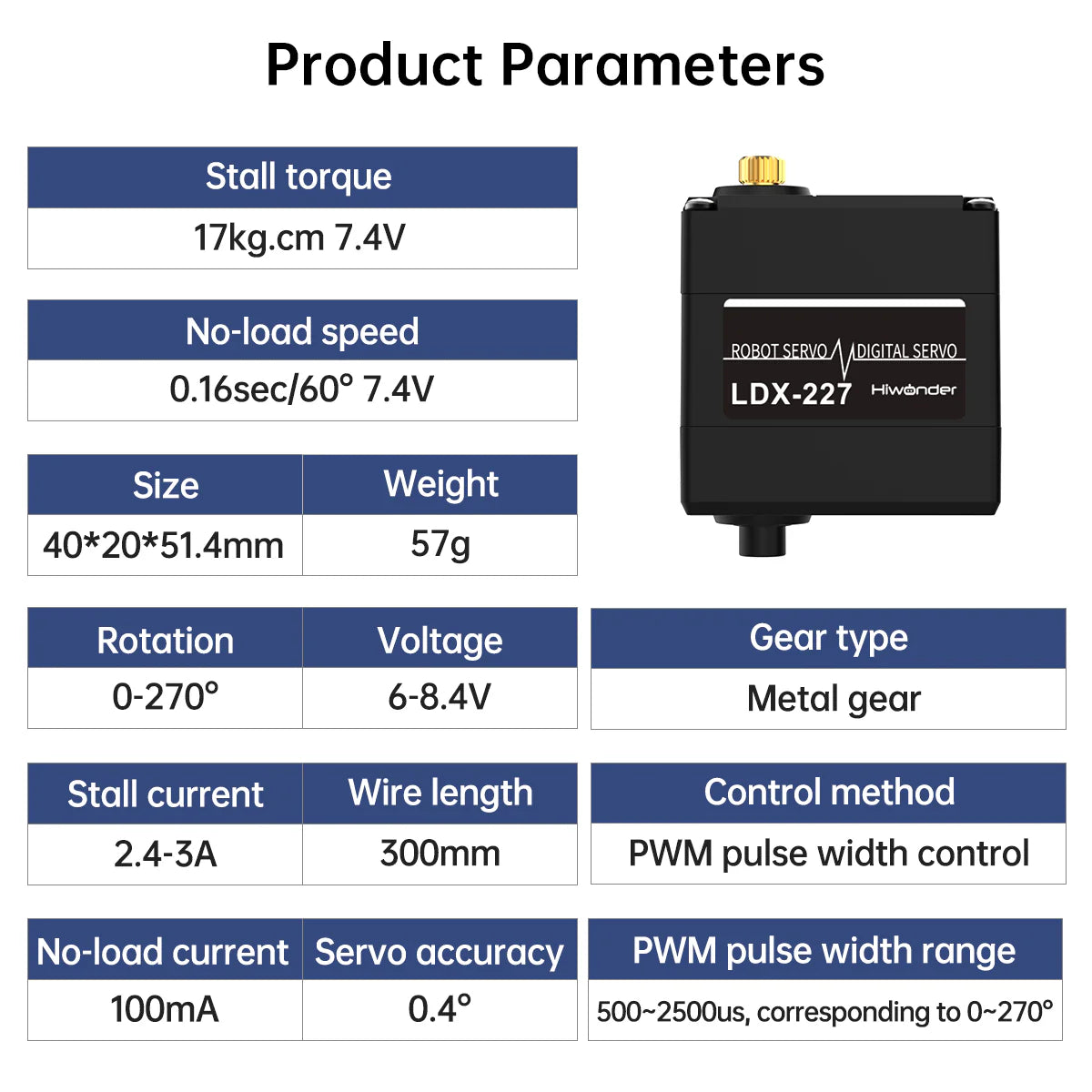

> 17kg large torque. 15 kgĀ·cm 6V; 17 kgĀ·cm 7.4V
> Use high-precision potentiometer in a new design

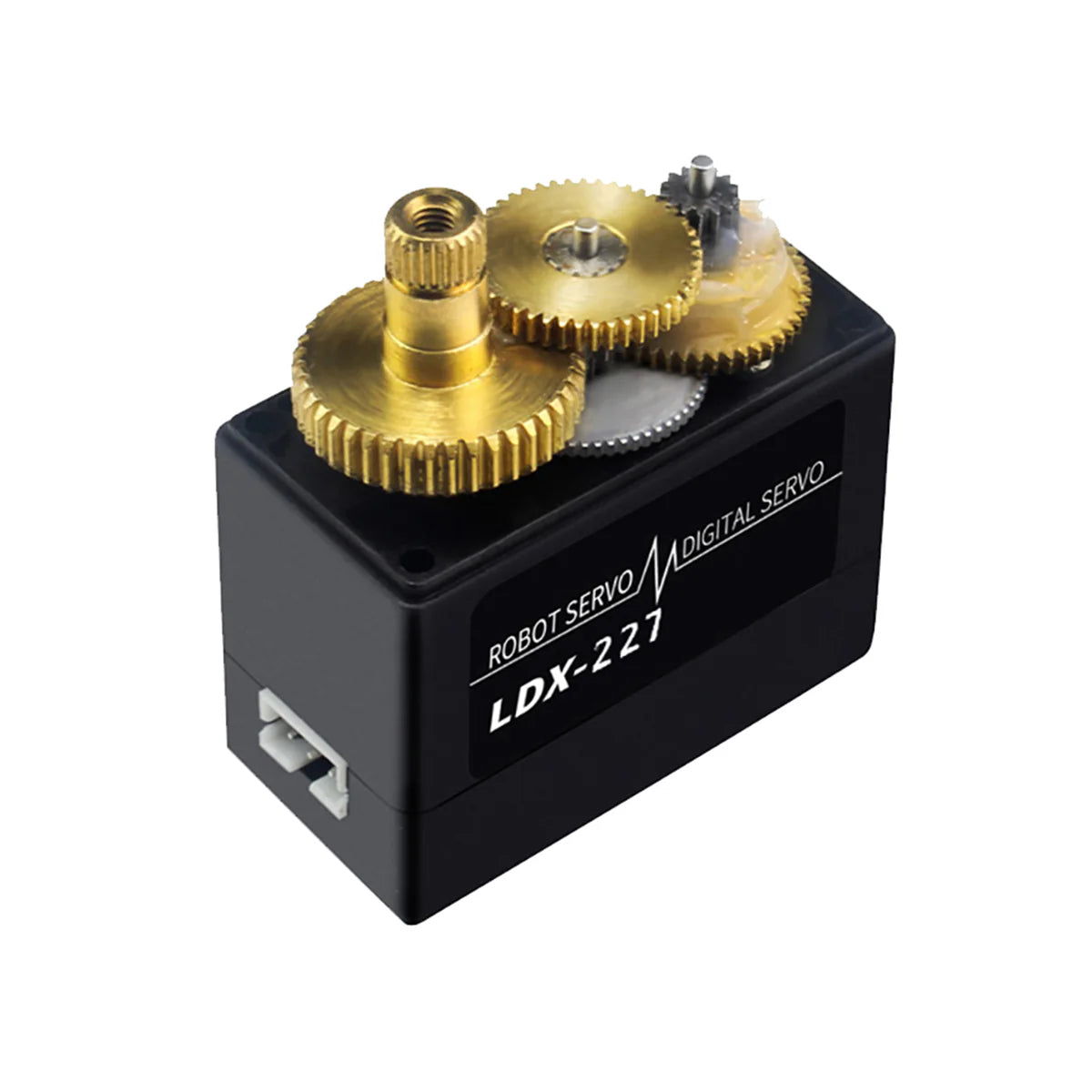

> Full metal gear significantly improves servoās accuracy and extends its service time
> Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing
> Accuracy and linearity have been greatly improved Accurate movement can help you build up robots
> Convenient plug-in wire. It is very convenient for you to replace the servo, and the wiring will become much easier
Ā

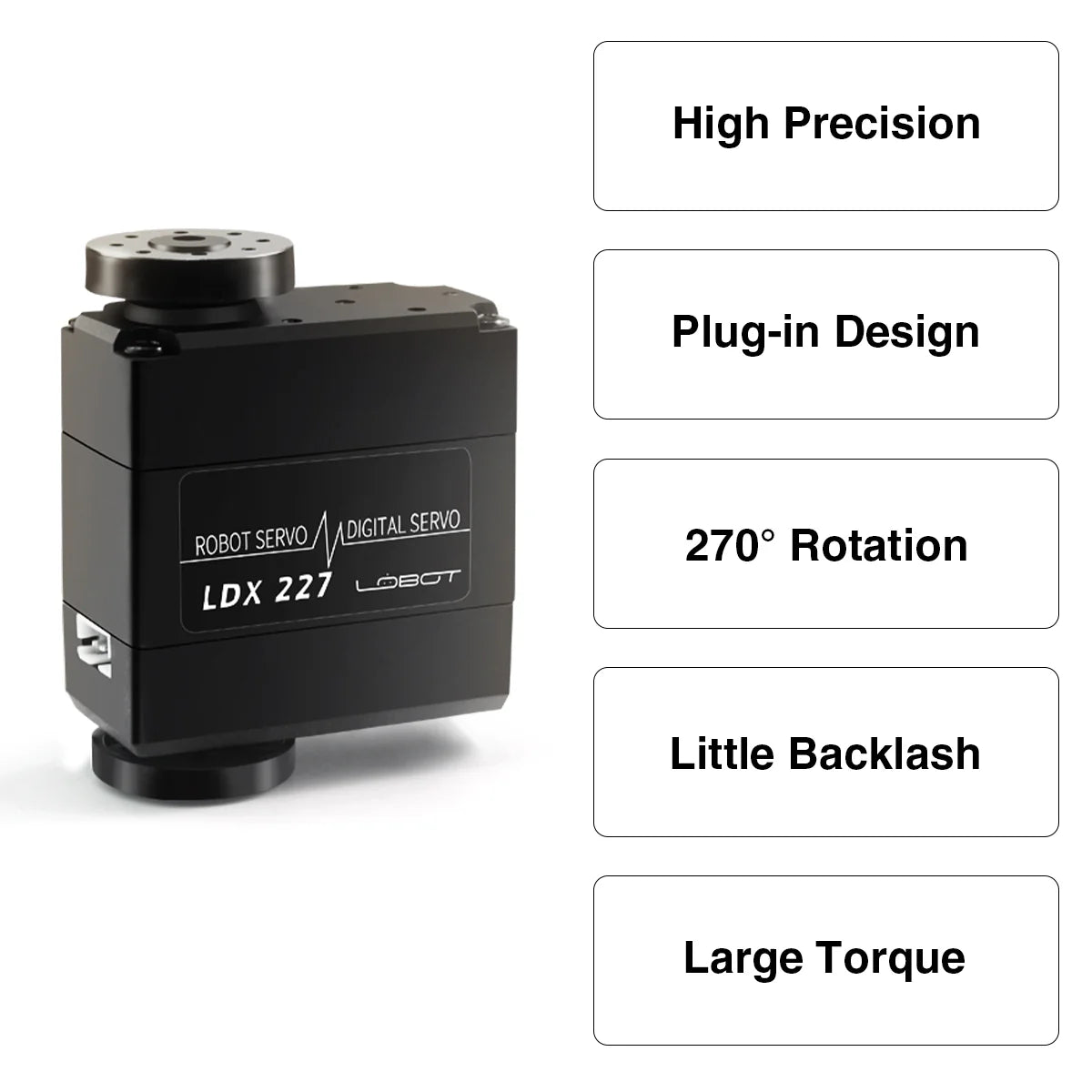

 High Precision Digital Servo |
 Simple Wiring |
Ā
 270Ā° Rotation |
 17kg Large Torque |
 All Metal Gear |
Ā
Ā
 |
 |
Ā

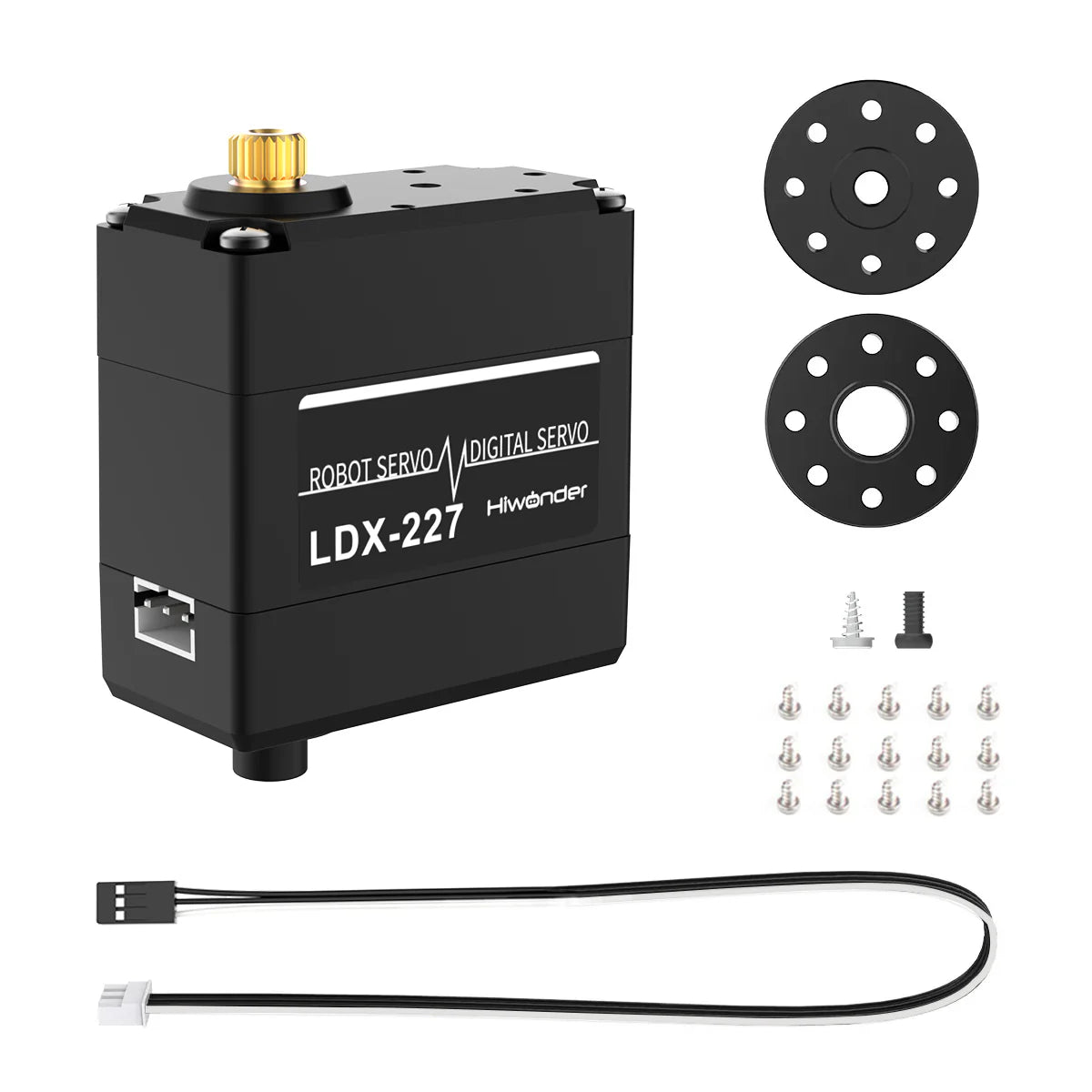

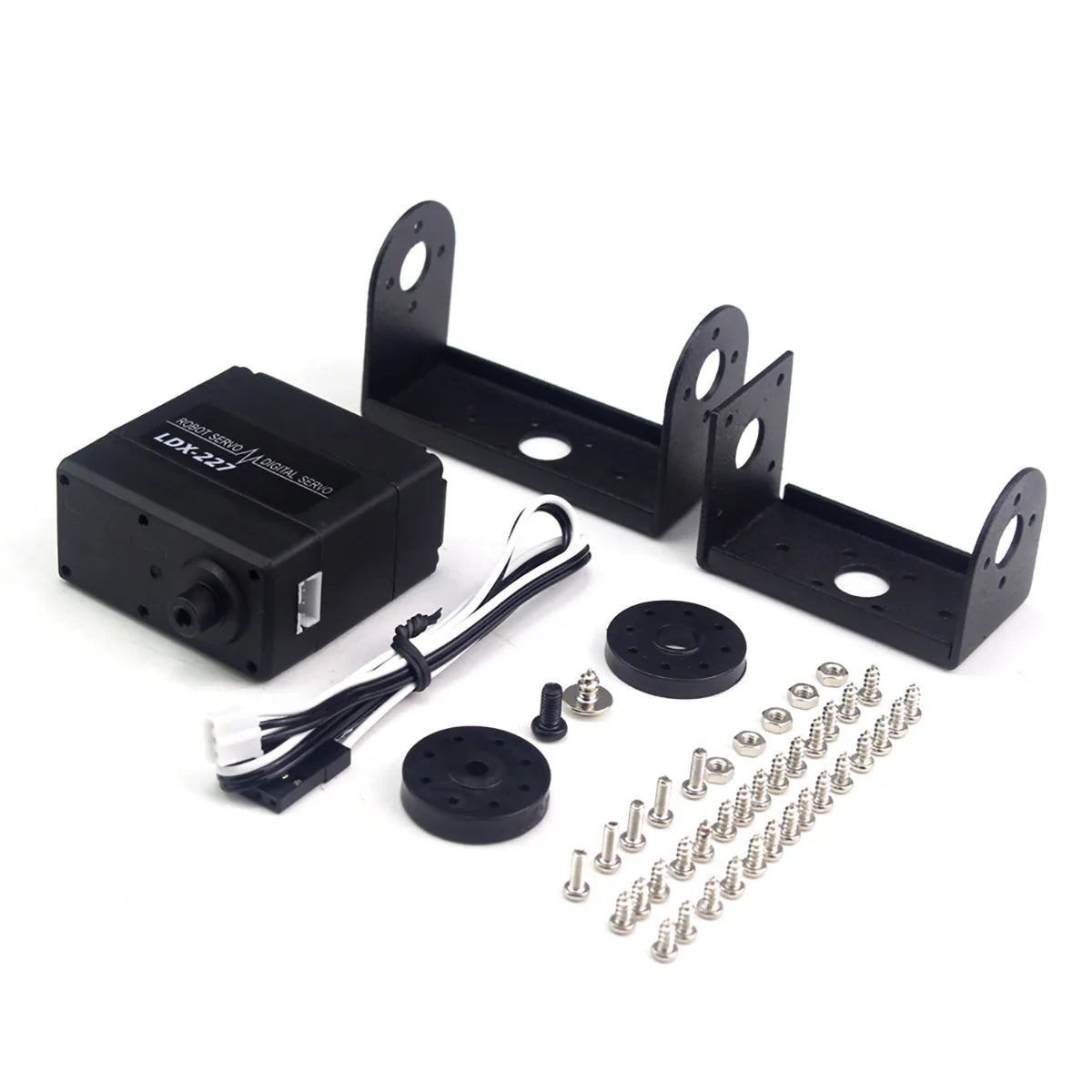

1* Digital servo
1* 30cm servo wire
1* primary servo horn (4mm/0.157in thick)
1* Assistant servo horn (2mm/0.078in thick)
15* M2*5 self-tapping screws

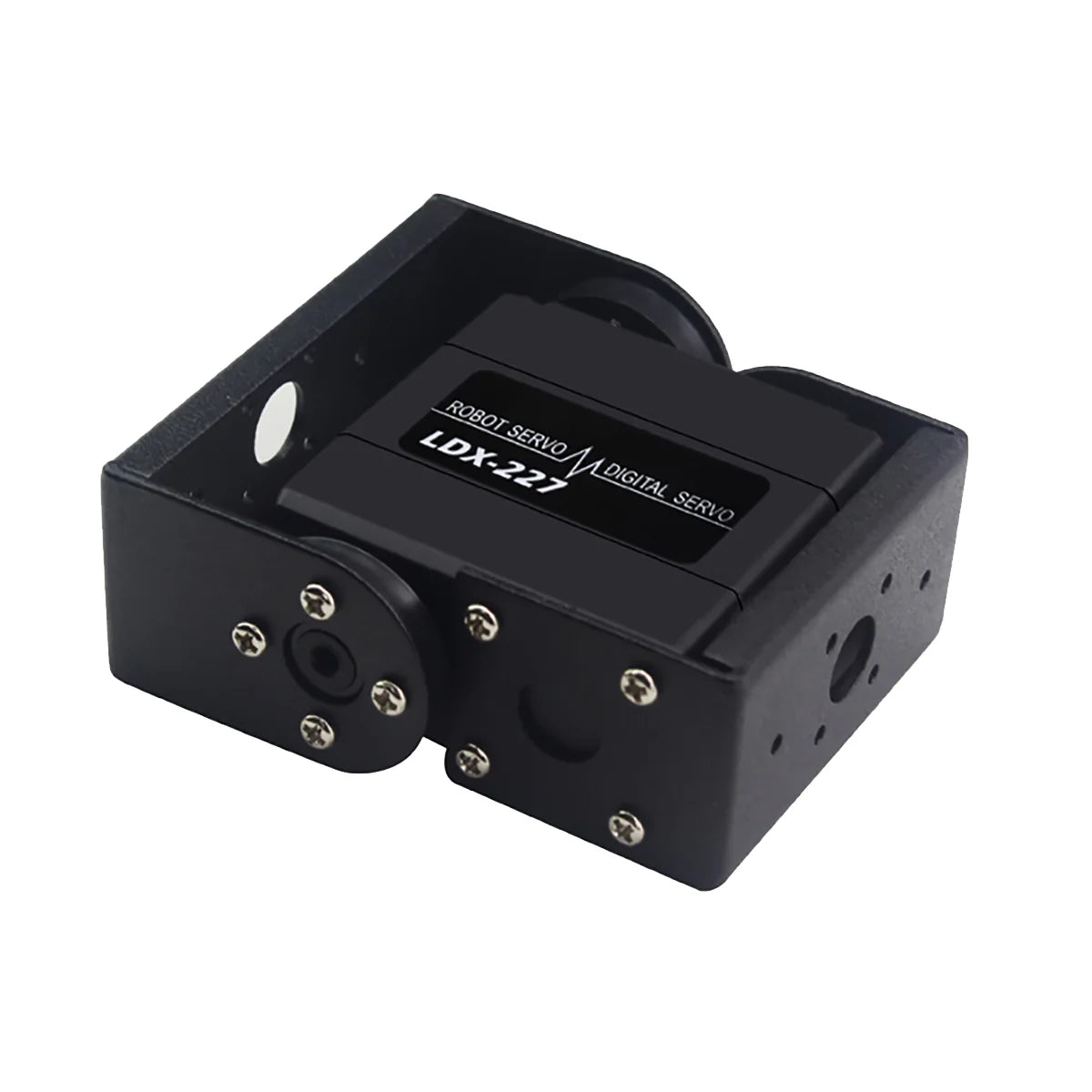

2* Bracket
Ā
Ā
Ā
