5MP USB CAMERA MODULE

IMX335 Sensor |Ā  USB2.0 Port | 175Ā° Wide Angle
Better Sensitivity In Low-Light Condition | Wide Dynamic Range

Ā

Specifications

PIXELS 5MPĀ Ā
SENSOR IMX335Ā
INTERFACE USB 2.0
CAMERA Sensor size 1/2.8 inch
Aperture (F) 2.0
Focal length (EFL) 3.65mm
Field of view (FOV) 175Ā°
Distortion <-36%
Focusing Fixed-focus
LENS MOUNT M12
CONSTRUCTION 5G3P + IR Filter
IMAGE Format support MJPG, YVY2
Static image resolution 2592 Ɨ 1944
Video recording 30 FPS 2592 Ɨ 1944
30 FPS 1920 Ɨ 1080
30 FPS 1280 Ɨ 720
Dynamic range 71.6dB@8xgain
SNR 36dB
OPERATING VOLTAGE 5V Ā± 5%
OPERATING TEMPERATURE -10Ā°C~60Ā°C
MODULE SIZE 25 Ɨ 24mm

Ā

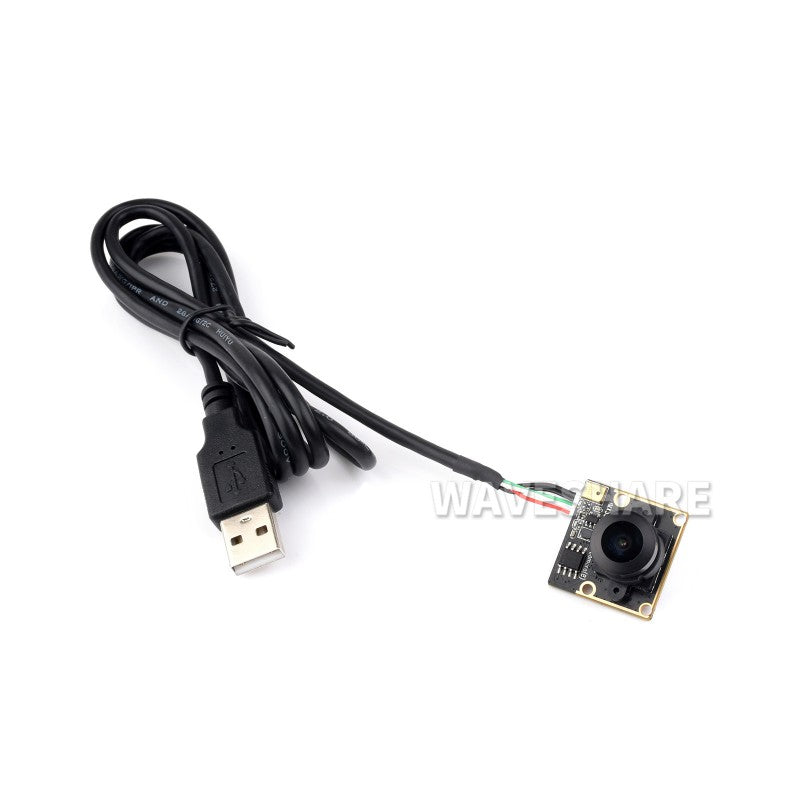

Connecting With USB Cable

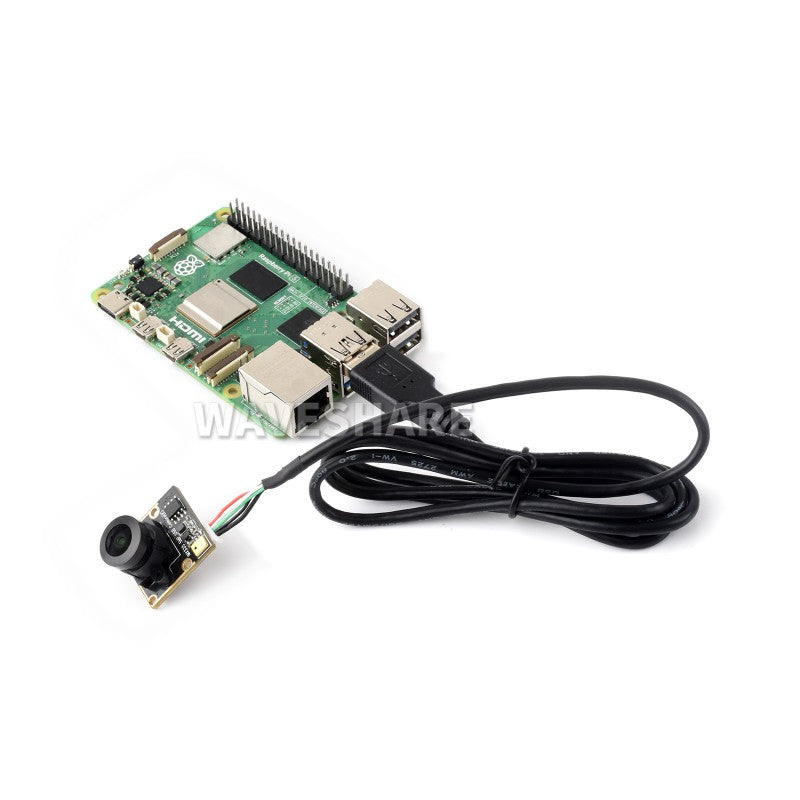

Connecting with Raspberry Pi 5

Connecting with Jetson Orin kit

* for reference only, theĀ Raspberry Pi 5Ā andĀ Jetson Orin kitĀ are not included

Ā

5MP High Resolution

Supports 30 FPS Output, Suitable For Capturing Details

Ā

Better Low-Light Sensitivity

Provides A Better Imaging Effect In Low Light Condition


Ā

Wide Dynamic Range

Supports Wide Dynamic Range (WDR) Technology For Maintaining Image Details And Quality In High Contrast Scenes


* The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.

Ā

Pinout Definition

Ā

Outline Dimensions

Ā

Ā

Resources

Wiki:Ā www.waveshare.com/wiki/IMX335_5MP_USB_Camera_(B)

Ā

Package Contains:

Weight:Ā 0.02 kg

IMX335 5MP USB Camera (B) x1

Ā

Selection Guide

PART NUMBER PIXELS SENSOR BEST RESOLUTION DIMENSION FIELD OF VIEWĀ  FEATURE
OV2710 2MP USB Camera (A) 2MP OV2710 1920x1080 38x38mm 145Ā° Low-light sensitivity
OV5693 5MP USB Camera (A) 5MP OV5693 2592x1944 18Ɨ40mm 135Ā° Auto focus
OV5693 5MP USB Camera (B) 5MP OV5693 2592x1944 8.5Ɨ60.2mm 75Ā° Small size, auto focus
OV5640 5MP USB Camera (B) 5MP OV5640 2592x1944 9Ɨ62mm 68Ā° Small size, auto focus
OV5640 5MP USB Camera (C) Small size
IMX335 5MP USB Camera (A) 5MP IMX335 2592x1944 38Ɨ38mm 106Ā° Manual focus, low-light sensitivity, wide dynamic range
IMX335 5MP USB Camera (B) 5MP IMX335 2592x1944 25Ɨ24mm 175Ā° Fixed-focus, wide angle, low-light sensitivity, wide dynamic range
IMX179 8MP USB Camera (A) 8MP IMX179 3288x2512 38x38mm 145Ā° HD, embedded digital mic
IMX179 8MP USB Camera (B) 8MP IMX179 3264Ɨ2448 9Ɨ62mm 75Ā° HD, small size, auto focus
IMX258 13MP OIS USB Camera (A) 13MP IMX258 4208Ɨ3120 38Ɨ38mm 127Ā° HD, OIS
What are the main specifications of the IMX335 5MP USB Camera (B)?
It uses an IMX335 5MP sensor with fixed focus and an M12 lens, and it connects via USB 2.0 in a compact 25x24 mm package. It supports static resolutions up to 2592x1944 and 30 FPS video at 2592x1944, 1920x1080, and 1280x720, with a 175 degree field of view and wide dynamic range, and operates on 5V plus or minus 5 percent from -10 to 60 C.
Is this camera compatible with Raspberry Pi or Jetson devices?
The description notes reference level compatibility with Raspberry Pi 5 and Jetson Orin kits via USB, but these kits are not included.
How does it perform in low light and high contrast scenes?
It offers better low light sensitivity and a wide dynamic range to preserve details in challenging lighting conditions.
What are the power and operating environment requirements?
It is powered from 5V plus or minus 5 percent via USB and operates from -10 to 60 C.
What comes in the package and what are its physical specs?
Package contains one IMX335 5MP USB Camera (B). The module measures 25x24 mm and weighs about 0.02 kg.
