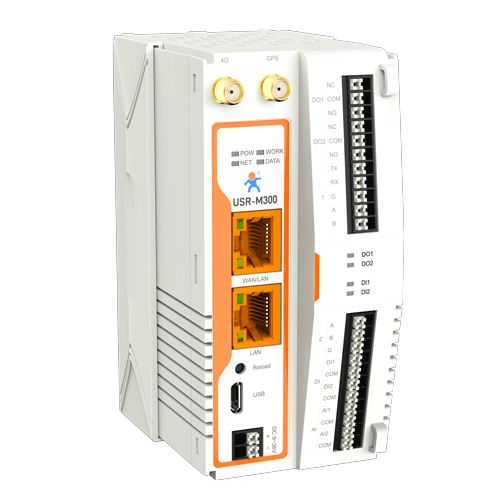

Industrial IoT Gateway - USR-M300

USR-300

High Performance Edge IoT Gateway

USR-M300 High Performance Edge IoT Gateway

Powerful Edge Computing, Expandable IO Modules, GPS, Node-Red

Rich and Highly Reliable Connectivity

Ordering guide

Super Powerful Edge Computing Capabilities

Support Custom Self-Development

Modbus Gateway

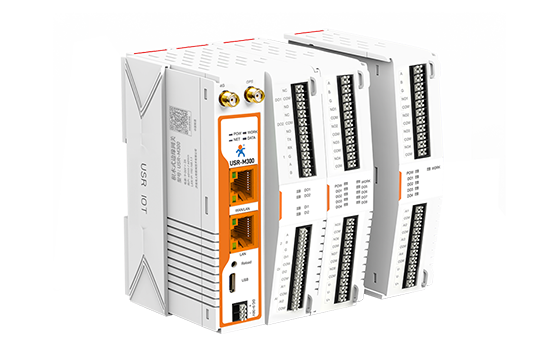

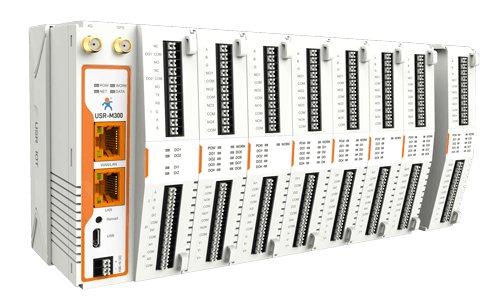

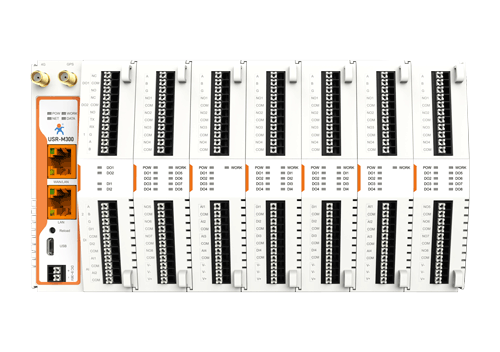

Modular IO Gateway, Easy to Extend

Industrial Design, Easy Installation

Support Quick Access to Mainstream
Cloud Platform Services

Dimensions and Interfaces

PARATEMER

DOWNLOAD

VIDEO

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Specification
Power supply	Power input: DC 9~36V
Working current	--
Serial port	2*serial port Serial port 1: RS232/485 Serial port 2: RS485
Band rate	600~230400bps, user-defined baud rate is supported
Data bits	7, 8
Stop bits	1, 2
Parity	None, Even, Odd
IO interface	DI: 2*DI, 0 - 2 V detected as logic low, 9 - 36 V detected as logic high
DO	2*Relays, DC contacts rating @R(at resistive load)10A / 28V DC AC contacts rating @R(at resistive load)10A / 277V AC, NO AC contacts rating @R(at resistive load)5A / 250V AC, NC
AI	2 x Analog input 4-20mA
Physical characteristics	Dimension: 79.6x 58 x110 (mm) Housing: ABS housing, IP30 protection Installation: Din rail mounting, wall mounting
EMC protection	ESD: IEC61000-4-2, Level 3, class B, contact 6KV, air 8KV Surge: IEC61000-4-5, Level 3, class B EFT: IEC61000-4-4, Level 3, class B
Indicator	POW: ON - Gateway is powered up, OFF - Gateway is not powered up WORK: When the device is working properly, it blinks for 1s frequency NET: Blinking when the WAN connects to the internet, OFF when there is no network DATA: Blinking when serial port is transmitting data DO status: Light on, the channel output is activated DI status: Light on, the channel is activated by input signal
Network	Cellular: LTE Cat4, Global Frequency Ethernet: 1WAN/LAN + 1LAN 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Cellular Frequency	TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 WCDMA: B1/2/4/5/6/8/19 GSM/EDGE: B2/3/5/8
SIM	1*Micro SIM
Antenna	1*SMA-Female
Software	Network Protocols: ICMP, IPv4, IP, ARP, TCP, UDP, DHCP, DNS, HTTP, MQTT, SNMP Configuration method: Built-in webpage Modbus Gateway: Modbus RTU/TCP protocol conversion Linkage control: Supported. Data collection points, DI, and AI can be used as trigger and executed by DO IP Routing: Static routing NTP: √ VPN: PPTP, L2TP, *OpenVPN SNMP: √
Others	Approvals: CE, FCC, ROHS*

[User Manual]USR-IOxx-User Manual-EN-V1.0.1	Download >>
[User Guide] User Guide of USR-M300	Download >>
[Specification] USR-M300-spec-V1.0.1	Download >>
[AWS Application] USR-M300 Quick Start Guide with AWS IoT	Download >>
