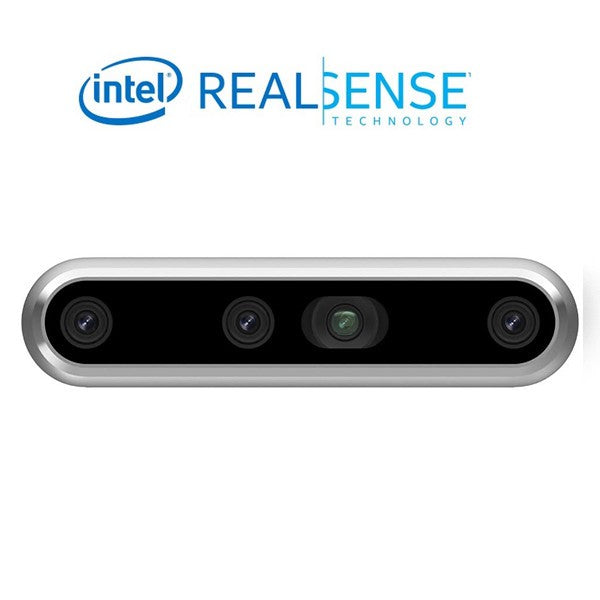

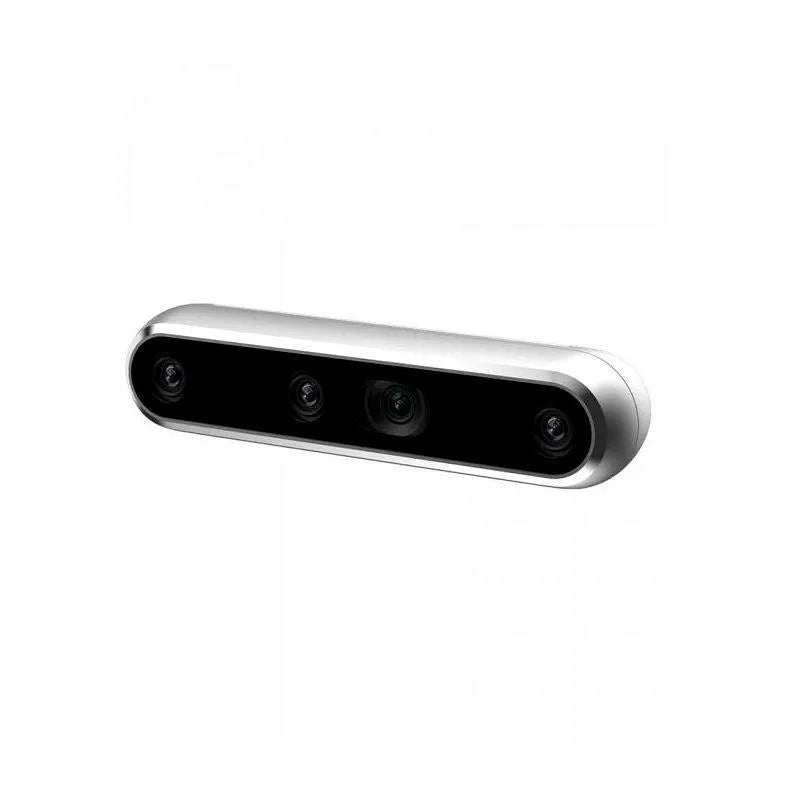

Depth Camera D455
Twice the range.
Better performance.
Introducing the latest addition to the family, the Intel® RealSense™ Depth Camera D455. The D455 is the fourth in the D400 series, designed from feedback and knowledge gained from over 10 years of stereo camera development.
The Intel RealSense Depth Camera D455 extracts 3D information from a scene, enabling developers to add 3D depth to robotics navigation, object recognition, and other applications. This USB-powered depth camera features a pair of depth sensors, an RGB sensor with a global shutter, a range of up to 66', a minimum distance of 1.3', and an infrared projector. This D455 version includes an IMU (inertial measurement unit) that enables your application to refine its depth awareness when using a moving camera on a drone or robot. It also features inertial 6DoF (six degrees of freedom) measurement data for enhanced accuracy.
The D455 is an indoor/outdoor solution designed to fit developers' prototypes. Its wide 86° field of view and global shutter combination offers accurate depth perception with a moving object or a device in motion, and it covers more area, minimizing blind spots. Use the D455 for accurate capture for collision avoidance, 3D scanning, digital signage, and volumetric measurement uses.
Stereo Depth
Stereo image sensing technologies use two cameras to calculate depth. Intel RealSense stereo depth technology brings 3D to devices and machines that only see 2D. Designed for easy setup and portability, the RealSense D455 features long-range capabilities and high-depth resolution, and it includes active infrared (IR) stereo. The D455 is a wide field-of-view solution using global shutter sensors. The wide view/global shutter combination makes the D455 ideal for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area, resulting in less blind spots. The global shutter sensors provide great low-light sensitivity, allowing robots to navigate spaces with the lights off.
Key Features
- Integrated IMU (inertial measurement unit) enables your application to refine its depth awareness in any situation where the camera moves, allowing improved environmental awareness for robotics and drones
- Provides inertial 6DoF measurement data
- Advanced stereo depth algorithm for accurate depth perception and long range
- Image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
- Dedicated color image signal processor for image adjustments and scaling color data
- Active infrared projector to illuminate objects to enhance the depth data
- Depth Stream Output: Up to 1280 x 720 at up to 90 fps
- Minimum Depth Distance: 1.3'
- Up to 65.6' maximum range (accuracy varies depending on calibration, scene, and lighting condition)
- RGB Sensor Resolution & Frame Rate: 1280 x 800 at 30 fps
- RGB Sensor FOV (Horizontal x Vertical): 86 x 57° (±3°)
- One 1/4"-20 mounting thread and two M3 mounting threads
Intel D455 Specs
| Sensor | Pixel Size: 3 x 3 μm |
| Shutter Type | Image Sensor: Global |
| Depth Field of View | 86 x 57° (±3°) |
| Depth Resolution | Up to 1280 × 720 |
| Depth Frame Rate | Up to 90 fps |
| RGB Sensor Technology | Global Shutter |
| RGB Frame Rate & Resolution | 1280 x 800 at 30 fps |
| RGB Sensor FOV | 86 x 57° (±3) |
| Minimum Depth Distance | 15.7" / 400 mm |
| Maximum Range | 65.6' / 20 m (Approximate) |
| Connectors | USB Type-C 3.1 Gen 1 |
| Mounting Threads | 1 x 1/4"-20 2 x M3 |
| Dimensions | 4.9 x 1 x 1.1" / 124 x 26 x 29 mm |
How does the integrated IMU improve depth sensing on moving platforms?
The D455 includes an integrated IMU that provides inertial 6DoF data to refine depth awareness when the camera moves, improving environmental awareness for drones and robots.
What is the depth range and the minimum distance to sense depth?
The maximum range is up to 65.6 feet (20 m) and the minimum depth distance is 1.3 feet (400 mm).
What are the depth and color camera resolutions and frame rates?
Depth data is up to 1280 x 720 at 90 fps and the RGB sensor supports 1280 x 800 at 30 fps with a global shutter.
What mounting options and connectivity does the camera offer?
It uses a USB Type C 3.1 Gen 1 interface and provides mounting points including one 1/4-20 thread and two M3 threads for flexible mounting.
Is the camera suitable for indoor and outdoor use and what features support moving scenes?
Yes, it is designed as an indoor outdoor solution for prototypes and includes a wide 86 degree field of view and an active infrared projector to enhance depth data on moving scenes.
Description
Depth Camera D455
Twice the range.
Better performance.
Introducing the latest addition to the family, the Intel® RealSense™ Depth Camera D455. The D455 is the fourth in the D400 series, designed from feedback and knowledge gained from over 10 years of stereo camera development.
The Intel RealSense Depth Camera D455 extracts 3D information from a scene, enabling developers to add 3D depth to robotics navigation, object recognition, and other applications. This USB-powered depth camera features a pair of depth sensors, an RGB sensor with a global shutter, a range of up to 66', a minimum distance of 1.3', and an infrared projector. This D455 version includes an IMU (inertial measurement unit) that enables your application to refine its depth awareness when using a moving camera on a drone or robot. It also features inertial 6DoF (six degrees of freedom) measurement data for enhanced accuracy.
The D455 is an indoor/outdoor solution designed to fit developers' prototypes. Its wide 86° field of view and global shutter combination offers accurate depth perception with a moving object or a device in motion, and it covers more area, minimizing blind spots. Use the D455 for accurate capture for collision avoidance, 3D scanning, digital signage, and volumetric measurement uses.
Stereo Depth
Stereo image sensing technologies use two cameras to calculate depth. Intel RealSense stereo depth technology brings 3D to devices and machines that only see 2D. Designed for easy setup and portability, the RealSense D455 features long-range capabilities and high-depth resolution, and it includes active infrared (IR) stereo. The D455 is a wide field-of-view solution using global shutter sensors. The wide view/global shutter combination makes the D455 ideal for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area, resulting in less blind spots. The global shutter sensors provide great low-light sensitivity, allowing robots to navigate spaces with the lights off.
Key Features
- Integrated IMU (inertial measurement unit) enables your application to refine its depth awareness in any situation where the camera moves, allowing improved environmental awareness for robotics and drones
- Provides inertial 6DoF measurement data
- Advanced stereo depth algorithm for accurate depth perception and long range
- Image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
- Dedicated color image signal processor for image adjustments and scaling color data
- Active infrared projector to illuminate objects to enhance the depth data
- Depth Stream Output: Up to 1280 x 720 at up to 90 fps
- Minimum Depth Distance: 1.3'
- Up to 65.6' maximum range (accuracy varies depending on calibration, scene, and lighting condition)
- RGB Sensor Resolution & Frame Rate: 1280 x 800 at 30 fps
- RGB Sensor FOV (Horizontal x Vertical): 86 x 57° (±3°)
- One 1/4"-20 mounting thread and two M3 mounting threads
Intel D455 Specs
| Sensor | Pixel Size: 3 x 3 μm |
| Shutter Type | Image Sensor: Global |
| Depth Field of View | 86 x 57° (±3°) |
| Depth Resolution | Up to 1280 × 720 |
| Depth Frame Rate | Up to 90 fps |
| RGB Sensor Technology | Global Shutter |
| RGB Frame Rate & Resolution | 1280 x 800 at 30 fps |
| RGB Sensor FOV | 86 x 57° (±3) |
| Minimum Depth Distance | 15.7" / 400 mm |
| Maximum Range | 65.6' / 20 m (Approximate) |
| Connectors | USB Type-C 3.1 Gen 1 |
| Mounting Threads | 1 x 1/4"-20 2 x M3 |
| Dimensions | 4.9 x 1 x 1.1" / 124 x 26 x 29 mm |
FAQ
How does the integrated IMU improve depth sensing on moving platforms?
The D455 includes an integrated IMU that provides inertial 6DoF data to refine depth awareness when the camera moves, improving environmental awareness for drones and robots.
What is the depth range and the minimum distance to sense depth?
The maximum range is up to 65.6 feet (20 m) and the minimum depth distance is 1.3 feet (400 mm).
What are the depth and color camera resolutions and frame rates?
Depth data is up to 1280 x 720 at 90 fps and the RGB sensor supports 1280 x 800 at 30 fps with a global shutter.
What mounting options and connectivity does the camera offer?
It uses a USB Type C 3.1 Gen 1 interface and provides mounting points including one 1/4-20 thread and two M3 threads for flexible mounting.
Is the camera suitable for indoor and outdoor use and what features support moving scenes?
Yes, it is designed as an indoor outdoor solution for prototypes and includes a wide 86 degree field of view and an active infrared projector to enhance depth data on moving scenes.
