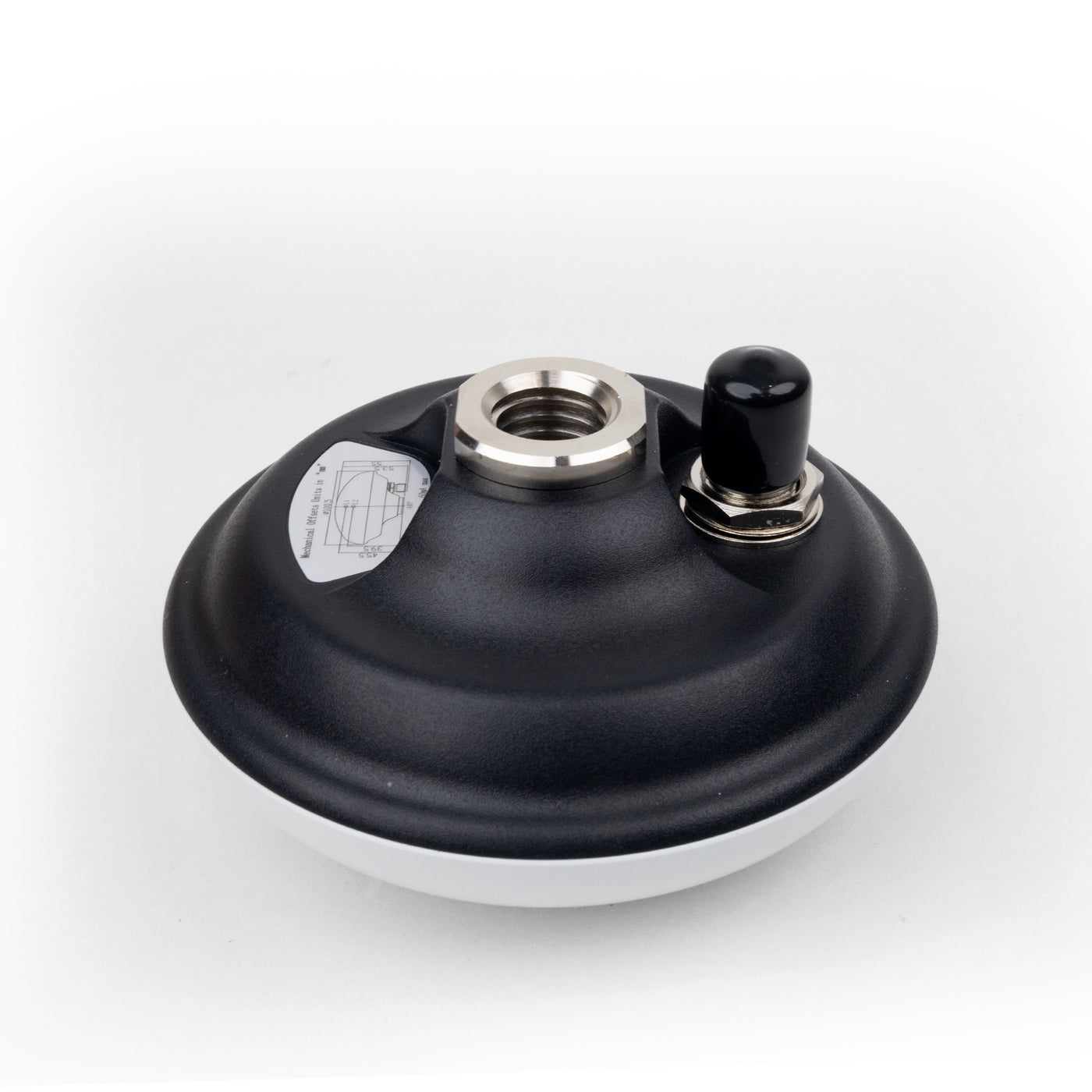

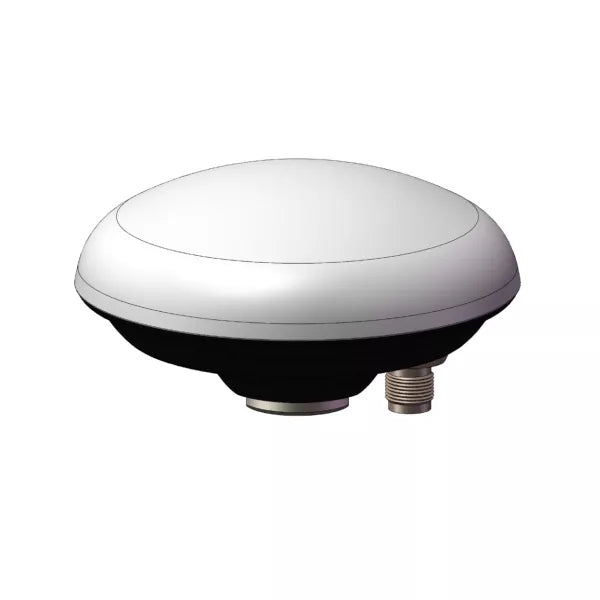

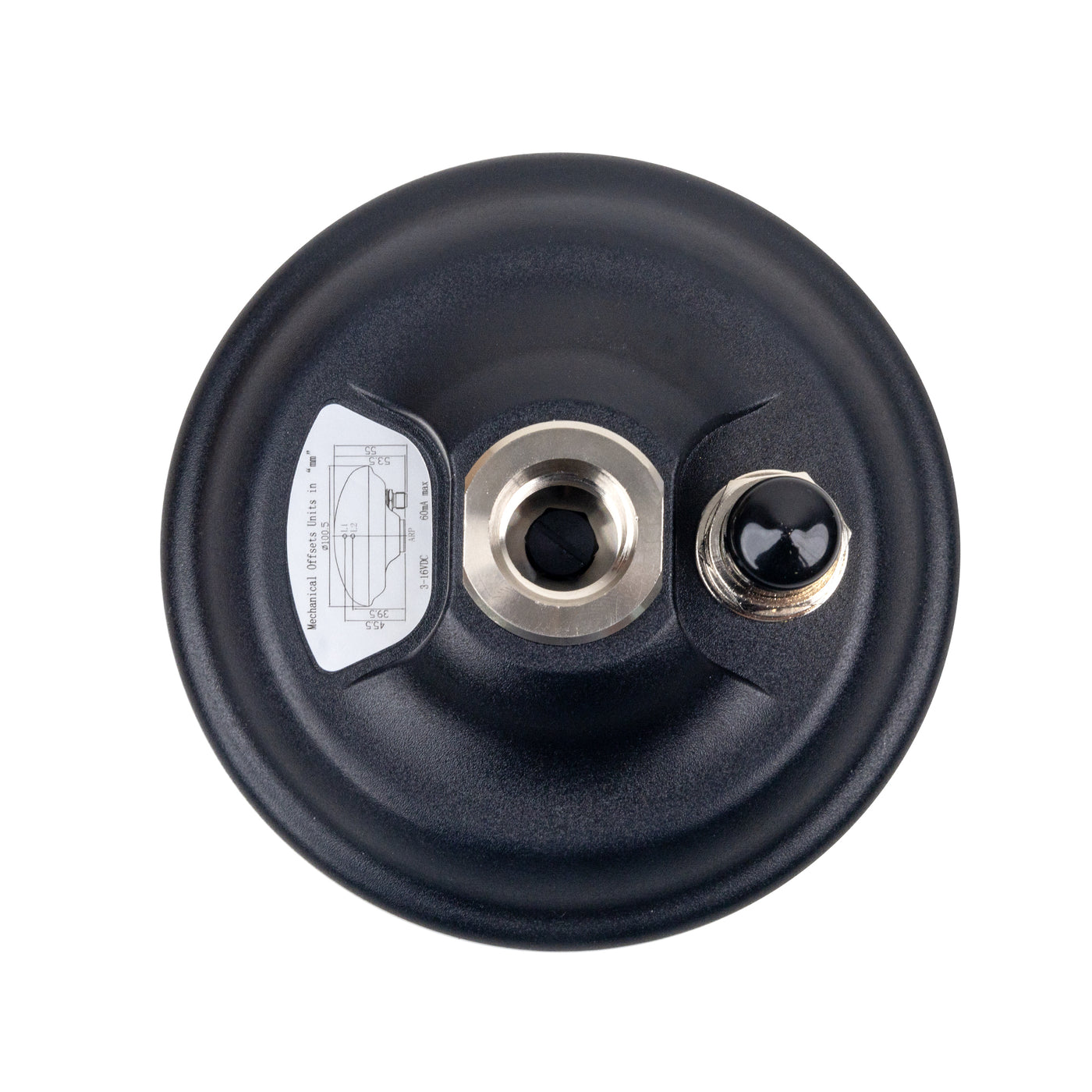

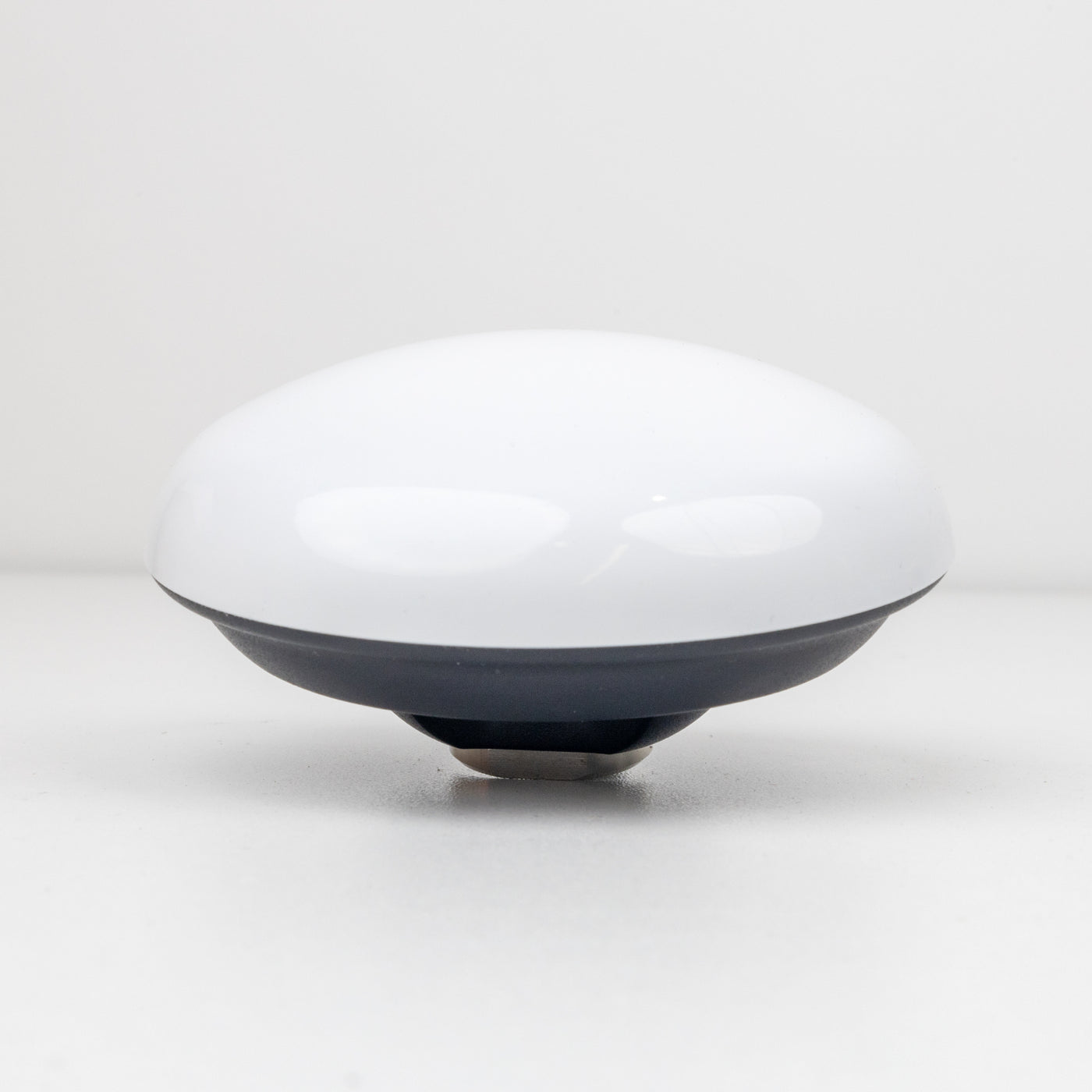

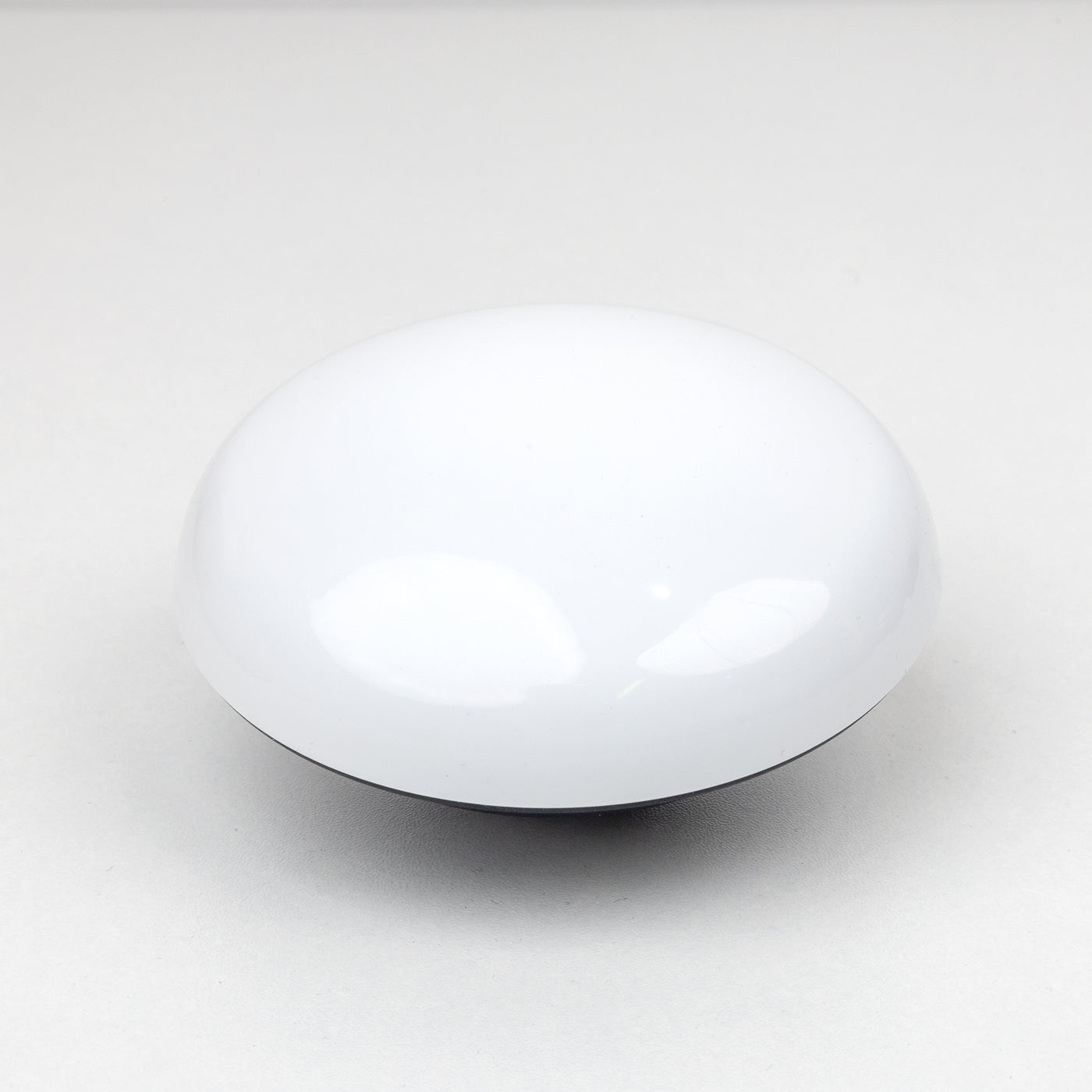

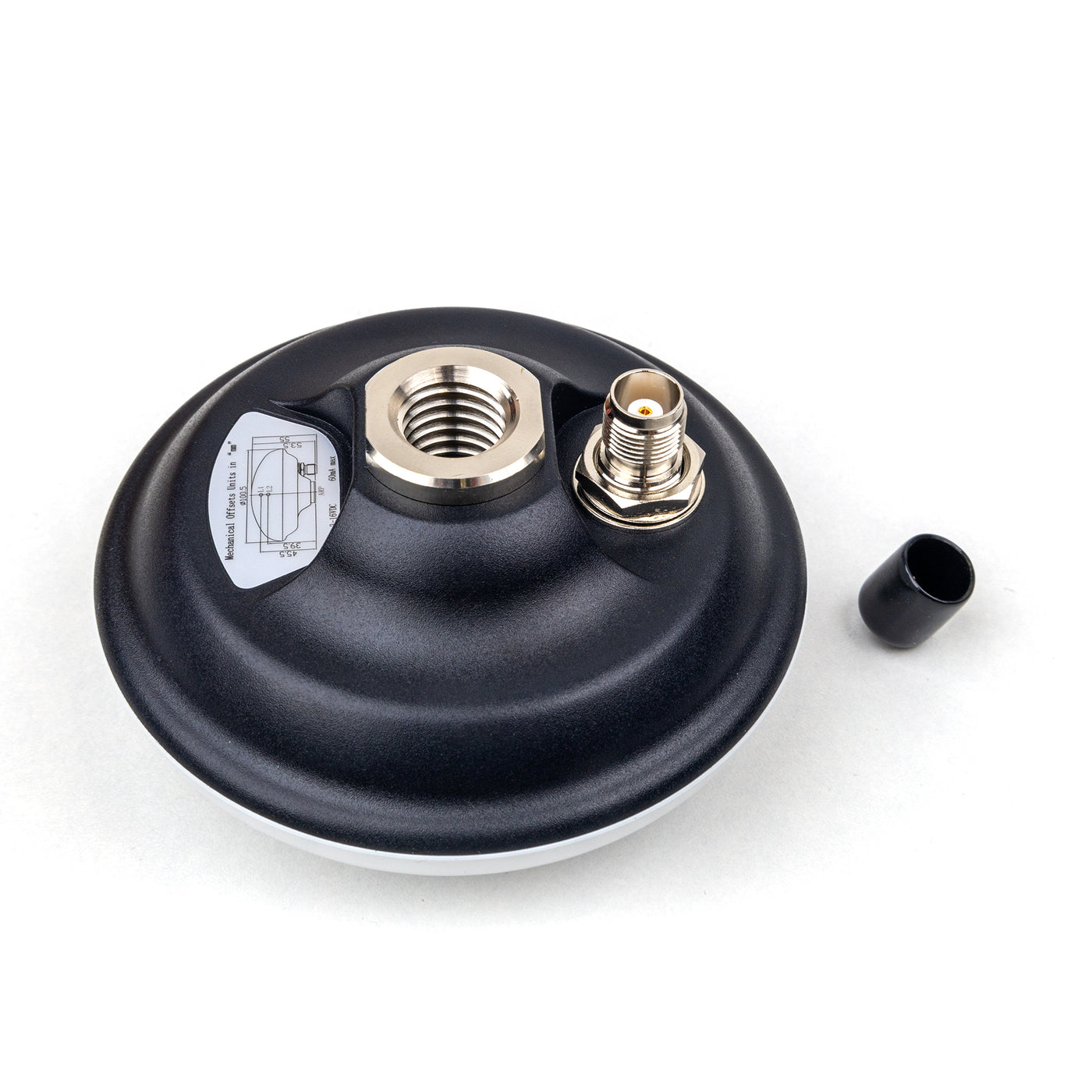

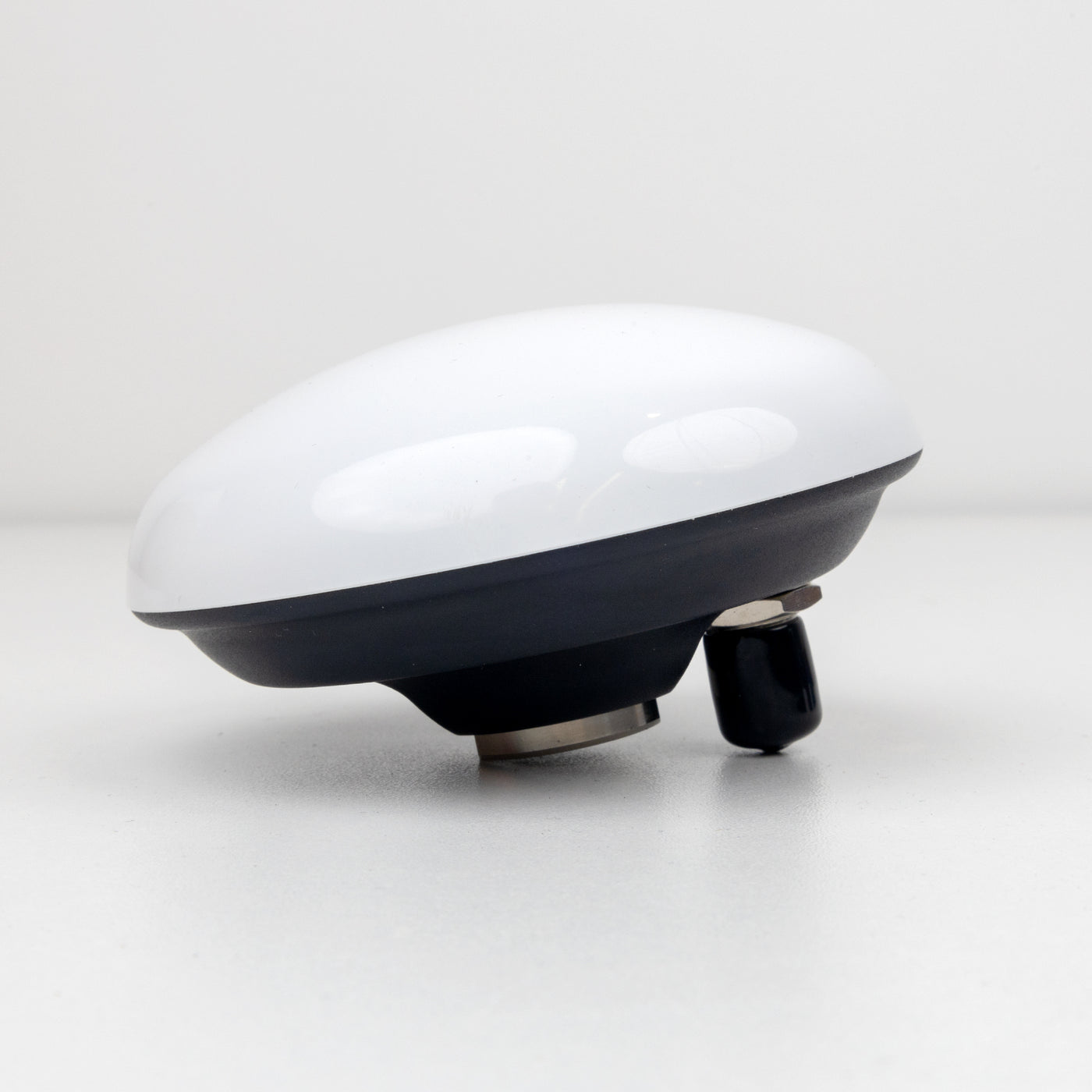

The JCA208 is a professional-grade GNSS surveying antenna designed for high-accuracy positioning across multiple satellite systems. Supporting GPS, GLONASS, BeiDou, and Galileo, the JCA208 delivers reliable, real-time location data for RTK surveying, geodesy, construction mapping, and precision agriculture applications.
With a rugged, low-profile design and excellent axial ratio, this antenna minimizes multipath interference and ensures consistent signal quality even in challenging environments. The weatherproof housing and standard TNC connectormake the JCA208 ideal for outdoor deployments requiring centimeter-level GNSS precision.
Key Features:
Engineered for stability, reliability, and long-term outdoor use, the JCA208 GNSS antenna is the trusted choice for professional-grade surveying and positioning solutions.
|
Item |
Specifications |
|
|
Antenna |
Frequency |
GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 |
|
Polarization |
RHCP |
|
|
Axial Ratio |
ā¤3dB |
|
|
V.S.W.R |
ā¤1.5 |
|
|
Peak Gain |
ā„4dBi |
|
|
Impedance |
50Ī© |
|
|
Phase Center Error |
Ā±2mm |
|
|
Horizontal coverage angle |
360Ā° |
|
|
LNA |
Gain |
30Ā±2dB |
|
Noise Figure |
ā¤2.0dB |
|
|
Passband fluctuation |
Ā±1.5dB |
|
|
Supply Voltage |
3~16V DC |
|
|
Current Consumption |
ā¤40mA |
|
|
V.S.W.R |
ā¤2.0 |
|
|
Mechanical |
Connector |
TNC-K |
|
Radome Material |
ASA |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40ā~+85ā |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude Air vent in screw hole) |
|
|
Environmentally Friendly |
ROHS Compliant |
|
