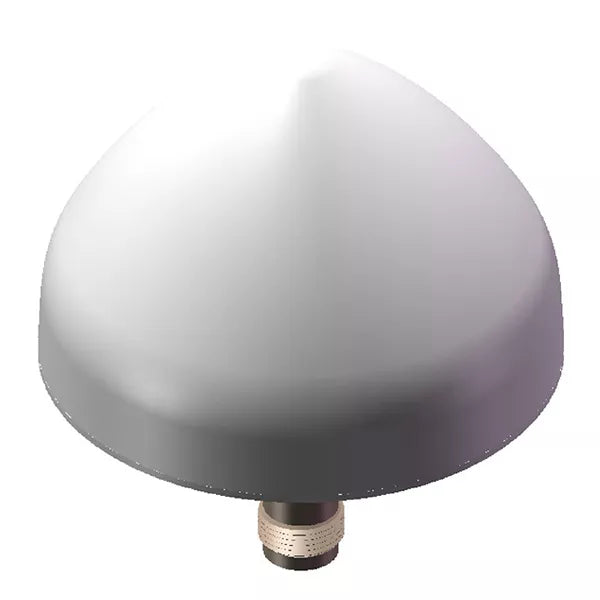

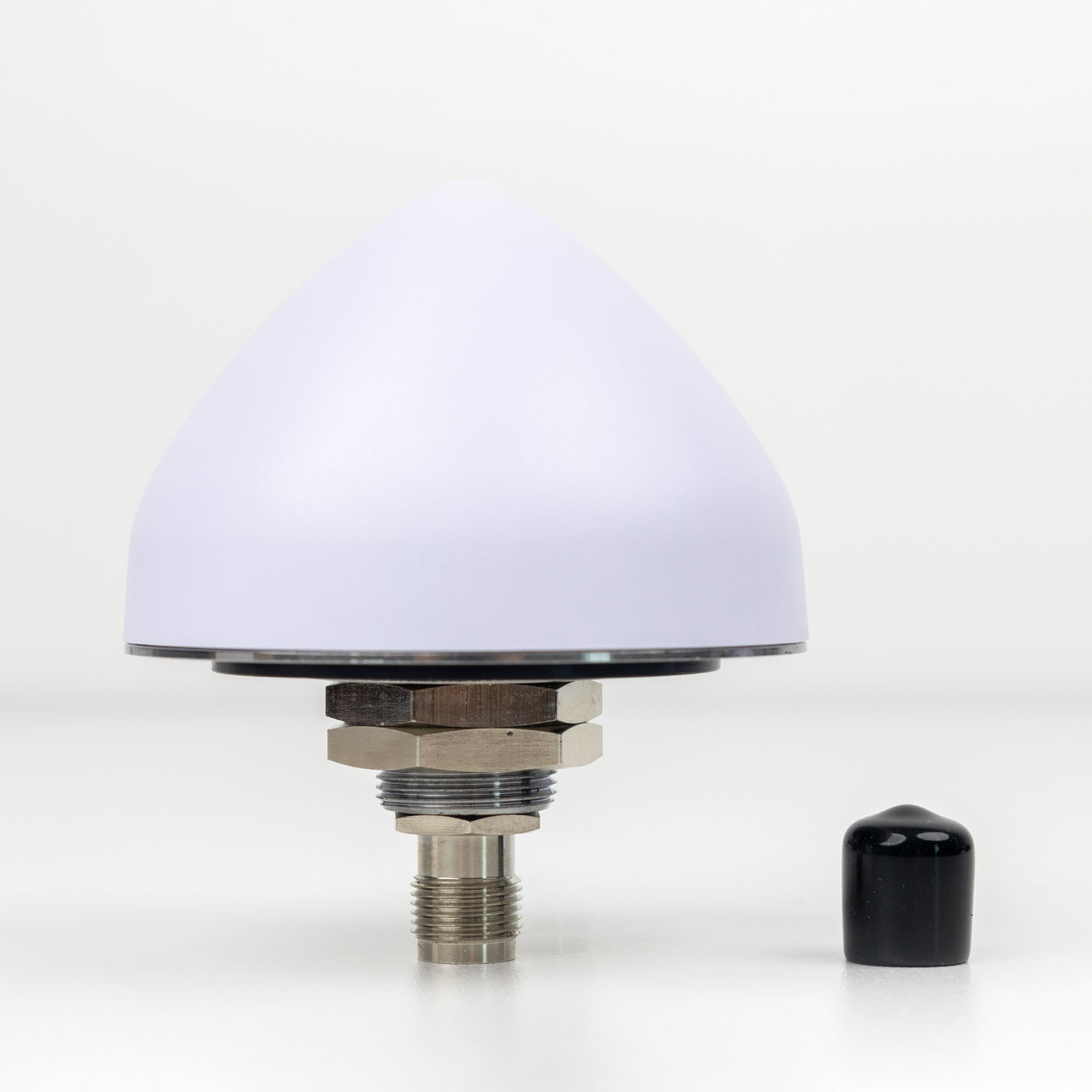

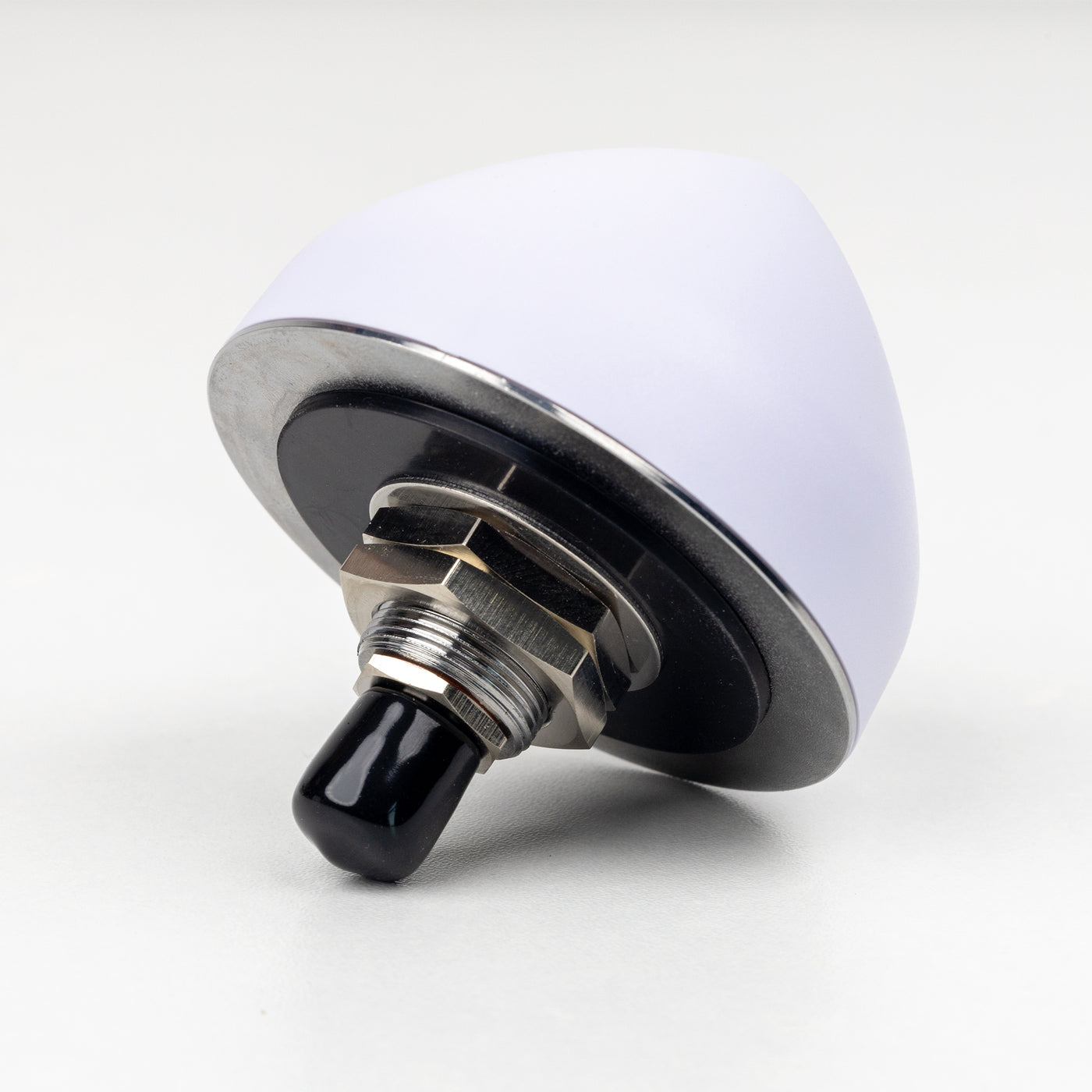

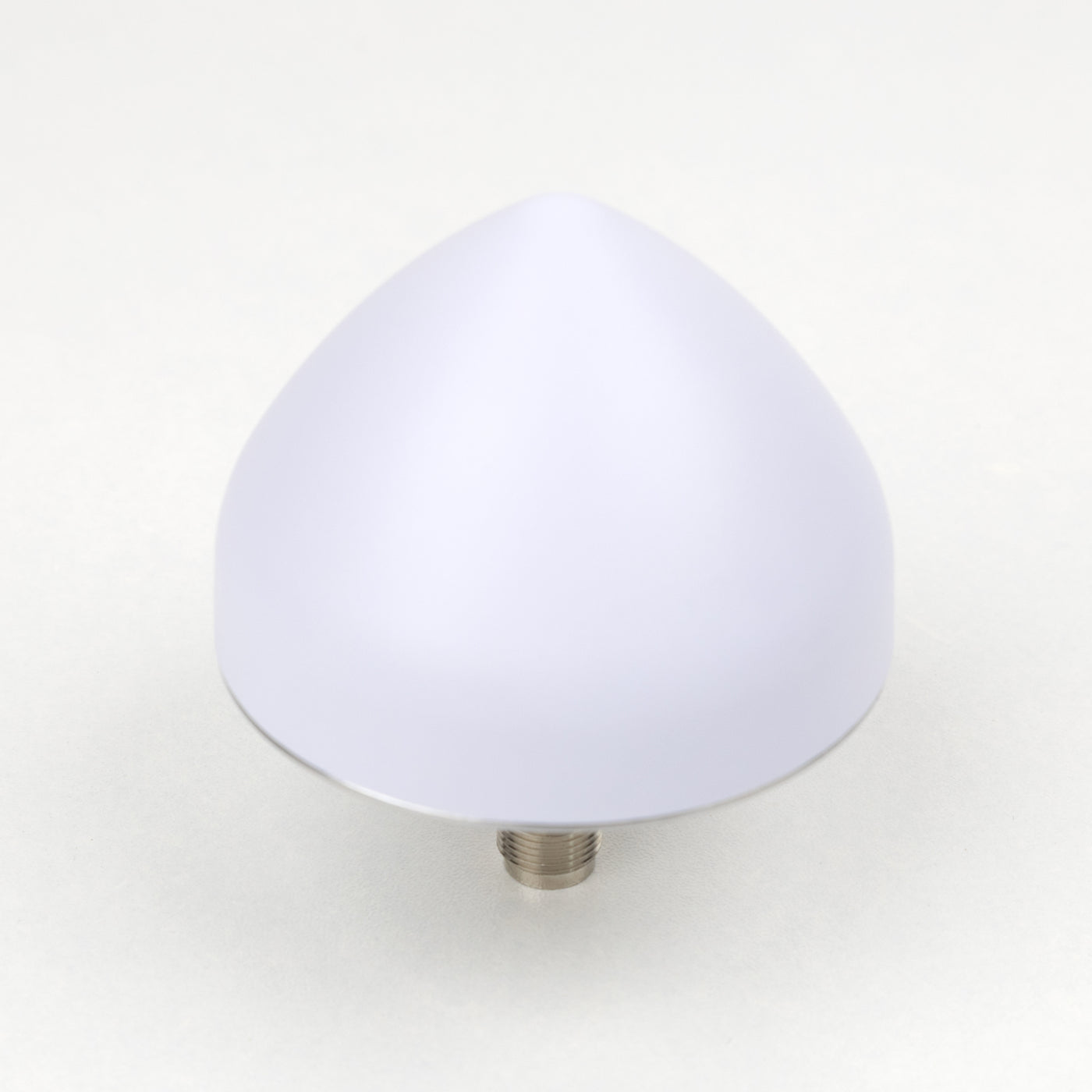

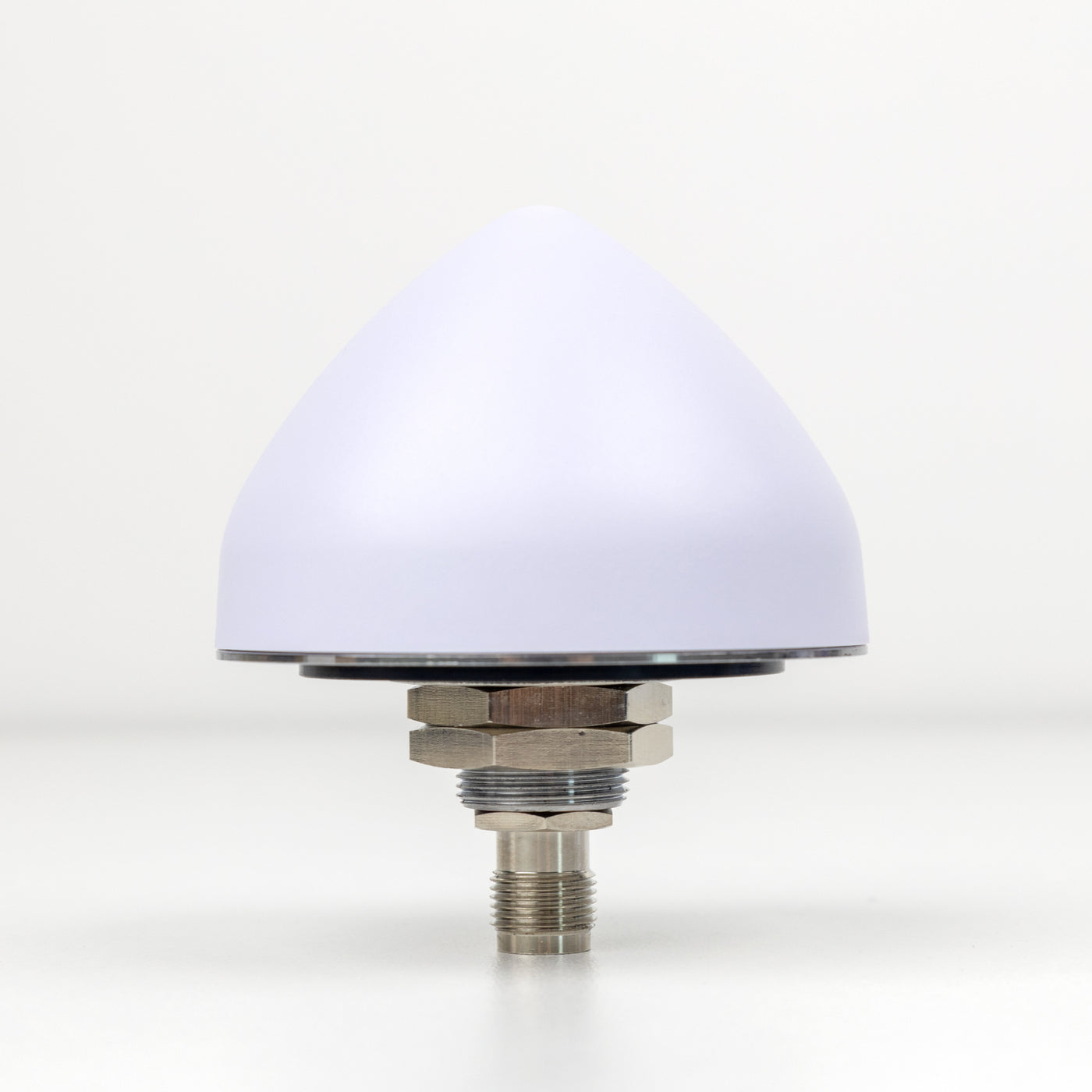

JCA225S GNSS Antenna – Precision GPS/GLONASS/BeiDou Receiver Antenna
The JCA225S is a compact, high-performance GNSS antenna engineered for reliable and accurate satellite signal reception. It supports GPS , GLONASS , BeiDou , and Galileo constellations, making it ideal for a wide range of GNSS-based positioning systems , including drones (UAVs) , smart agriculture , survey equipment , tracking systems , and autonomous vehicles .
Featuring a ceramic patch antenna with integrated low noise amplifier (LNA) , the JCA225S offers strong signal gain, excellent multipath rejection, and fast satellite lock. Its SMA connector , rugged waterproof housing , and compact design ensure long-term performance in demanding environments.
Key Features:
Multi-band GNSS support: GPS, GLONASS, BeiDou, Galileo
Built-in LNA for improved signal reception and low noise
High gain and low VSWR for precise positioning
Compact, rugged form factor with IP67-rated waterproof housing
SMA connector for secure integration
Ideal for UAVs, asset tracking, surveying , and machine control systems
The JCA225S delivers dependable satellite reception and is the go-to antenna for high-accuracy, space-constrained GNSS applications.
Specifications:
Item
Specifications
Antenna
Frequency Range
1559.052~1610MHz
1205.094~1278.75MHz
Polarization
RHCP
Axial Ratio
≤3dB
V.S.W.R
≤2.0
Peak Gain
≥3dBi
Impedance
50Ω
Horizontal Coverage Angle
360°
Vertical Coverage Angle
5°~90°
LNA
Gain
B1/L1/G1/E1/E2：28±2dB
B2/L2/G2/B3/E5b/E6：30±2dB
Noise Figure
≤1.5dB
Passband Fluctuation
±1.5dB
Supply Voltage
3.3~12V DC
Current Consumption
≤50mA
V.S.W.R
≤2.0
Mechanical

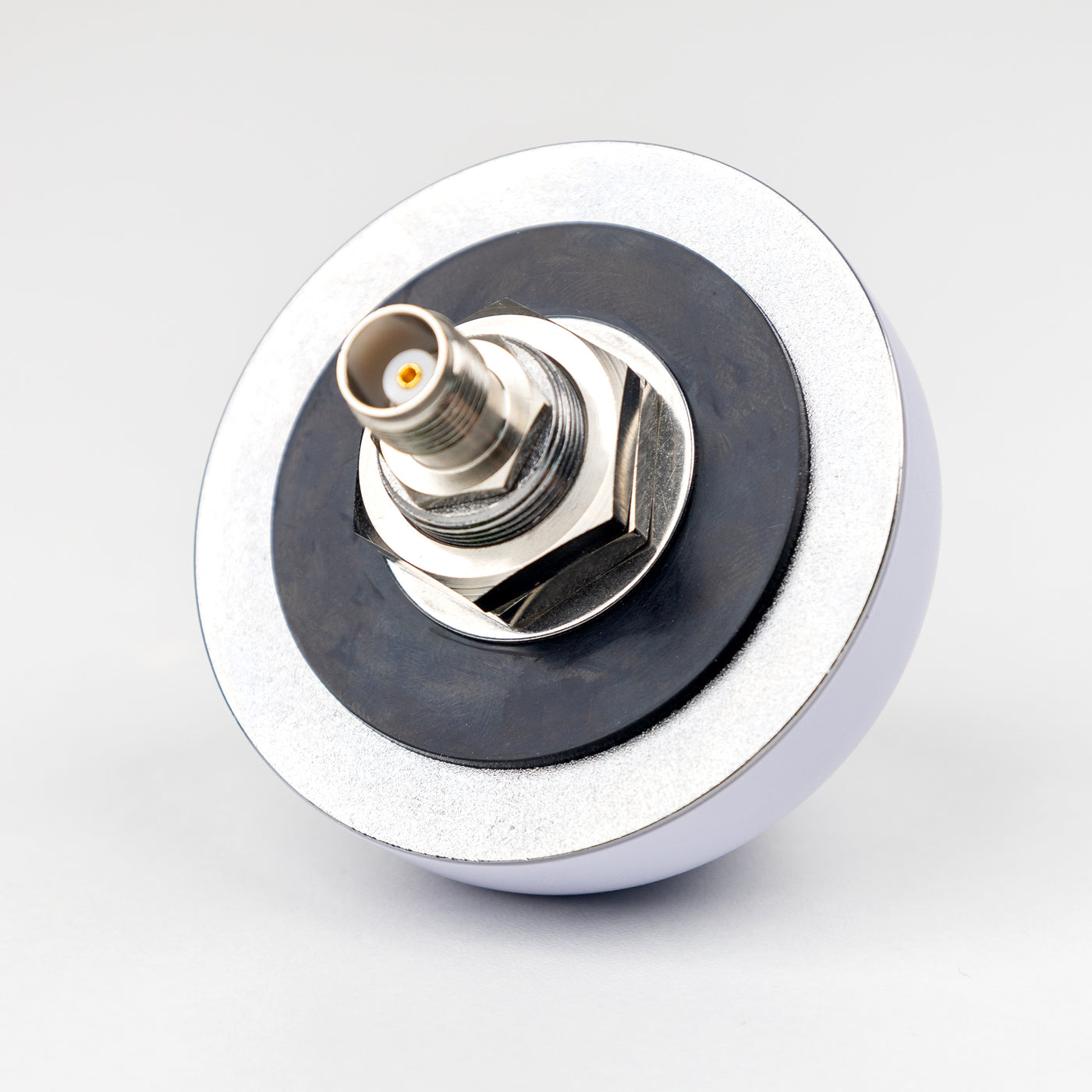

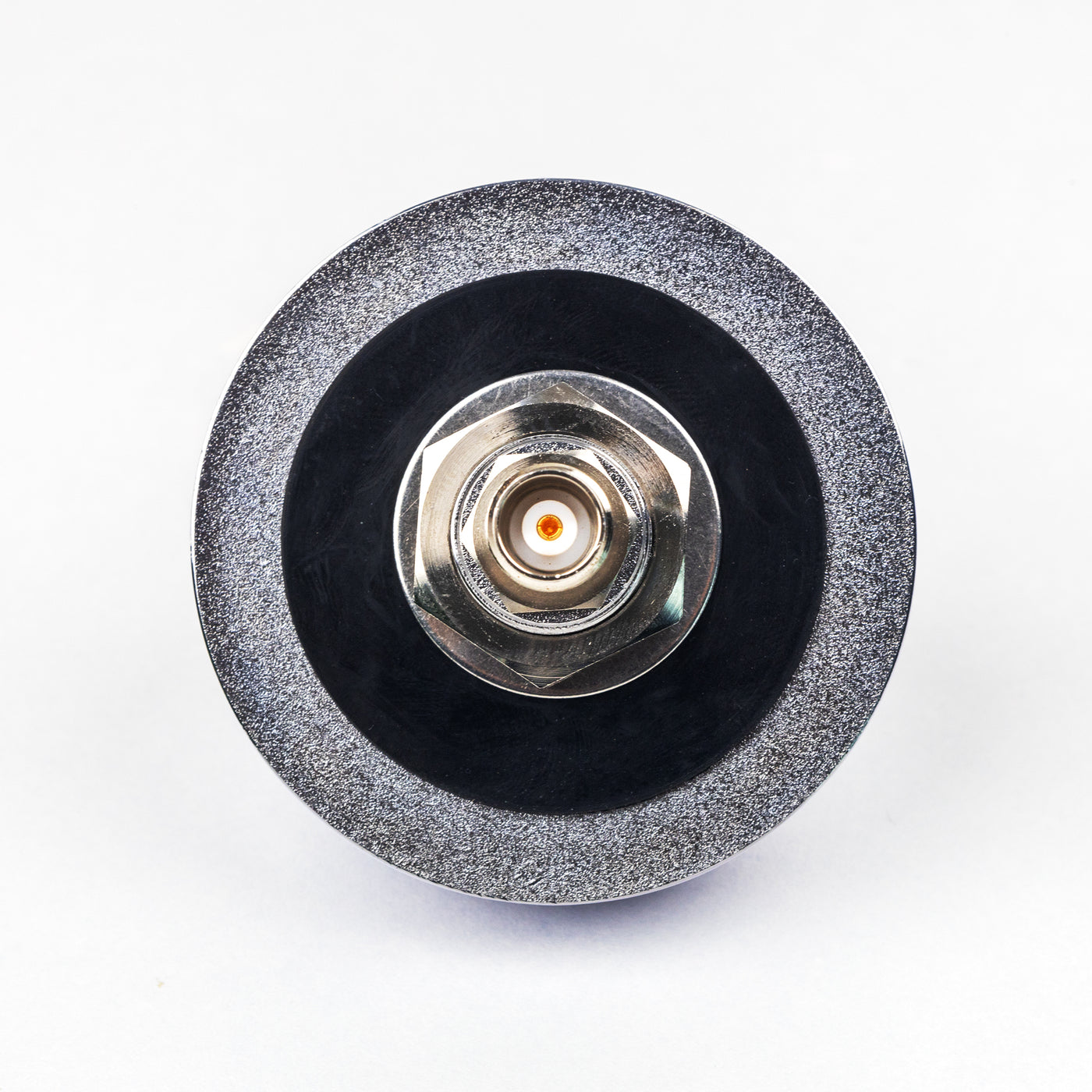

Connector
TNC-K
Dimension
Φ66.5mm
Weight
≈300g
Environmental
Operating Temperature
-40℃~+85℃
Storage temperature
-40℃~+85℃
Relative Humidity
Up to 95% (Non condensing)
Ingress Protection
IP67
