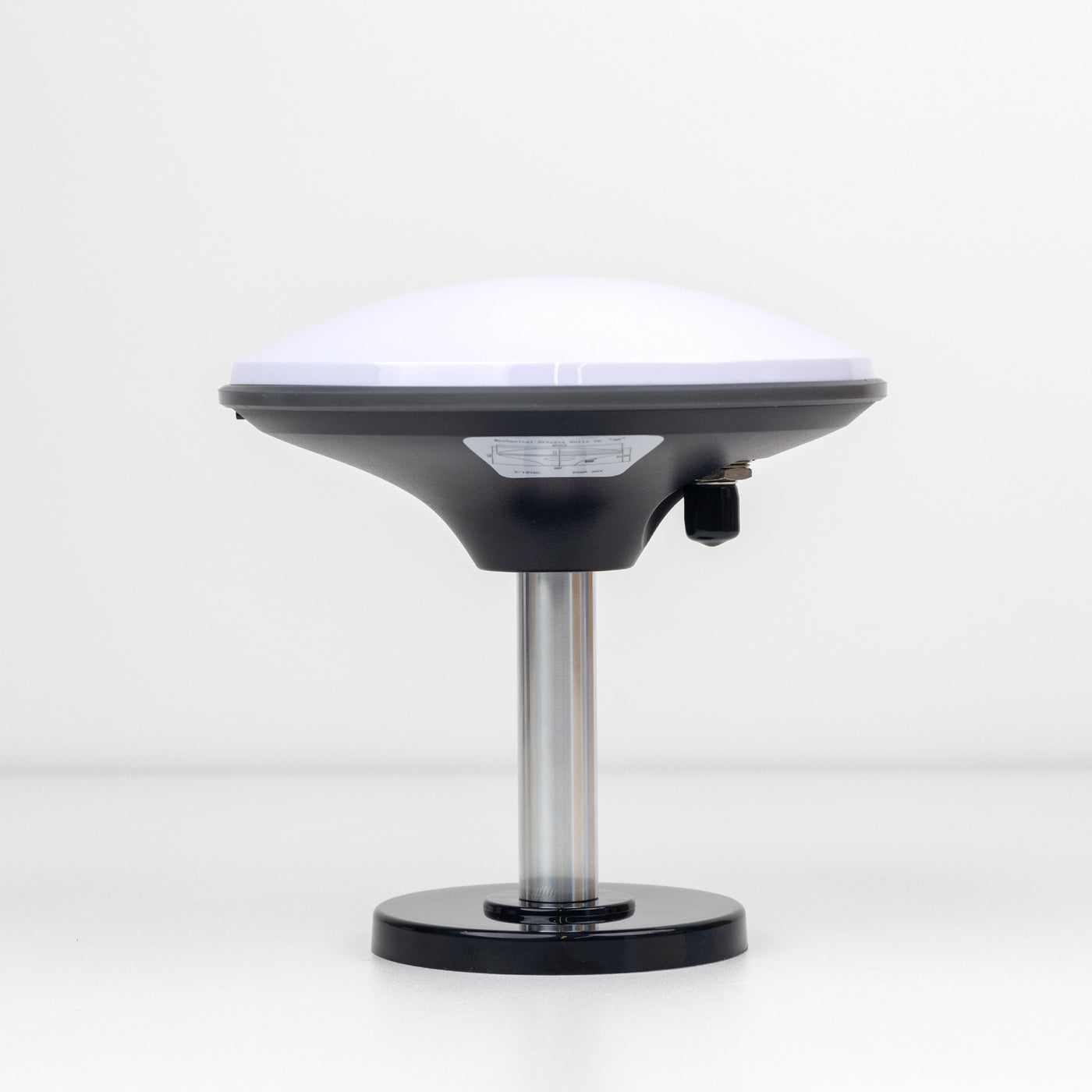

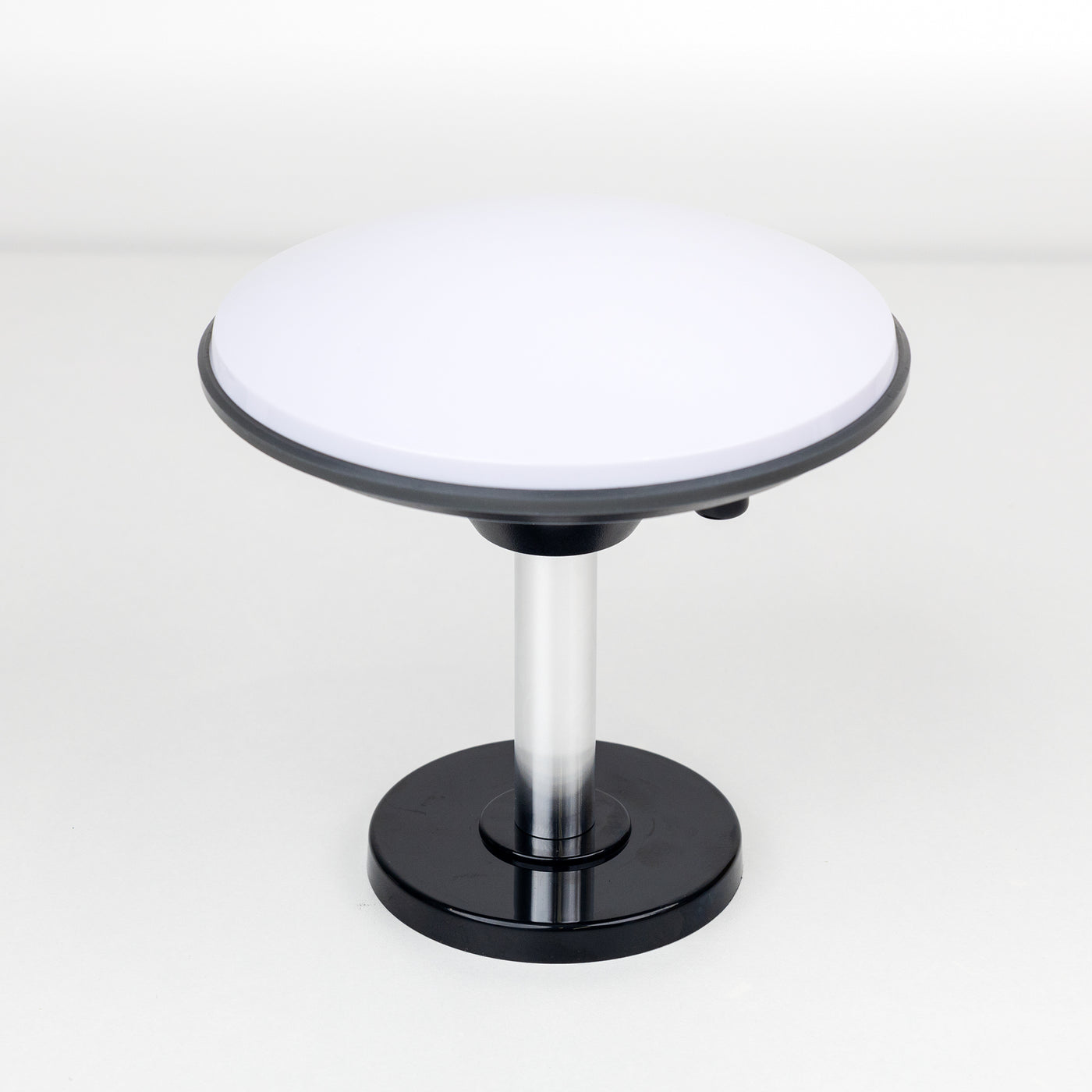

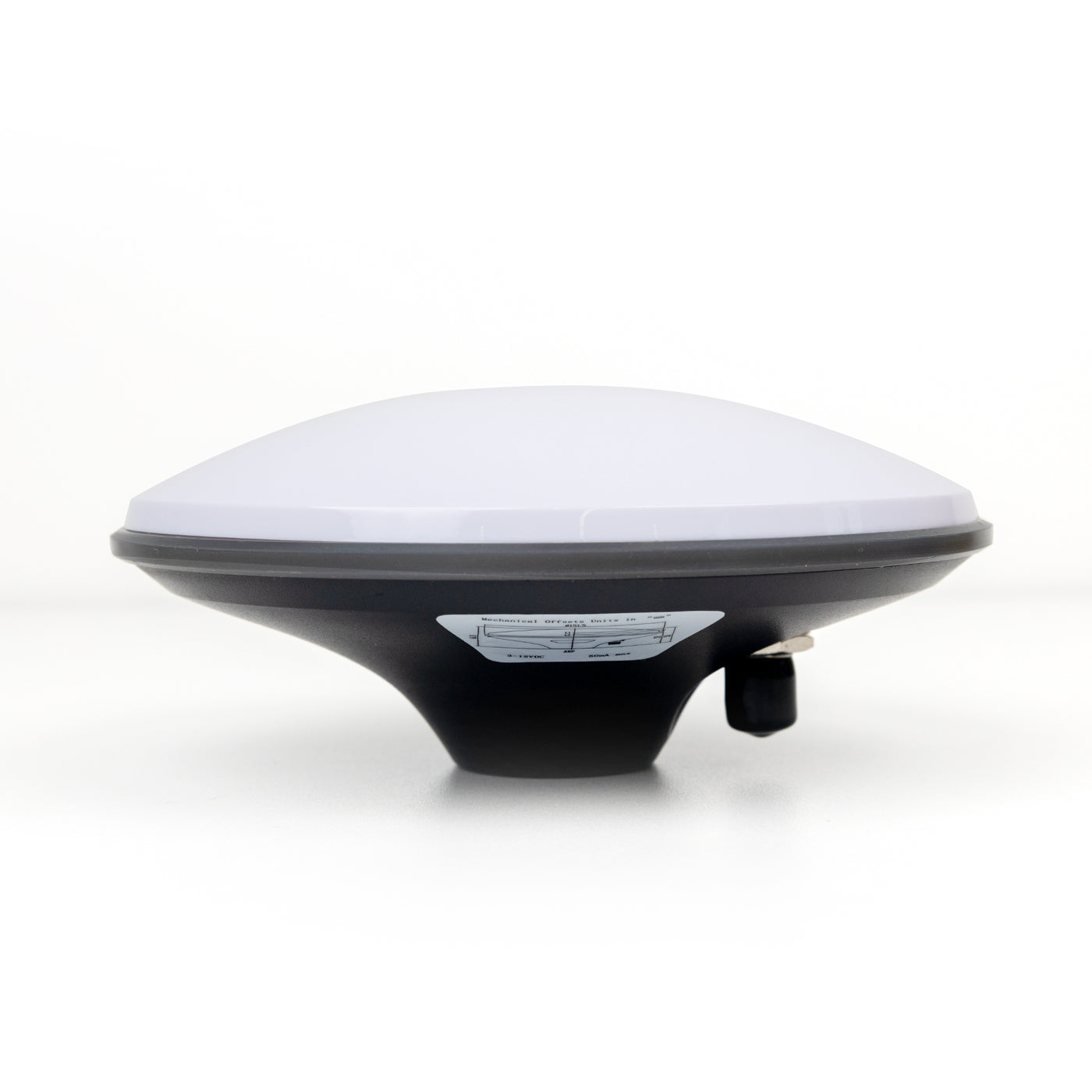

The JCA228F is a high-accuracy GNSS antenna designed to provide strong, stable signal reception across global navigation satellite systems including GPS, GLONASS, BeiDou, and Galileo. With a compact form factor and rugged waterproof housing, the JCA228F is ideal for GNSS receivers, RTK systems, surveying equipment, drones (UAVs), and smart agriculture applications.
This antenna features a ceramic patch element paired with a high-gain low-noise amplifier (LNA), offering enhanced performance in both urban and rural environments. Its SMA connector and IP67-rated construction allow for easy integration and reliable operation in challenging outdoor conditions.
Delivering consistent, high-performance signal reception, the JCA228F is the trusted antenna choice for demanding GNSS applications.
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
1559.052~1610MHz 1205.094~1278.75MHz |
|
Polarization |
RHCP |
|
|
Axial Ratio |
≤3dB |
|
|
V.S.W.R |
≤2.0 |
|
|
Peak Gain |
≥3dBi |
|
|
Impedance |
50Ω |
|
|
Horizontal Coverage Angle |
360° |
|
|
Vertical Coverage Angle |
5°~90° |
|
|
LNA |
Gain |
B1/L1/G1/E1/E2：28±2dB B2/L2/G2/B3/E5b/E6：30±2dB |
|
Noise Figure |
≤1.5dB |
|
|
Passband Fluctuation |
±1.5dB |
|
|
Supply Voltage |
3.3~12V DC |
|
|
Current Consumption |
≤50mA |
|
|
V.S.W.R |
≤2.0 |
|
|

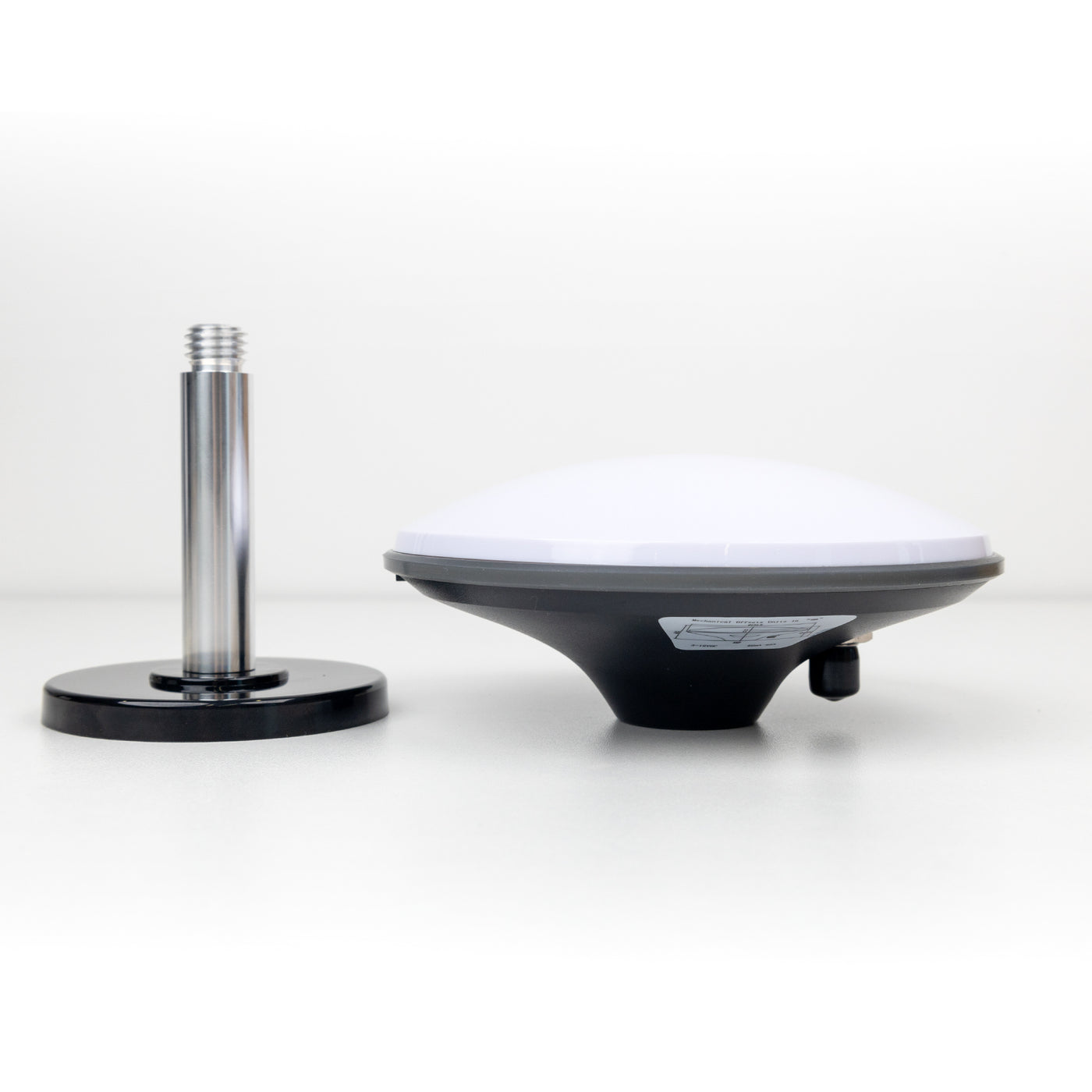

Mechanical |

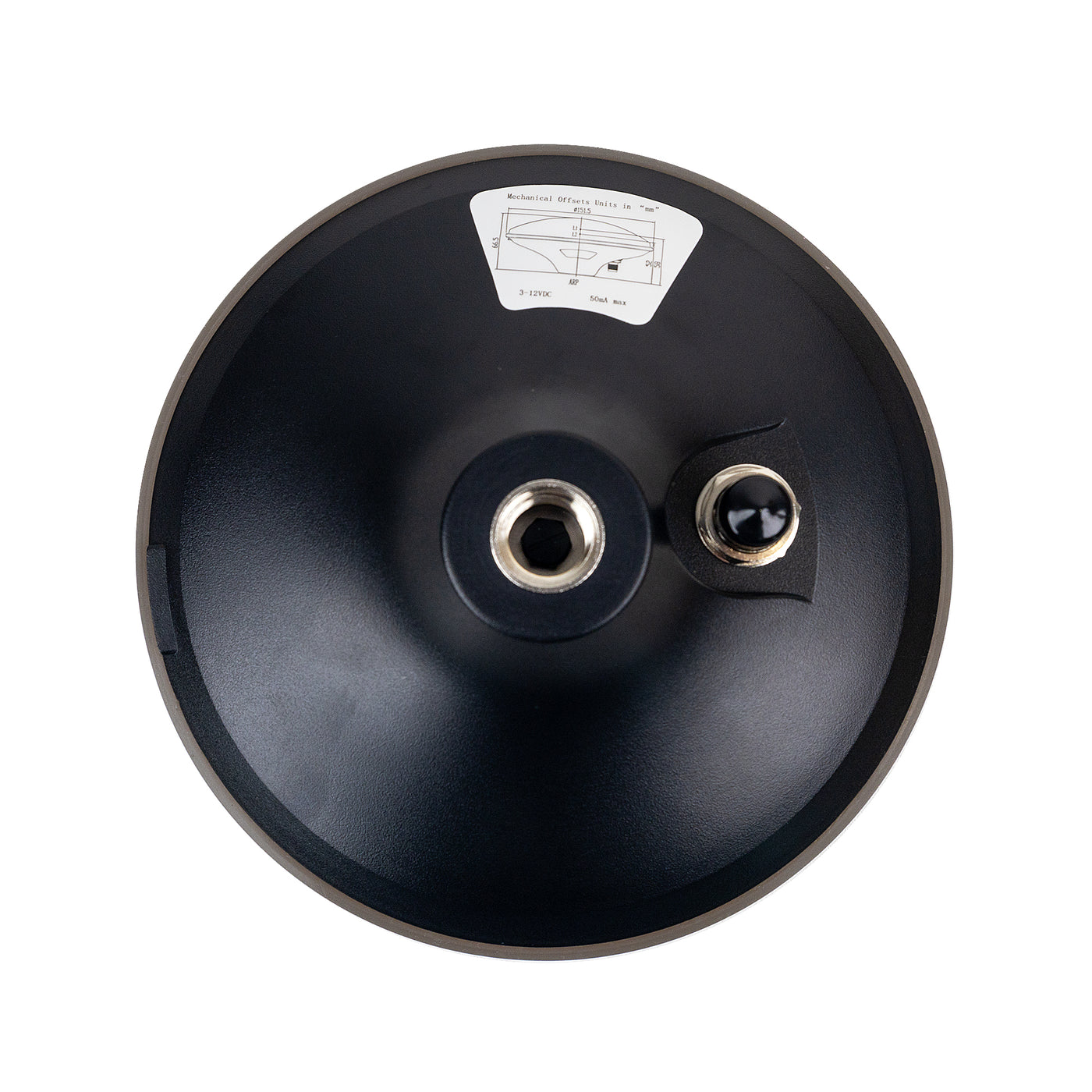

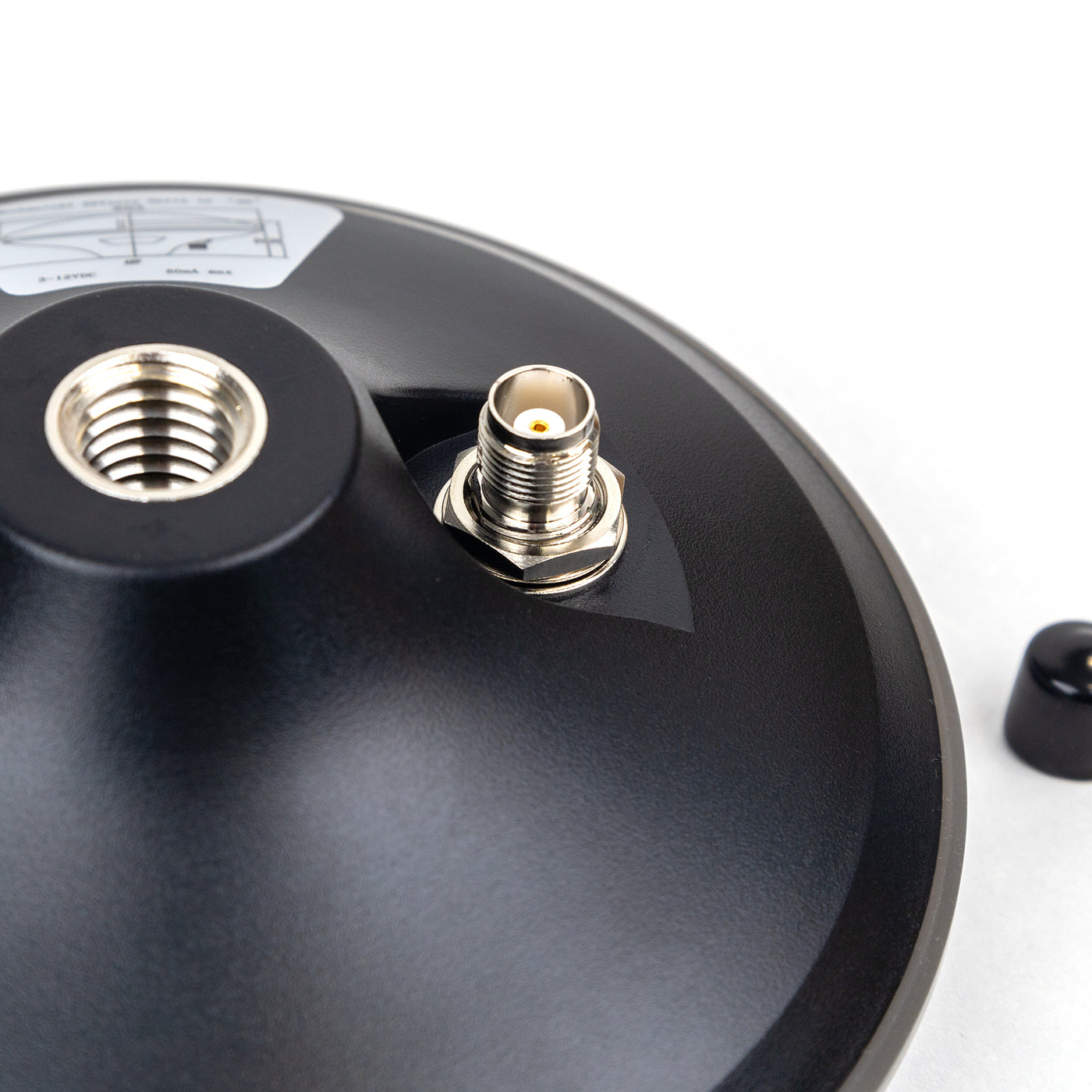

Connector |
TNC-K |
|
Dimension |
Φ66.5mm |
|
|
Weight |
≈300g |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% (Non condensing) |
|
|
Ingress Protection |
IP67 |
|
