JCB305LM GPS+LTE MIMO Combination Antenna

SKU: ELC8929

₹ 1,149.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB305LM GPS+LTE MIMO Combination Antenna₹ 1,149.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

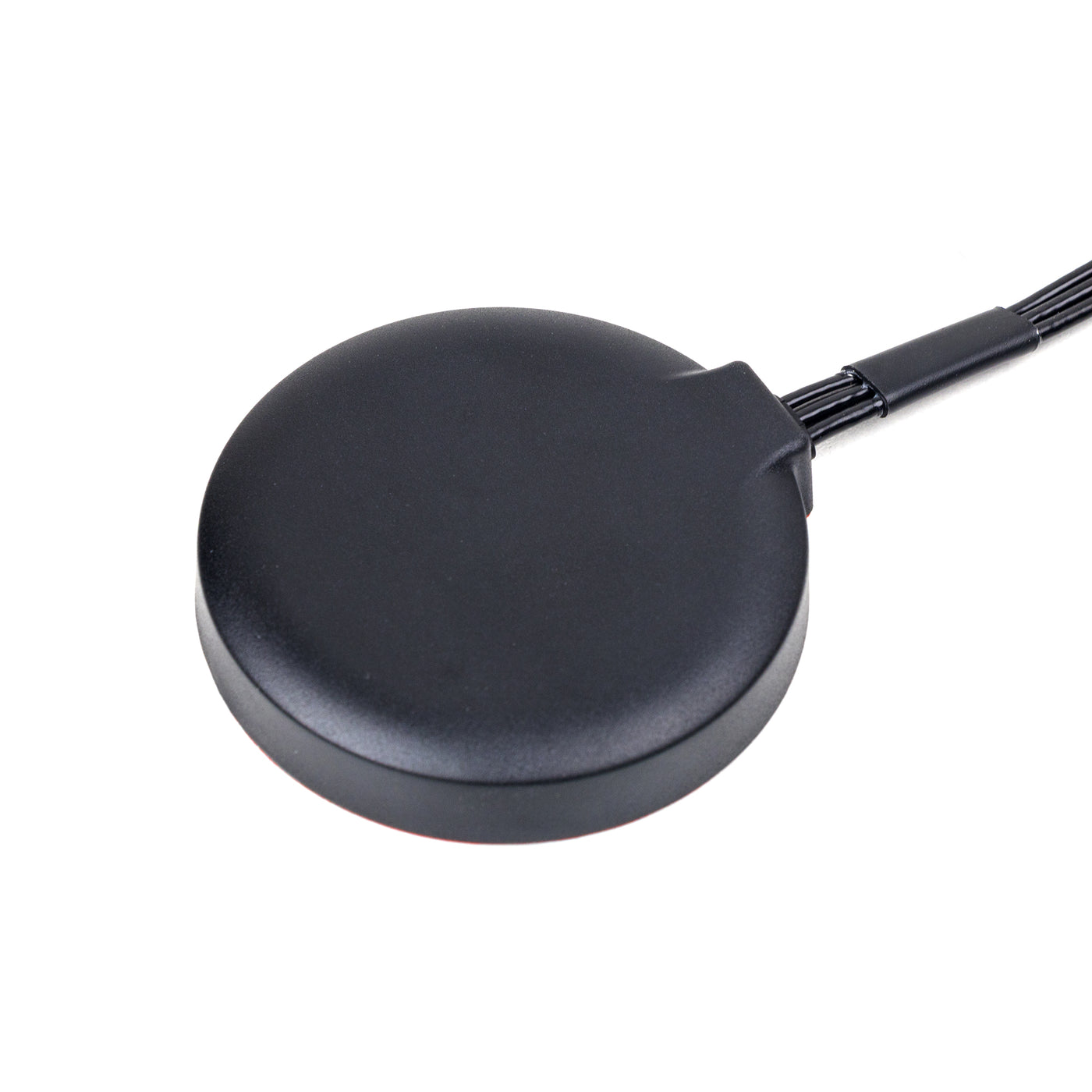

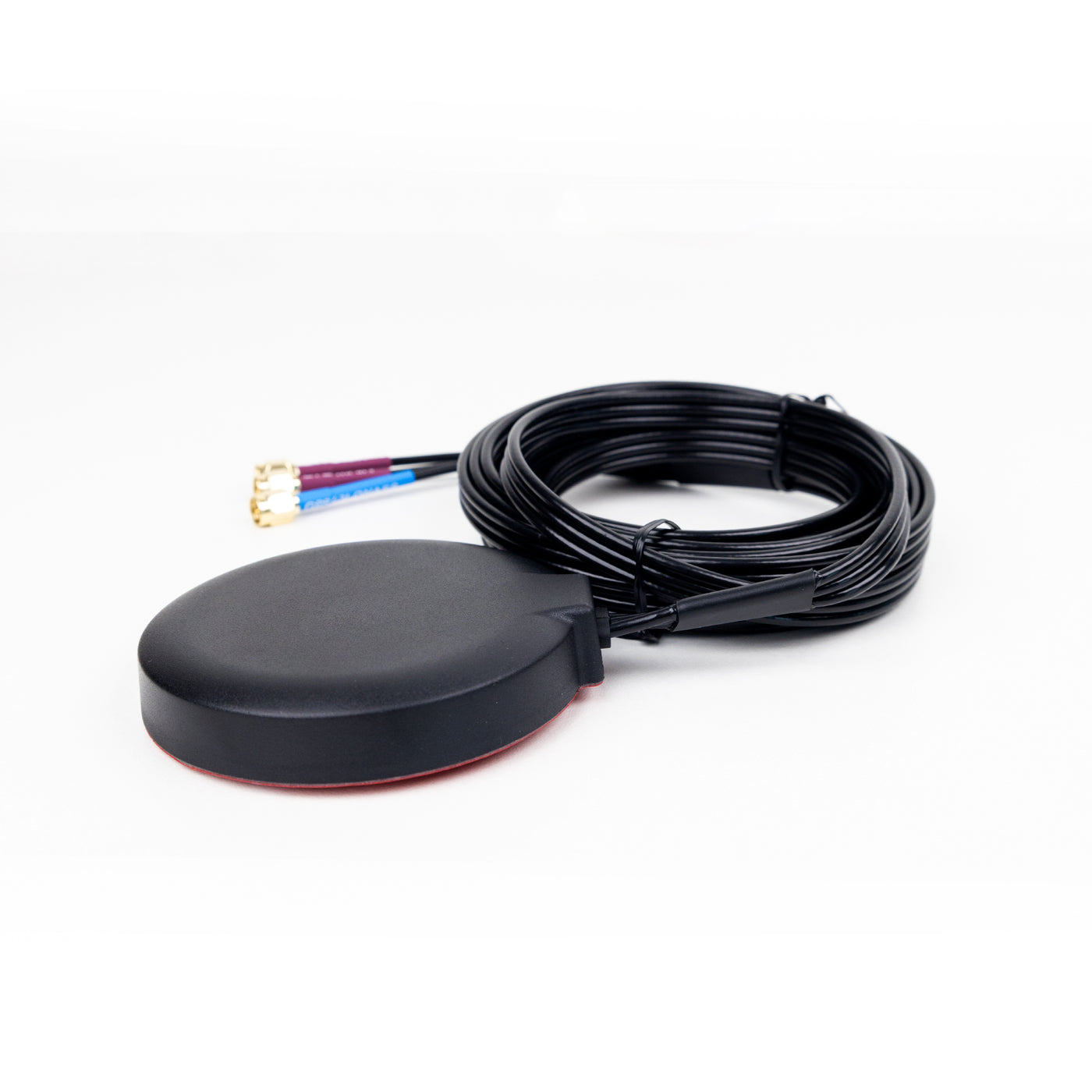

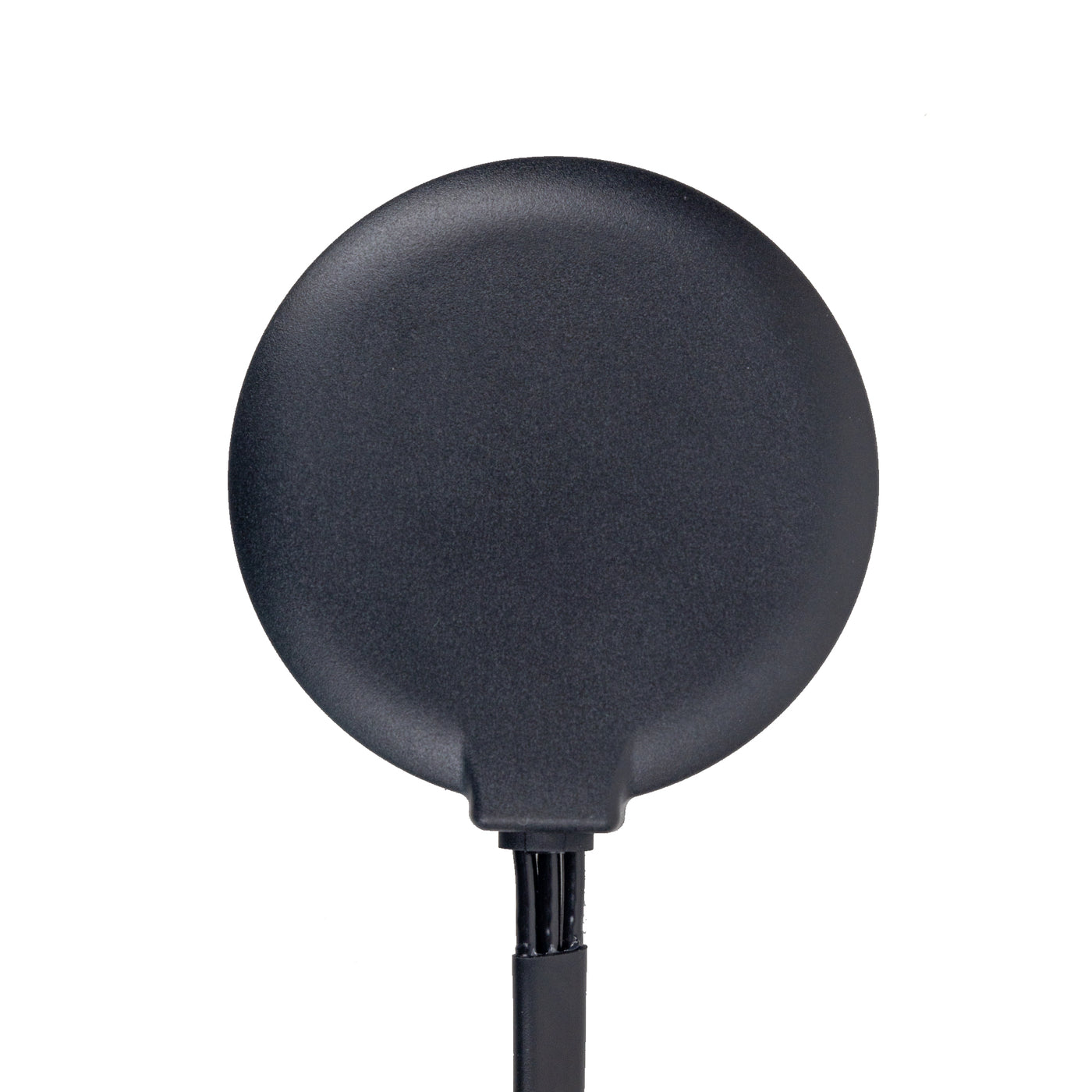

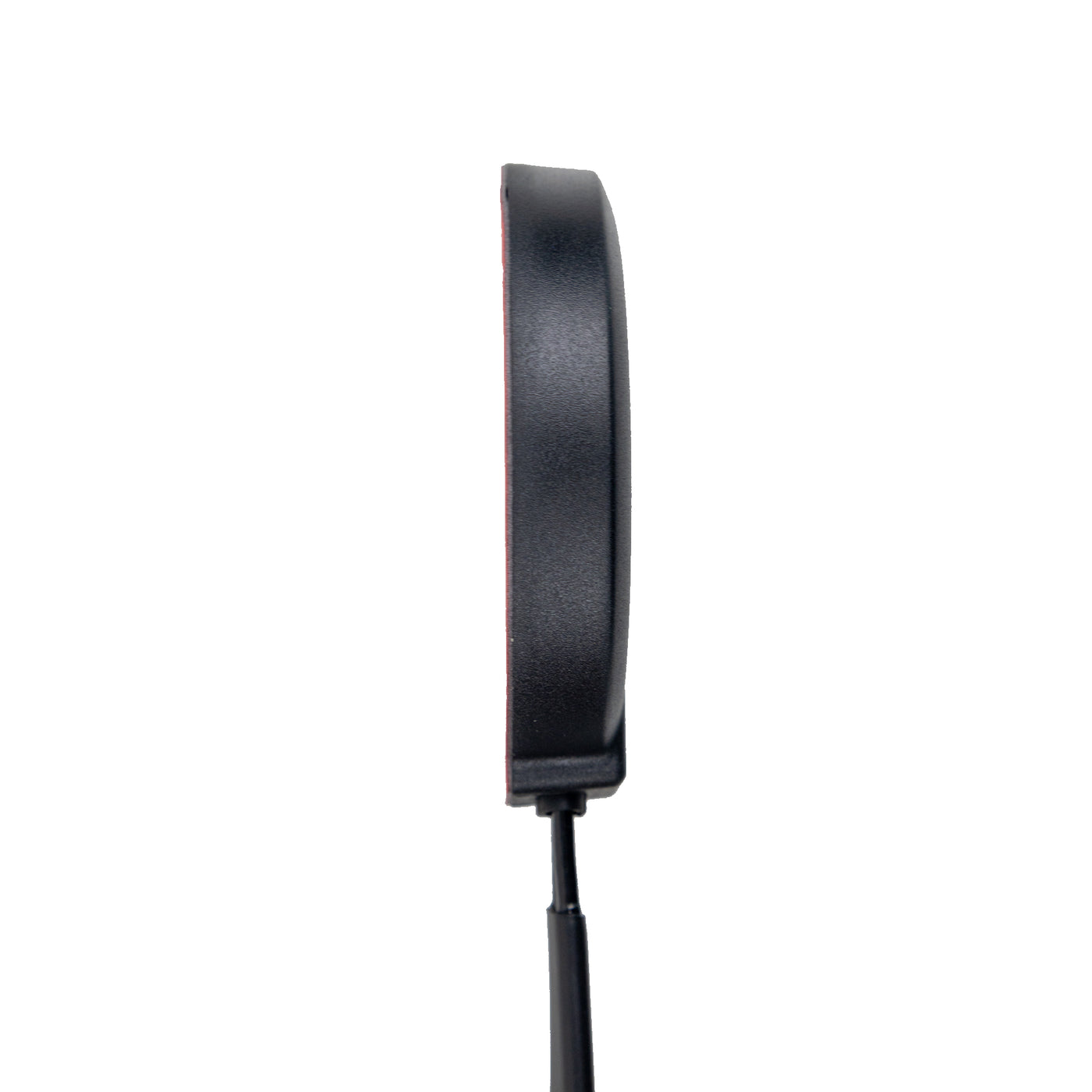

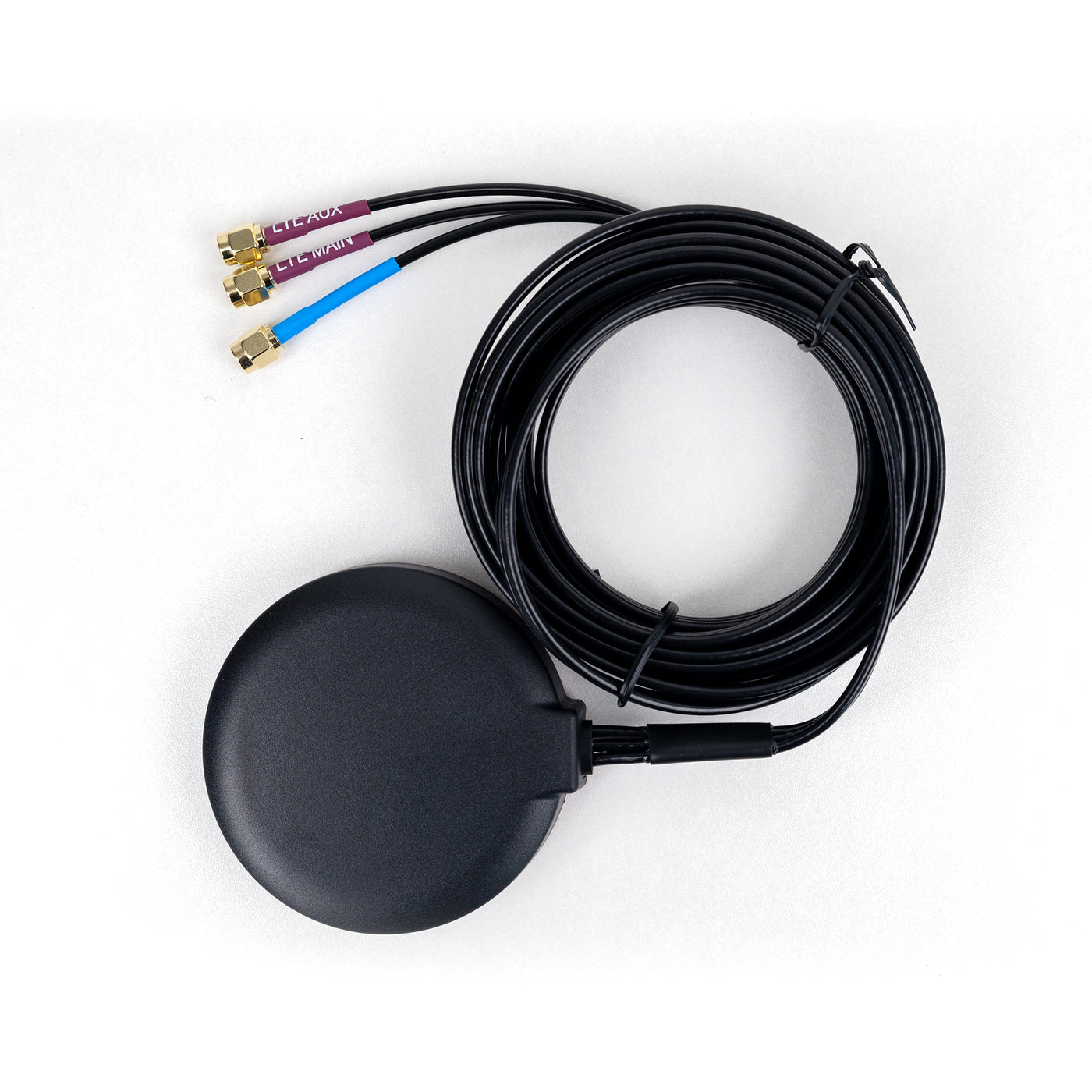

The JC Antenna JCB305LM is a high-gain 4G LTE antenna designed for stable and efficient wireless communication. Featuring a magnetic mount for quick installation, it supports a wide frequency range ideal for LTE, cellular, and M2M applications. Its durable, low-profile design makes it perfect for vehicles, smart devices, and industrial IoT systems. Enhance your signal strength and network reliability with this compact, high-performance antenna.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Frequency Range	1575.42±3MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	3~5V DC
		Current Consumption	＜15mA
LTE Antenna MAIN		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2.5dBi（Zenith）
		Impedance	50Ω
LTE Antenna AUX		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2.0dBi（Zenith）
		Impedance	50Ω
Mechanical		Cable	RG174
		Connector	SMA/FAKRA or others
		Material	ABS
		Mounting Method	Adhesive/Magnet
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What applications is this antenna suitable for?

It is designed for LTE cellular and M2M wireless applications with a magnetic mount for easy installation on vehicles, smart devices and industrial IoT systems.

Which frequency bands and signals are supported?

LTE MAIN and AUX cover 698-960 MHz and 1710-2690 MHz with 50 ohm impedance and linear polarization. GPS operates around 1575.42 MHz. The antenna supports GPS and LTE use cases in a compact package.

How do I mount and connect the antenna?

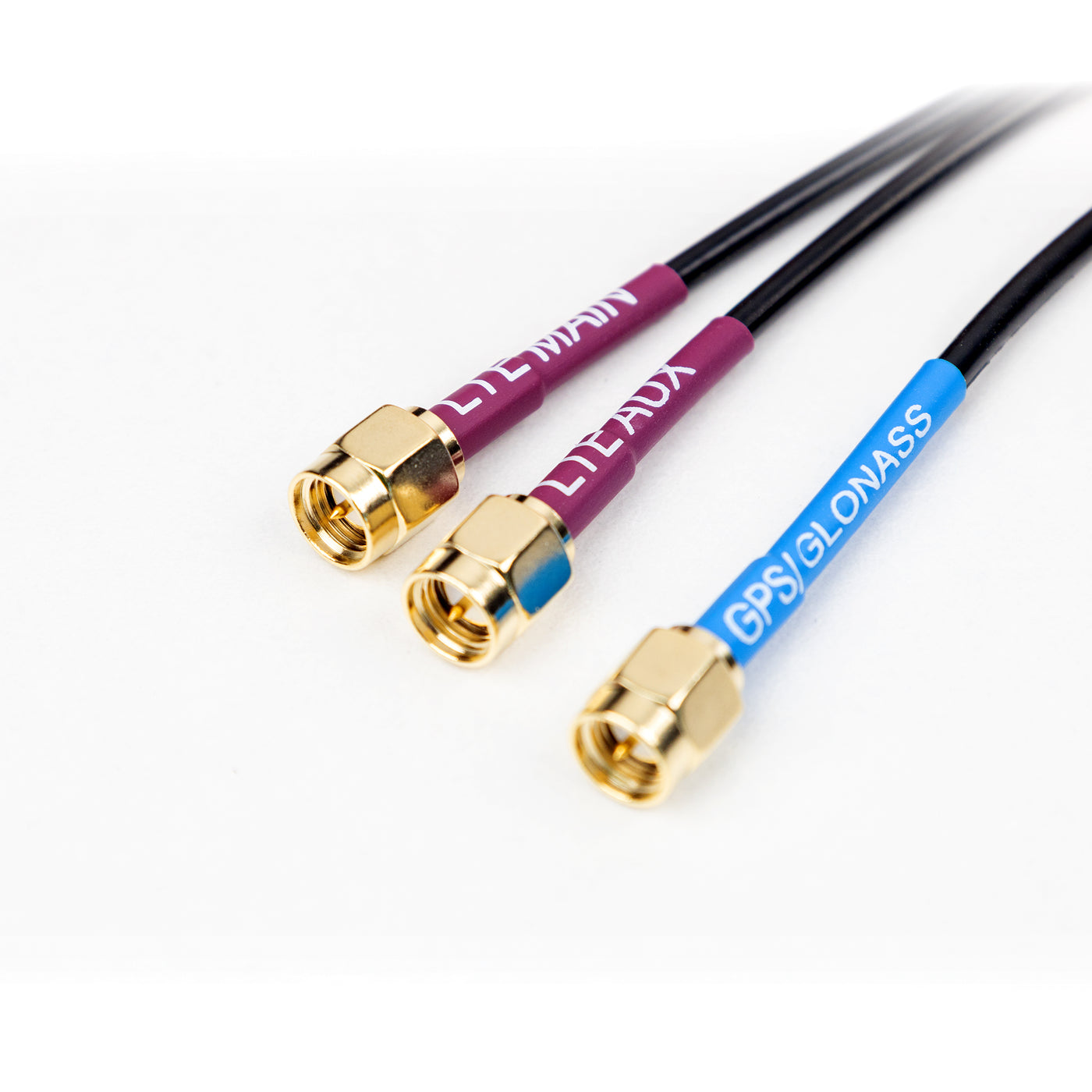

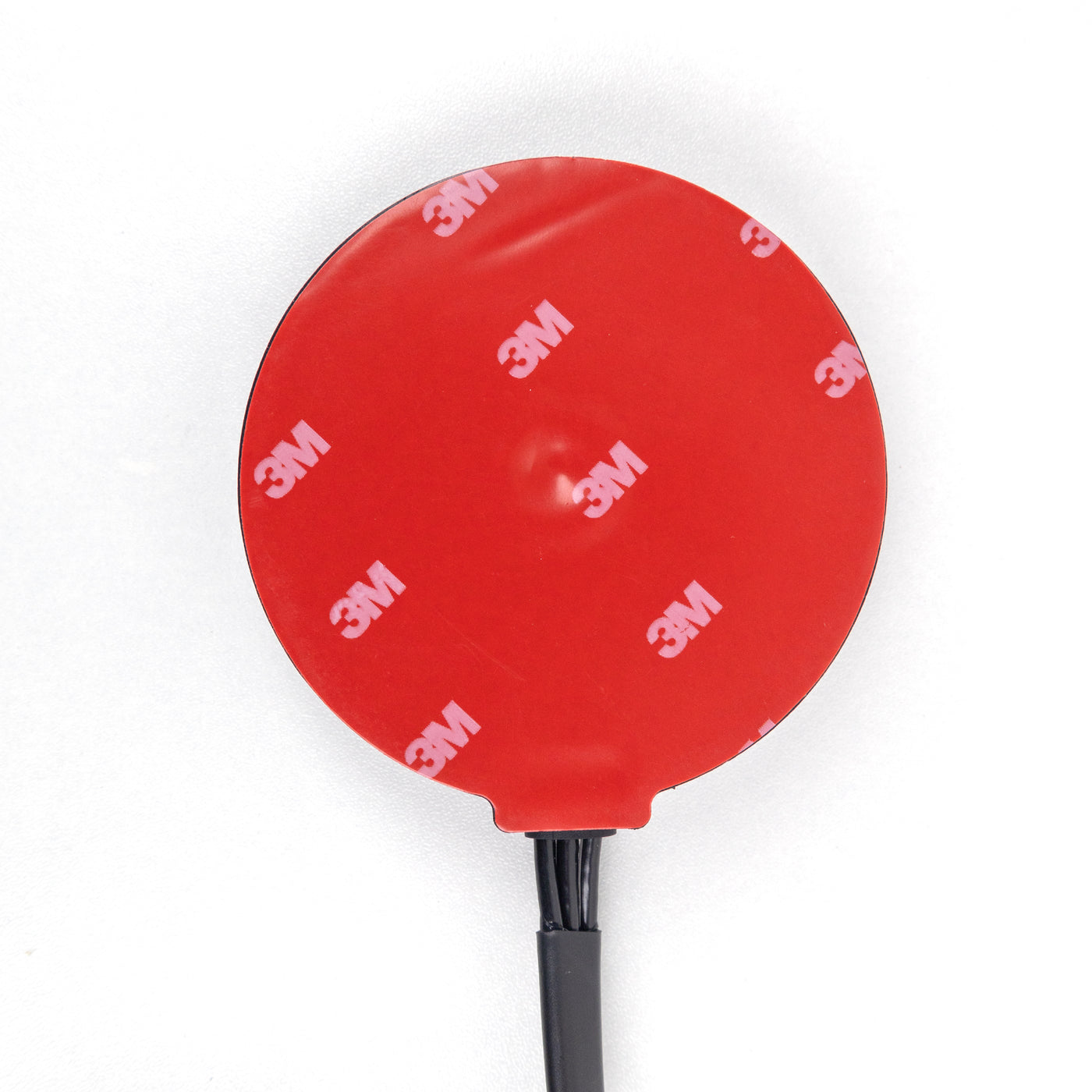

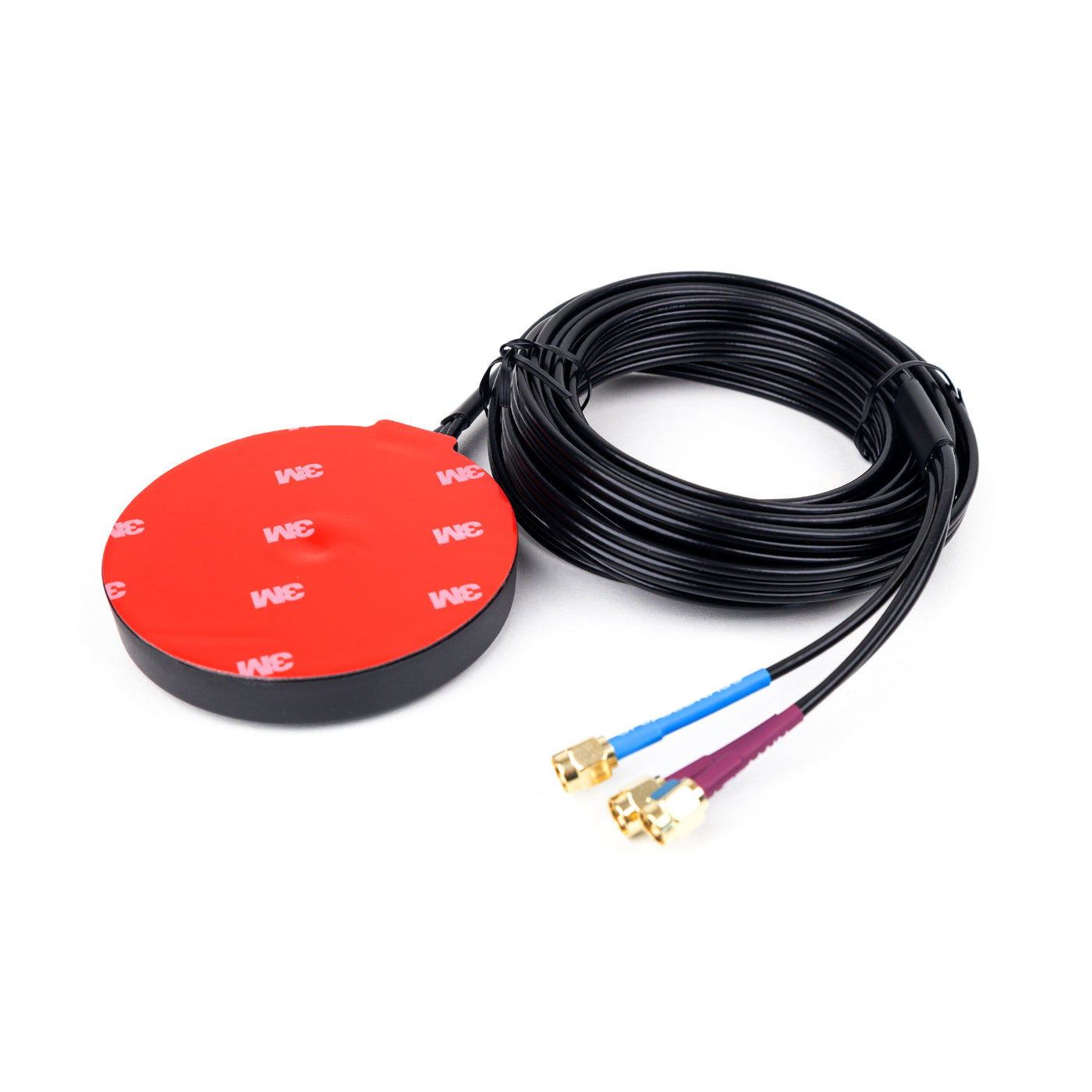

It can be mounted with a magnetic base or adhesive and uses a RG174 coax with SMA or FAKRA or other connectors. Connect to a compatible radio or modem using the appropriate connector.

What are the environmental and durability specifications?

The unit operates from minus 40 to plus 85 degrees Celsius, is IP67 rated, withstands high humidity, and is RoHS compliant.

Is warranty or return information available for this product?

Warranty and return terms are not specified in the product description; please check with the retailer for details.
