JCE058 GPS/Glonass + LTE + Wifi Combo Antenna

SKU: ELC8930

₹ 1,149.99 ₹ 1,249.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
JCE058 GPS/Glonass + LTE + Wifi Combo Antenna₹ 1,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

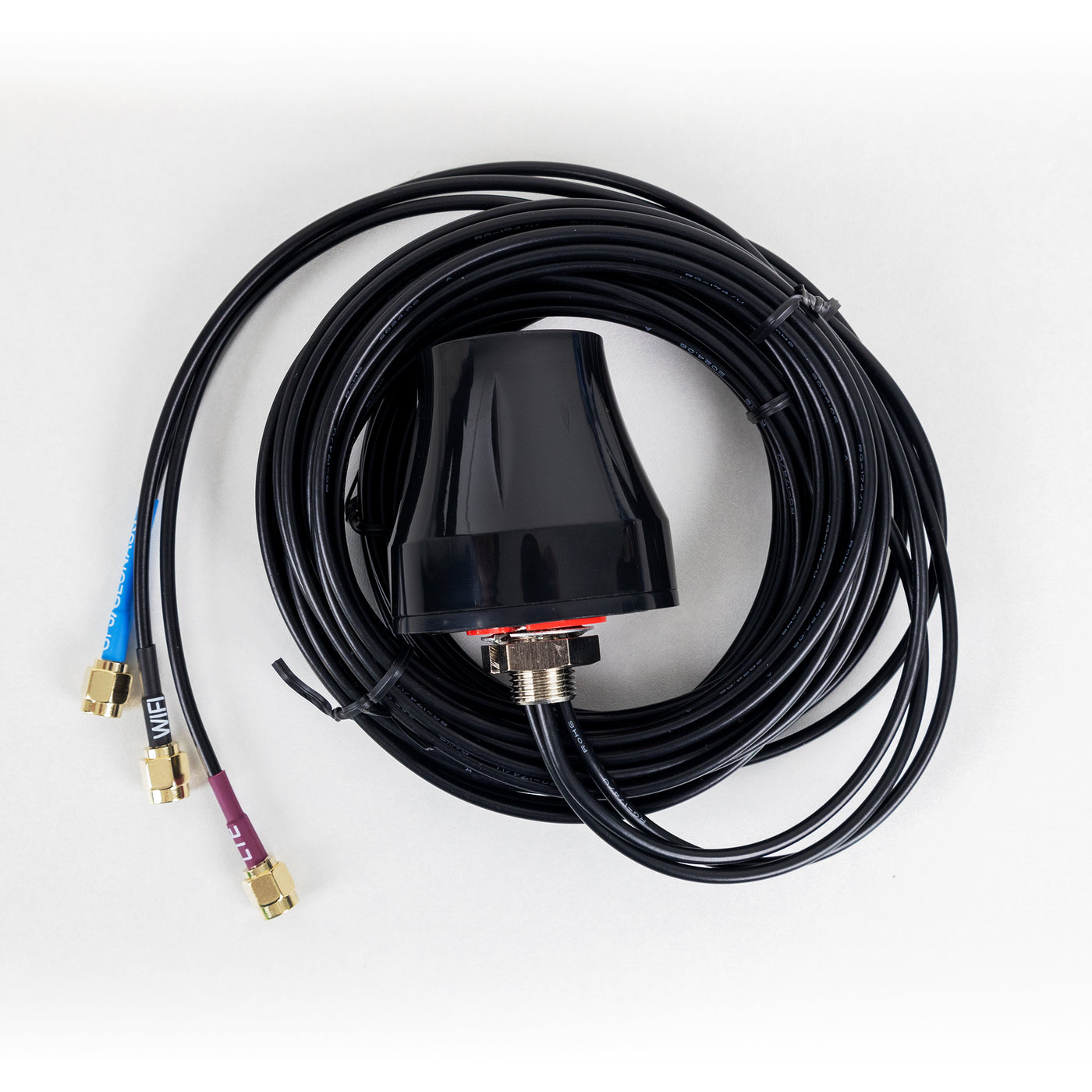

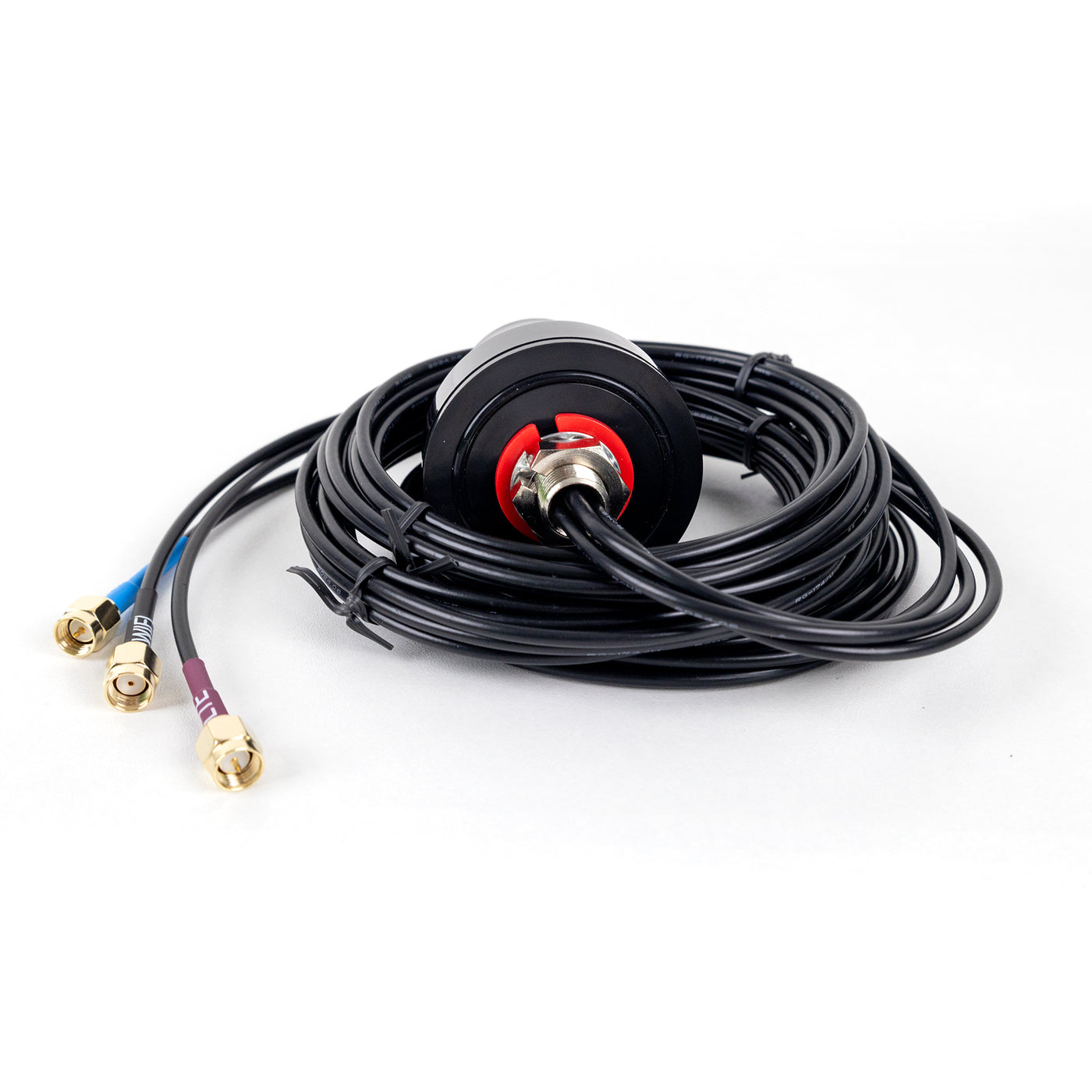

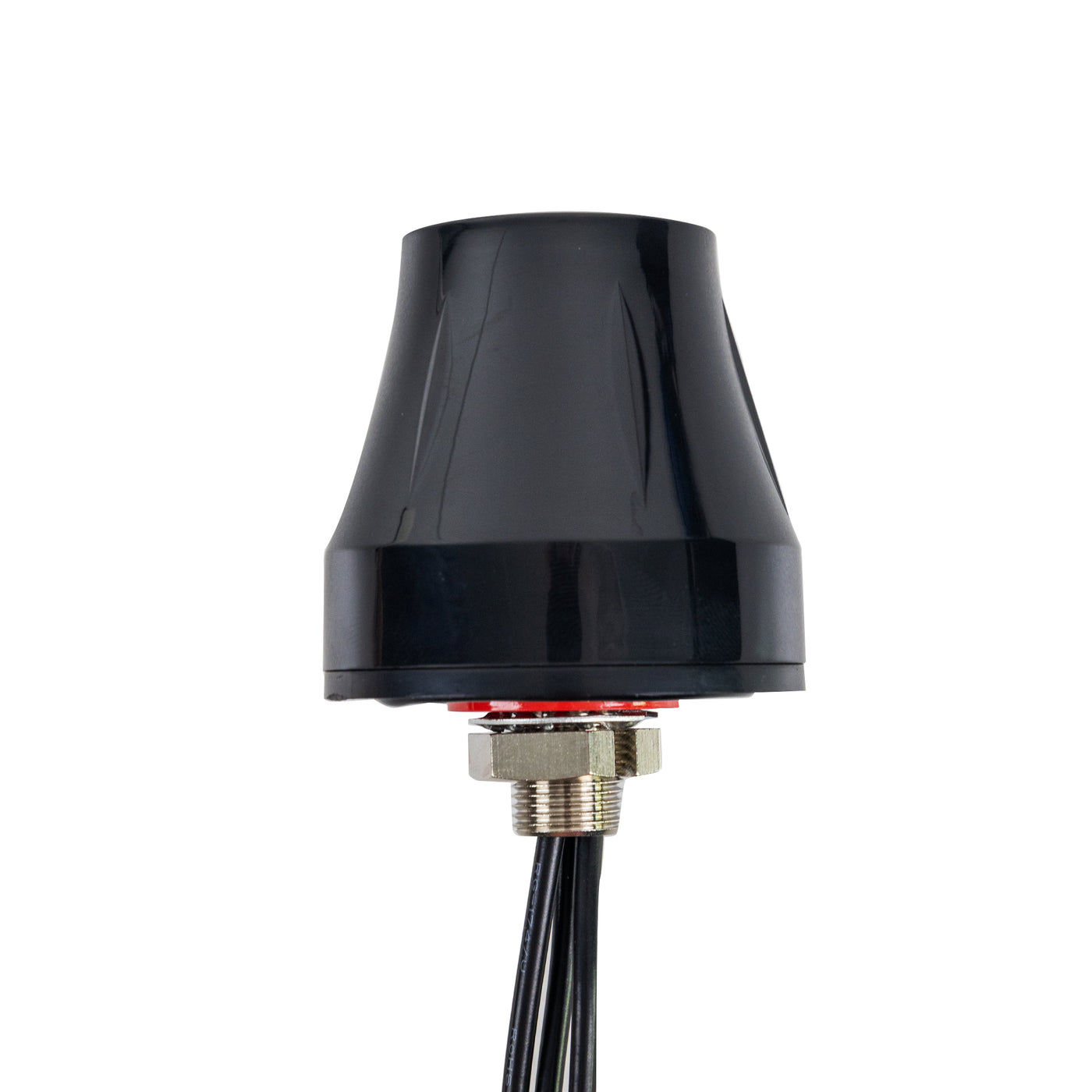

The JC Antenna JCE058 is a high-performance 3-in-1 combo antenna that integrates GPS/GLONASS, LTE, and WiFi capabilities into a single, compact unit. Engineered for precision navigation and seamless connectivity, it is ideal for automotive, fleet management, and smart IoT applications. With its robust housing and easy installation, the JCE058 delivers reliable multi-network performance in demanding environments—making it a perfect solution for modern connected systems.



Specifications:

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic（Zenith）

V.S.W.R

＜1.5

Impedance

50Ω

Axial Ratio

3dB（max）

LNA

Gain

28±2dB

Noise Figure

＜1.5dB

V.S.W.R

＜2.0

Supply Voltage

2.2~5V DC

Current Consumption

＜15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R

＜2.0

Polarization

Linear

Gain

2.0dBi

Impedance

50Ω

WIFI Antenna

Frequency Range

2400~2483.5MHz

Band Width

83.5MHz

Polarization

Linear

Gain

3dBi

V.S.W.R

＜2.0

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%
What networks are supported by the JCE058 antenna?
It combines GPS and GLONASS, LTE, and WiFi in a single unit for automotive, fleet management and smart IoT applications. GPS center frequency is 1575.42 MHz, LTE spans 824-960 and 1710-2170 MHz, and WiFi operates at 2.4 GHz.
How do I mount and connect the antenna?

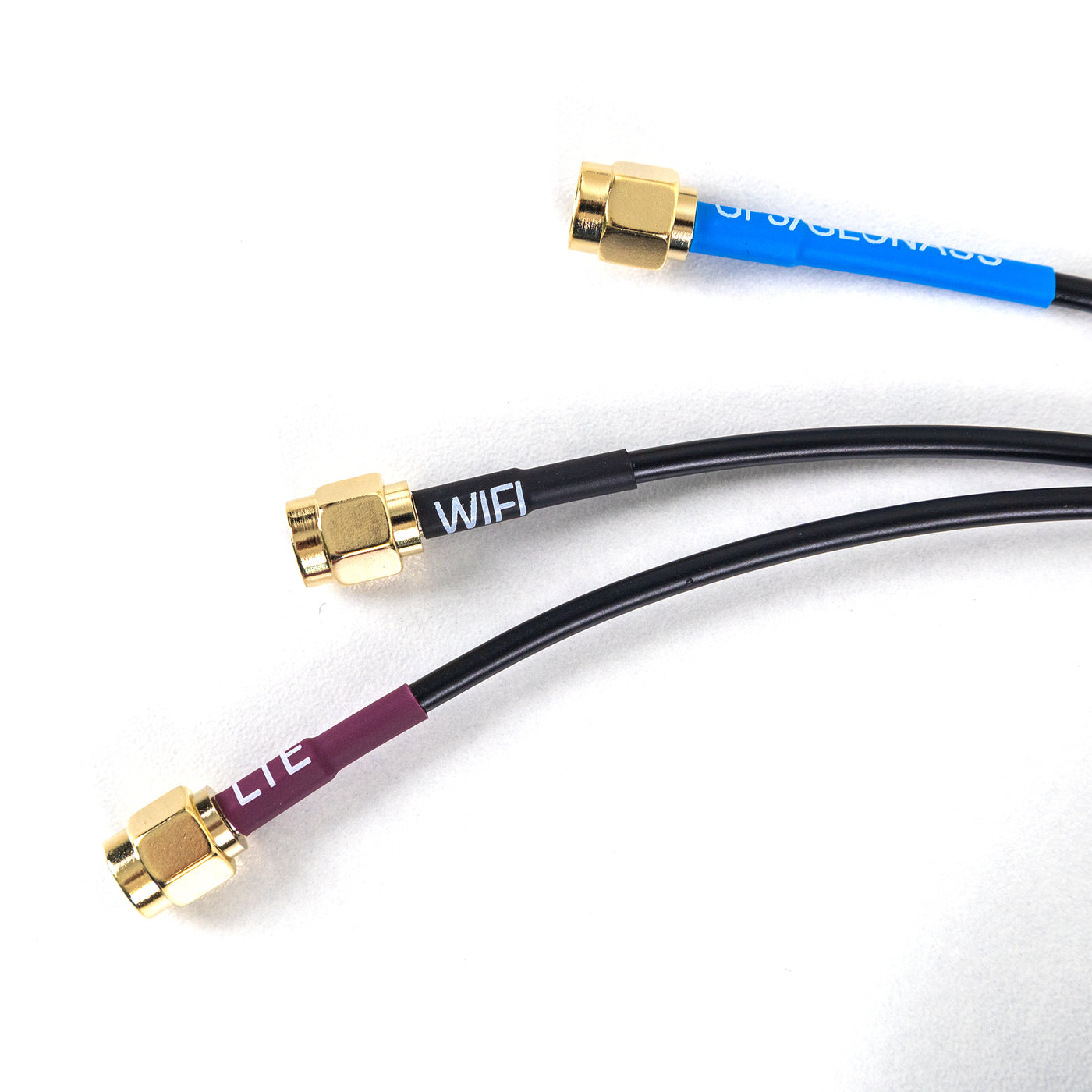

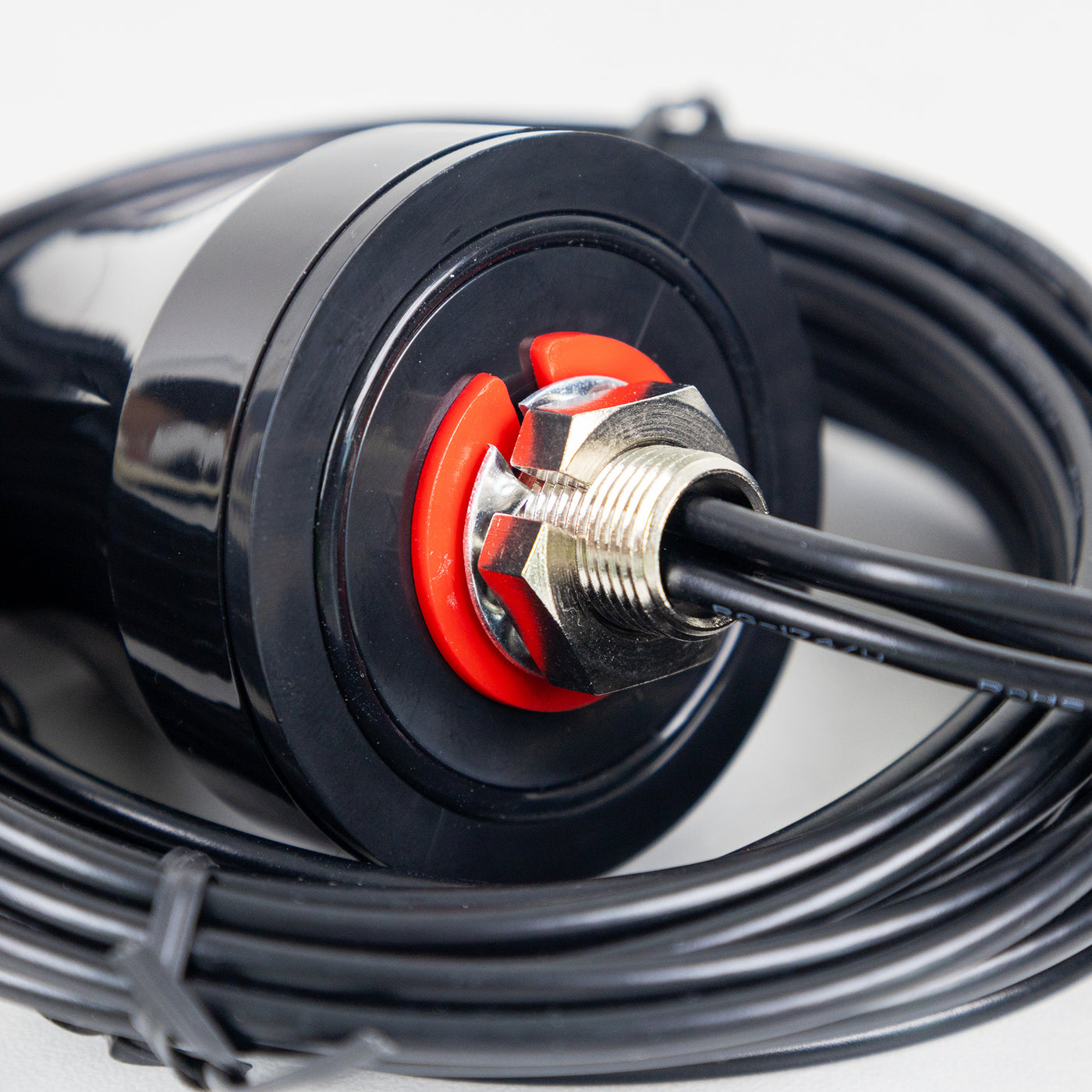

It uses screw mounting with an RG174 cable and offers connector options including SMA, MCX, FAKRA or others.
What are the environmental and operating conditions?
It is rated for a wide operating temperature range from -40 C to +85 C and up to 95 percent relative humidity.
What are the electrical requirements for the JCE058?
The unit requires a supply voltage of 2.2 to 5 V DC and draws less than 15 mA of current.
Is the antenna suitable for harsh environments and demanding applications?
Yes, it features a robust housing and is designed to deliver reliable multi network performance in automotive, fleet and IoT deployments.
