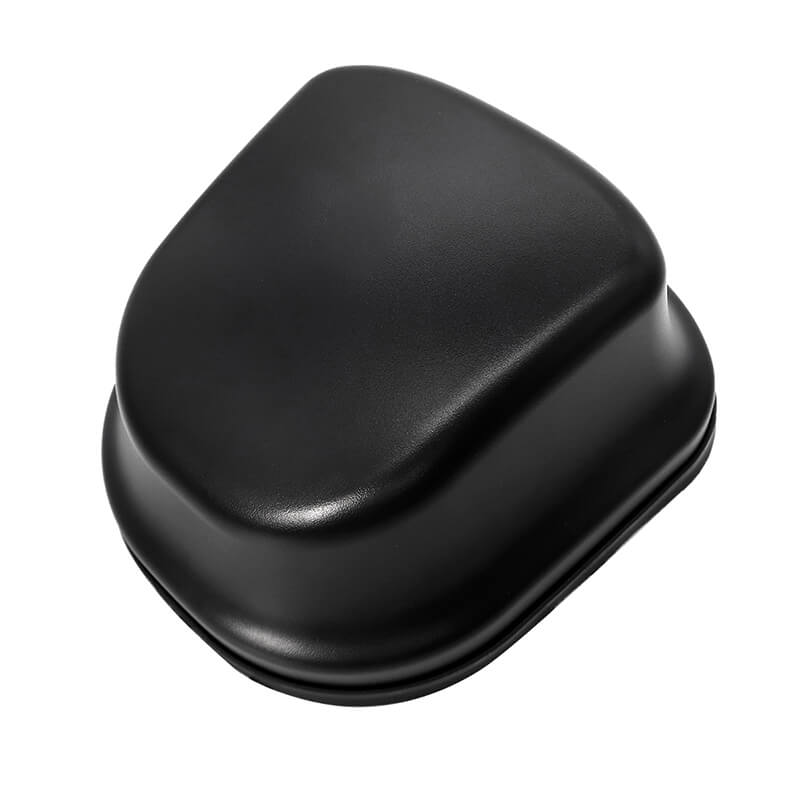

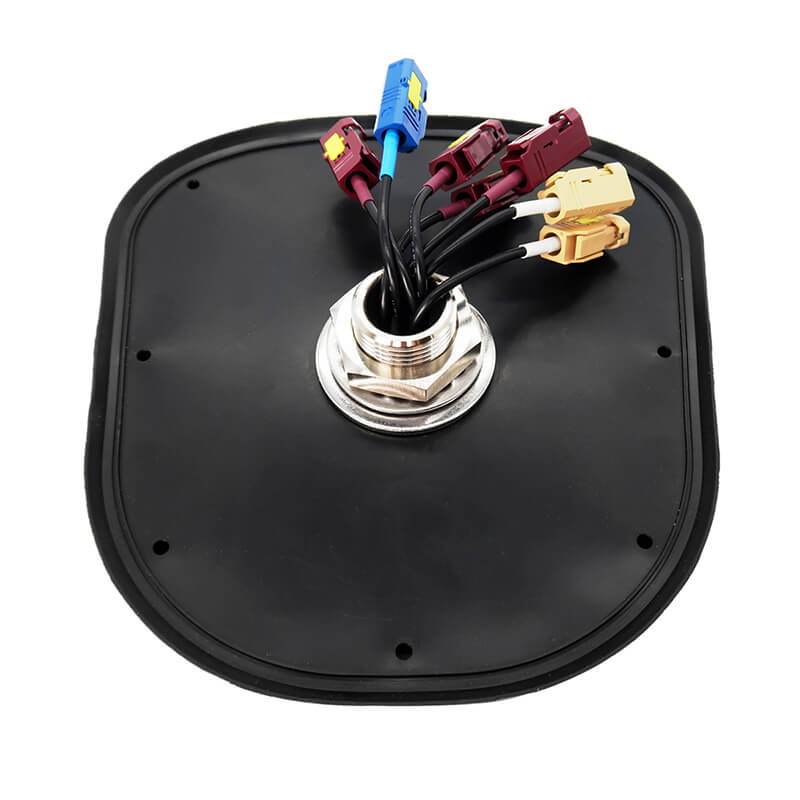

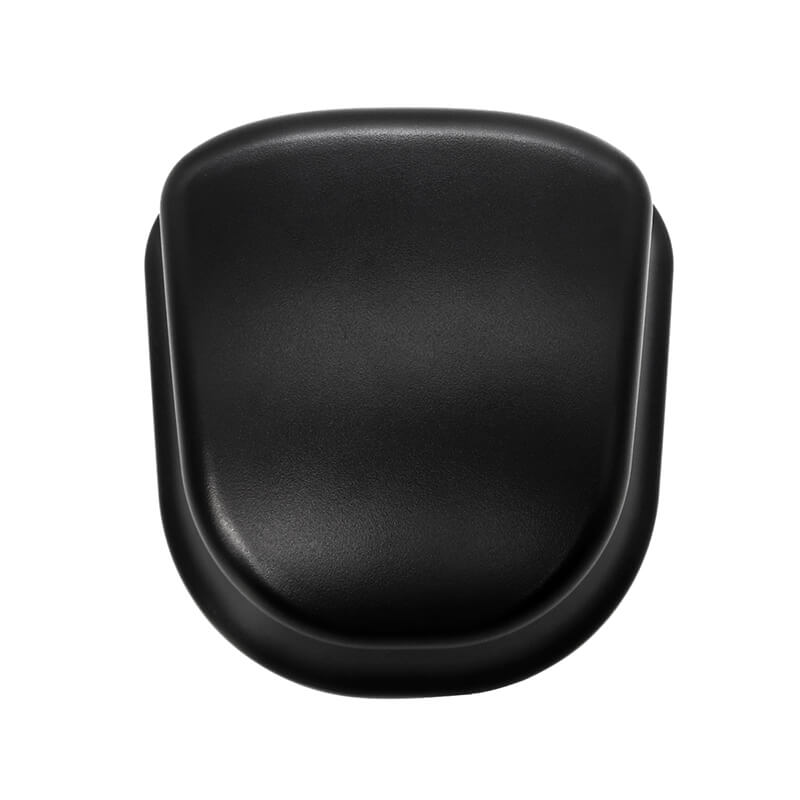

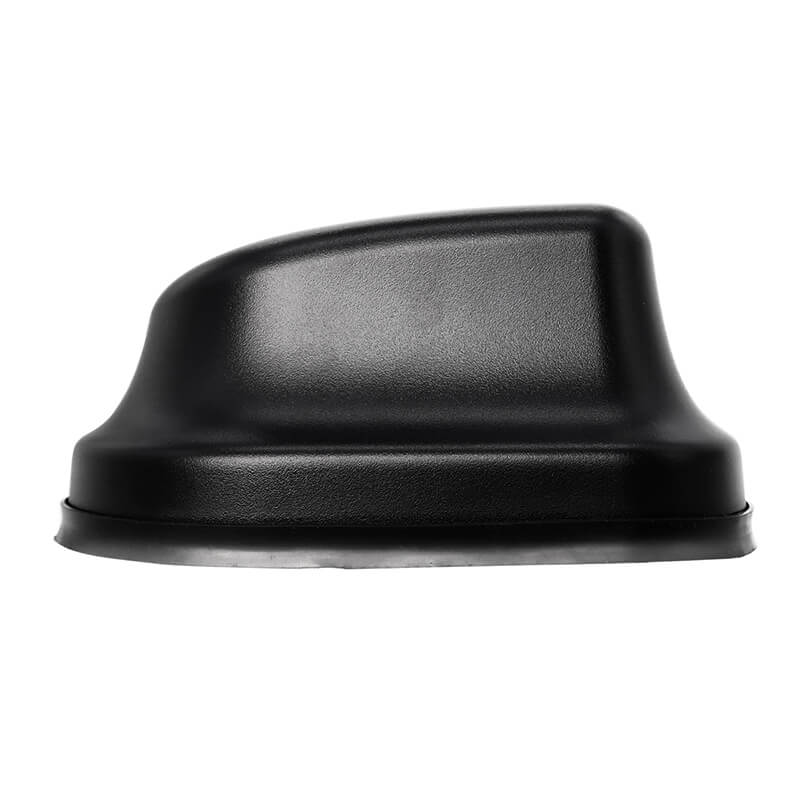

JCE605NR4WM 7-in-1 GNSS+NR MIMO×4+WIFI MIMO Antenna

SKU: ELC8939

Regular price ₹ 7,299.99
Sale price ₹ 7,299.99 Regular price ₹ 8,749.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The JCE605NR4WM is a rugged, high-performance 7-in-1 antenna designed to support cutting-edge 5G NR connectivity, GNSS precision positioning, and dual-band WiFi MIMO networking—all in a single low-profile enclosure. This antenna combines 4×4 MIMO 5G sub-6GHz, GPS/GLONASS/BeiDou, and 2× WiFi MIMO(2.4/5GHz), making it ideal for smart transportation, public safety, fleet telematics, and enterprise IoT deployments.

Built to withstand harsh environments, the JCE605NR4WM features an IP67-rated waterproof housing, optional magnetic or adhesive mounting, and customizable cable and connector configurations. Its robust design ensures uninterrupted performance for mobile and fixed installations demanding high-speed, multi-band wireless communication.

Key Features:

  • 7-in-1 combo antenna: 4×4 5G NR MIMO + GNSS + dual WiFi MIMO
  • 5G Sub-6GHz bands for ultra-fast, low-latency communication
  • GNSS support: GPS, GLONASS, BeiDou for high-accuracy tracking
  • Dual-band WiFi (2.4GHz + 5GHz) with 2×2 MIMO performance
  • Rugged IP67-rated enclosure for extreme environments
  • Ideal for 5G routers, mobile video systems, FWA, and IoT gateways
  • Flexible mounting: adhesive, magnetic, or screw-based

Maximize your network reliability, speed, and coverage with the JCE605NR4WM—built for next-gen 5G mobility and mission-critical deployments.




Specifications:

Item


Specifications

GNSS Antenna

Frequency

GPS L1/L2/L5

GLONASS G1/G2/G3

COMPASS B1/B2/B3


Polarization

Galileo E1/L1/E2/E5a/E5b/E6

RHCP


LNA Gain

40÷2dB


Noise Figure

≤2.0dB


Supply Voltage

3~12V DC


Current Consumption

≤60mA


V.S.W.R

<2.0


Impedance

50g

SG NR Antenna MIMO*4

Frequency Range

698~960MHz/1710-2690MHz/2900~3800MHz


V.S. W.R

<3.0


Polarization

Linear


Gain



Impedance

502

V2X Antenna MIMO*2

Frequency Range

5850~5950MHz


V.S.W.R

<2.5


Polarization

Linear


Gain

4dBi (Max.)


Impedance

5052

Mechanical

Cable

LMR100*7


Connector

FAKRA or others


Material

PC/ABS


Mounting Method

Screw

Environmental

Operating Temperature

-40°C~+85°C

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)
