JC Antenna

JCG046LM LTE MIMO Antenna

SKU: ELC8914

₹ 1,349.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCG046LM LTE MIMO Antenna₹ 1,349.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCG046LM is a MIMO design with two LTE antennas for better communication performance, which covers frequency 700~2700MHz. It is specially designed for 2G, 3G and 4G applications. The high sensitivity of JCG046LM will be the best candidate for your alternative.

Features

Low profile structure without a whip

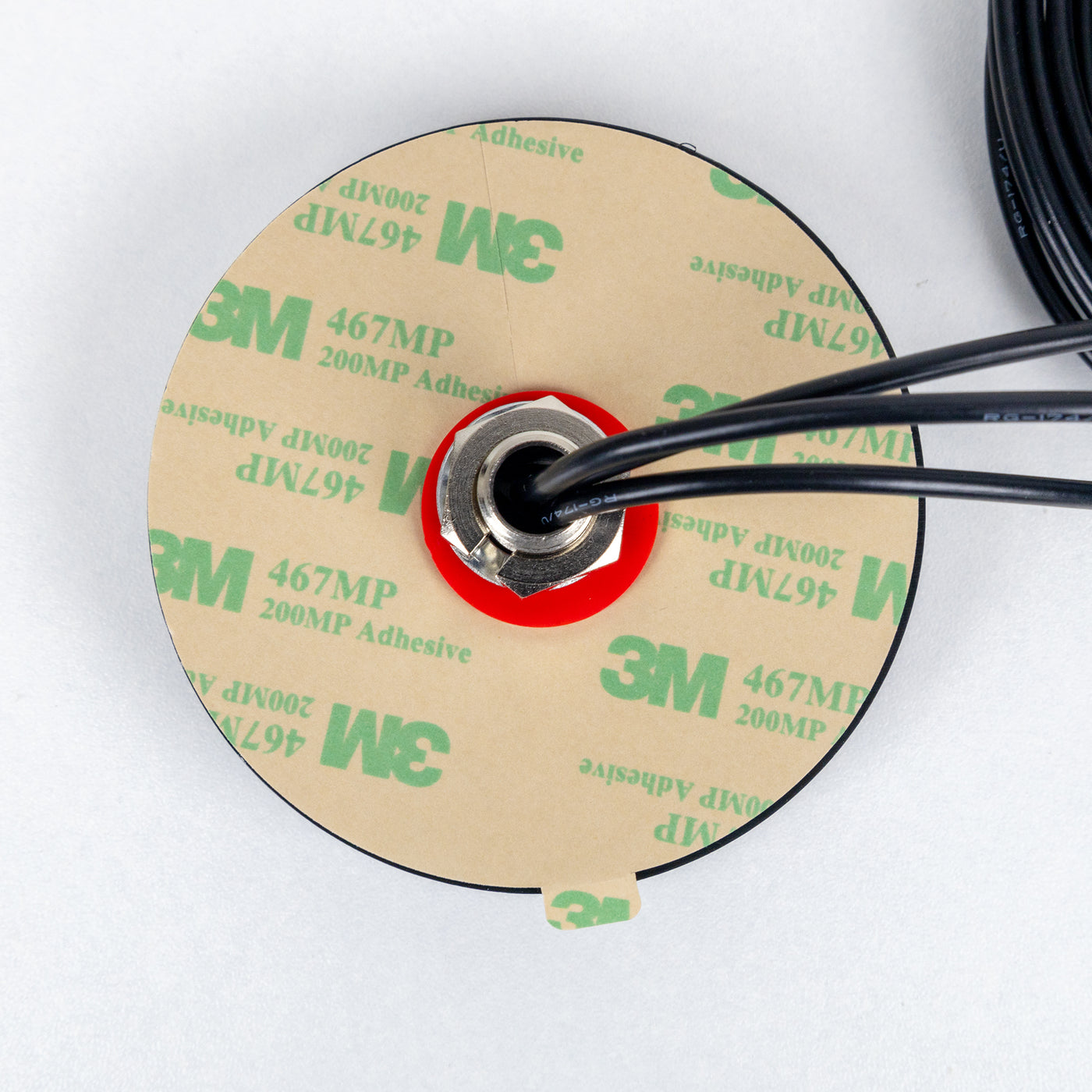

Screw through hole mount
Support 2G, 3G, 4G application bands
Two LTE antennas to improve the communication performance

Applications

Data Collector
LTE Gateway
Telemetry Application
Fleet management

Specifications:

Item		Specifications
LTE Antenna MAIN	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	2.5dBi（Zenith）
	Impendance	50Ω
LTE Antenna AUX	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R	<3.0
	Polarization	Linear
	Gain	2.0dBi（Zenith）
	Impendance	50Ω

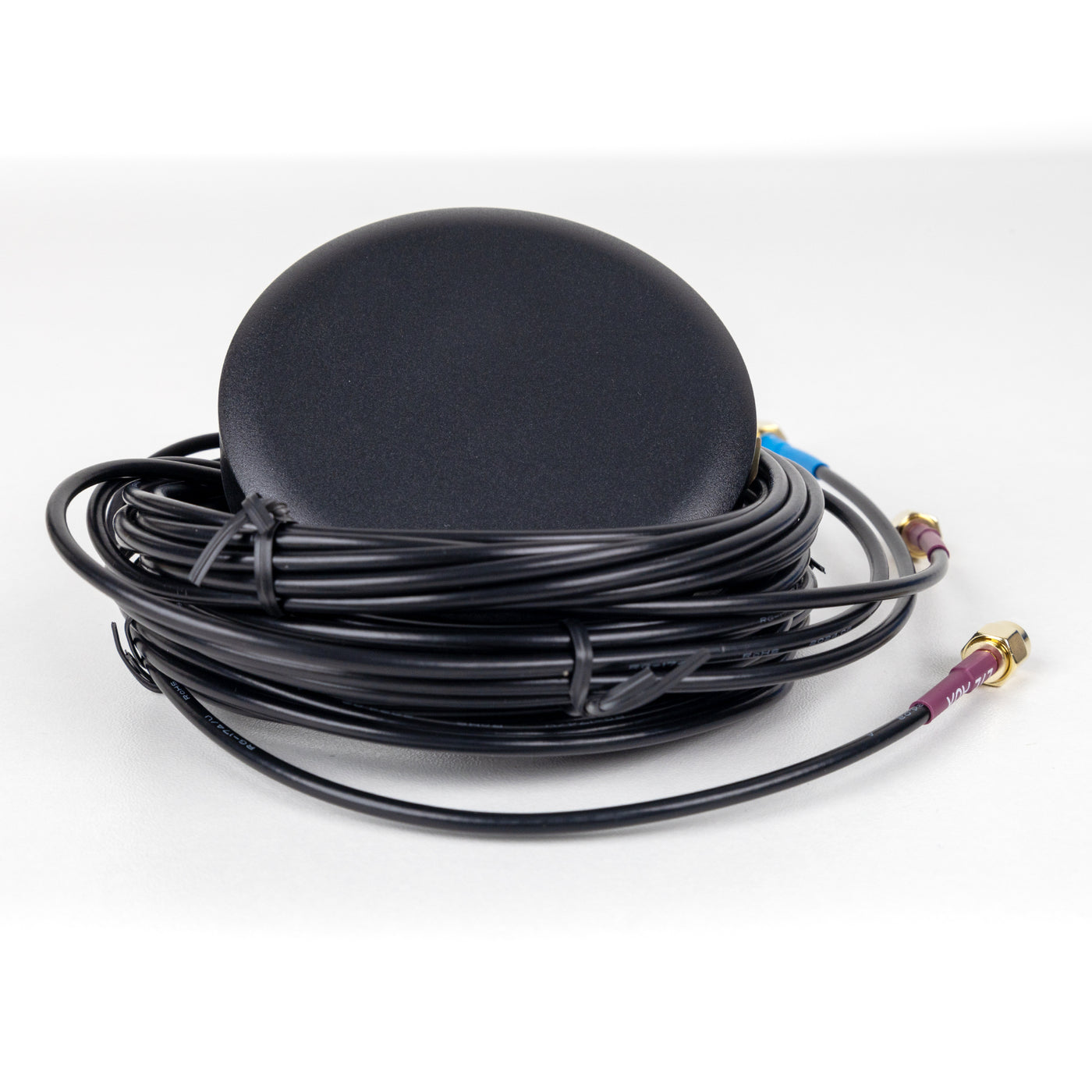

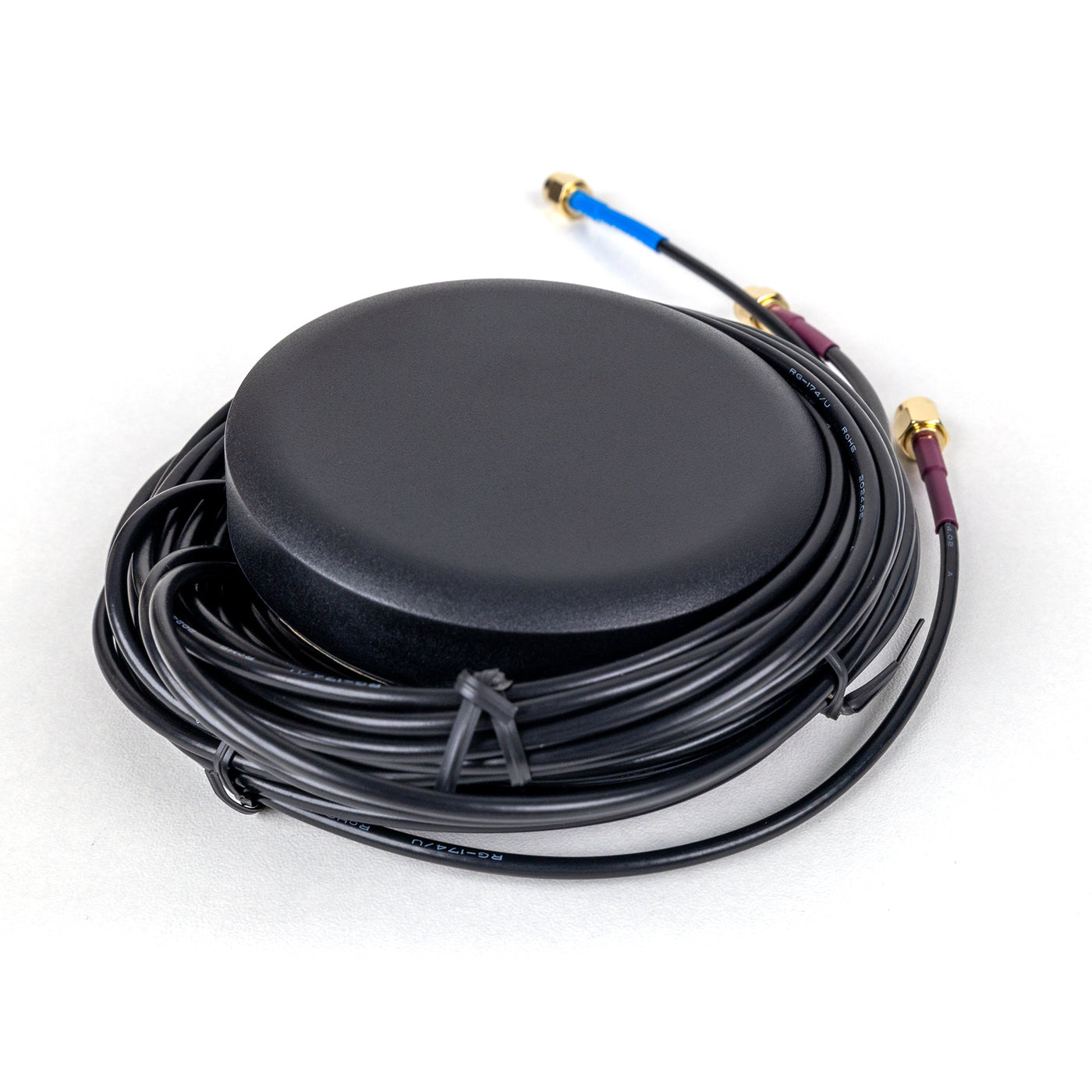

Mechanical	Cable	RG174

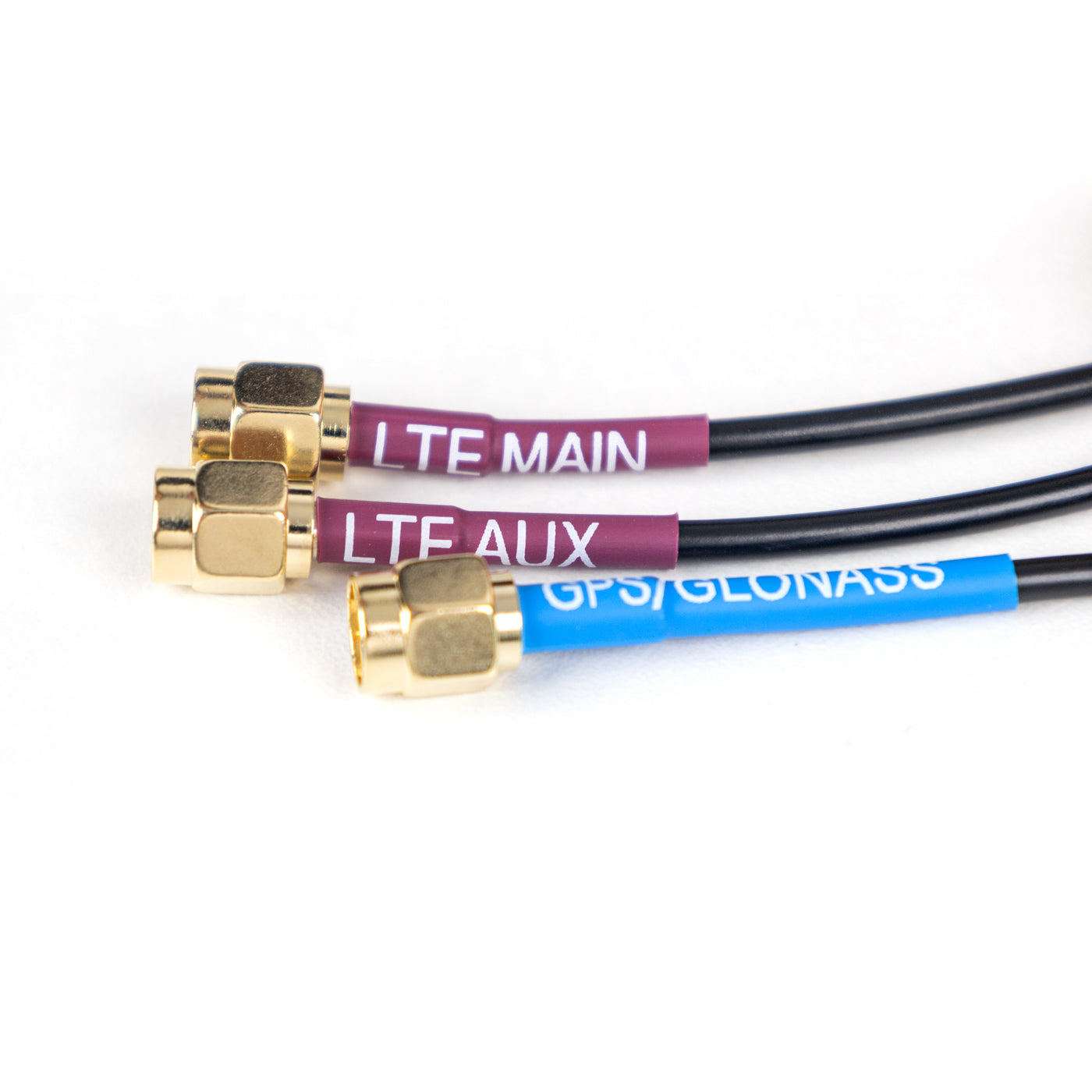

	Connector	SMA or others
	Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67(exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What frequency bands does the antenna support and what are the gains of the main and auxiliary elements

It covers 698-960 MHz and 1710-2690 MHz for LTE, giving a total range of about 700-2700 MHz. The main element has a gain of 2.5 dBi (Zenith) and the auxiliary element 2.0 dBi (Zenith) with 50 ohm impedance.

How is the mounting done and what is the physical form factor

Mounting is by screw through hole and the unit has a low profile design with no whip.

Is the antenna weather resistant and suitable for outdoor use

Yes, it is IP67 rated (excluding the cable outlet). It operates in harsh environments and supports up to 95 percent relative humidity and temperature down to -40 C.

What is the impedance and what connectors are available

The impedance is 50 ohm. The antenna uses RG174 cable and can be supplied with SMA or other connectors.

What are typical applications for this antenna

It is designed for 2G 3G and 4G applications including data collectors, LTE gateways, telemetry devices, and fleet management.
