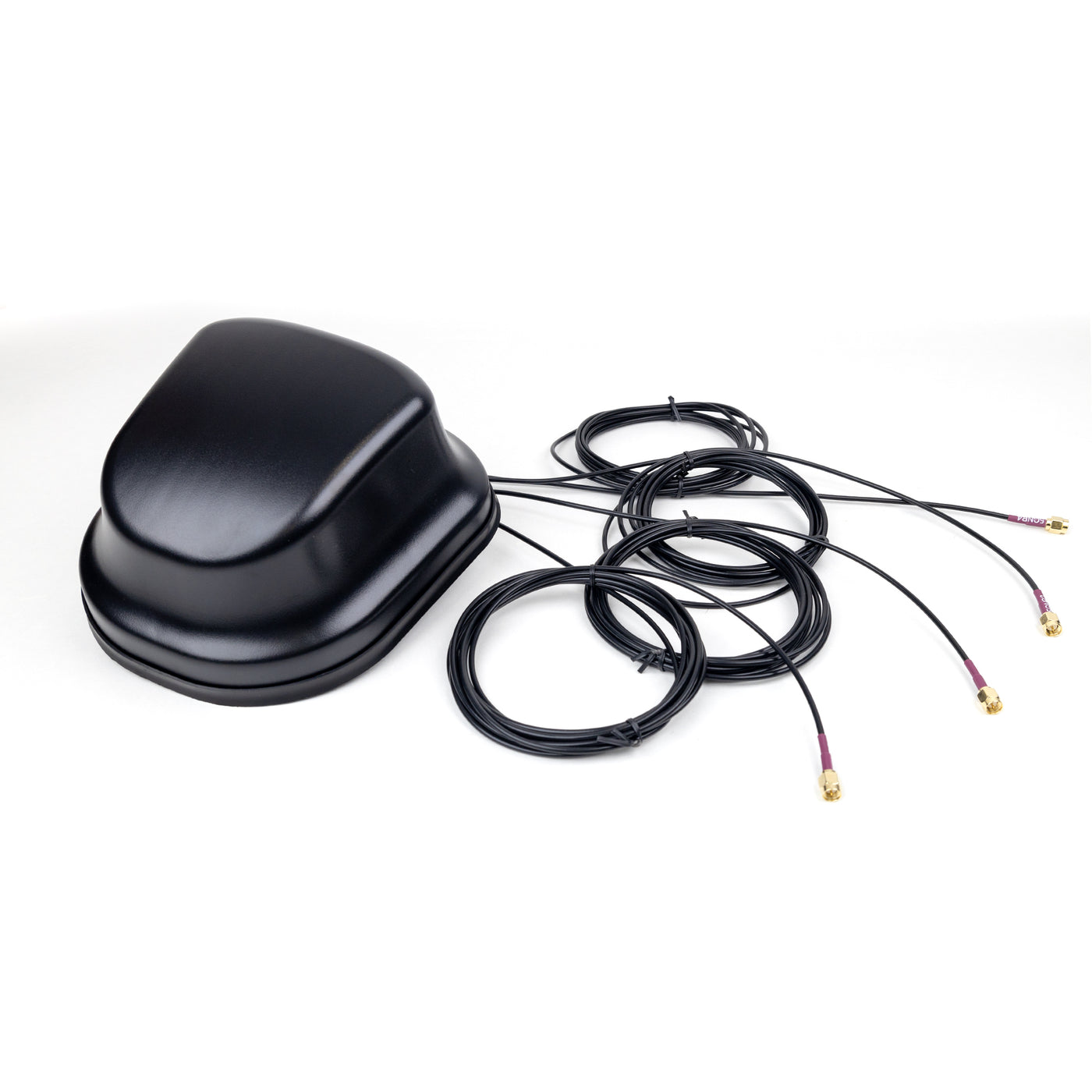

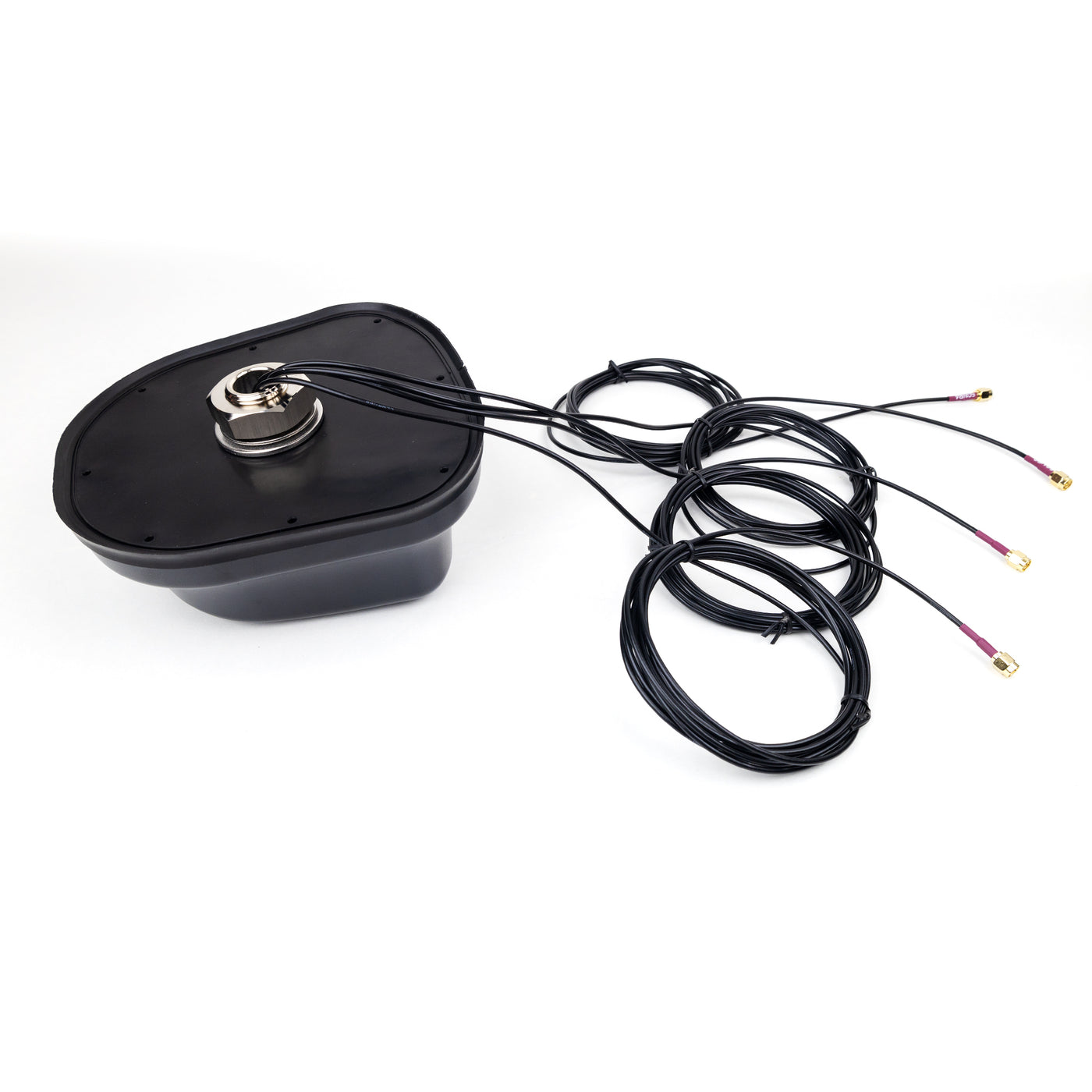

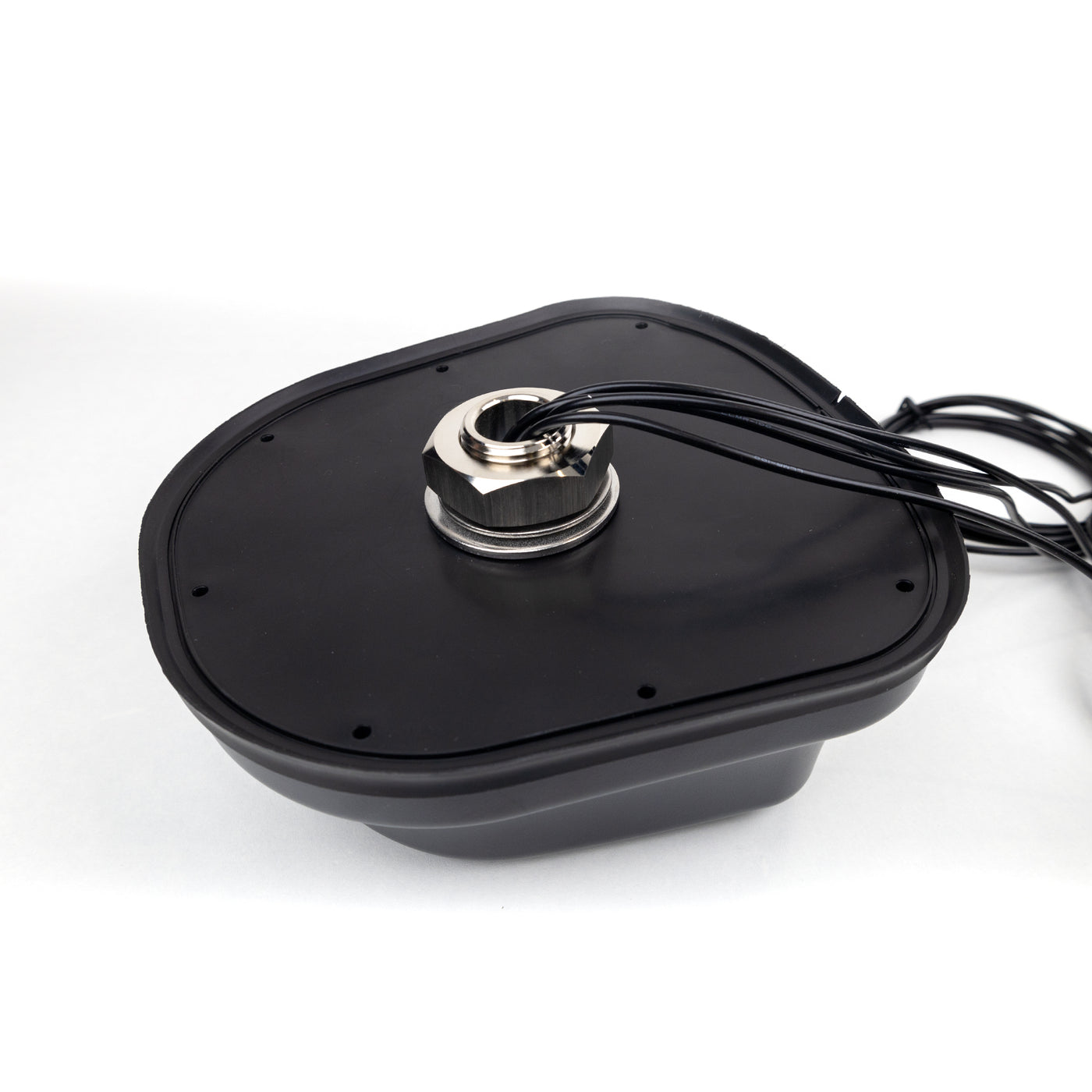

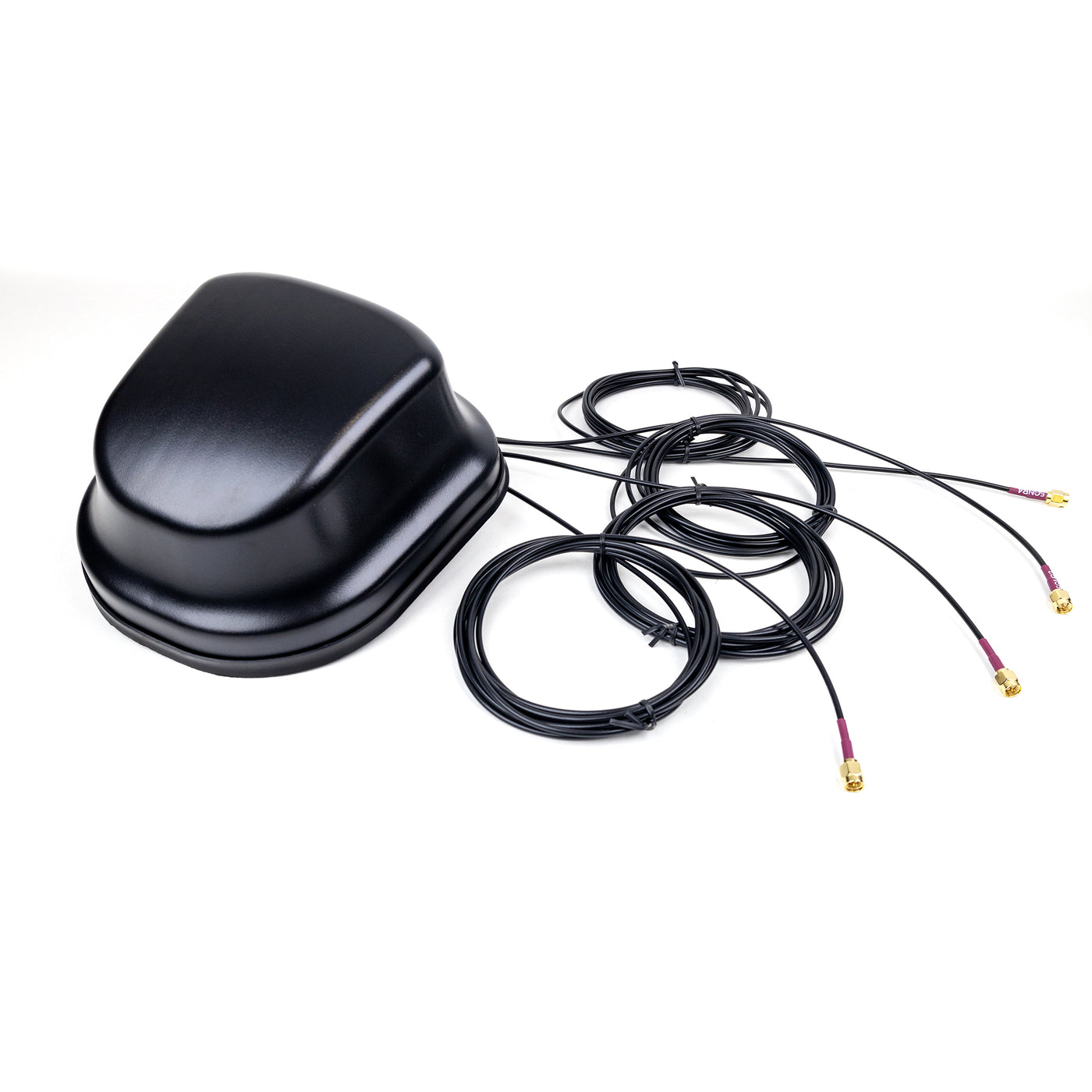

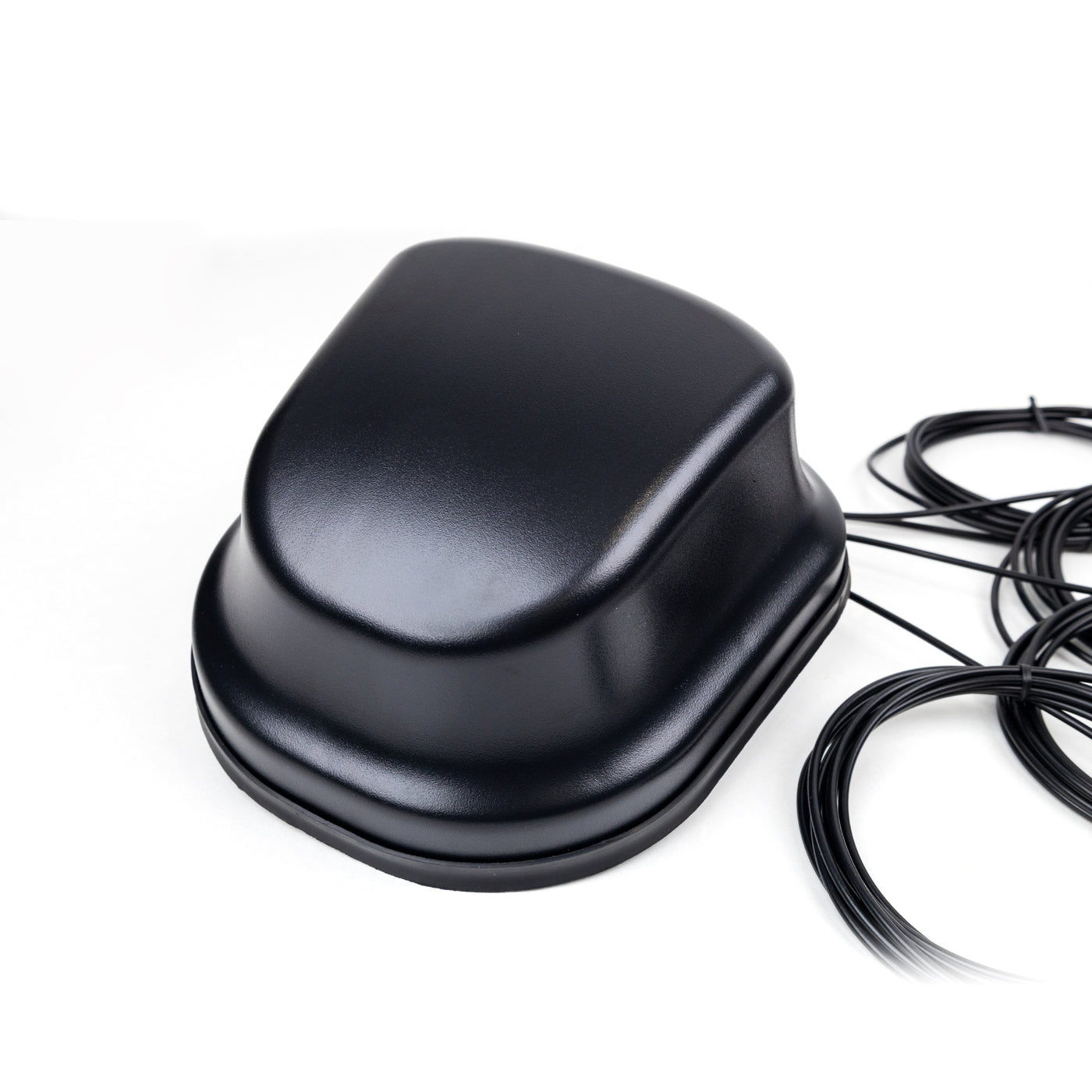

The JCG605NR4 is a high-efficiency 4×4 MIMO antenna designed specifically for next-generation 5G NR (New Radio) applications. Engineered to deliver ultra-fast data speeds and low-latency performance, this antenna supports wideband 5G frequency ranges, making it ideal for CPEs, routers, industrial gateways, and smart infrastructure deployments.
With four high-gain antenna elements in a compact form factor, the JCG605NR4 ensures maximum throughput and reliable signal reception even in dense urban or remote environments. Its rugged, weatherproof enclosure allows for indoor or outdoor mounting, supporting high-performance connectivity in demanding environments.
Key Features:
True 5G NR 4×4 MIMO antenna for high-speed, multi-stream connectivity
Wideband coverage across sub-6GHz 5G frequencies
Optimized for routers, base stations, and fixed wireless access (FWA)
Durable housing with IP-rated protection for outdoor use
Easy installation with multiple mounting options
Empower your network with the JCG605NR4 – a future-ready antenna built for the speed, stability, and scalability of 5G.
|
Item |
Specifications |
|
|
5G NR Antenna MIMO*4 |
Frequency Range |
698~960MHz/1710~2690MHz/2900~3800MHz /4400~5000MHz |
|
V.S.W.R |
≤3.0 min |
|
|
Polarization |
Linear |
|
|
Gain |
4dBi（Typ.） |
|
|
Impedance |
50Ω |
|
|
Mechanical |

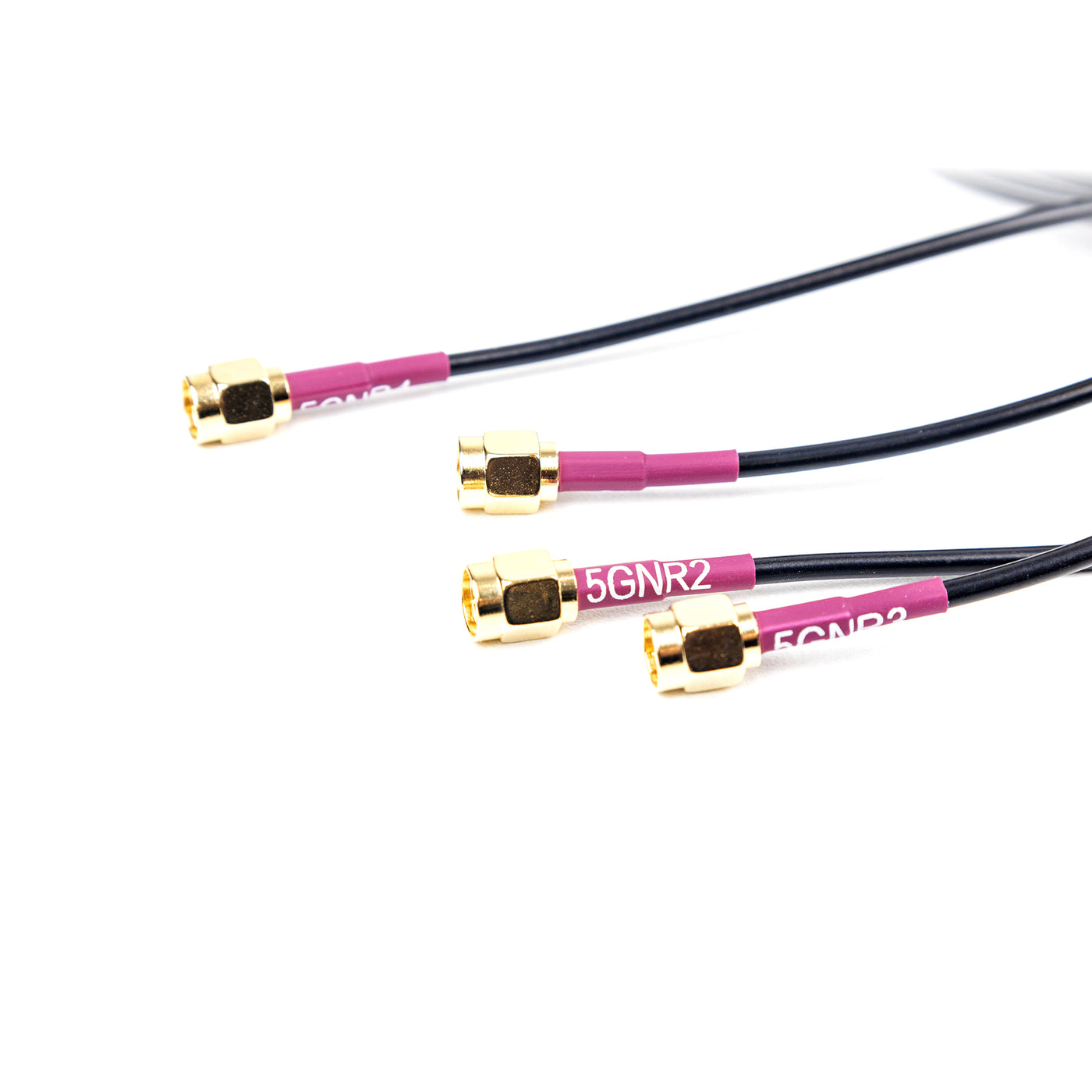

Cable |
LMR100*4 |
|
Connector |
SMA or others |
|
|
Material |
PC/ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
