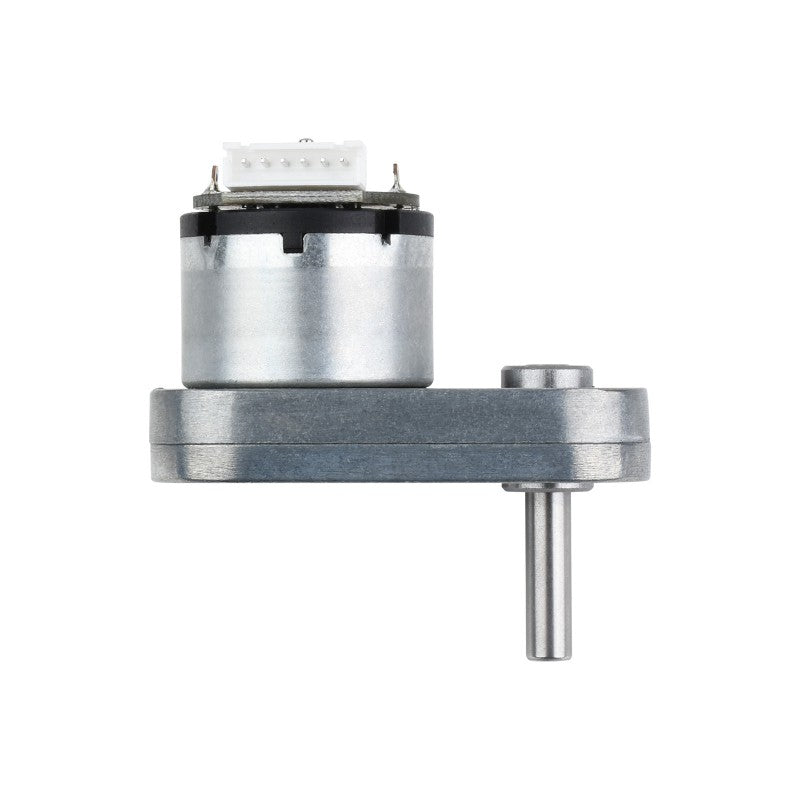

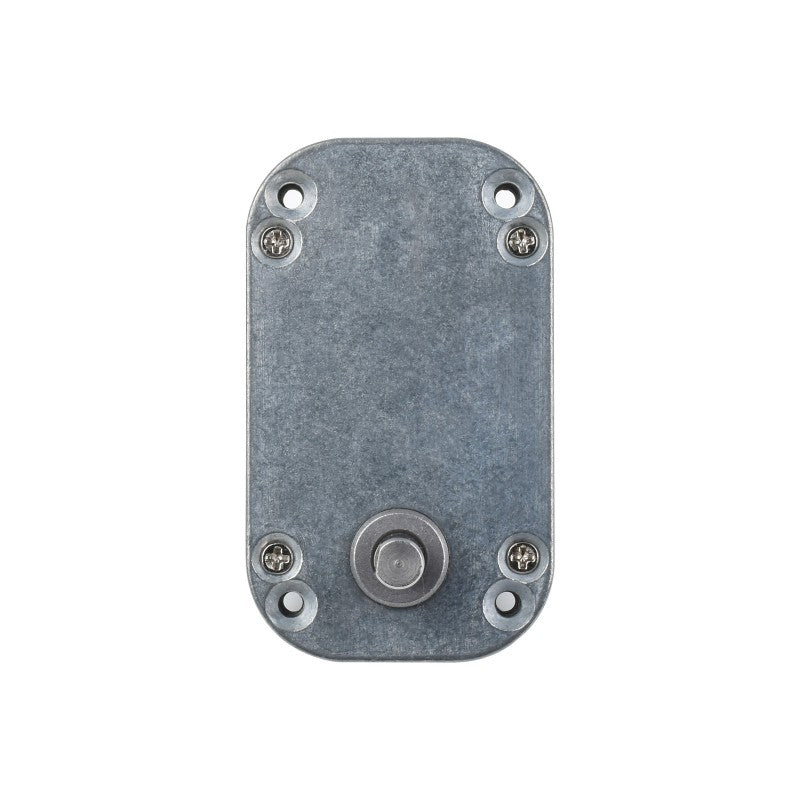

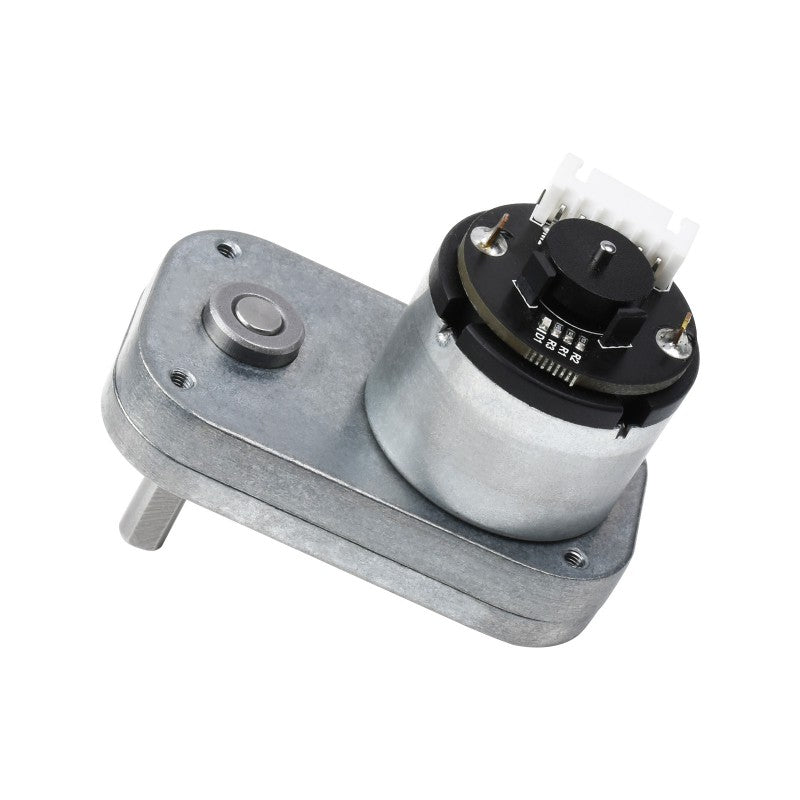

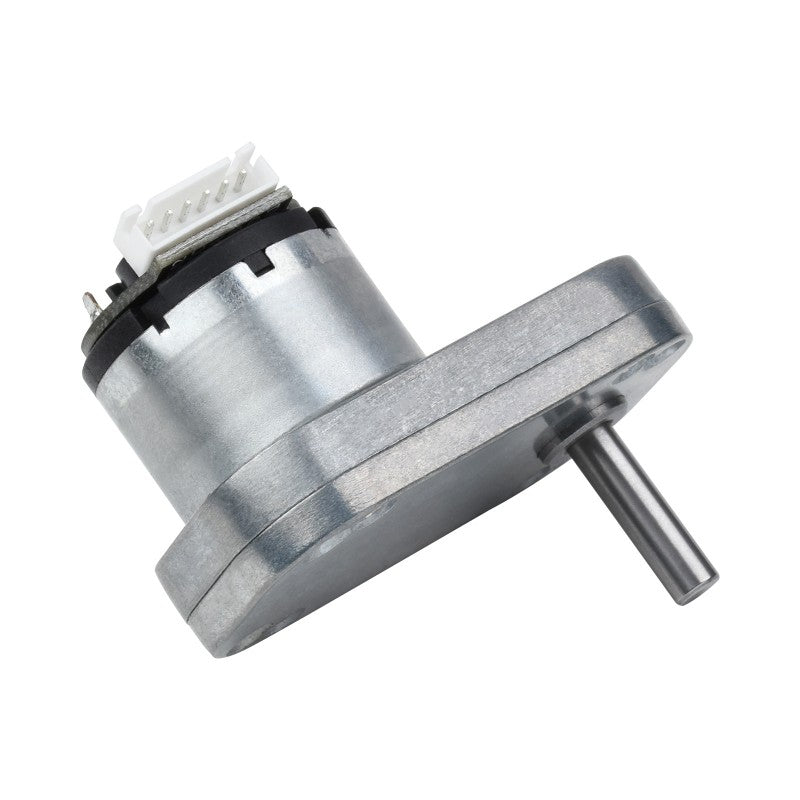

L-Shaped Permanent Magnet DC Gear Motor
All-metal Gear, Magnetic Hall Encoder
Mainly Used In Short Wheelbase Robots, And L-Shaped Applications. No Self-Locking Function In The Reducer, The Output Shaft Can Be Rotated By Hand
Specifications
| WORKING VOLTAGE |
DC 12 V |
| RATED POWER |
5.2 W |
| NO-LOAD SPEED |
240 rpm |
| LOCKED-ROTOR TORQUE |
≥8.5 kg.cm |
| NO-LOAD CURRENT |
0.15 A MAX |
| LOCKED-ROTOR CURRENT |
≤3.5 A |
| RATED LOAD |
4.0 kg.cm |
| HALL RESOLUTION |
Basic 11 PPR × 42 = 462 PPR |
| RATED SPEED |
125 rpm |
| GEAR REDUCTION RATIO |
1:42 |
| RATED CURRENT |
1.0 A MAX |
Encoder Specifications
| TYPE |
AB Dual-Phase Incremental Magnetic Hall Encoder |
| LINE RATE |
Basic pulse 11 PPR x Gear reduction ratio |
| POWER SUPPLY |
DC 3.3V / DC 5.0V |
| BASIC FUNCTION |
with pull-up resistor, directly connect to MCU |
| INTERFACE TYPE |
XH2.54-6PIN |
| OUTPUT SIGNAL TYPE |
Square wave AB phase |
| RESPONSE FREQUENCY |
100 KHz |
| BASIC PULSES |
11 PPR |
| MAGNETIC RING TRIGGER POLES NUMBER |
22 poles (11 pairs of poles) |

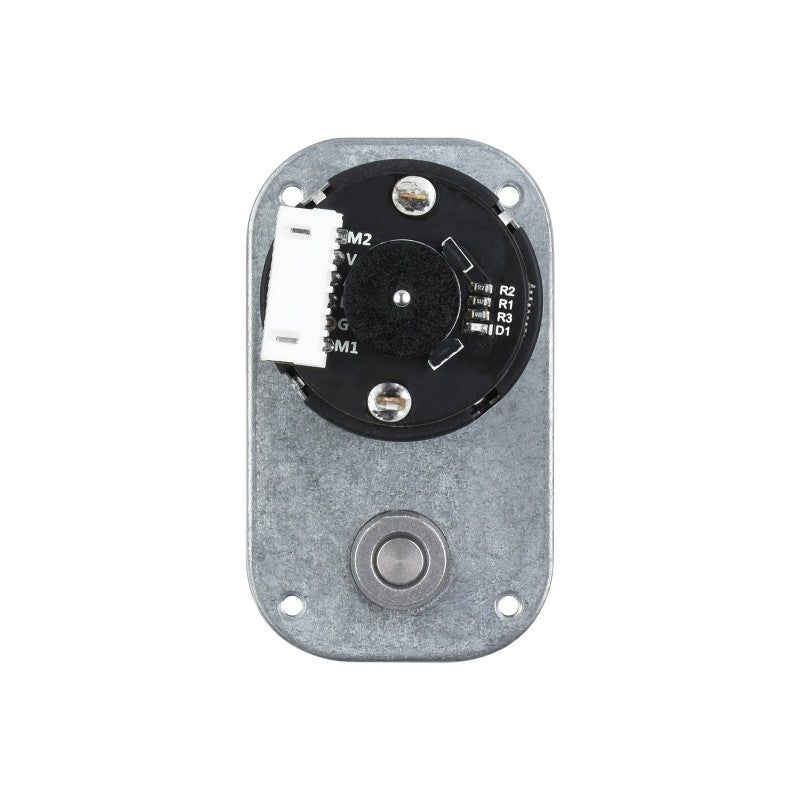

Encoder Pin Definition
Applications
Dimensions
Resources
Package Contains
- DCGM-3865-12V-EN-240RPM x1
- Connector Wire
-
Weight: 167 grams
