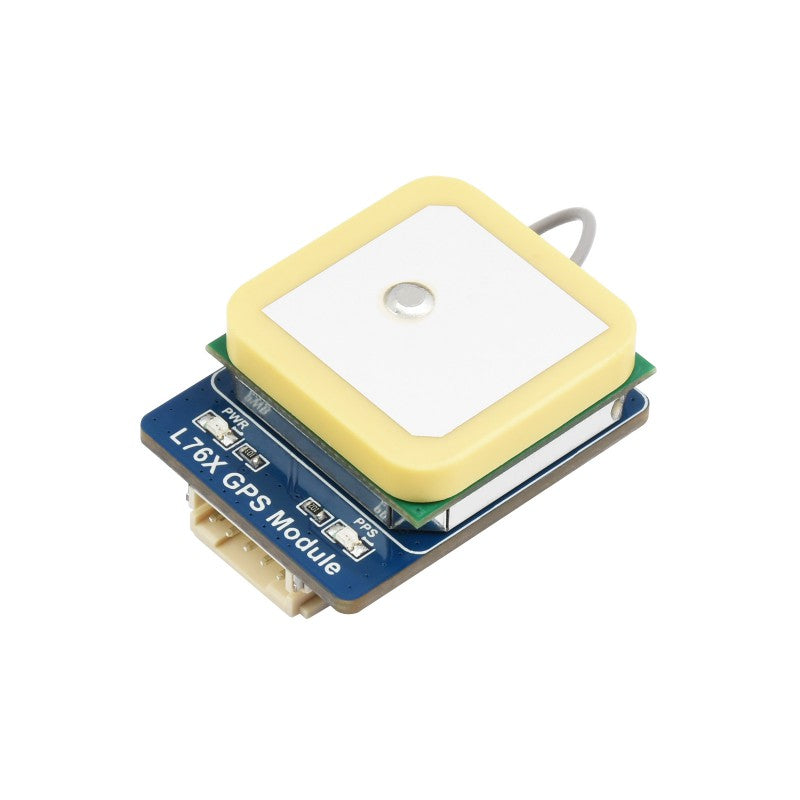

L76K Multi-GNSS Module, Supports GPS, BDS, QZSS
L76K GNSS Positioning Module
Supports GPS, Beidou(BDS), Glonass, QZSS
UART Communication, Provides Multi-Platform Resources And Tutorials For Secondary Development And Integration
Features:
The L76K GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.
Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
Built-in SAW Filter for enhanced noise reduction performance
Support AGNSS
Support 1PPS
UART communication baudrate: 4800~115200bps (9600bps by default)
Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts

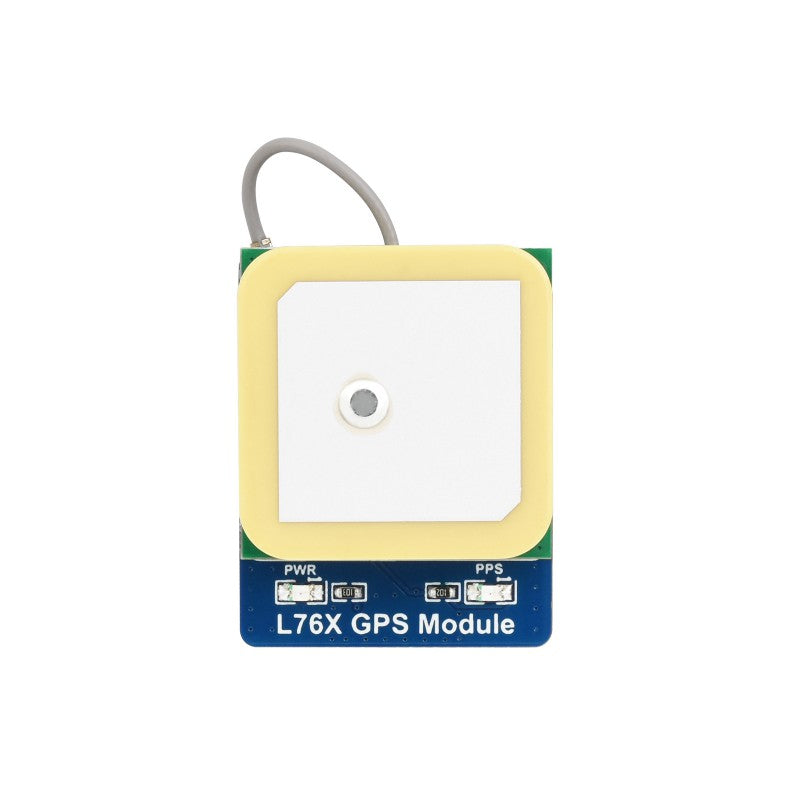

2x LEDs for indicating the module working status
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Parameters Comparison
PRODUCT
L76K
L76B
GNSS
GPS/GLONASS/BDS/QZSS
GPS/BDS/QZSS
CHIP PLATFORM
AT6558R
MT3333(Discontinued)
L1 BAND RECEIVER
CHANNELS
32 tracking ch/ 72 acquisition ch
22 Tracking ch/66 acquisition ch
SBAS
N/A
Support
A-GNSS
Support
Support
SENSITIVITY
ACQUISITION
-148dBm
-148dBm
RE-ACQUISITION
-160dBm
-160dBm
TRACKING
-162dBm
-163dBm
TTFF (TIME TO FIRST FIX)
COLD STARTS
30s, Autonomous 5.5s, With AGNSS
35s, Autonomous 15s, with EASY™
WARM STARTS
-
30s, Autonomous 5s, with EASY™
HOT STARTS
2s
1s
POSITION ACCURACY
2.0m CEP
2.5m CEP
SPEED ACCURACY
0.1m/s
0.1m/s
ACCELERATION ACCURACY(MAX)
0.1m/s²
0.1m/s²
TIMING ACCURACY
30ns
10ns
UPDATE RATE (MAX)
5Hz
10Hz
DEFAULT BAUDRATE
9600bps
9600bps

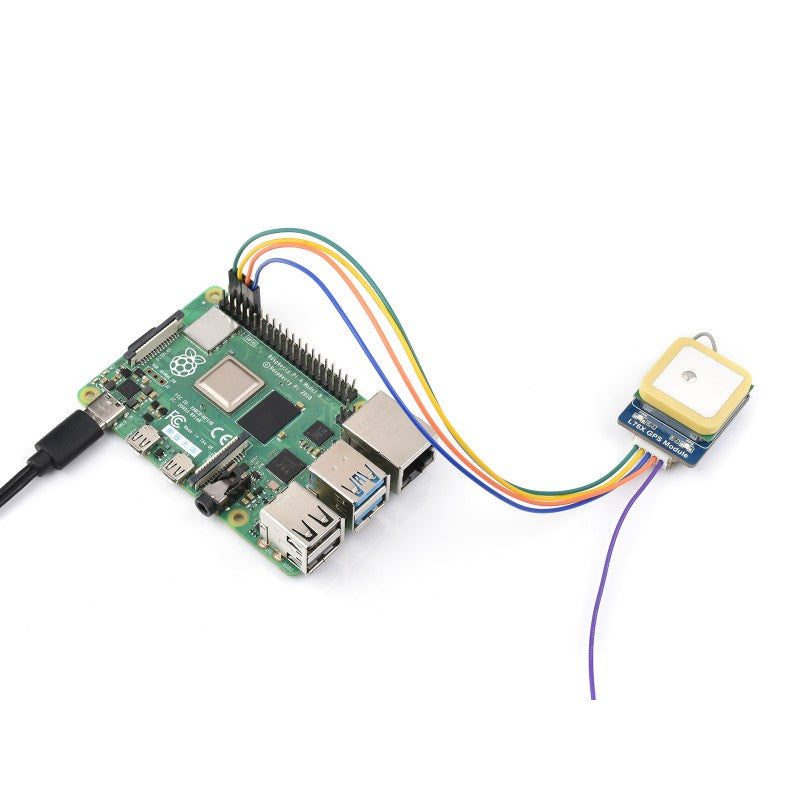

Compatible With Multiple Platforms
Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos And User Manuals, Easier To Develop And Integrate, And Better Expansibility
Multi-GNSS Positioning Support
Supports GPS, Beidou(BDS), Glonass, QZSS

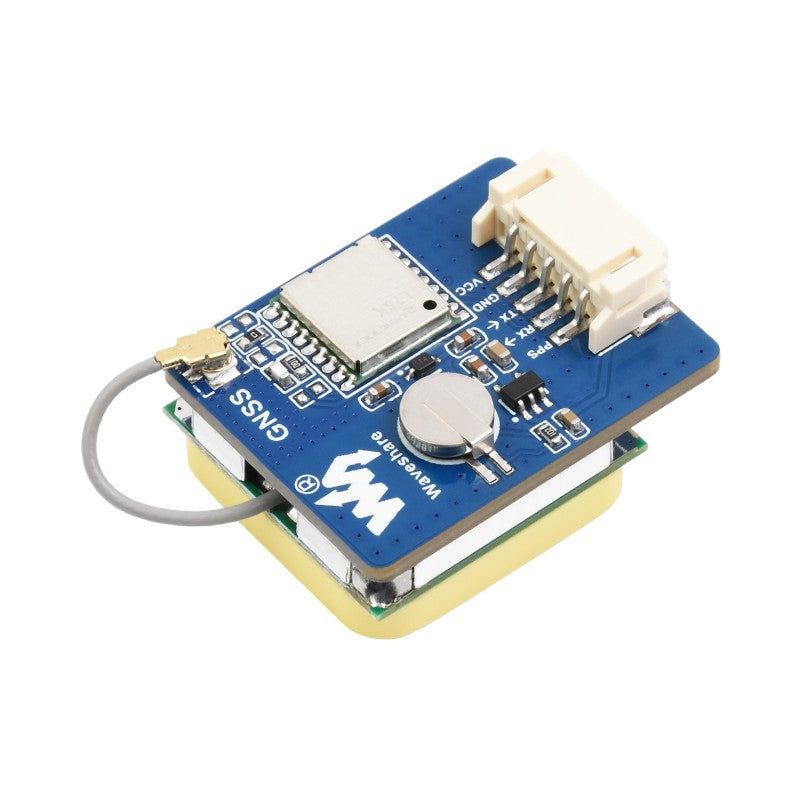

What's On Board

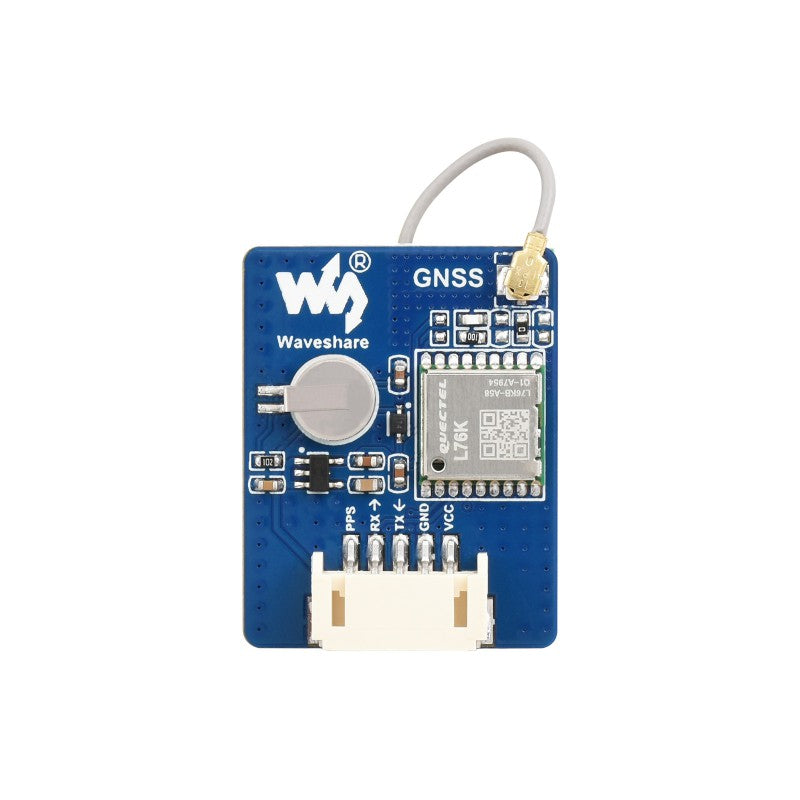

PINOUT DEFINITION
VCC
Power supply (3.3V/5V)
TX
Connect to MCU.RX (Signal direction: TX >> MCU.RX)
RX
Connect to MCU.TX (Signal direction: MCU.TX >> RX)
PPS
GPS status indicator
Outline & Dimensions
