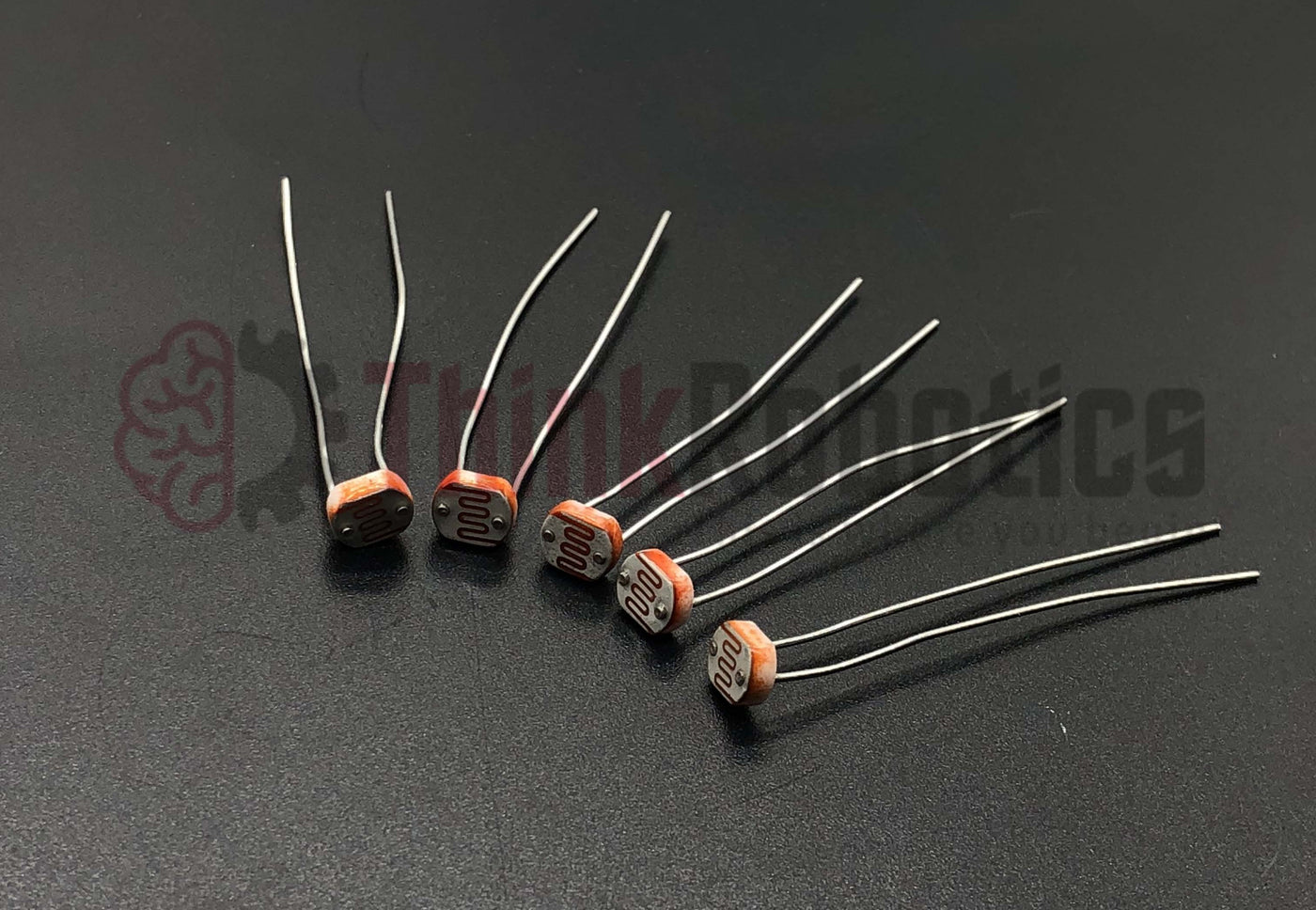

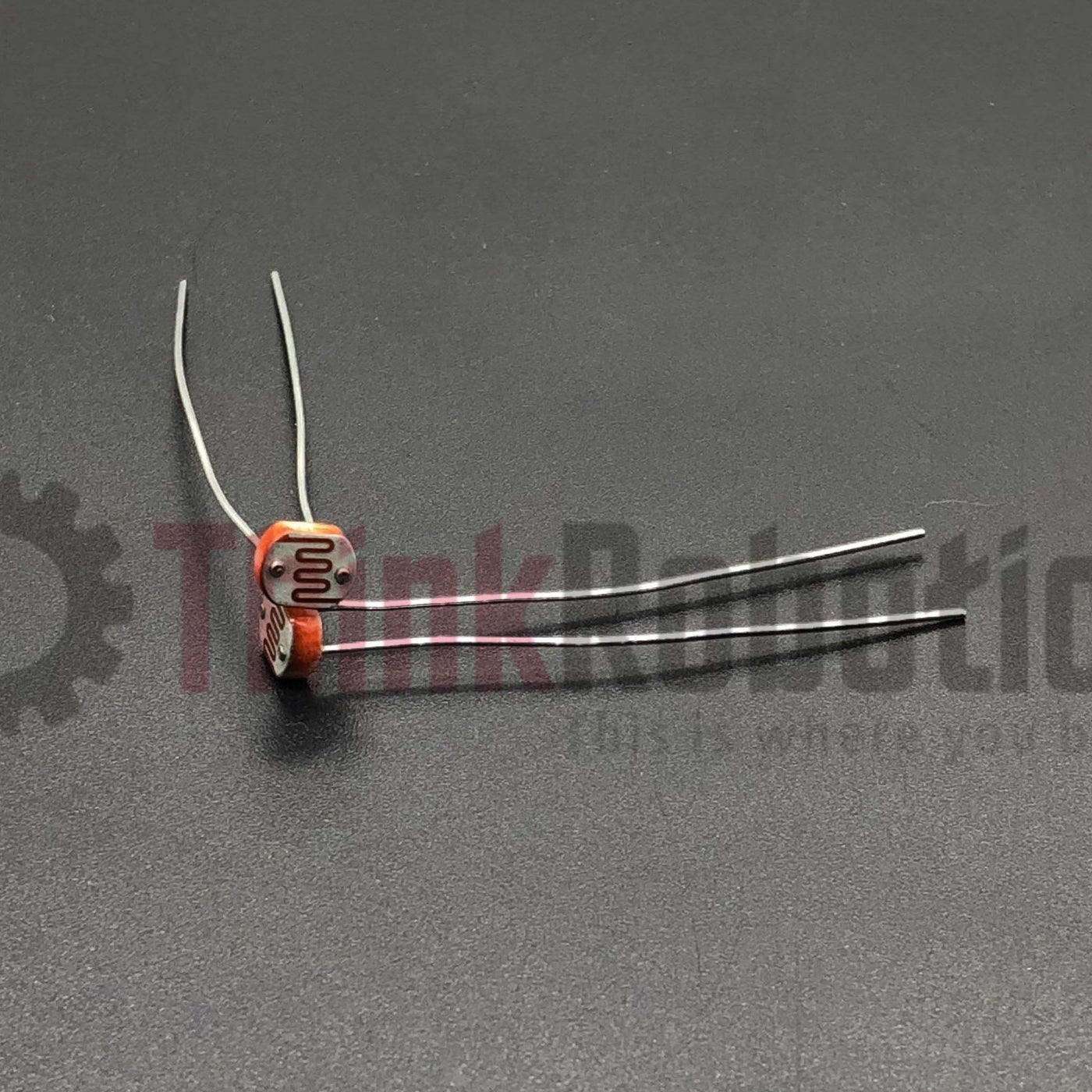

GL5516 Photoresistor or LDR (Pack of 10)
The cadmium sulfide (CdS) or light dependent resistor (LDR) whose resistance is inversly dependent on the amount of light falling on it, is known by many names including the photo resistor, photoresistor, photoconductor, photoconductive cell, or simply the photocell.
Photoresistor 5mm GL5516 LDR Photo Resistors Light-Dependent Resistor
Model: GL5516
Size: 5mm x 2mm
Maximum Voltage: 150 Volt DC
Maximum Wattage: 90mW
Operating Temperature: -30 ~ +70 deg C
Spectral Peak: 540nm
Light Resistance (at 10 Lux): 5-10 Kohm
Dark Resistance: 0.5 Mohm
Response time: 20ms (Rise), 30ms (Down)
Resistance Illumination: 4
Specifications
Resources
Datasheet
Sample Code
Tutorial
VIDEO
VIDEO
Use left/right arrows to navigate the slideshow or swipe left/right if using a mobile device
