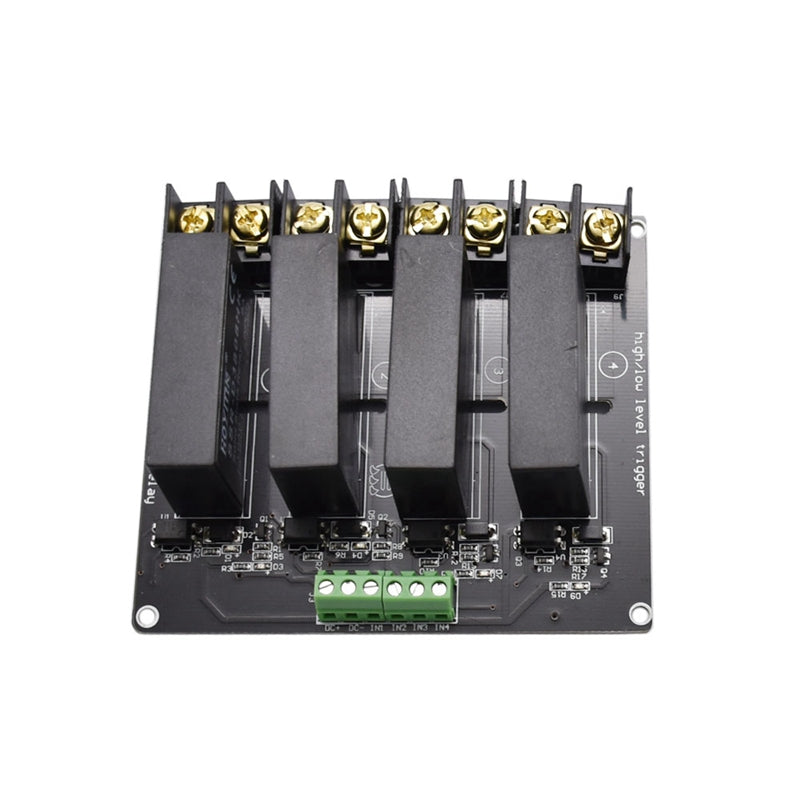

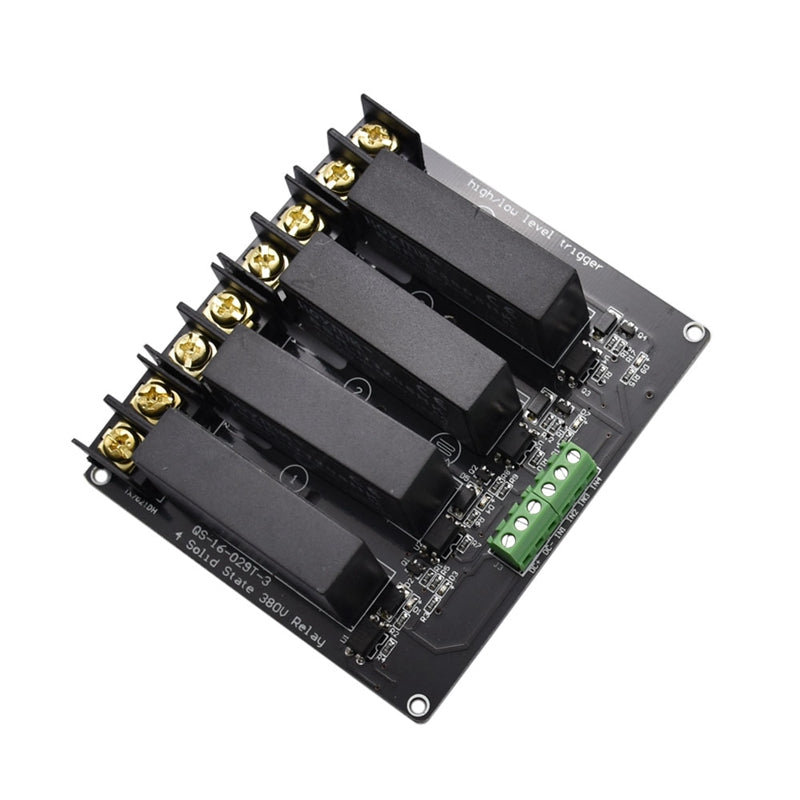

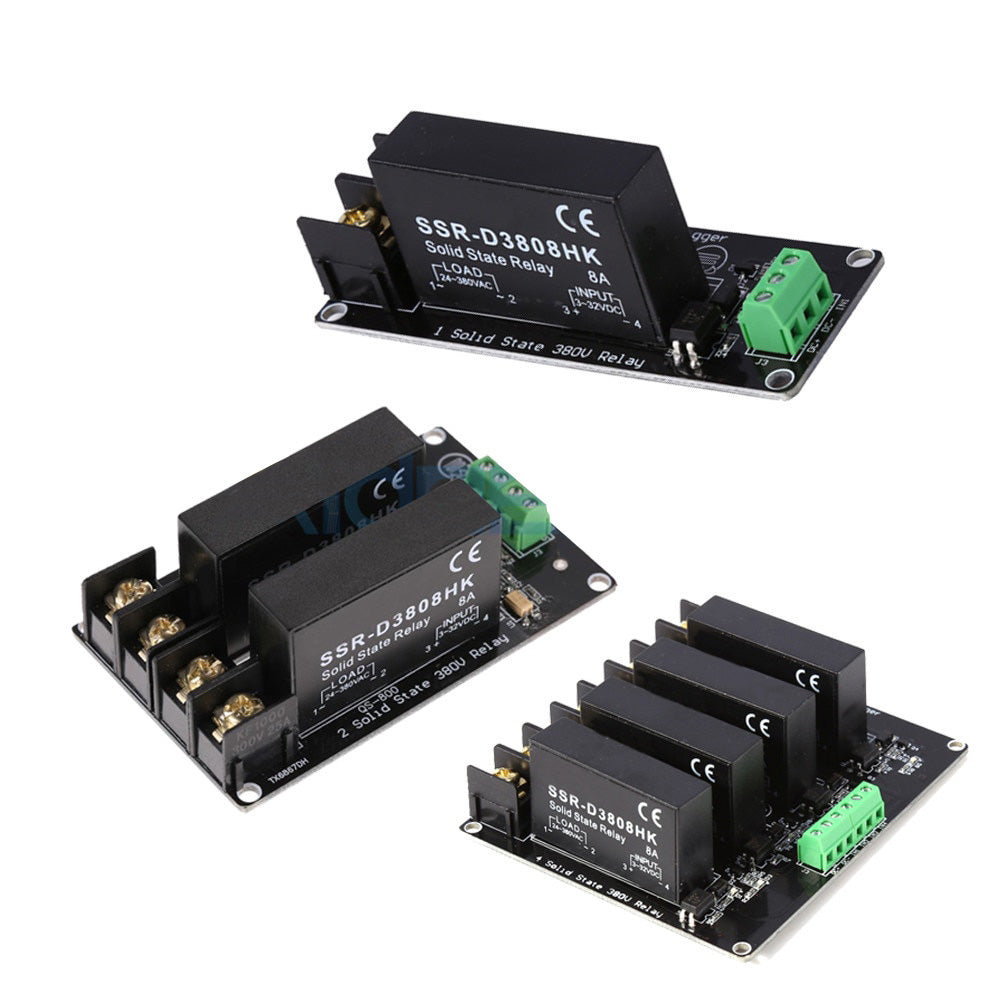

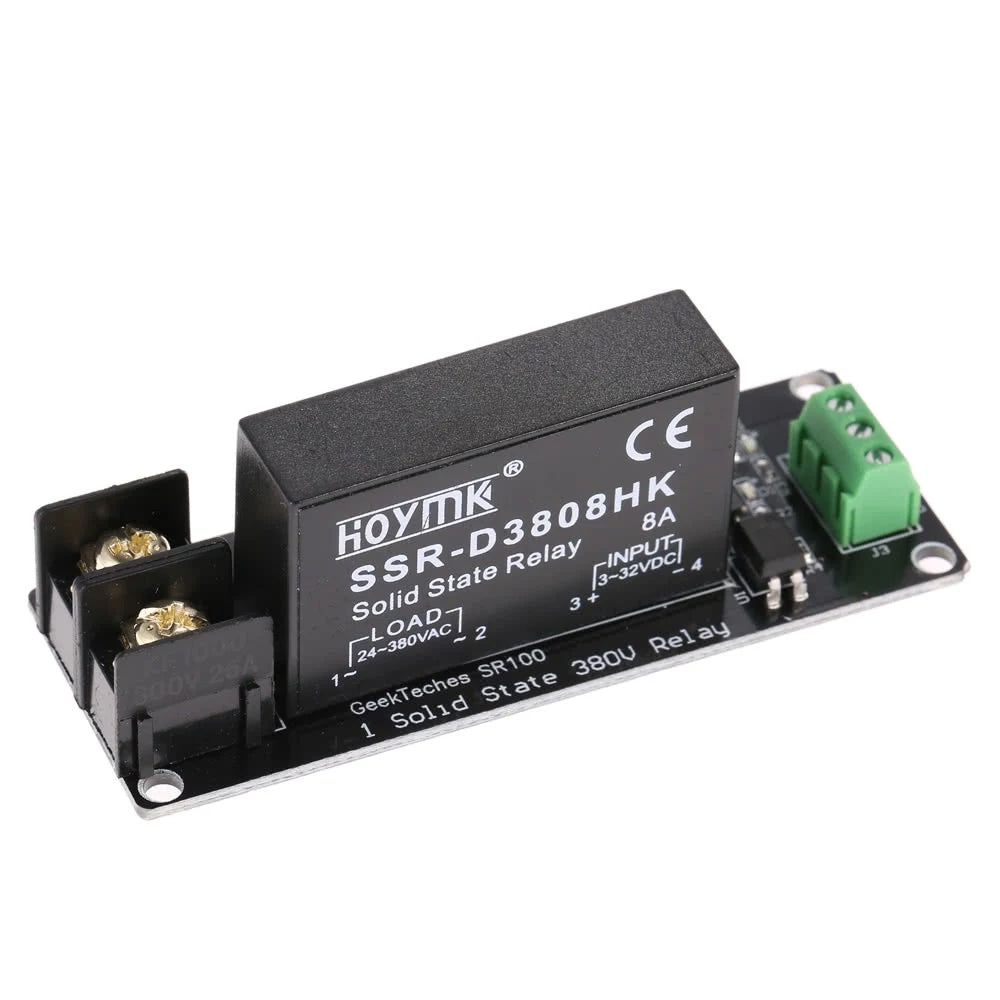

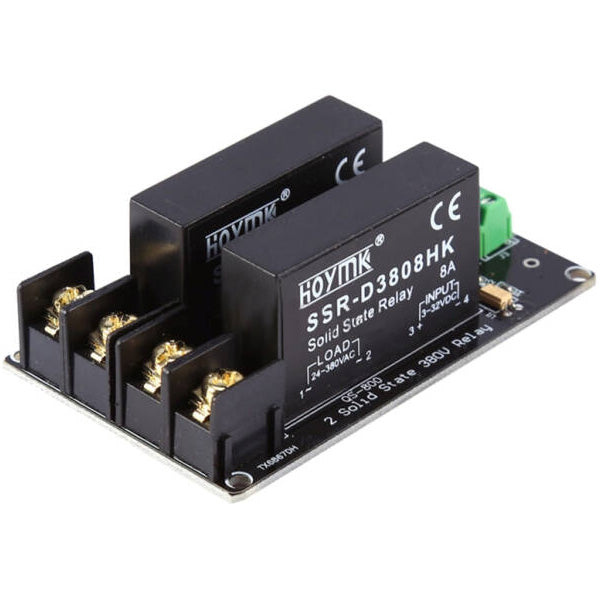

These solid state relays support up to 380V AC and 8A, and be programmed to operate with either low level or high level trigger by soldering/unsoldering a jumper. The default setting is for low level trigger.
Salient Features
Input Voltage Range: 5V - 12V DC (160mA)
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)
Package Contains a single module of the chosen variant.
