Mini Tower NAS Kit for Raspberry Pi 4B, support up to 2TB M.2 SATA SSD

SKU: WVSH0428

₹ 7,949.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Mini Tower NAS Kit for Raspberry Pi 4B, support up to 2TB M.2 SATA SSD₹ 7,949.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Mini Tower NAS Kit for Raspberry Pi 4B
supports up to 2TB M.2 SATA SSD

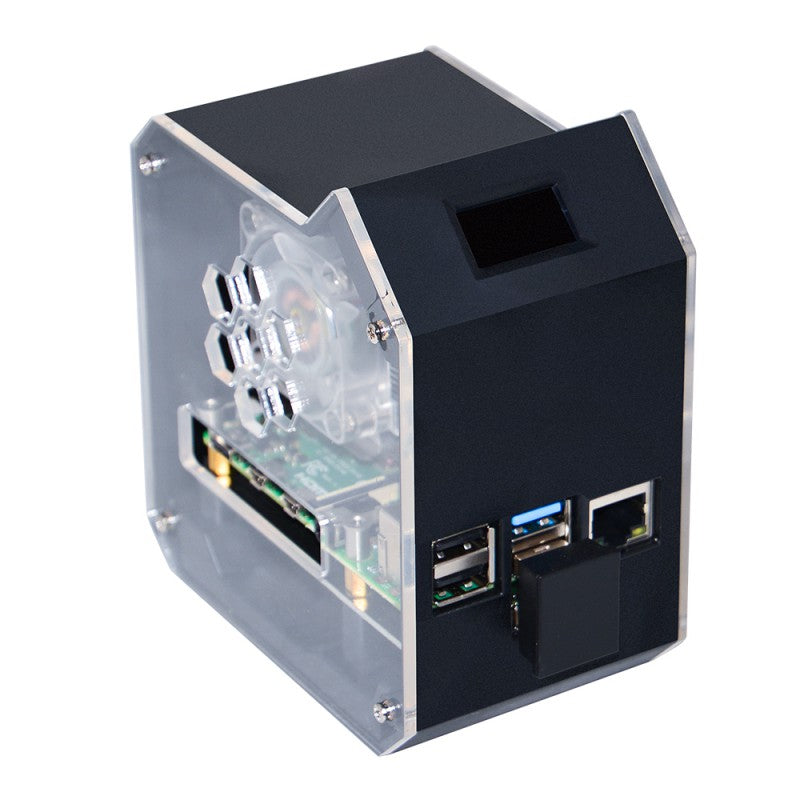

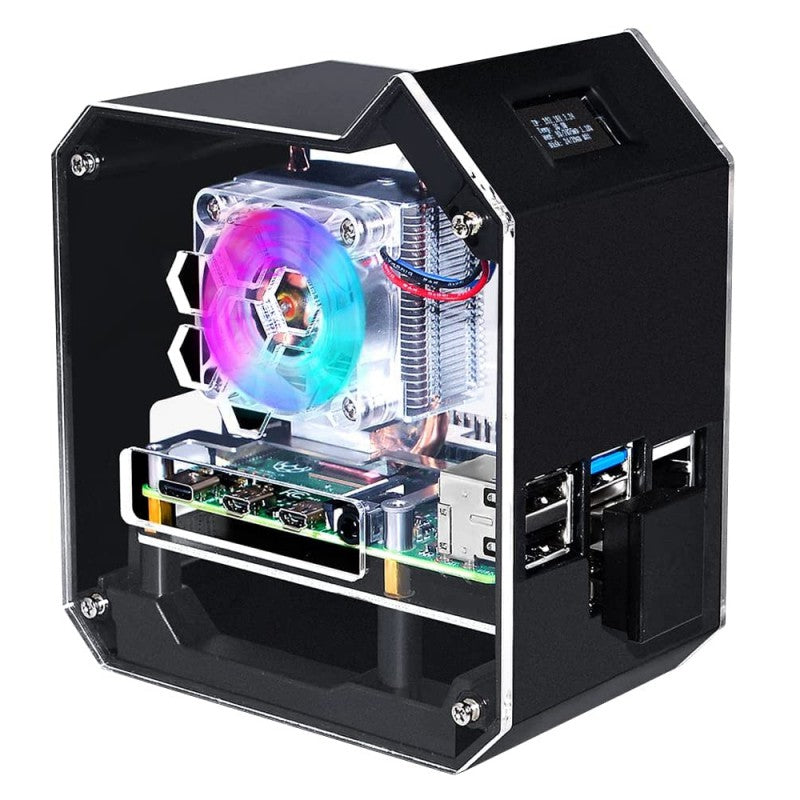

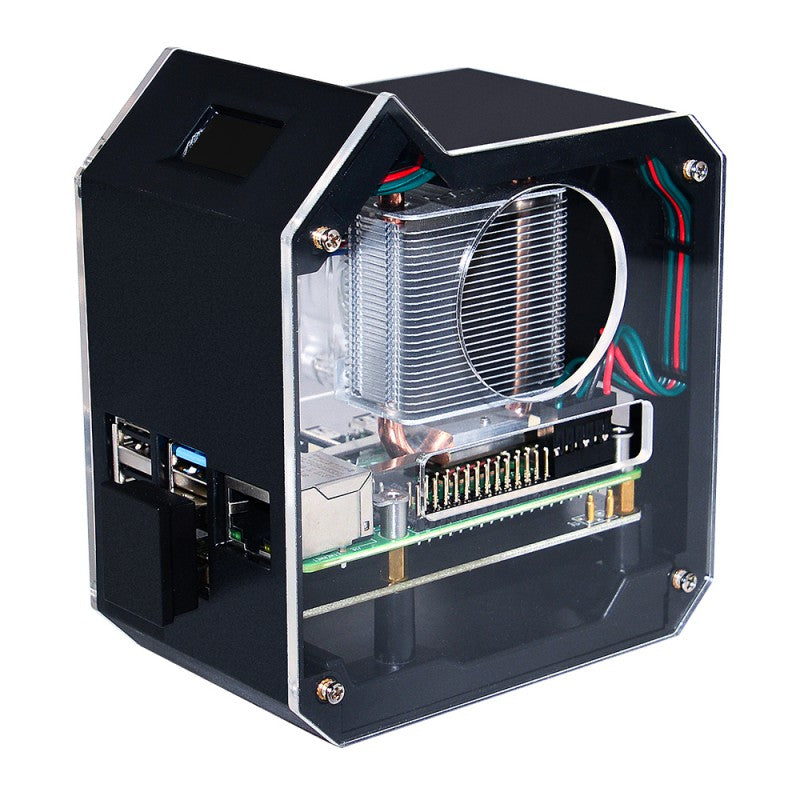

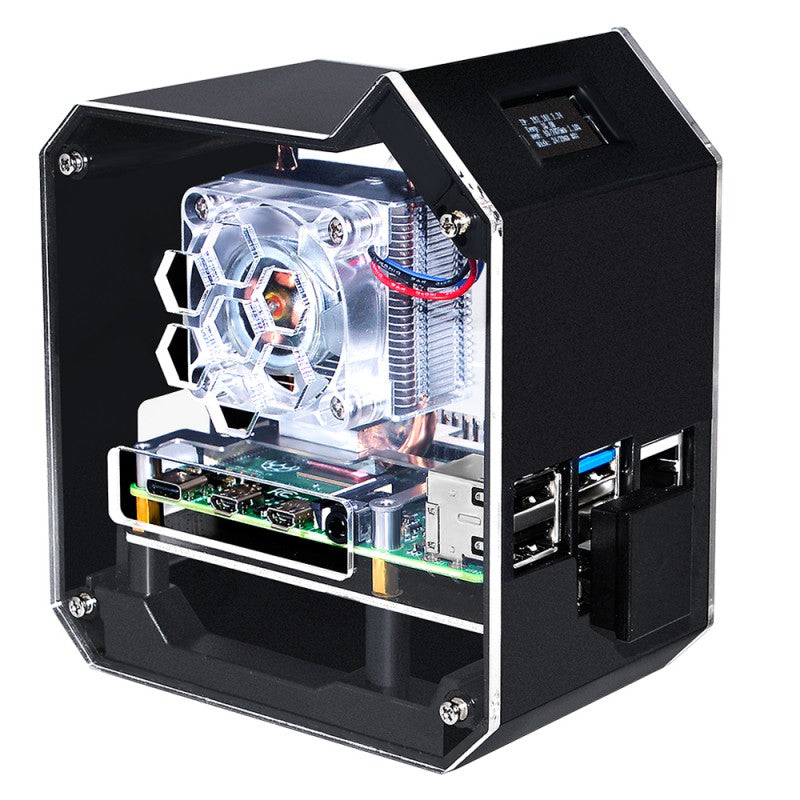

Dedicated Mini Tower NAS Kit for Raspberry Pi 4B, including M.2 SATA SSD Expansion Board, ICE Tower Cooler, Mini Tower Case, 0.96inch OLED, and GPIO Edge Extension header. It can perfectly match your Raspberry Pi 4B and can be assembled into a mini and good looking Desktop NAS, supports up to 2TB M.2 NGFF SSD, with an excellent cooling system, OLED screen, cool RGB LED light, speed-adjustable PWM fan, and 40PIN GPIO extension header.

* Raspberry Pi 4B is NOT included.



Features

  • Only compatible with Raspberry Pi 4B
  • ABS material case and two transparent acrylic side panels
  • With 0.96 inch OLED screen already mounted on the case, 28 x 64 pixels, default I2C address: 0x3C
  • M.2 SATA SSD 2280/2260/2240 mass storage adapter board, supports up to 2TB M.2 SATA SSD

* specific driver is required for the RGB light on fan and LED light on OLED screen driver board, and OLED screen needs to be enabled to display information.
M.2 SATA SSD 2280 mass storage device should be purchase separately, and the expansion board dose NOT support NVME SSD.


M.2 SATA SSD Expansion Board
Expand The Mass Storage For Your Pi




5mm Copper Tube
Super Heat Dissipation




Display System Information On OLED




0.96″ OLED With RGB LED




More Details





Selection Guide



How To Install



Resources & Services

WIKI: www.waveshare.com/wiki/PI4B_Mini_Tower_NAS_Acce



Package Contains:

Weight: 0.381 kg

PI4B Mini Tower NAS Acce x1

What is included in the kit?
The kit includes M.2 SATA SSD expansion board, ICE Tower cooler, mini tower case with 0.96 inch OLED display, and GPIO edge extension header. Raspberry Pi 4B is not included.
What storage options are supported and is NVMe supported?
It supports up to 2 TB M.2 SATA SSDs using the 2280 2260 or 2240 sizes. NVMe SSDs are not supported.
Do I need any drivers to use the OLED or RGB LED?
Yes, a specific driver is required for the RGB LED on the fan and the OLED display, and the OLED screen must be enabled to show information.
Is this kit compatible with other Raspberry Pi models?
This kit is designed to be compatible only with Raspberry Pi 4B.
What do I need to provide separately and how do I set up the NAS?
Raspberry Pi 4B and M.2 SATA SSD are not included and must be purchased separately; install the Pi into the kit, attach your M.2 SSD to the expansion board, and enable the OLED display to view information.
A
Admin
Welcome to the discussion thread for Mini Tower NAS Kit for Raspberry Pi 4B, support up to 2TB M.2 SATA SSD
Feel free to ask questions, share tips or report issues.

Discover More In:

Raspberry Pi → Raspberry Pi Accessories & Cameras → Waveshare | Official Page →

Category: View similar items (Mini)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Mini Tower NAS Kit for Raspberry Pi 4B
supports up to 2TB M.2 SATA SSD

Dedicated Mini Tower NAS Kit for Raspberry Pi 4B, including M.2 SATA SSD Expansion Board, ICE Tower Cooler, Mini Tower Case, 0.96inch OLED, and GPIO Edge Extension header. It can perfectly match your Raspberry Pi 4B and can be assembled into a mini and good looking Desktop NAS, supports up to 2TB M.2 NGFF SSD, with an excellent cooling system, OLED screen, cool RGB LED light, speed-adjustable PWM fan, and 40PIN GPIO extension header.

* Raspberry Pi 4B is NOT included.



Features

  • Only compatible with Raspberry Pi 4B
  • ABS material case and two transparent acrylic side panels
  • With 0.96 inch OLED screen already mounted on the case, 28 x 64 pixels, default I2C address: 0x3C
  • M.2 SATA SSD 2280/2260/2240 mass storage adapter board, supports up to 2TB M.2 SATA SSD

* specific driver is required for the RGB light on fan and LED light on OLED screen driver board, and OLED screen needs to be enabled to display information.
M.2 SATA SSD 2280 mass storage device should be purchase separately, and the expansion board dose NOT support NVME SSD.


M.2 SATA SSD Expansion Board
Expand The Mass Storage For Your Pi




5mm Copper Tube
Super Heat Dissipation




Display System Information On OLED




0.96″ OLED With RGB LED




More Details





Selection Guide



How To Install



Resources & Services

WIKI: www.waveshare.com/wiki/PI4B_Mini_Tower_NAS_Acce



Package Contains:

Weight: 0.381 kg

PI4B Mini Tower NAS Acce x1

FAQ
What is included in the kit?
The kit includes M.2 SATA SSD expansion board, ICE Tower cooler, mini tower case with 0.96 inch OLED display, and GPIO edge extension header. Raspberry Pi 4B is not included.
What storage options are supported and is NVMe supported?
It supports up to 2 TB M.2 SATA SSDs using the 2280 2260 or 2240 sizes. NVMe SSDs are not supported.
Do I need any drivers to use the OLED or RGB LED?
Yes, a specific driver is required for the RGB LED on the fan and the OLED display, and the OLED screen must be enabled to show information.
Is this kit compatible with other Raspberry Pi models?
This kit is designed to be compatible only with Raspberry Pi 4B.
What do I need to provide separately and how do I set up the NAS?
Raspberry Pi 4B and M.2 SATA SSD are not included and must be purchased separately; install the Pi into the kit, attach your M.2 SSD to the expansion board, and enable the OLED display to view information.
