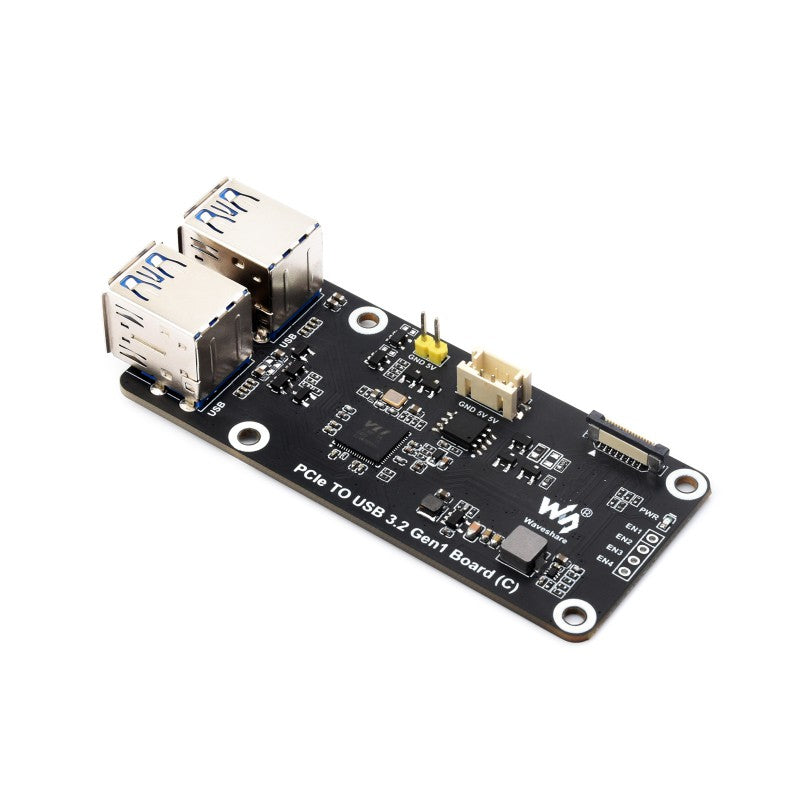

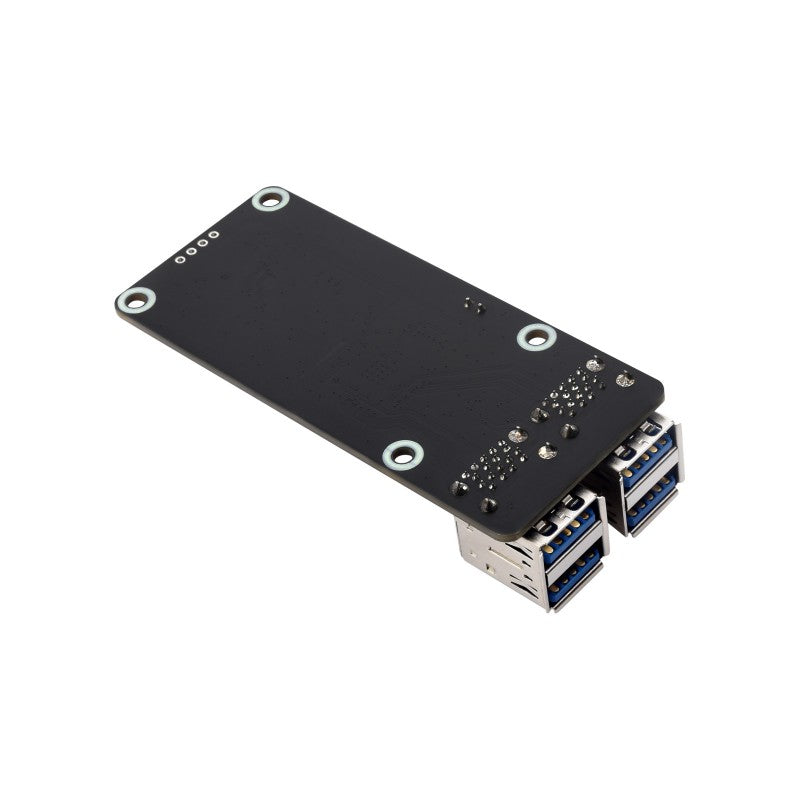

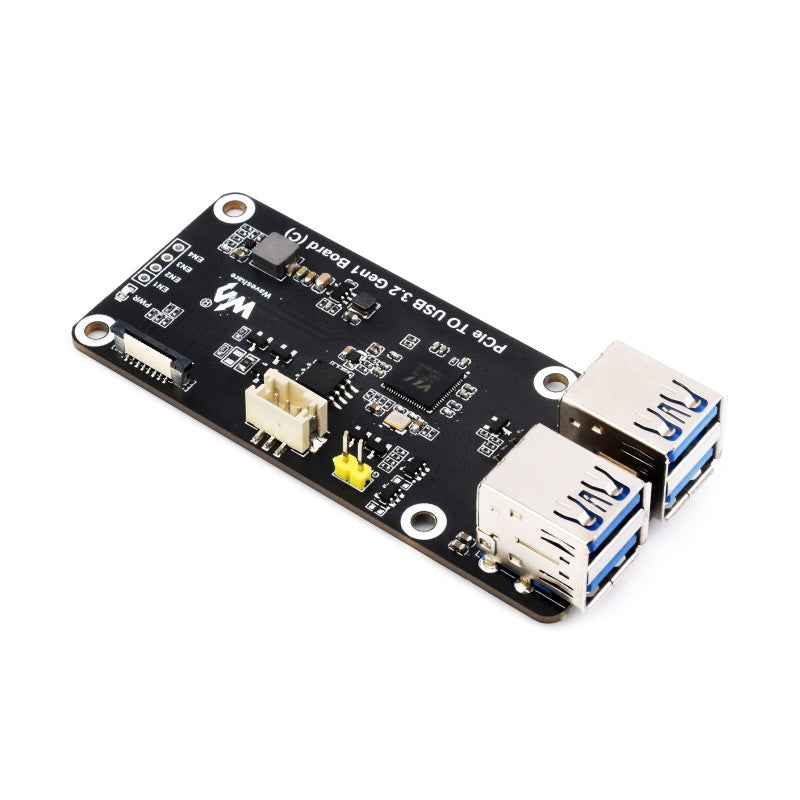

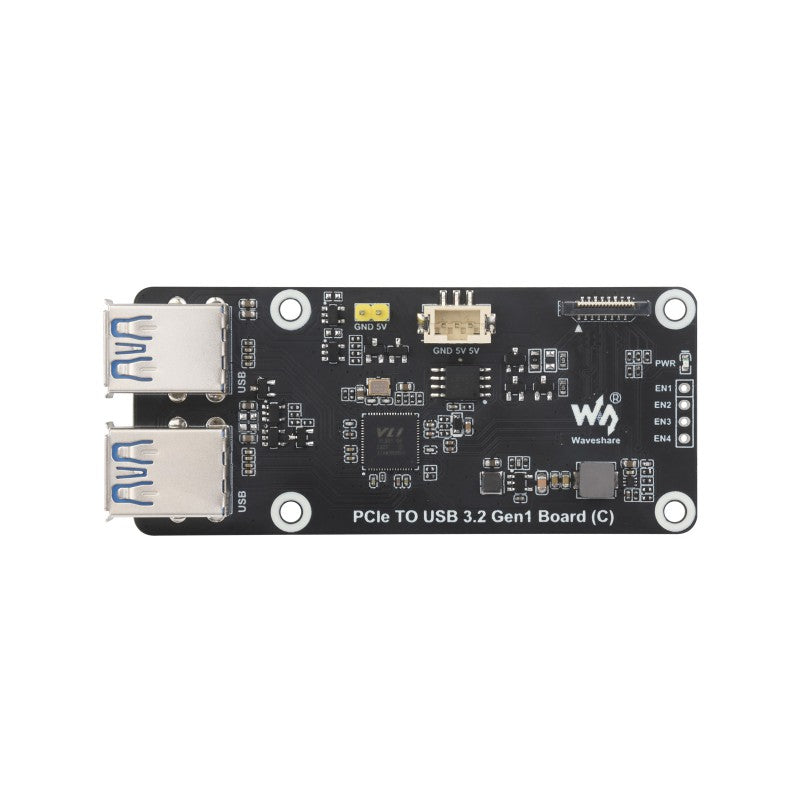

PCIe TO USB 3.2 Gen1 Board (C)
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-free, Plug and Play
Connecting to PI5 via 16PIN Cable
Specifications
| Interface standard | High-speed USB 3.2 Gen1 |
|---|---|
| Communication rate | 5Gbps for single USB port total 5Gbps for 4-ch USB ports |
| USB output | 5V@Imax: 2A; USB-A connector |
| Power supply | 5V DC power supply header/connector |
| operating temperature | 0℃ ~ 75℃ |
5Gbps Ultra-fast Transmission
Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission
Enabling up to 8-ch USB ports for the Raspberry Pi 5
PCIe to 4-ch USB 3.2 Gen 1 High-speed ports For Connecting More Peripherals
* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list
4-ch power supply independent control
Allows controlling the power ON/OFF of each USB port via commands
Two Power Supply Methods
Supports Power Supply Via 2PIN header Or 3PIN connector
Comes with Transparent acrylic
mounting plate

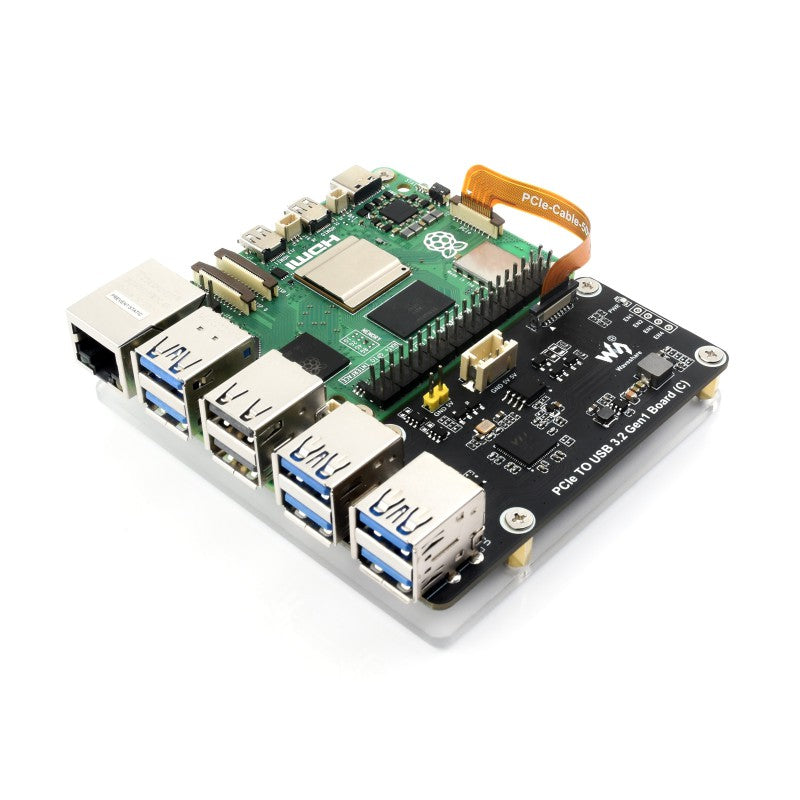

Adopts side-mounting solution to save space above the Raspberry Pi 5
Connecting to PI5 via 16PIN Cable
* for reference only, please refer to the Package Content for detailed part list
Acrylic mounting bottom plate,
Stable and not easy to loosen
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_Board_(C)
Package Contains:
Weight: 0.065 kg
- PCIe TO USB 3.2 Gen1 Board (C) x1
- Transparent acrylic mounting plate x1
- 16PIN PCIe cable x1
- PH2.0 3PIN cable x1
- Standoff pack x1
1
2
3
4
5
2
3
4
5
Is this board compatible with Raspberry Pi OS and does it require any drivers?
Yes, it is designed for Raspberry Pi 5 and supports Raspberry Pi OS with driver-free plug-and-play.
How many USB ports does it provide and what are the data rates?
It provides four USB 3.2 Gen1 ports with a total bandwidth of up to 5 Gbps for all ports, and up to about 500 MB per second per port in theory.
How is the board powered and can I use different power sources?
Power is supplied by a 5V DC source through either a 2PIN header or a 3PIN connector, and each USB port can be controlled independently for on/off.
What parts are included in the package and how do I install it on the Raspberry Pi 5?
Package includes the PCIe to USB 3.2 Gen1 Board (C), transparent acrylic mounting plate, 16PIN PCIe cable, PH2.0 3PIN cable, and standoff pack. It connects to the Pi 5 via the 16PIN cable and uses the mounting plate for installation.
Is the Raspberry Pi 5 included with this product?
No, the Raspberry Pi 5 is not included; please refer to the package contents for the complete part list.
