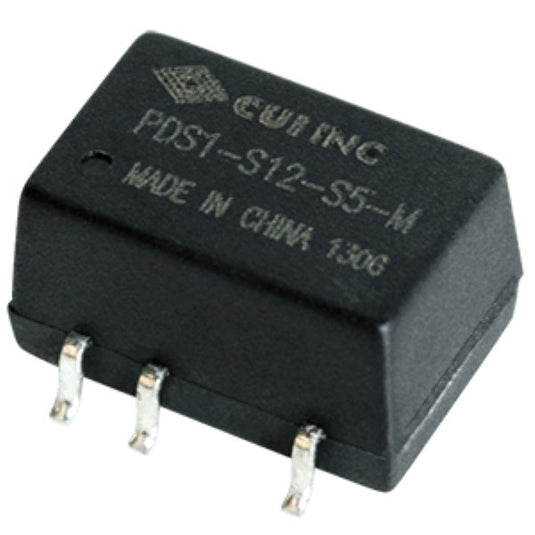

Enhance your electronic systems with the BEL/CUI INC PDS1-S5-S24-M-TR, a high-efficiency, 1 W isolated DC-DC converter designed for demanding applications. Manufactured in China, this compact module offers reliable power conversion with excellent electrical and environmental specifications.
Product Features
1 W isolated output for safe and stable power delivery
Compact package with tape & reel packaging for easy automation
Single and dual unregulated outputs available
High isolation voltage of 1,500 Vdc between input and output
Short circuit protection with automatic recovery
Extended operating temperature range from -40°C to 105°C
Antistatic protection up to 8kV for enhanced durability
High efficiency up to 82% at light load conditions
Compliance with EN 62368-1 safety standards
Electrical Specifications
Model
Input Voltage Range (Vdc)
Output Voltage (Vdc)
Output Power (W)
Efficiency (%)
Ripple & Noise (mVp-p)
Output Current (mA)
PDS1-S5-S24-M
4.5~5.5
24
1
up to 82
42
4
PDS1-S5-D12-M
4.5~5.5
±12
1
up to 82
42
4
Input and Output Details
Parameter
Conditions
Min
Typ
Max
Units
Operating Input Voltage
Surge for 1 sec
-0.7
-
5.5
Vdc
Line Regulation
From 10% to full load
±1.5
-
-
%
Load Regulation
From 10% to full load
±1.2
-
-
%
Isolation Voltage (Input to Output)
1 minute at 1 mA max
-
-
1500
Vdc
Efficiency
Typical at full load
-
up to 82
-
%
Mechanical and Environmental Details
Dimensions vary by model, with single output models measuring approximately 12.7 x 8.3 x 7.25 mm, and dual output models approximately 15.24 x 8.3 x 7.25 mm. The case is made of epoxy resin (UL94-V0). Operating temperature ranges from -40°C to 105°C, with storage temperatures up to 125°C and non-condensing humidity up to 95%.
Safety and Compliance
Certified to IEC/EN 62368-1 and UL 60950-1 standards
Conducted and radiated emissions compliant with CISPR32/EN55032, Class B
Note: This product description is based solely on provided data. For more detailed information, please refer to the datasheet or contact the manufacturer.
