Radxa Cubie A5E
Radxa Cubie A5E
Radxa Cubie A5E
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Radxa

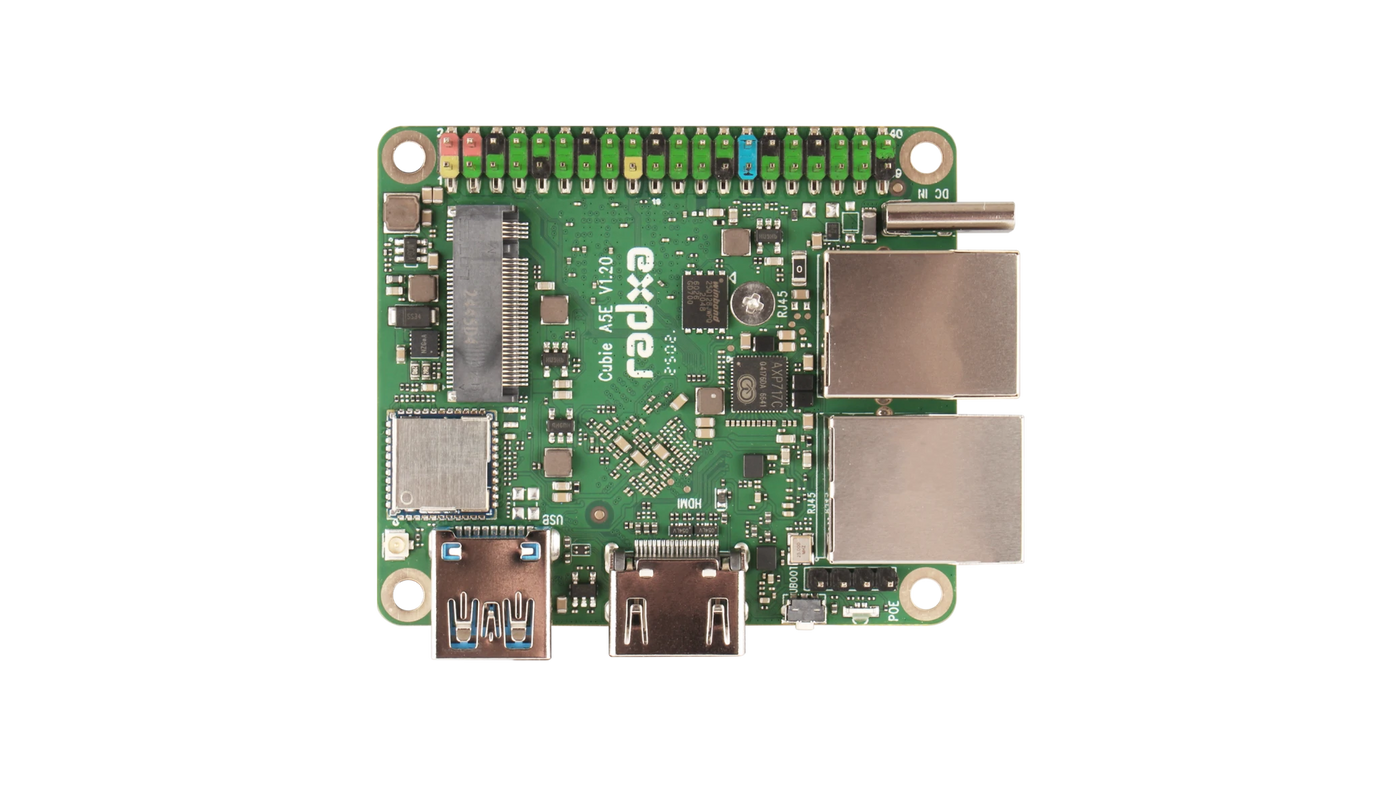

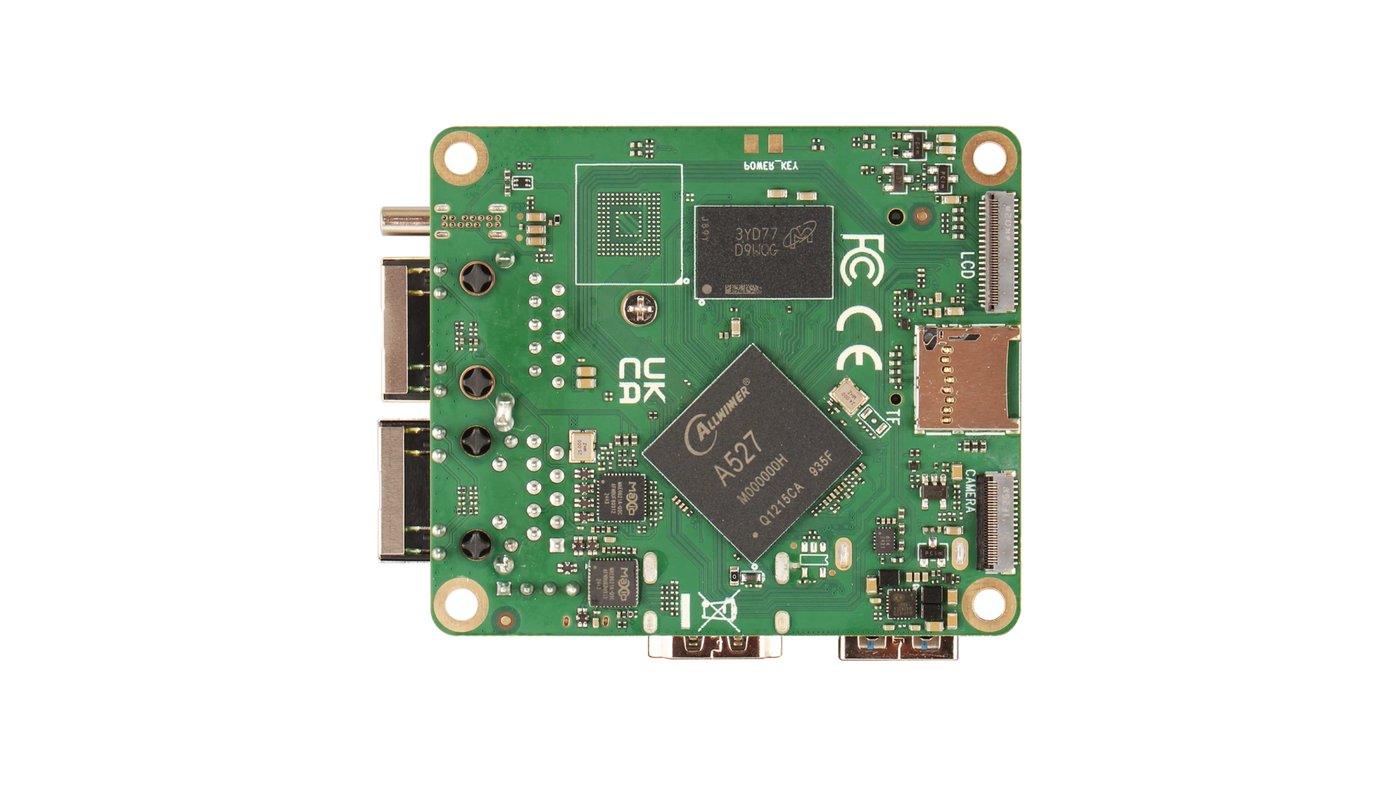

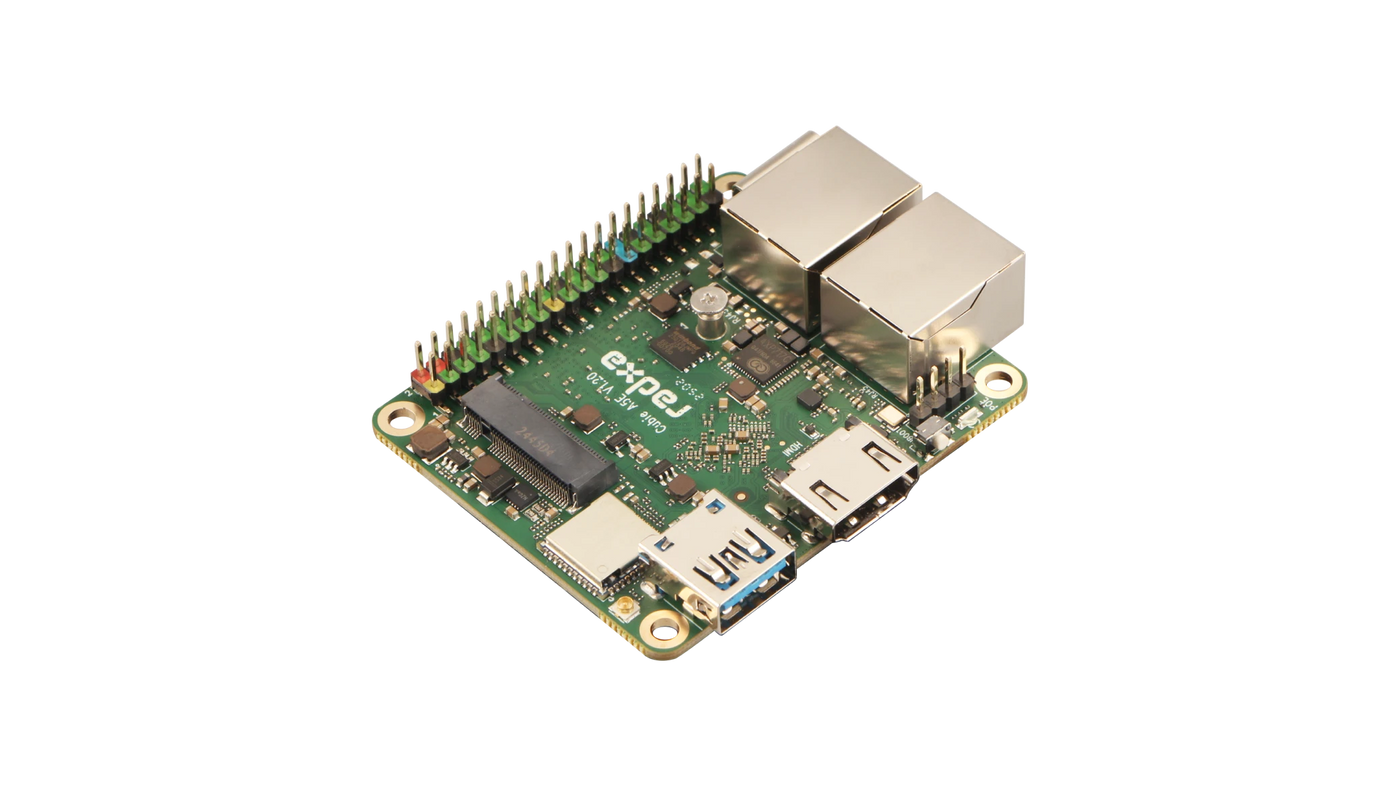

Radxa Cubie A5E

SKU: RDXA1043

₹ 2,599.99

Out of stock

Select variant

1GB
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa Cubie A5E1GB₹ 2,599.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Cubie A5E

8 Core Tiny AIoT SBC





Compact and Portable Design

Tiny, Portable and Powerful





8-core Arm Cortex-A55 CPU

Quad-core ARM Cortex-A55 up to 1.8 GHz and Quad-core ARM Cortex-A55 up to 1.4GHz





Independent RISC-V MCU for RTOS

Single Core RISC-V up to 200MHz





Unlocking Industrial Potential

only available with the T527 (Industrial Version)





Excellent Graphics Processing Capability

ARM G57 MC1 GPU





Unlock the Functions of NPU,
Enjoy the Convenience of AI*

NPU Computing Power Up to 2 TOPs

*NPU only available with the T527 (Industrial Version)





Diverse Options Catering to Your Design

LPDDR4x RAM and eMMC





4K Video Codec, 4K Video Output and Video Input

Video Processing Expert





Effortlessly Create Customized Multi-Network Environments

Powered by Dual Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.4





Comprehensive Technical Documentation and
Active Community





Interfaces





Tech Specs

Parameter Description
SoC Allwinner A527 (Consumer Version) or T527 (Industrial Version)
CPU 4x Cortex®-A55 up to 1.8GHz
4x Cortex®‑A55 up to 1.4GHz
GPU Arm® Mali-G57 MC1
– Vulkan® 1.1/1.2/1.3
– OpenGL® ES 3.2/2.0/1.1
– OpenCL® 2.2
NPU Optional Neural Processing Unit (NPU)
– Computing Power: 2 TOPs
– Precision Support: INT 8/16/32b, Float 16/32b
Codec Hardware Decoder:
– Up to 4K@60fps
– H.265, H.264, VP9, VP8, H.263, MPEG‑4, MPEG‑2
Hardware Encoder:
– Up to 4K@25fps
– H.264
RAM LPDDR4 RAM
– 32-bit memory bus
– 2400MT/s
– 1GB / 2GB / 4GB
Storage – 1x M.2 M Key (PCIe Gen2 x1) for M.2 2230 NVMe SSD
– 1x 8MB SPI Flash
– 1x eMMC (16/32/64/128GB)
– 1x SD card connector
Video Output 1x HDMI 2.0 (up to 4K@60Hz)
1x MIPI DSI 4-lane (up to 1080p@60Hz)
Video Input 1x MIPI CSI Camera Interface
– 2-lane or 4-lane configurable
– Ideal for AI vision
Network – 1x onboard WiFi 6 / BT 5.2 with external antenna
– 2x 1GbE Ports (10/100/1000Mbps)
USB – 1x USB Type-C (Power + USB 2.0 OTG)
– 1x USB 3.0 HOST Type-A (5Gbps)
Power 1x USB Type-C Port 5V/4A
Button 1x USB Boot Button
GPIO 40-Pin GPIO header with I2C, SPI, PWM, I2S, etc.
Dimension 56 mm x 65 mm





Download

Documentation

Schematic V1.10 Download
Components Placement Map V1.10 Download
3D Drawings V1.10 Download
Schematic V1.20 Download
Components Placement Map V1.20 Download
3D Drawings V1.20 Download





Cubie A5E Works with

> Radxa Camera 8M 219
IMX 219

> Radxa Power PD 30W
5A High Current Super-Fast Charge

> Radxa Display 8 HD
An All-in-One Touchscreen Module

What processor options are available for the Cubie A5E and what are the core counts and speeds?
The board is available in two variants: a consumer version with Allwinner A527 and an industrial version with T527. Each uses four Cortex A55 cores; the consumer version runs up to 1.8 GHz and the industrial version up to 1.4 GHz. An optional NPU up to 2 TOPs is available only with the T527.
What memory and storage options are supported?
RAM options are LPDDR4 1GB, 2GB, or 4GB. Storage includes 1x M.2 M Key PCIe Gen2 x1 for NVMe SSD, 1x 8MB SPI flash, 1x eMMC 16/32/64/128GB, and 1x SD card connector.
What video and graphics capabilities does it offer?
Graphics are powered by Mali G57 MC1 with Vulkan, OpenGL ES and OpenCL support. Hardware decoding supports up to 4K at 60fps for H.265, H.264, VP9, VP8, H.263, MPEG 4 and MPEG 2; hardware encoding supports up to 4K at 25fps. Output includes HDMI 2.0 up to 4K60 and MIPI DSI 4 lane up to 1080p60 and MIPI CSI for cameras.
What are the network and wireless capabilities?
The board provides two Gigabit Ethernet ports for wired networking and includes onboard WiFi 6 and Bluetooth 5.4 with an external antenna.
What are the usage considerations regarding the NPU, industrial version and expansion interfaces?
The NPU is available only on the T527 industrial version and offers up to 2 TOPs of AI processing. The board includes a 40 pin GPIO header with I2C, SPI, PWM, I2S and other interfaces for diverse applications.
A
Admin
Welcome to the discussion thread for Radxa Cubie A5E
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here
