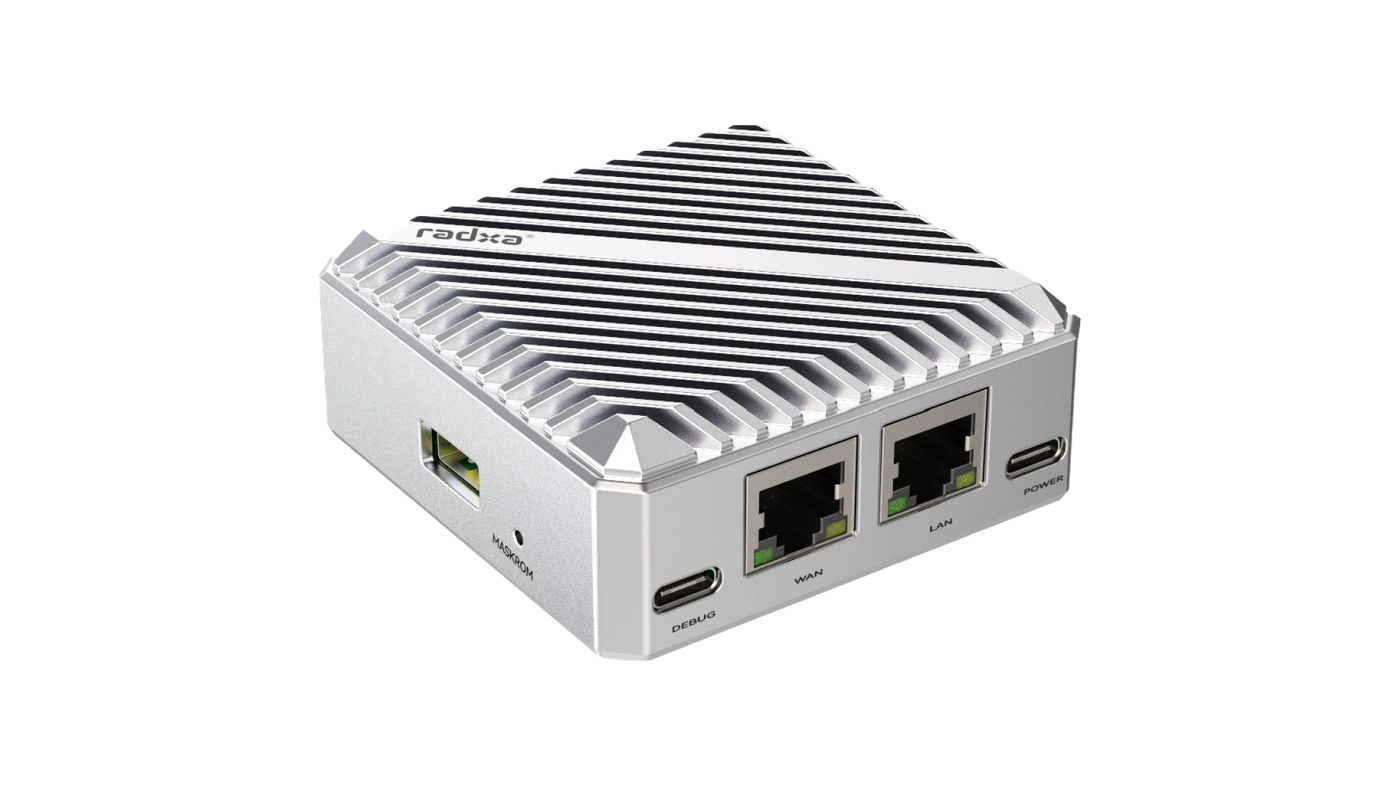

E20C Mini Network Titan is a high-performance, compact network appliance built for advanced routing, firewall, and edge computing tasks. Featuring efficient thermal design and reliable hardware, itās ideal for home labs, small offices, and industrial network environments requiring stable, always-on connectivity in a space-saving form factor.
Ā
Ā
Ā
Ā
Aluminum Alloy Case
Ā
Ā
Experience Full Gigabit Ethernet Bandwidth
Ā
Ā
Widely Applicable in
Home Network Gateways, Smart Home Hubs, and Enterprise Network Gateways
Ā
Ā
Ā
Ā
Ā
Ā
| Specifications - Radxa E20CĀ | |
|---|---|
| SoC | Rockchip RK3528A |
| CPU | Quad-core Arm CortexĀ®-A53 @ 2.0GHz |
| GPU | ArmĀ® Maliā¢ G450 - OpenGLĀ® ES1.1, ES2.0 - OpenVGĀ® 1.1 |
| RAM | LPDDR4 (1GB / 2GB / 4GB) |
| Multimedia | H.264, H.265, AVS2 decoder @ 4Kx2K@60fps H.264, H.265 encoder @ 1920x1080@60fps |
| Storage | 1x Onboard eMMC 1x microSD Card Slot |
| USB | 1x USB 2.0 Type-A HOST Port 1x USB Type-C for Debug and Data |
| Ethernet | 2x Gigabit Ethernet Ports |
| Buttons | 1x Maskrom Button 1x User Button |
| Power | 1x 5V Only USB Type-C Port |
| Operating System | Radxa OS / OpenWrt / iStoreOS |
| Operating Conditions | Temperature: 0 ~ 50Ā°C Throttles above 80Ā°C for reliability Recommend external cooling for sustained performance |
| Dimension | 70 mm x 70 mm |
| Compliance | FCC / CE |
Documentation
| Getting Started Guide - Radxa E20C | Download >> |
Ā
Official Images
| OpenWrt - Radxa E20C | Download >> |
Ā
Product Information
| Radxa E20C - Product Brief | Download >> |
| Radxa E20C - Schematic V1.10 | Download >> |
| Radxa E20C - Components Placement Map (SMD V1.10) | Download >> |
| Radxa E20C - 2D Drawings | Download >> |
Ā
Ā
> Radxa Power PD 30W
5A High Current Super-Fast Charge
