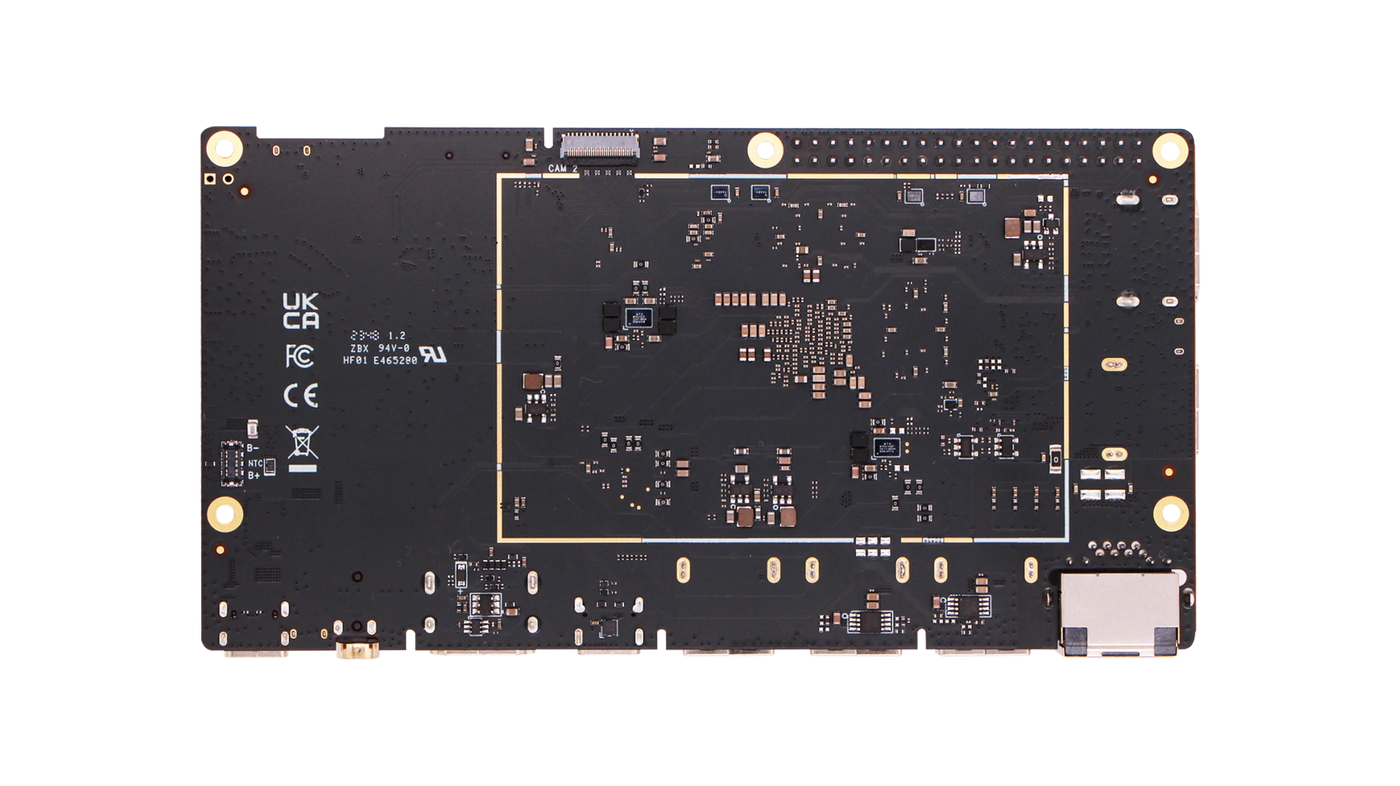

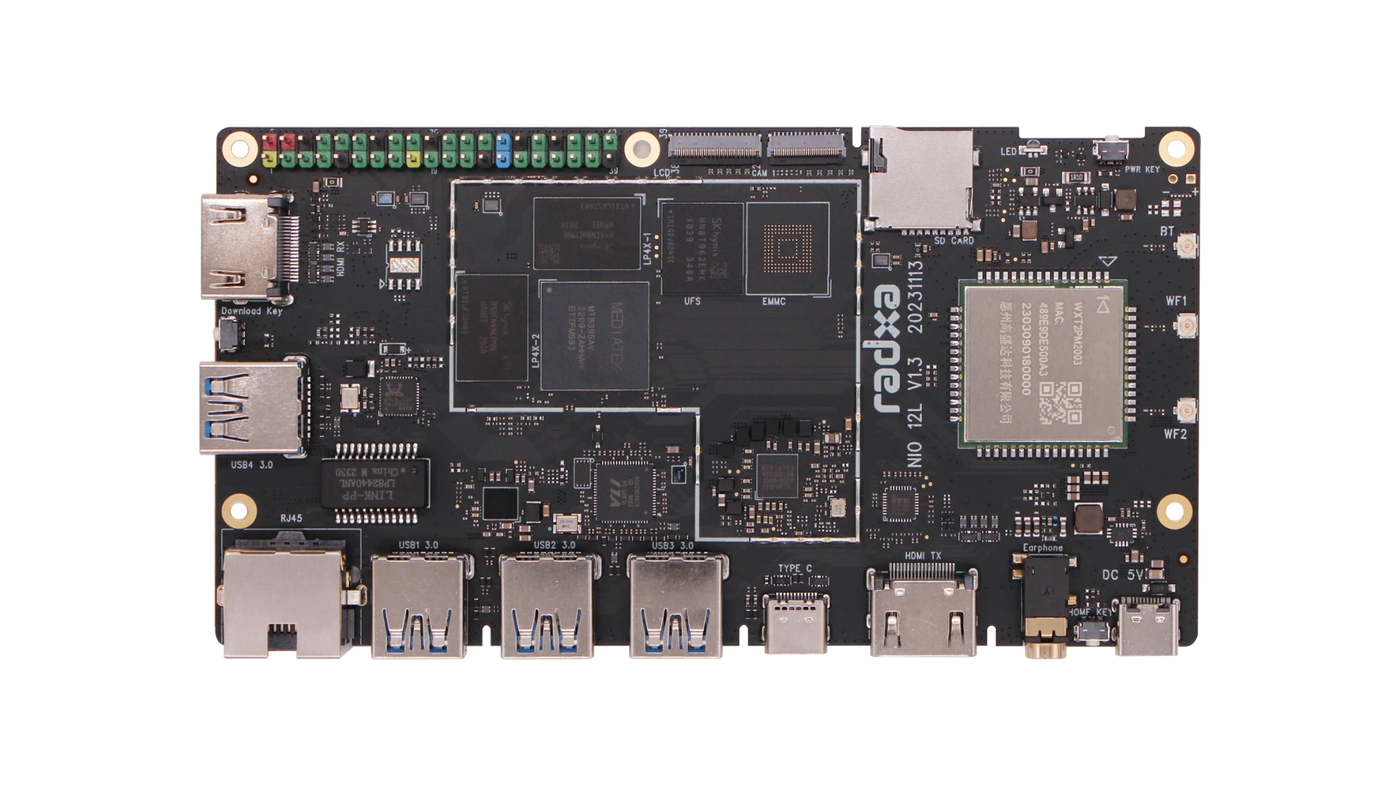

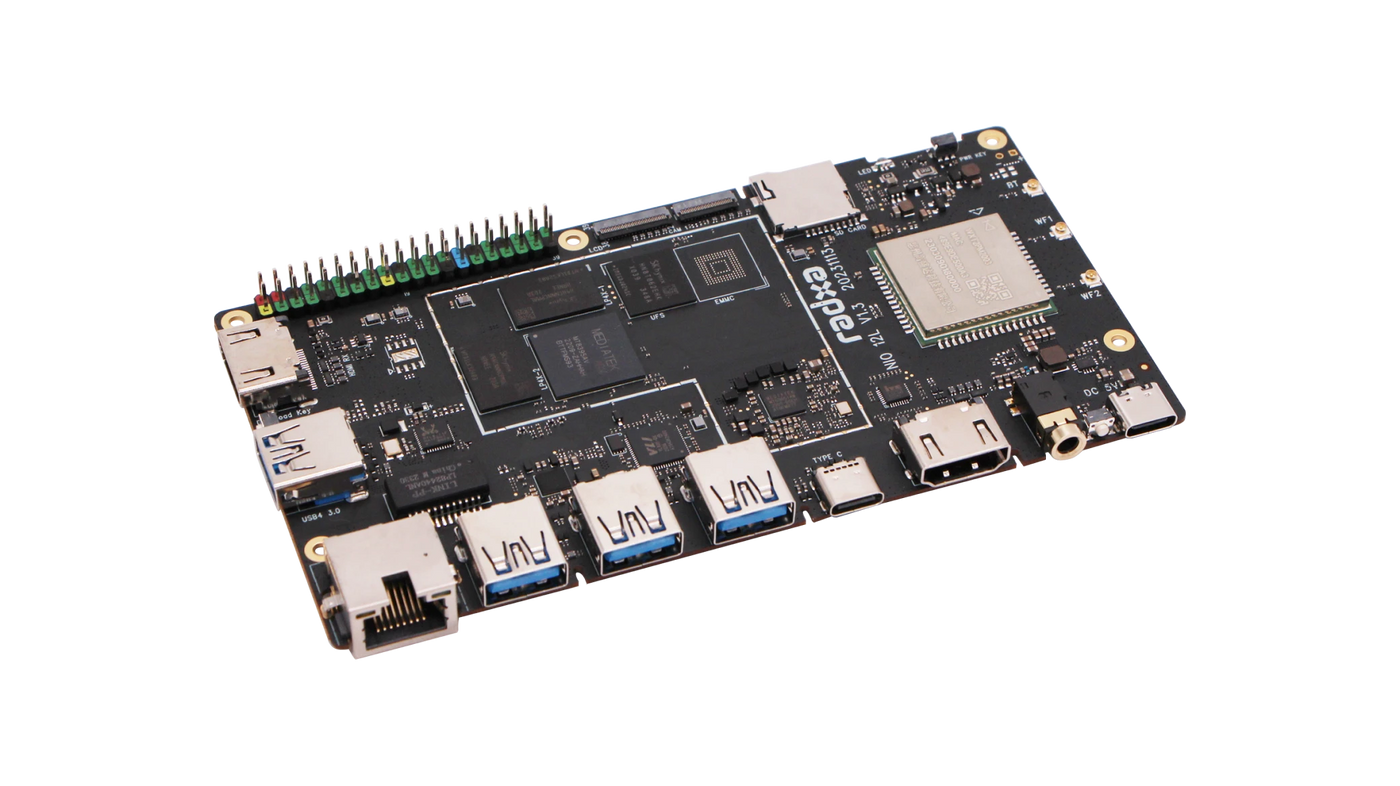

The Radxa NIO 12L is a next-generation single-board computer designed for demanding edge AI, multimedia, and embedded applications. Powered by the MediaTek G1200 (MT8395) SoC, it combines a powerful octa-core CPU (Cortex-A78 + Cortex-A55) with a Mali-G57 MC5 GPU and a dual-core AI processor delivering up to 4 TOPs of performance. Whether you're developing smart devices, AI vision systems, or multimedia applications, the NIO 12L provides the optimal balance of speed, intelligence, and connectivity.
Ā
Ā
MediaTek Genio 1200
High performance,
Low Power Consumption
Quad-core Arm Cortex-A78 and Quad-core Arm Cortex-A55 Processor
Ā
Ā
- OpenGLĀ® ES1.1, ES2.0, and ES3.2
- OpenCLĀ® 1.0, 1.1, 1.2, 2.0, 2.1 and 2.2
- VulkanĀ® 1.1 and 1.2
Ā
Ā
Bridging AI, Computer Vision, and High-Performance Neural Network Computing
Ā
Ā
Optimized for Efficient Audio/Voice Codec Processing and Pre-/Post-Processing
Ā
Ā
Catering to Diverse User Requirements
Ā
Ā
Gigabit Ethernet Port and WiFi 6 & BT 5.2 with three antenna connectors
Ā
Ā
Big Storage Capacity, High Bandwidth
Ā
Ā
Gathering USB 3.0 HOST Type-A, USB 3.0 OTG / HOST Type-C, DP (USB Type-C), HDMI 2.0 TX, HDMI 2.0 RX,Ā
MIPI DSI, MIPI CSI and Headphone Jack for function expansion.
Ā
Ā
Dual display outputs are available via any two of the following options:
HDMI up to 4Kp60, DP (Type C) up to 4Kp60, and MIPI DSI up to 2Kp60.
Ā
Ā
Supporting Yocto, Android, and Ubuntu operating systems for
enhanced security, stability, and efficiency.
Ā
Ā
Up to 10 Years of Security Updates and Support
Ā
Ā
Ā
Ā
Ā
Ā
| Specifications - NIO 12L | |
|---|---|
| Ā SoCĀ | MTK G1200 (MT8395) |
| CPU | Quad-core Cortex-A78@2.2ā2.4GHz + Quad-core Cortex-A55@2.0GHz (Arm DynamIQ) |
| GPU | Arm Mali-G57 MC5 ā OpenGL ES1.1āES3.2, OpenCL 1.1ā2.2, Vulkan 1.1ā1.2, 2D acceleration |
| APU | Dual-core AI (Cadence Tensilica VP6 + AIA), up to 4 TOPs |
| DSP | Single-core Cadence HiFi 4 Audio Engine DSP |
| RAM | LPDDR4x up to 4266MT/s ā 4GB, 8GB, 16GB |
| Storage | UFS 2.1 ā 128GB, 256GB, 512GB; microSD slot; eMMC not default |
| Display | HDMI 4Kp60, DP (USB-C) 4Kp60, MIPI DSI 2Kp60 ā dual output supported |
| Video Input | 1x HDMI in (up to 4Kp60), 2x MIPI CSI (4-lane) |
| Image Processing | Single: 48MP@30fps; Dual: 16MP@30fps + 16MP@30fps |
| Multimedia | Decoder: AV1, VP9, HEVC, H.264 up to 4K@90fps; Encoder: HEVC/H.264 4K@60fps |
| Network | 1x Gigabit Ethernet; Wi-Fi 6 & BT 5.2 with triple antenna |
| USB | 4x USB 3.0 Type-A, 1x USB 3.0 Type-C OTG/HOST |
| Audio | 3.5mm headphone jack with mic input |
| Connectivity | RTC connector, RGB LED, 40-pin GPIO (UART, SPI, I2C, PCM/I2S, SPDIF, PWM, ADC, GPIOs, 5V/3.3V power) |
| Buttons | Power, User, Force Upgrade |
| Software | Android, Ubuntu, Yocto |
| Power | 5V via USB-C or GPIO pins; min 10W (idle), 20W (full USB load) |
| Operating Temp | 0 ~ 50Ā°C |
| Dimensions | 140 mm x 75 mm |
Ā
Ā
Product Information
| Radxa NIO 12L - Product Brief | Download >> |
| Radxa NIO 12L - Schematic V1.3 | Download >> |
| Radxa NIO 12L - Components Placement Map (SMD V1.3) | Download >> |
| Radxa NIO 12L - 2D Drawings | Download >> |
| Radxa NIO 12L - 3D Drawings | Download >> |
Ā
Official Images
| Radxa NIO 12L - Yocto OS | Download >> |
| Radxa NIO 12L - Android | Download >> |
Ā
Documentation
| Radxa NIO 12L - Getting Started Guide | Download >> |
| Radxa NIO 12L - Install Android OS | Download >> |
