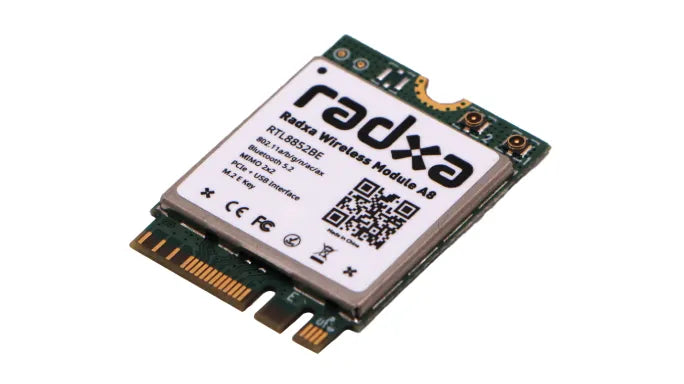

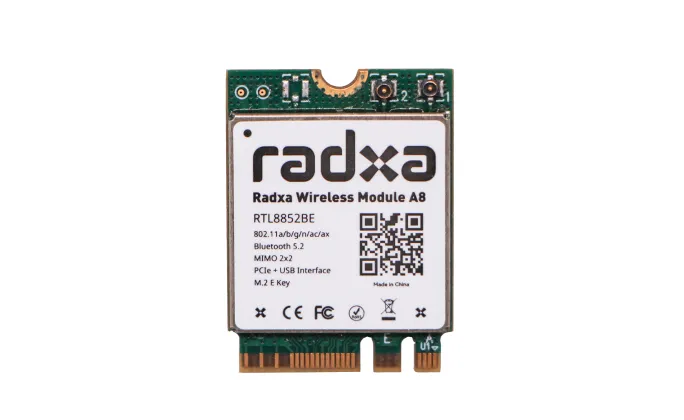

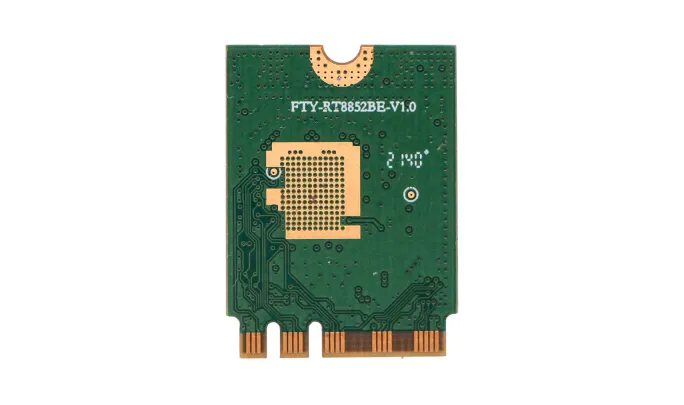

Radxa Wireless Module A8

SKU: RDXA1266

ā‚¹ 1,349.99

Out of stock

šŸ“¦ Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa Wireless Module A8ā‚¹ 1,349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Wireless Module A8

WiFi 6 + BT 5.2 Dual Mode

Ā

Ā

Realtek RTL8852BE

High-speed, Wider Bandwidth, More Frequency Bands

Ā

Feature

> Network card chip: RTL8852BE

> Interface type: M.2 (NGFF)

> Protocol frequency band: IEEE 802.11a/b/g/n/ac/ax

> Mbps rate: 2.4G-574M / 5G-1200M

> Transmission channel: support 2T2R dual channel transmission

> Host Interface: WiFi-PCIe BT-USB

Ā

Ā

MU-MIMO+2T2R

High-Speed and Stable Transmission, Better Network Experience

Ā

Ā

BT5.2 Faster and Longer-Range

Ā

Long Range

3.5 times the transmission range

Wider transmission range

Farther away

Lower latency

Ā

Faster Rates

Ā

2x transfer speed

Adapt to more application scenario

Ā

Ā

Compatible with Radxa SBCs

Ā

Ā

Version Upgrade

Ā

Ā

Tech Specs

Radxa Wireless Module A8 Specifications
Chipset Realtek RTL8852BE
Wireless Standards IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequencies 2.4GHz and 5GHz
Channels 2T2R
Security WPA3, WPA2, WPA, WEP
Bluetooth Version Bluetooth 5.2
Bluetooth Profiles BLE, EDR, LE, A2DP, AVRCP, HFP, HSP
Bluetooth Data Rate Up to 2 Mbps
Wi-Fi Interface PCIe
Bluetooth Interface USB
Form Factor M.2 2230 E Key
Antenna Connector I-PEX MHF4 (20449)
ANT1 (Main) WiFi/Bluetooth TX/RX
ANT2 (AUX) WiFi TX/RX
Power Management Low power mode
Operating Temperature 0 ~ 70Ā°C
Compatible Radxa SBCs ROCK 3A, ROCK 5A, ROCK 5B
Weight 3g
Dimensions 30mm x 20mm x 2mm
Certifications FCC, CE, RoHS, REACH
Package Includes Wireless Module A8 x1, Antenna x2, Screw x2

Ā

Ā

Download

Documentation

Introduction Download

Ā

Product Information

Product Brief Download

Ā

Product Compliance

CE Certification Download
FCC Certification Download
KC Certification Download
IC Certification Download
MIC Certification Download
UKCA Certification Download

Ā

What is the purpose of the A8 wireless module?
The module provides WiFi 6 and Bluetooth 5.2 connectivity for Radxa SBCs, using the RTL8852BE chipset. It uses an M.2 interface for WiFi and a USB connection for Bluetooth, with MU-MIMO and 2T2R high speed transmission.
Which Radxa boards are compatible with this module?
Compatible with Radxa ROCK 3A, ROCK 5A, and ROCK 5B boards.
What wireless standards and speeds does it support?
It supports IEEE 802.11a/b/g/n/ac/ax (Wi Fi 6) on 2.4 GHz and 5 GHz, with 2.4 GHz speeds up to 574 Mbps and 5 GHz speeds up to 1200 Mbps, plus Bluetooth 5.2.
What is included in the package?
Package includes the Wireless Module A8, two antennas, and two screws.
What certifications are available and where to find warranty terms?
Certifications listed are FCC, CE, RoHS and REACH. For warranty terms, please check the product page or contact the seller.
