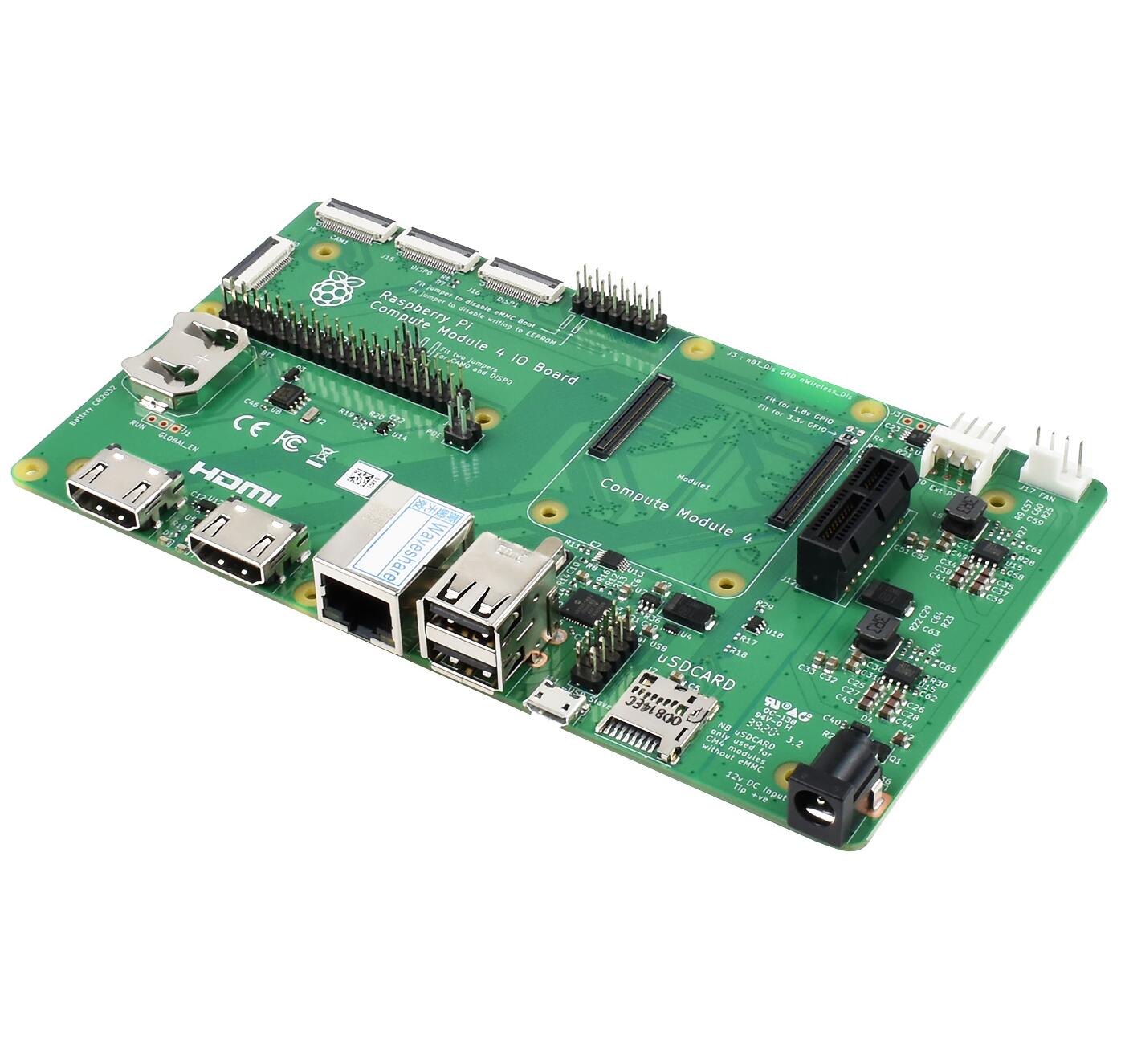

Exposing every interface from Raspberry Pi Compute Module 4, the Compute Module 4 IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet.
The Compute Module 4 IO Board is a development board for those who wish to make use of the Raspberry Pi in a more flexible form factor, intended for industrial applications.
This item is just the IO board and does not contain a matching Compute Module (you can pick one up here). While the Compute Module contains the guts of a Raspberry Pi 4 (1.2GHz, quad-core Broadcom BCM2837 processor), it does not have any easy-to-use ports for development. That's where this IO Board comes in!
Specifications
External power connector (+12V, +5V)
2 x full-size HDMI 2.0 connectors
2 x USB 2.0 connectors, with header for two additional connectors
Gigabit Ethernet RJ45 can support POE
Micro USB socket for updating Compute Module 4
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
PCIe Gen 2 x1 socket
Standard fan connector
2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
Standard Raspberry Pi HAT connectors
Real-time clock with battery socket and ability to wake Compute Module 4
Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing
