RM520N-GL 5G Module for Jetson Nano

SKU: SBC2178

Regular price ₹ 26,999.99
Sale price ₹ 26,999.99 Regular price ₹ 34,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.



5G/4G/3G MODULE FOR JETSON NANO with RM520N-GL 5G Module

Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

This 5G/4G/3G Jetson Nano communication module provides options for SIMCom 5G module SIM8202G-M2 and Quectel 5G module RM520N-GL, supports 5G NSA and SA networking.

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.



Features

  • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
  • Options for SIM8202G-M2 / RM520N-GL core module, with multi mode multi band support
  • 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
  • USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
  • SIM card slot, supports 1.8V / 3V SIM card
  • 2x LED indicators, easy to monitor the working status
  • AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
  • Onboard audio jack and audio decoder, allows audio operation like making phone call
  • Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android



Specifications

  SIM8200EA-M2 SIM8202G-M2 RM520N-GL
Frequency band
Sub-6G SA: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2) n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
NSA: n41, n77, n78, n79 (n79 is only available for SIM8202G-M2)
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48
WCDMA B1, B2, B3, B4, B5, B8 B1, B2, B4, B5, B8, B19
GNSS GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G 2.4 Gbps (DL)  /  500 Mbps (UL) SA: 2.4 Gbps (DL)  /  900 Mbps (UL)
NSA: 3.4 Gbps (DL)  /  550 Mbps (UL)
LTE 1 Gbps (DL)  /  200 Mbps (UL) 1.6 Gbps (DL)  /  200 Mbps (UL)
HSPA 42 Mbps (DL)  /  5.76 Mbps (UL)
Hardware info
SIM card 1.8V/3.0V
Power supply 5V 3A
Antenna connector 6x IPEX-4 connector 4x IPEX-4 connector
Module dimensions 52.0×30.0×2.3mm 42.0×30.0×2.3mm 52.0×30.0×2.3mm
Applications
Applicable regions Regions with 5G Sub-6G signal coverage except the Americas Global
Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security





Multi Mode Multi Band, Applicable For Most Of The Countries And Regions

Supports 5G/4G/3G, Supports 5G SA And NSA, Multi Mode Multi Band
Applicable For Regions With 5G Sub-6G Signal Coverage

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.



Multi System Support

Supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use



Multi Host Support

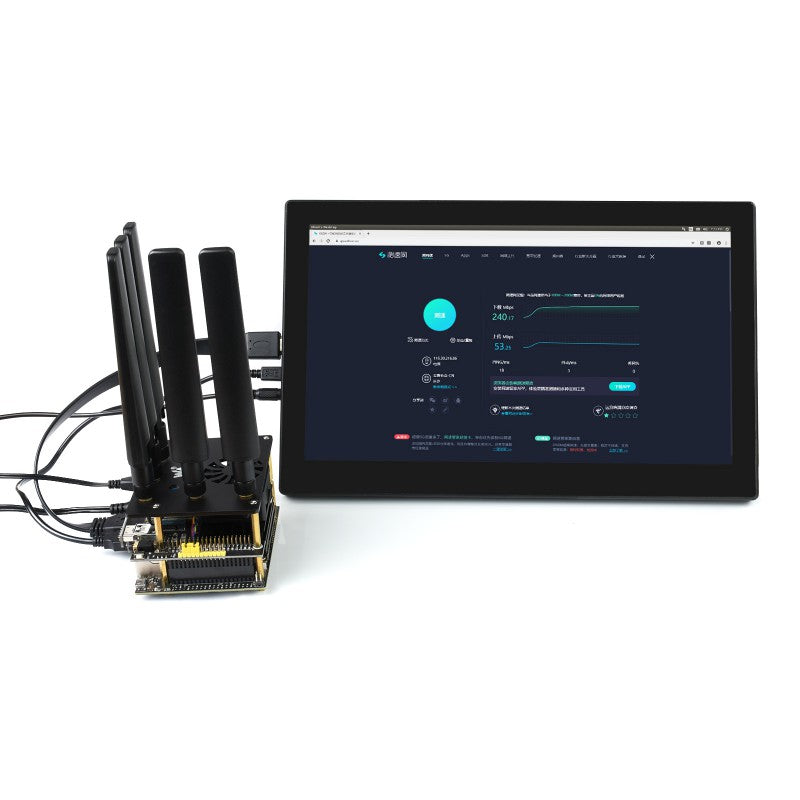

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer

Sub-6G: up to 2.4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET: up to 1 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*


* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.



Cloud Communication

Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0



High-Precision GNSS Support

Supports GPS, Beidou, Glonass, Galileo, QZSS, LBS



Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS





Appearances



What's On Board

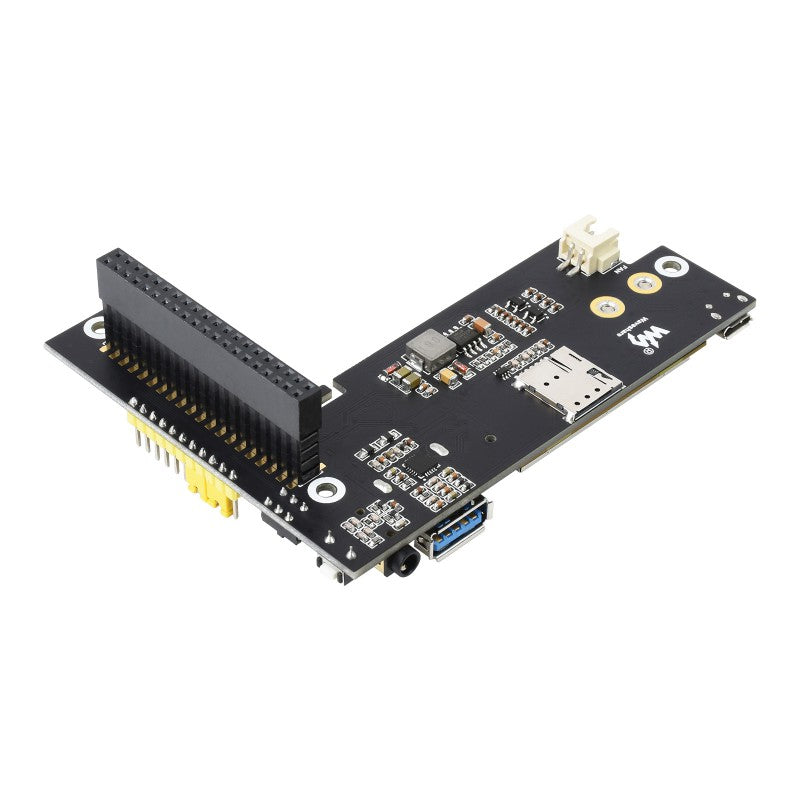

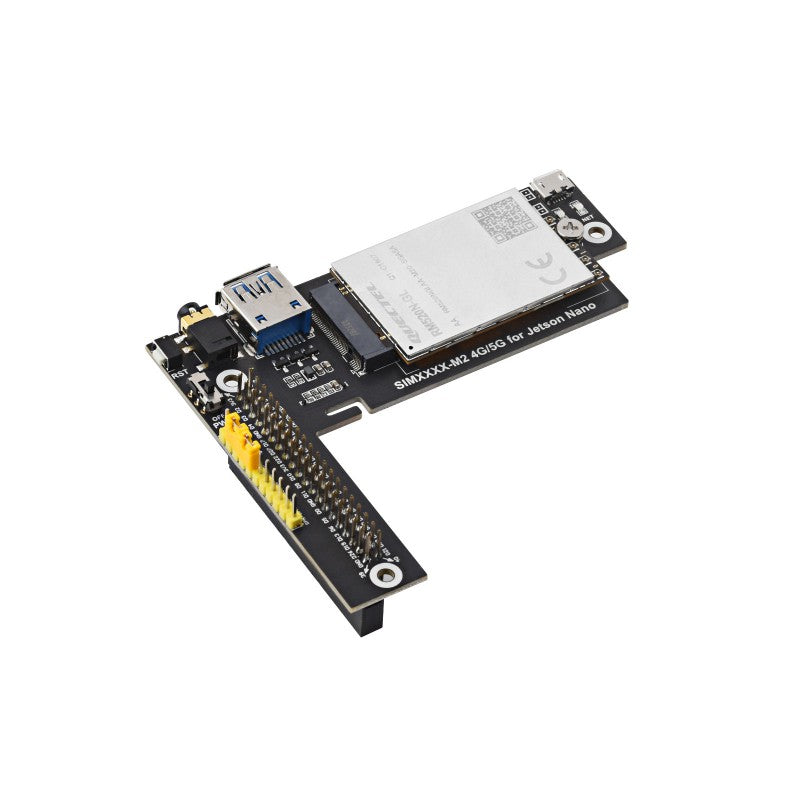

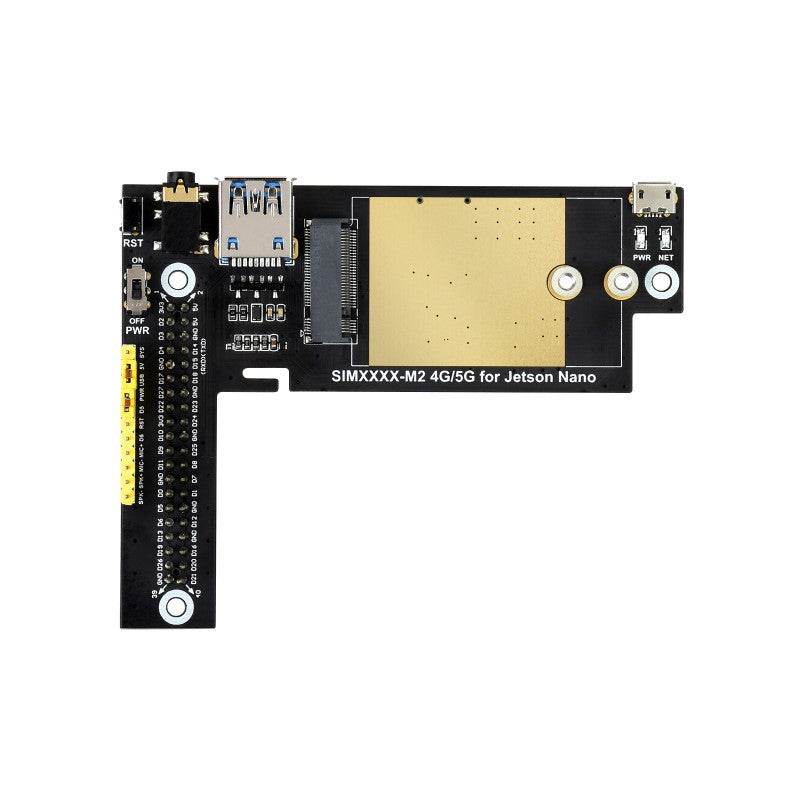

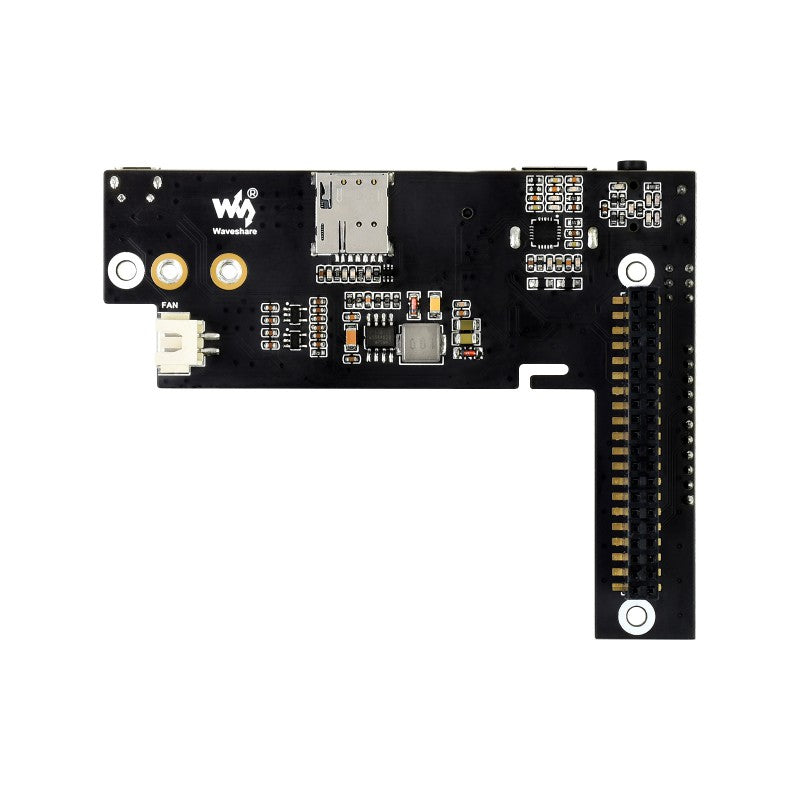

  1. M.2 connector
    compatible with SIM8200EA-M2, SIM8202G-M2 and RM520N-GL modules
  2. USB3.1 port
    for connecting with computer or Jetson Nano
  3. 3.5mm headphone/microphone jack
  4. 40PIN GPIO header
    for connecting with Jetson Nano
  5. Fan header
    for 5V cooling fan
  6. nano SIM card slot
    supports 1.8V / 3V SIM card
  7. 5V 3A power input
  8. Network indicator
  9. Power indicator
  10. Reset
  11. Power switch
  12. Power supply circuit
  13. Audio drive circuit
  14. Power supply selection jumper
    5V - SYS: powered by Jetson Nano 40PIN GPIO
    5V - USB: powered by external 5V 3A power adapter
  15. Module on/off control pin enable jumper
    PWR - D5: enabled by default, Jetson Nano D5 pin can be used to turn on/off the module
  16. Module reset pin enable jumper
    RST - D6: enabled by default, Jetson Nano D6 pin can be used to reset the module
  17. Audio input/output
    MIC+/MIC-: for external microphone
    SPK+/SPK-: for external speaker



Outline Dimensions



Resources

Wiki: www.waveshare.com/wiki/RM520N-GL_5G_for_Jetson_Nano




Package Contents:


  1. 4G/5G module base x1
  2. RM520N-GL x1
  3. 5G External Antenna x4
  4. GPS antenna x1
  5. USB3.0 dual plug cable x1
  6. USB 3.0 Adapter (C) x1
  7. Heatsink x1
  8. Screws pack x1
  9. OPTIONS Power adapter 5V 3A x1
  10. Black acrylic panel x1
