Based on RP2350, adapting 25 × multi-function GPIO pins
| RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom |
| Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz |
| Built-in 520KB of SRAM and 16MB of onboard Flash memory |
| Type-C port, easier to use |
| Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) |

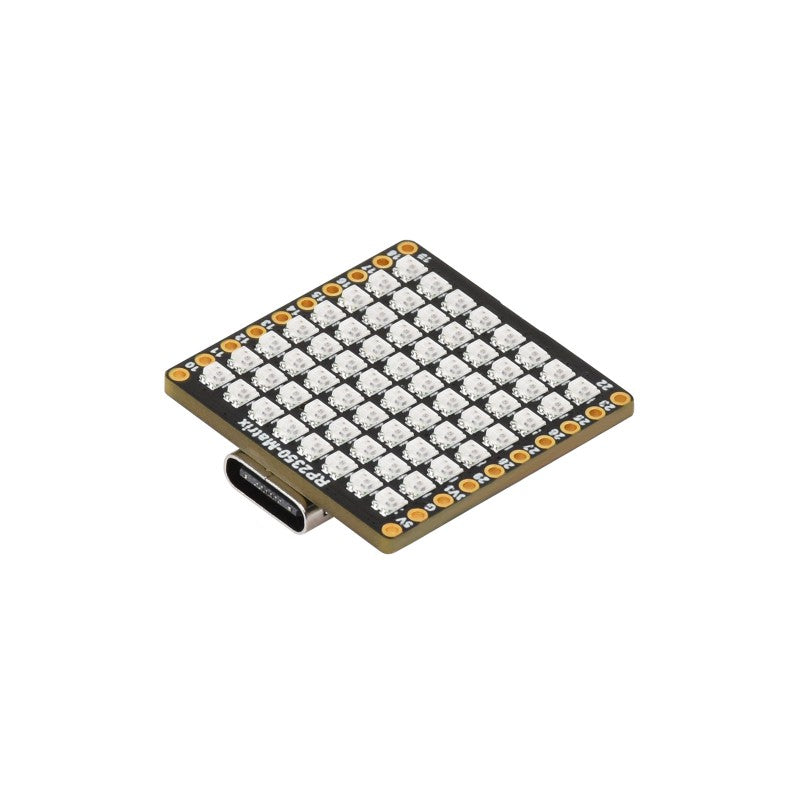

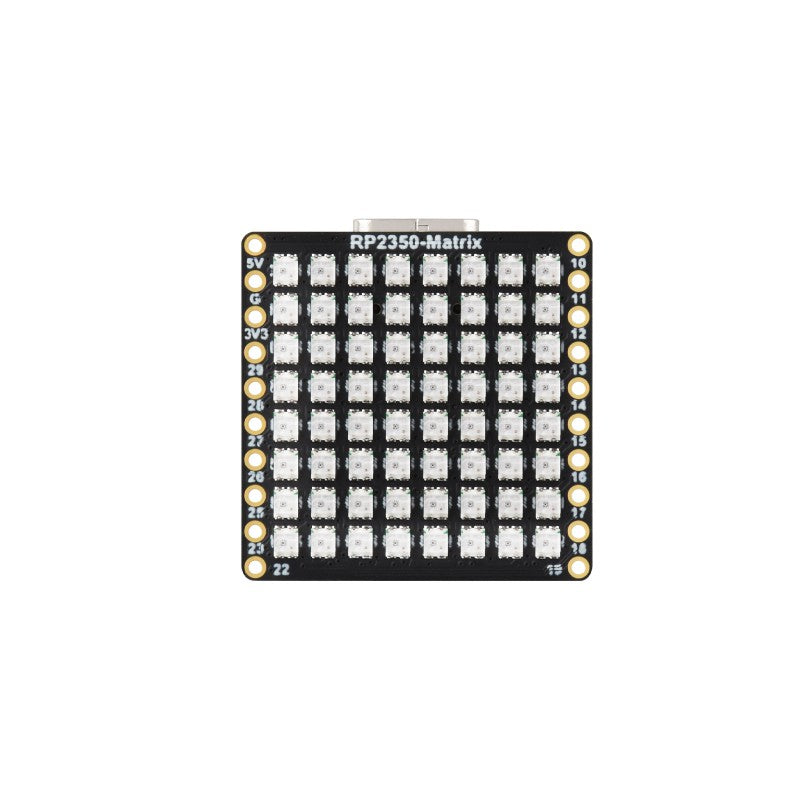

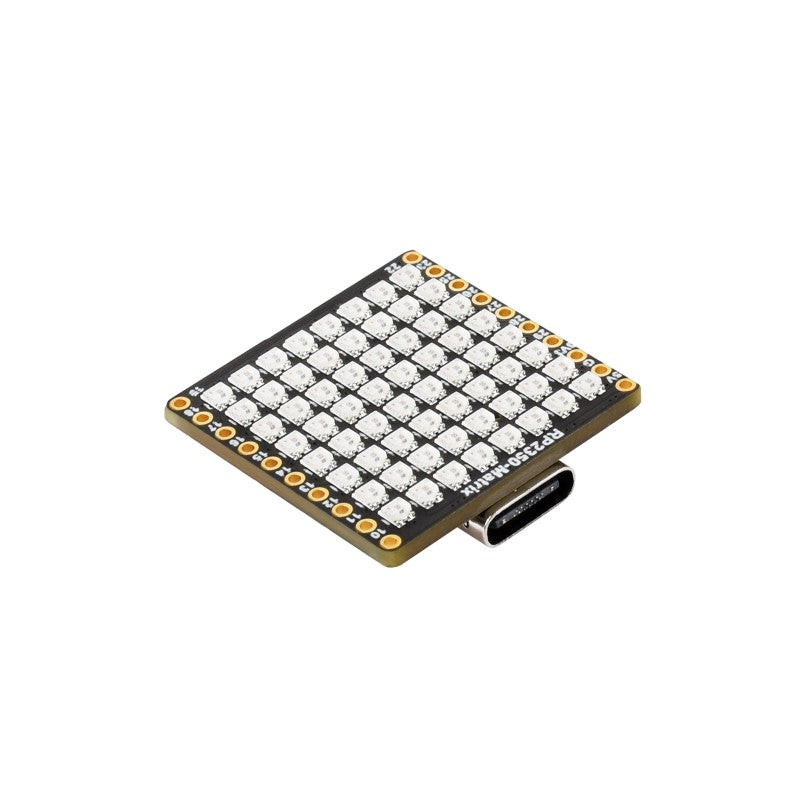

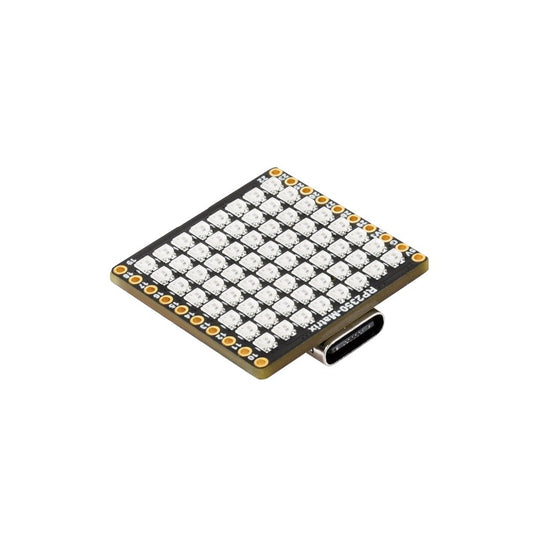

| Onboard 8 × 8 RGB LED matrix for colorful lighting display |
| Adapting Dout pin for extending RGB matrix |
| USB 1.1 with device and host support |
| Low-power sleep and dormant modes |
| Drag-and-drop programming using mass storage over USB |
| 25 × multi-function GPIO pins |
| 1 × HSTX, 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC and 16 × controllable PWM channels |
| Accurate clock and timer on-chip |
| Temperature sensor |
| Accelerated floating-point libraries on-chip |
| 12 × Programmable I/O (PIO) state machines for custom peripheral support |
Onboard QMI8658 6-axis IMU for tilt angle and speed measurement
For colorful lighting display
The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
|

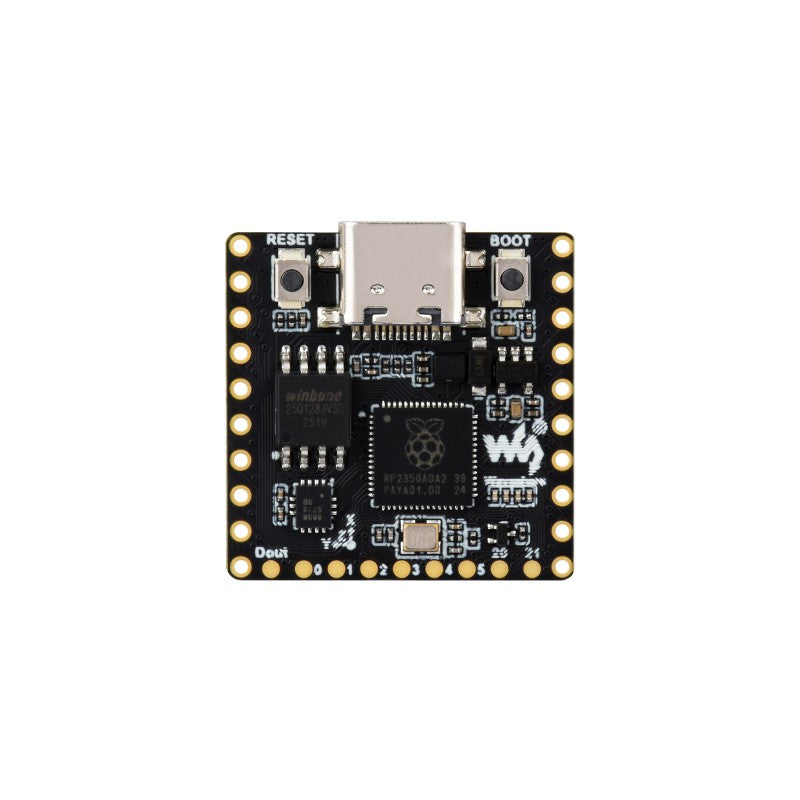

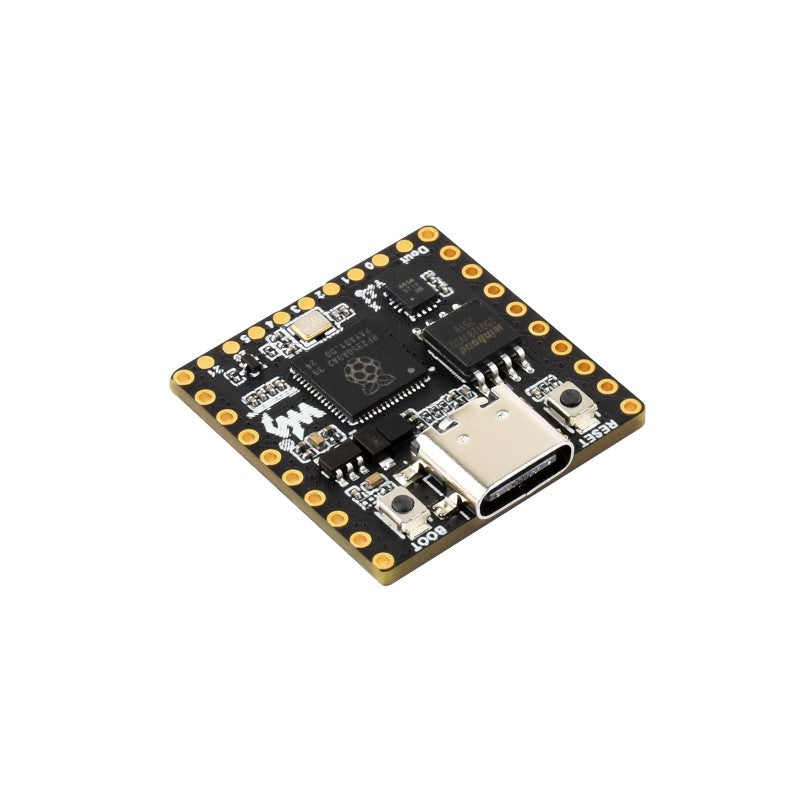

1. RP2350A Dual-core and dual-architecture design, up to 150 MHz operating frequency |
6. USB Type-C connector for programming, USB 1.1 with device and host support |
| 2. 16MB Flash |
7. BOOT button press it when resetting to enter download mode |
|
3. QMI8658 QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope) |
8. ME6217C33M5G Low dropout regulator, 800mA output (Max.) |
|
4. Dout pin for extending RGB matrix |
9. 8 × 8 RGB LED Matrix |
| 5. RESET button |
Wiki: www.waveshare.com/wiki/RP2350-Matrix
Weight: 0.003 kg
RP2350-Matrix x 1
