RPi Motor Driver Board

SKU: ELC4036

Regular price ₹ 2,499.99
Sale price ₹ 2,499.99 Regular price ₹ 2,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Raspberry Pi Expansion Board, DC Motor / Stepper Motor Driver

The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
  • Onboard 5V regulator, provides power to Raspberry Pi
  • Onboard IR receiver, used for remote control robot
  • Multi protection circuit, excellent stability
    • 2A self-recovery fuse, keep your Pi safe
    • Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
    • Reversed polarity protection for motor output
    • Anti-reverse diode for power supply
  • Power input range: 7V~40V
  • Single motor output current: up to 5A
  • Power supply current for Raspberry Pi: up to 2A



What's on Board

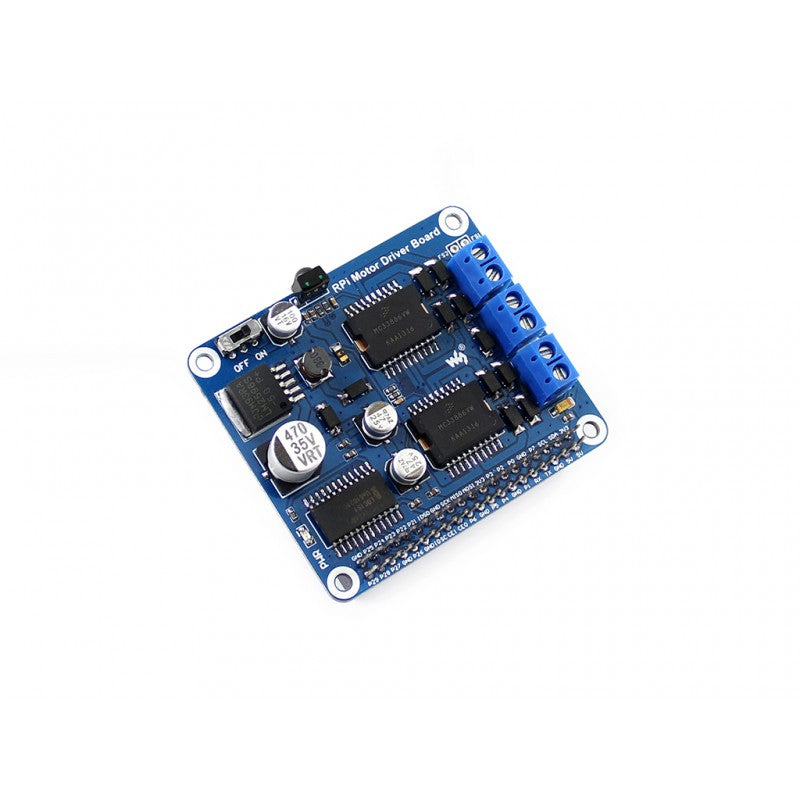

Raspberry Pi Expansion Board on board resource
  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Motor screw terminal: for connecting motors
  3. External power input
  4. 74LVC4245AD: voltage level conversion chip, buffer device
  5. MC33886: motor driver chip
  6. LM2596-5.0: 5V regulator
  7. Power indicator
  8. Raspberry Pi power selection
    • OFF: Raspberry Pi powers the Motor Driver Board
    • ON: Motor Driver Board powers the Raspberry Pi
  9. 2A self-recovery fuse
  10. IR receiver
  11. Schottky diodes: protects the motor driver
  12. Power supply anti-reverse diode

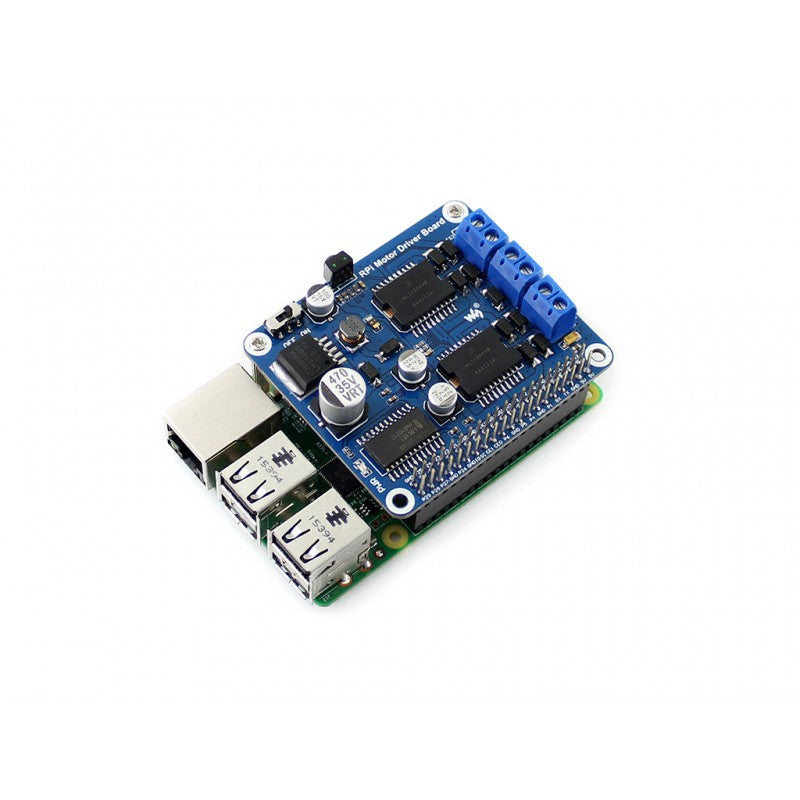

RPi Motor Driver Board connecting with Raspberry Pi


Control the mobile robot remotely

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.



Dimensions

RPi Relay Board board dimensions



Resources

Wiki : www.waveshare.com/wiki/RPi_Motor_Driver_Board



Package Contents:

Weight: 0.037 kg

  1. RPi Motor Driver Board x 1
  2. RPi screws pack (2pcs) x 1
