RPi Relay Board

Raspberry Pi Expansion Board, Power Relay

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.



RPi Relay Board Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
High quality relays, loads up to 5A 250V AC or 5A 30V DC
Photo coupling isolation, prevents interference from high voltage circuits
Onboard LEDs for indicating relay status
Relay control jumper, allows controlling relays via custom pins other than default pins
Comes with development resources, including examples in wiringPi, WebioPi, shell, Python, and bcm2835



What's on the Board

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Relay screw terminal: for connecting target devices
  3. Relays
  4. Photocoupler: PC817
  5. Relay indicator
    • LED on: relay NC is opened, NO is closed
    • LED off: relay NC is closed, NO is opened
  6. Power indicator
  7. Relay control jumper
    • Short the jumper: control the relays by default I/Os used in the example code
    • Open the jumper: control the relays by custom I/Os through jumper wires



Photos

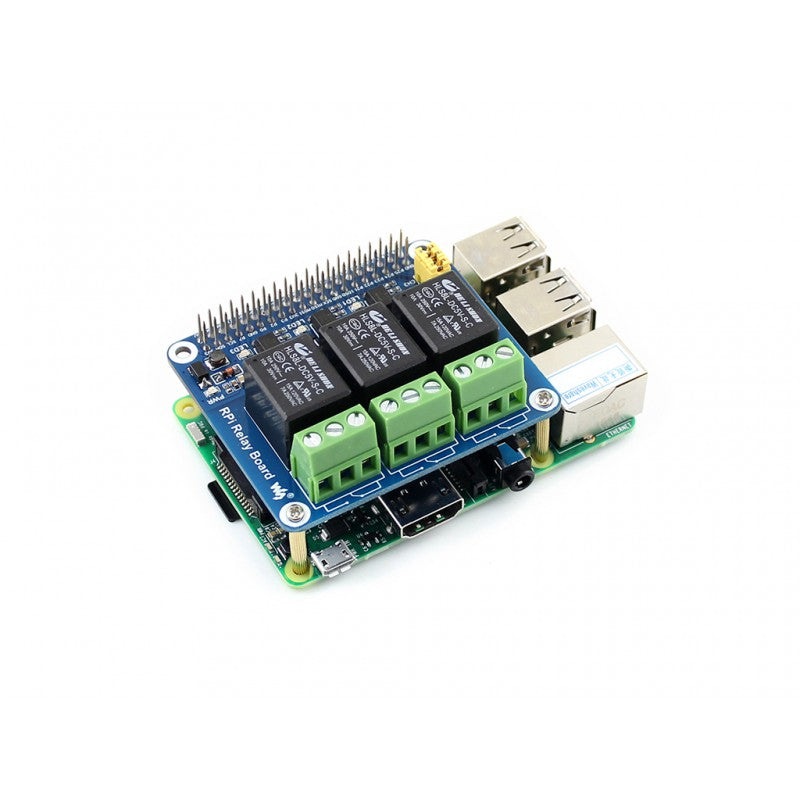

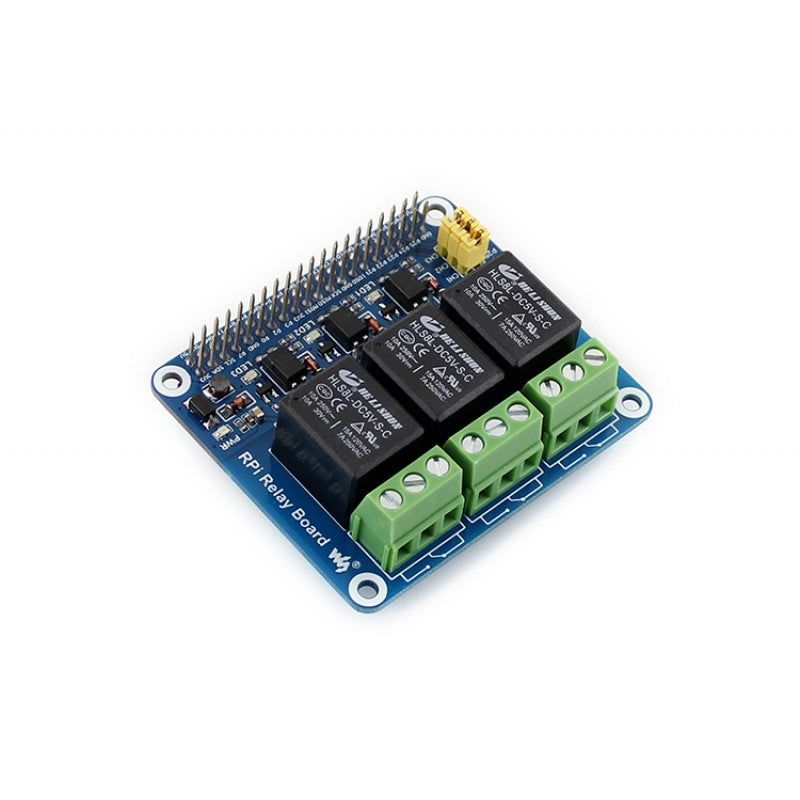

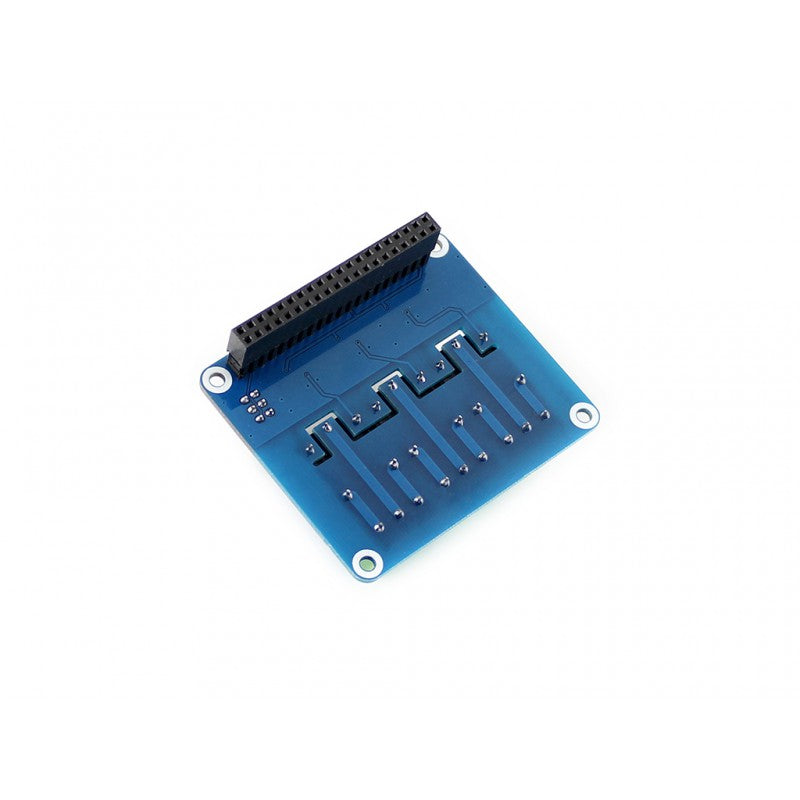

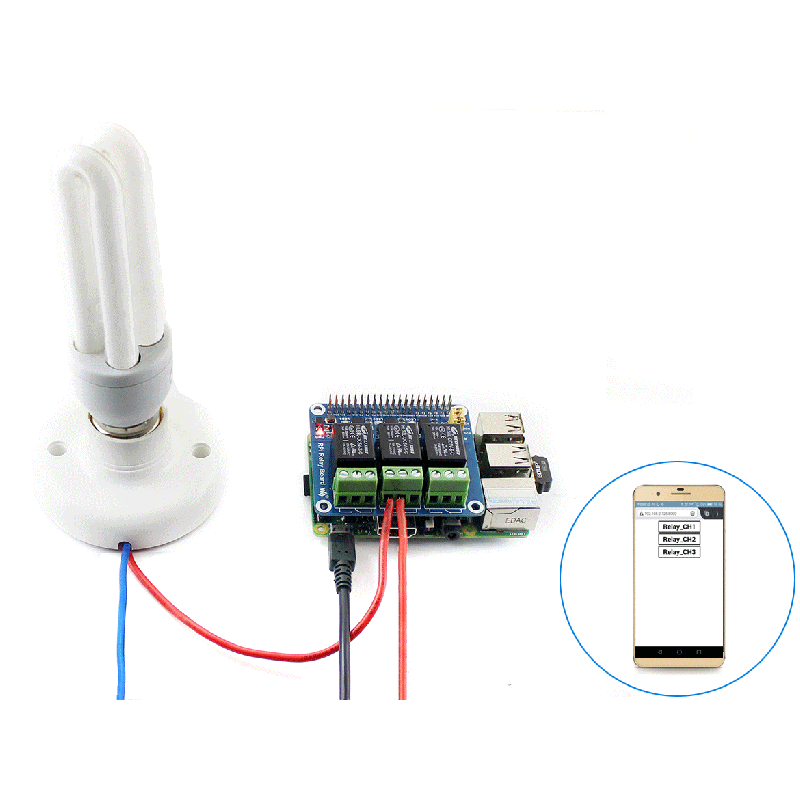

 Raspberry Pi Expansion Board  Raspberry Pi Expansion Board  Raspberry Pi Expansion Board  Raspberry Pi Expansion Board

Note : the Pi in the photos is NOT included.



Dimensions

RPi Relay Board board dimensions



Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board



Package Content

Weight: 0.061 kg

RPi Relay Board x 1
RPi screws pack (2pcs) x 1

How do I connect the board to a Raspberry Pi?
It uses the standard Raspberry Pi 40 PIN GPIO header and supports Raspberry Pi series boards.
Can I control relays with pins other than the default pins?
Yes, the relay control jumper lets you use custom I/O pins instead of the default pins.
How much load can the relays switch and what voltages are supported?
The relays can switch up to 5 A at 250 V AC or 5 A at 30 V DC.
What is included in the package and are there development resources?
The package includes the RPi Relay Board and a screws pack. Development resources and code examples for wiringPi, WebioPi, shell, Python, and bcm2835 are provided.
What is the delivery time and warranty and returns terms?
Delivery times depend on the seller and location. Warranty and returns terms are specified by the seller on the product page.
A
Admin
Welcome to the discussion thread for RPi Relay Board
Feel free to ask questions, share tips or report issues.
