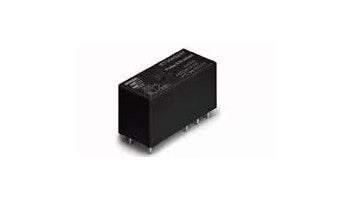

RTB14012F Power/Signal Relay 1 Form C SPDT Momentary
The RTB14012F is a general purpose power relay manufactured by TE CONNECTIVITY / POTTER-BRUMFIELD, designed for reliable switching applications in electronic systems. This relay features a monostable magnetic system with a single pole double throw (SPDT) configuration, suitable for DC operation with a contact rating of 12 A.
Product Features
Configuration: 1 Form C SPDT (Single Pole Double Throw), Monostable
Contact Rating: 12 A
Coil Voltage: 12 VDC
Contact Limiting Making/Breaking Current: 25 A / 12 A
Initial Dielectric Between Contacts: 1000 Vrms
Switching Voltage (Max): 400 VAC
Coil Resistance: 360 Ω
Insulation: Between contacts and coil (5000 Vrms), initial dielectric
Body Material: Flux resistant, capable of automatic soldering and washing
Mounting: Board mount with solder pins
Operating Temperature Range: -40°C to 85°C
Environmental Compliance: RoHS compliant
Solder Process Capability: Wave solder capable up to 260°C
Technical Specifications
Parameter
Value
Contact Material
AgNi90/10
Contact Current Rating
12 A
Coil Power Rating
0.4 W
Coil Resistance
360 Ω
Insulation Dielectric
Between contacts: 1000 Vrms; Contacts & coil: 5000 Vrms
Operating Temperature
-40°C to 85°C
Package Type
BLK (Black)
UOM
EA (Each)
ECCN
EAR99
Part Number
RTB14012F
Manufacturer
TE CONNECTIVITY / POTTER-BRUMFIELD
Country of Origin
CN
Datasheet & Additional Resources
For detailed specifications and application guidelines, refer to the datasheet.
Product compliance and certification details are available in the datasheet and product documentation.
Note: Datasheet was not processed, please search the internet for the part number RTB14012F for more details.
