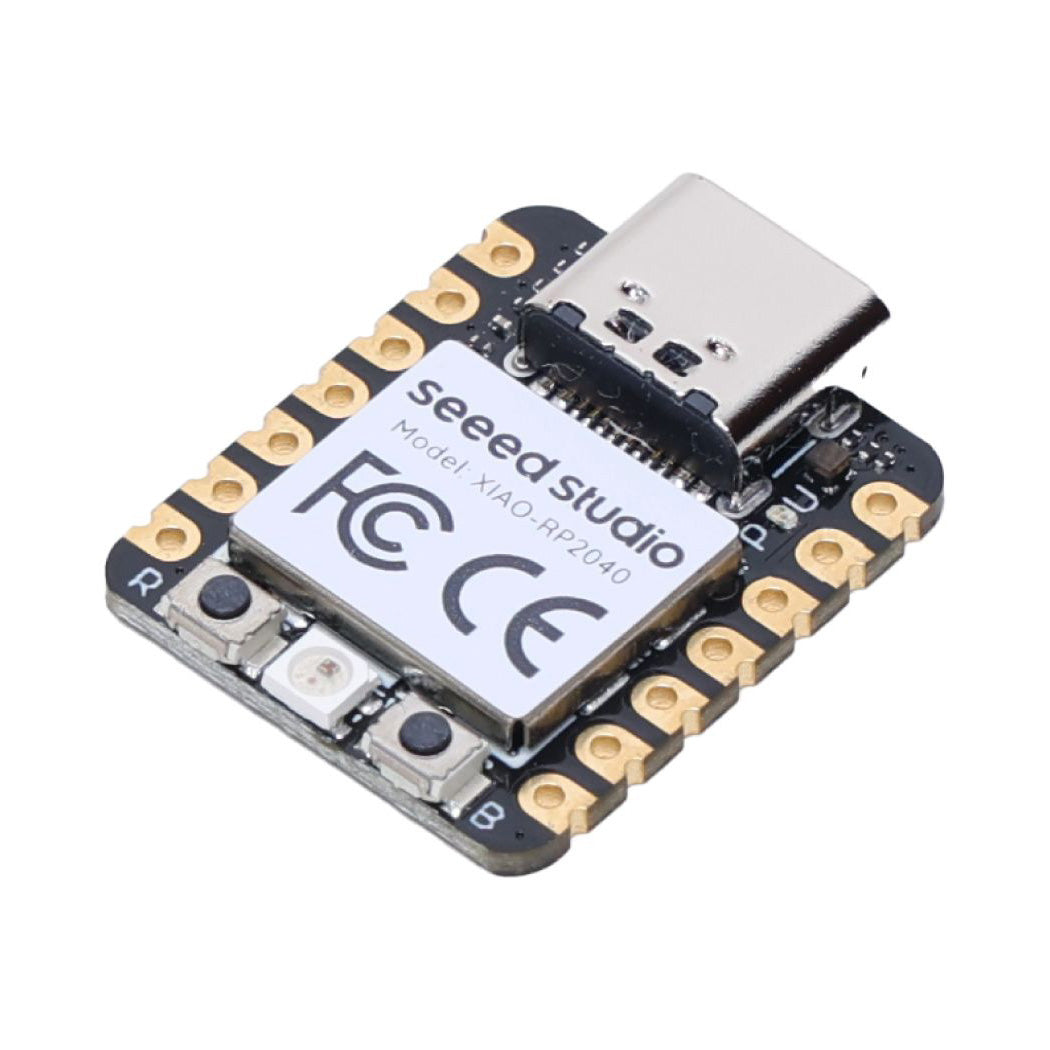

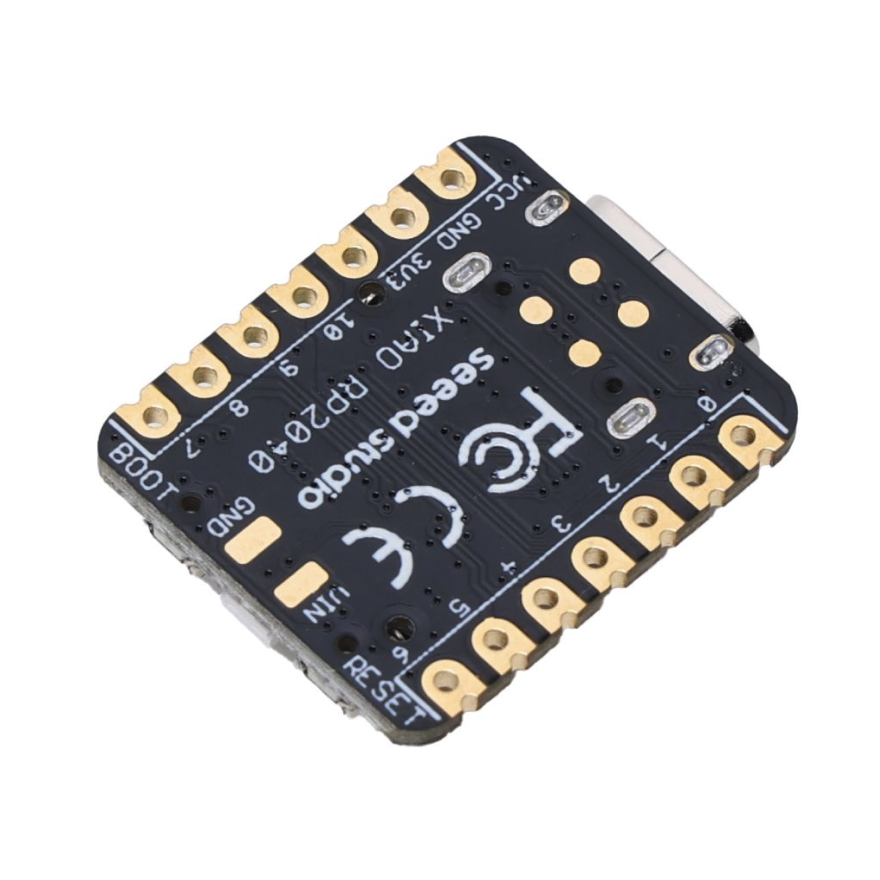

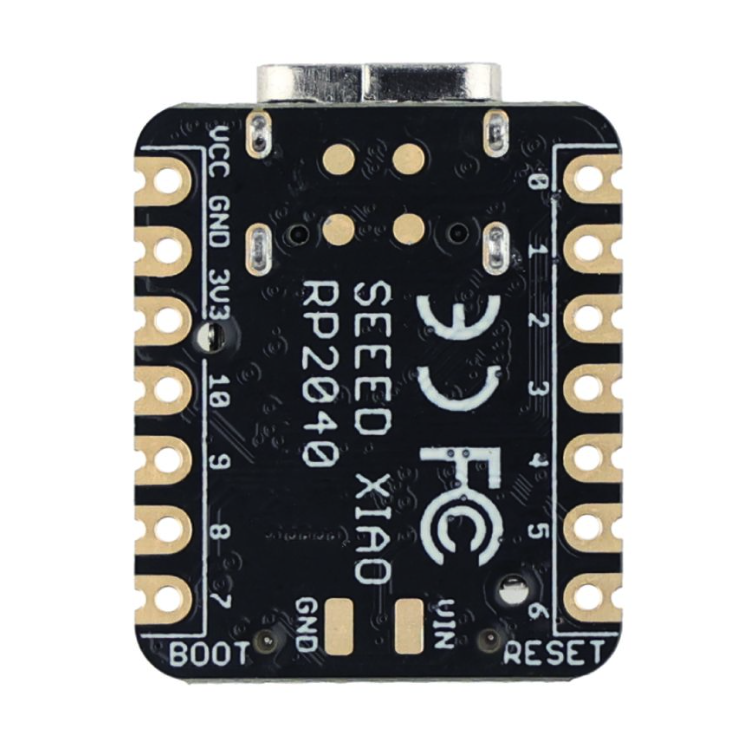

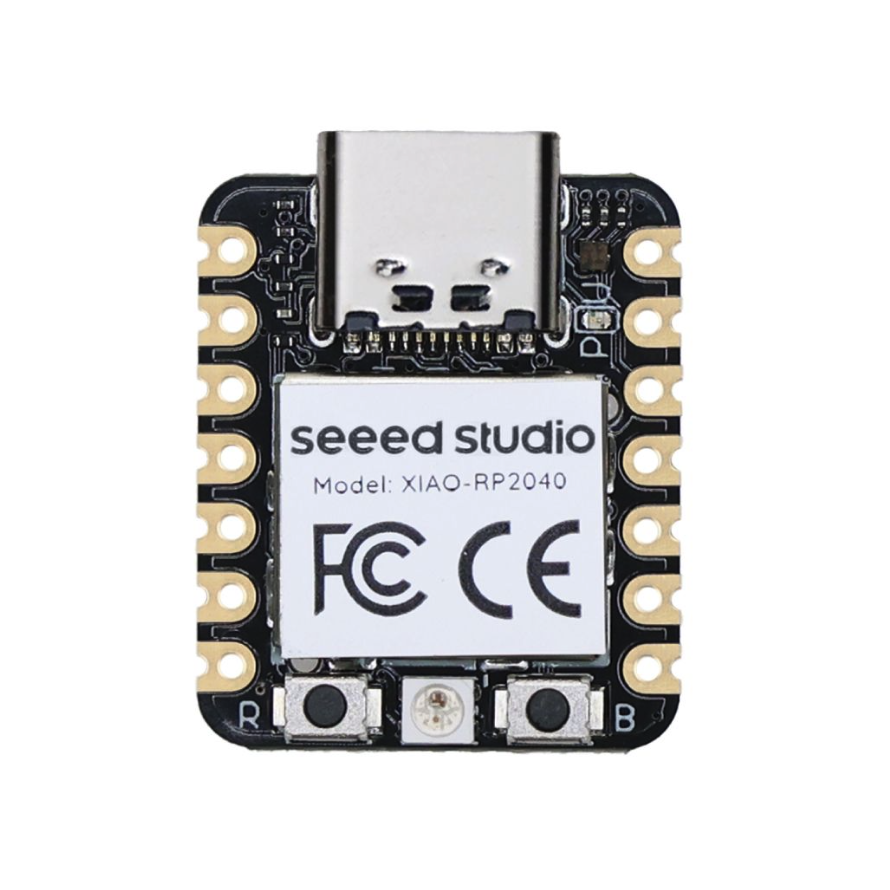

Name: Seeed Studio XIAO RP2040
Brand: ThinkRobotics.in
SKU: SBC1063
Price: 469.99 INR
Availability: InStock

{"id":9114430472509,"title":"Seeed Studio XIAO RP2040","handle":"seeed-studio-xiao-rp2040","description":"\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name \"XIAO\" here represents its half feature \"Tiny\", and the other half will be \"Puissant\".\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO RP2040 is compatible with the\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eRaspberry Pi RP2040 ecosystem\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eas they share the same RP2040 chip. It supports multiple languages including C \/ MicroPython \/ CircuitPython. This will be a great tool for you to get started with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eMicroPython\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eFeatures\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eHigh Performance:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ePowered by\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/res\/rp2040_datasheet.pdf\" rel=\"noopener\" target=\"_blank\"\u003eRaspberry Pi 2040\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003echip, dual-core operating up to 133 MHz, equipped 264KB of SRAM, and 2MB of onboard flash memory\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eUltra-small Design:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003e21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eMultiple Development Interfaces:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003e2x buttons, 11x digital \/ 4x analog pins, 1x I2C interface, 1x UART port, 1x SPI port, and 1x SWD Bonding pad interface\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eMultiple Develop Platform:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003eSupport Arduino \/ Micropython \/ CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003ePerfect for Production:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eBreadboard-friendly \u0026amp; SMD design, no components on the back\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003eRP2040 is the debut microcontroller from Raspberry Pi. It brings signature values of\u003c\/span\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e \u003c\/span\u003e\u003cstrong style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003ehigh performance, low cost, and ease of use\u003c\/strong\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e \u003c\/span\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003eto the microcontroller space.\u003c\/span\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO RP2040 is based on the RP2040 chip and wrapped in a compact size with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003emultiple interfaces\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003elike other products from the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/xiao-series-page\" rel=\"noopener\" target=\"_blank\"\u003eSeeed Studio XIAO series\u003c\/a\u003e, and it's compatible with the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/Seeeduino-XIAO-Expansion-board-p-4746.html\" rel=\"noopener\" target=\"_blank\"\u003eSeeed Studio XIAO expansion board\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eIn addition to the powerful CPU, the Seeed Studio XIAO RP2040 has 264K SRAM and 2MB of Flash on board. Some PINs have various functions. Moreover, Seeed Studio XIAO RP2040 supports the USB Type-C interface which can supply power and download code. 1 Reset button, 1 BOOT button, 1 user-programmable RGB LED, 1 power LED, 2 status indicators, and 1 user LED are on board, allowing developers to debug their code very easily.\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThe robust performance makes it\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eperfect for machine learning applications\u003c\/strong\u003e, and the tiny size allows it to be used in wearable devices, not just for prototypes but the mass production.\u003c\/p\u003e\n\u003cblockquote\u003e\n\u003cp\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/Seeed-Studio-XIAO-Series-SOM-Datasheet.pdf\" rel=\"noopener\" style=\"color: #c20000;\" target=\"_blank\"\u003eXIAO SoM User Manual\u003c\/a\u003e open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check \u003ca href=\"https:\/\/www.seeedstudio.com\/blog\/2023\/02\/23\/xiao-som-user-manual-the-ultimate-guide-to-streamline-product-design-providing-seamless-experience-from-module-selection-to-mass-production\/\" rel=\"noopener\" style=\"color: #c20000;\" target=\"_blank\"\u003ehere\u003c\/a\u003e to see more info.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/blockquote\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eSpecification\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"276\"\u003e \u003ccol width=\"351\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eParameter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eDescription\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eCPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eDual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eStorage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e264KB of SRAM, and 2MB of onboard Flash memory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eI\/O PINs\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e11 digital pins, 4 analog pins, 11 PWM Pins\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eInterface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003ePower supply \u0026amp; Downloading interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eUSB Type-C interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eLEDs:\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eButton\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 RESET button, 1 BOOT button\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003ePower Pads\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eFor the battery power supply\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eSoftware compatibility\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eSupport Micropython \/ Arduino \/ CircuitPython\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eCover\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eProjection cover for protecting the circuit\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eDimensions\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e21x17.5 mm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cdiv class=\"tips\"\u003e\n\u003cdiv class=\"right-desc\"\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAttention: \u003c\/strong\u003eAll the I\/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.\u003c\/p\u003e\n\u003cdiv\u003e \u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eApplication\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli dir=\"ltr\"\u003eWearable devices\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003eRapid prototyping (directly attached to the expanded PCB as a minimal system)\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003ePerfect for all the projects that need mini Arduino\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003eUSB development (USB to multi-channel TTL\/USB host mode, etc.)\u003c\/li\u003e\n\u003cli\u003eDIY keyboard\u003cbr\u003e\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eHardware Pinout\u003c\/h2\u003e\n\u003cp\u003e\u003cimg class=\"lazy\" width=\"1200\" height=\"1200\" data-original=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\" data-src=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\" src=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\"\u003e\u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003ePart List\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 50%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd data-style=\"width: 50%;\"\u003eSeeed Studio XIAO RP2040 Microcontroller\u003c\/td\u003e\n\u003ctd data-style=\"width: 50%;\"\u003ex1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003eDocumentations\u003c\/h2\u003e\n\u003cdiv class=\"product documents-tab\"\u003e\n\u003cdiv class=\"value documents-info\"\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/res\/rp2040_datasheet.pdf\" rel=\"noopener\" target=\"_blank\"\u003eRP2040 datasheet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.raspberrypi.com\/documentation\/microcontrollers\/rp2040.html\" rel=\"noopener\" target=\"_blank\"\u003eRaspberry Pi RP2040 Documentation\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/tutoduino.fr\/en\/tutorials\/programing-in-rust-the-xiao-rp2040-board\/\" rel=\"noopener\" target=\"_blank\"\u003ePrograming in Rust the XIAO RP2040 board tutorial\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/XIAO-Reference-Design.pdf\" rel=\"noopener\" target=\"_blank\"\u003eXIAO Reference Design\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/3D-Printing-Case-Studies.pdf\" rel=\"noopener\" target=\"_blank\"\u003e3D Printing \"Case\" Studies\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-02-27T02:01:14+05:30","created_at":"2024-02-27T01:57:47+05:30","vendor":"ThinkRobotics.in","type":"","tags":["102010328","Arduino","CircuitPython","Cortex","dev","dev kit","Development","Kit","M0+","MCP2515","RP2040","SAMD21","SAMD21G18","SEEED","SEEEDSTD","Seeeduino","XIAO"],"price":46999,"price_min":46999,"price_max":46999,"available":true,"price_varies":false,"compare_at_price":69999,"compare_at_price_min":69999,"compare_at_price_max":69999,"compare_at_price_varies":false,"variants":[{"id":47933480173885,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SBC1063","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Seeed Studio XIAO RP2040","public_title":null,"options":["Default Title"],"price":46999,"weight":50,"compare_at_price":69999,"inventory_management":"shopify","barcode":"47933480173885","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-1.jpg?v=1708979470","\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-2.png?v=1708979470","\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-3.png?v=1708979470","\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-4.png?v=1708979470","\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-5.png?v=1708979470"],"featured_image":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-1.jpg?v=1708979470","options":["Title"],"media":[{"alt":null,"id":36575480512829,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-1.jpg?v=1708979470"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-1.jpg?v=1708979470","width":1050},{"alt":null,"id":36575480381757,"position":2,"preview_image":{"aspect_ratio":1.0,"height":890,"width":890,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-2.png?v=1708979470"},"aspect_ratio":1.0,"height":890,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-2.png?v=1708979470","width":890},{"alt":null,"id":36575480414525,"position":3,"preview_image":{"aspect_ratio":1.0,"height":750,"width":750,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-3.png?v=1708979470"},"aspect_ratio":1.0,"height":750,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-3.png?v=1708979470","width":750},{"alt":null,"id":36575480447293,"position":4,"preview_image":{"aspect_ratio":1.0,"height":880,"width":880,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-4.png?v=1708979470"},"aspect_ratio":1.0,"height":880,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-4.png?v=1708979470","width":880},{"alt":null,"id":36575480480061,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1150,"width":1150,"src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-5.png?v=1708979470"},"aspect_ratio":1.0,"height":1150,"media_type":"image","src":"\/\/thinkrobotics.com\/cdn\/shop\/files\/SBC1063-5.png?v=1708979470","width":1150}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name \"XIAO\" here represents its half feature \"Tiny\", and the other half will be \"Puissant\".\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO RP2040 is compatible with the\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eRaspberry Pi RP2040 ecosystem\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eas they share the same RP2040 chip. It supports multiple languages including C \/ MicroPython \/ CircuitPython. This will be a great tool for you to get started with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eMicroPython\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eFeatures\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eHigh Performance:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003ePowered by\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/res\/rp2040_datasheet.pdf\" rel=\"noopener\" target=\"_blank\"\u003eRaspberry Pi 2040\u003c\/a\u003e\u003cspan\u003e \u003c\/span\u003echip, dual-core operating up to 133 MHz, equipped 264KB of SRAM, and 2MB of onboard flash memory\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eUltra-small Design:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003e21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eMultiple Development Interfaces:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003e2x buttons, 11x digital \/ 4x analog pins, 1x I2C interface, 1x UART port, 1x SPI port, and 1x SWD Bonding pad interface\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003eMultiple Develop Platform:\u003cspan\u003e \u003c\/span\u003e\u003c\/strong\u003eSupport Arduino \/ Micropython \/ CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts\u003c\/li\u003e\n\u003cli class=\"paragraph text-align-type-left pap-line-1 pap-line-rule-auto pap-spacing-before-0pt pap-spacing-after-0pt pap-hanging-indent-1.6em\"\u003e\n\u003cstrong\u003ePerfect for Production:\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003eBreadboard-friendly \u0026amp; SMD design, no components on the back\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003eRP2040 is the debut microcontroller from Raspberry Pi. It brings signature values of\u003c\/span\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e \u003c\/span\u003e\u003cstrong style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003ehigh performance, low cost, and ease of use\u003c\/strong\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003e \u003c\/span\u003e\u003cspan style=\"font-family: -apple-system, BlinkMacSystemFont, 'San Francisco', 'Segoe UI', Roboto, 'Helvetica Neue', sans-serif; font-size: 0.875rem;\"\u003eto the microcontroller space.\u003c\/span\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eSeeed Studio XIAO RP2040 is based on the RP2040 chip and wrapped in a compact size with\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003emultiple interfaces\u003c\/strong\u003e\u003cspan\u003e \u003c\/span\u003elike other products from the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/xiao-series-page\" rel=\"noopener\" target=\"_blank\"\u003eSeeed Studio XIAO series\u003c\/a\u003e, and it's compatible with the\u003cspan\u003e \u003c\/span\u003e\u003ca href=\"https:\/\/www.seeedstudio.com\/Seeeduino-XIAO-Expansion-board-p-4746.html\" rel=\"noopener\" target=\"_blank\"\u003eSeeed Studio XIAO expansion board\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eIn addition to the powerful CPU, the Seeed Studio XIAO RP2040 has 264K SRAM and 2MB of Flash on board. Some PINs have various functions. Moreover, Seeed Studio XIAO RP2040 supports the USB Type-C interface which can supply power and download code. 1 Reset button, 1 BOOT button, 1 user-programmable RGB LED, 1 power LED, 2 status indicators, and 1 user LED are on board, allowing developers to debug their code very easily.\u003c\/p\u003e\n\u003cp class=\"paragraph text-align-type-left pap-line-1.3 pap-line-rule-auto pap-spacing-before-3pt pap-spacing-after-3pt\"\u003eThe robust performance makes it\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eperfect for machine learning applications\u003c\/strong\u003e, and the tiny size allows it to be used in wearable devices, not just for prototypes but the mass production.\u003c\/p\u003e\n\u003cblockquote\u003e\n\u003cp\u003e\u003cspan style=\"color: #c20000;\"\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/Seeed-Studio-XIAO-Series-SOM-Datasheet.pdf\" rel=\"noopener\" style=\"color: #c20000;\" target=\"_blank\"\u003eXIAO SoM User Manual\u003c\/a\u003e open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check \u003ca href=\"https:\/\/www.seeedstudio.com\/blog\/2023\/02\/23\/xiao-som-user-manual-the-ultimate-guide-to-streamline-product-design-providing-seamless-experience-from-module-selection-to-mass-production\/\" rel=\"noopener\" style=\"color: #c20000;\" target=\"_blank\"\u003ehere\u003c\/a\u003e to see more info.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/blockquote\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003ch2\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eSpecification\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 70%;\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"276\"\u003e \u003ccol width=\"351\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eParameter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eDescription\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eCPU\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eDual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eStorage\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e264KB of SRAM, and 2MB of onboard Flash memory\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eI\/O PINs\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e11 digital pins, 4 analog pins, 11 PWM Pins\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eInterface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003ePower supply \u0026amp; Downloading interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eUSB Type-C interface\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eLEDs:\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eButton\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e1 RESET button, 1 BOOT button\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003ePower Pads\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eFor the battery power supply\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eSoftware compatibility\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eSupport Micropython \/ Arduino \/ CircuitPython\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eCover\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eProjection cover for protecting the circuit\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003eDimensions\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\n\u003cp dir=\"ltr\"\u003e21x17.5 mm\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cdiv class=\"tips\"\u003e\n\u003cdiv class=\"right-desc\"\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eAttention: \u003c\/strong\u003eAll the I\/O pins are 3.3V, please do not input more than 3.3V, otherwise, the CPU may be damaged.\u003c\/p\u003e\n\u003cdiv\u003e \u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003eApplication\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli dir=\"ltr\"\u003eWearable devices\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003eRapid prototyping (directly attached to the expanded PCB as a minimal system)\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003ePerfect for all the projects that need mini Arduino\u003c\/li\u003e\n\u003cli dir=\"ltr\"\u003eUSB development (USB to multi-channel TTL\/USB host mode, etc.)\u003c\/li\u003e\n\u003cli\u003eDIY keyboard\u003cbr\u003e\u003cbr\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eHardware Pinout\u003c\/h2\u003e\n\u003cp\u003e\u003cimg class=\"lazy\" width=\"1200\" height=\"1200\" data-original=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\" data-src=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\" src=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/img\/xinfront.jpg\"\u003e\u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cstrong\u003e\u003cspan data-style=\"font-size: large;\"\u003ePart List\u003c\/span\u003e\u003c\/strong\u003e\u003c\/h2\u003e\n\u003ctable style=\"width: 50%;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd data-style=\"width: 50%;\"\u003eSeeed Studio XIAO RP2040 Microcontroller\u003c\/td\u003e\n\u003ctd data-style=\"width: 50%;\"\u003ex1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch2\u003e \u003c\/h2\u003e\n\u003ch2\u003eDocumentations\u003c\/h2\u003e\n\u003cdiv class=\"product documents-tab\"\u003e\n\u003cdiv class=\"value documents-info\"\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO-RP2040\/res\/rp2040_datasheet.pdf\" rel=\"noopener\" target=\"_blank\"\u003eRP2040 datasheet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.raspberrypi.com\/documentation\/microcontrollers\/rp2040.html\" rel=\"noopener\" target=\"_blank\"\u003eRaspberry Pi RP2040 Documentation\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/tutoduino.fr\/en\/tutorials\/programing-in-rust-the-xiao-rp2040-board\/\" rel=\"noopener\" target=\"_blank\"\u003ePrograming in Rust the XIAO RP2040 board tutorial\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/XIAO-Reference-Design.pdf\" rel=\"noopener\" target=\"_blank\"\u003eXIAO Reference Design\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/files.seeedstudio.com\/wiki\/XIAO\/3D-Printing-Case-Studies.pdf\" rel=\"noopener\" target=\"_blank\"\u003e3D Printing \"Case\" Studies\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Seeed Studio XIAO RP2040

Features

Specification

Application

Hardware Pinout

Part List

Documentations

Want to buy in bulk?

Customer Reviews

Custom Requirements?

Download the ThinkRobotics Mobile App

We are here to serve you! Reach us at:

Popular Links

Shopping Cart

Let customers speak for us

Parameter	Description
CPU	Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
Storage	264KB of SRAM, and 2MB of onboard Flash memory
I/O PINs	11 digital pins, 4 analog pins, 11 PWM Pins
Interface	1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
Power supply & Downloading interface	USB Type-C interface
LEDs:	1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED
Button	1 RESET button, 1 BOOT button
Power Pads	For the battery power supply
Software compatibility	Support Micropython / Arduino / CircuitPython
Cover	Projection cover for protecting the circuit

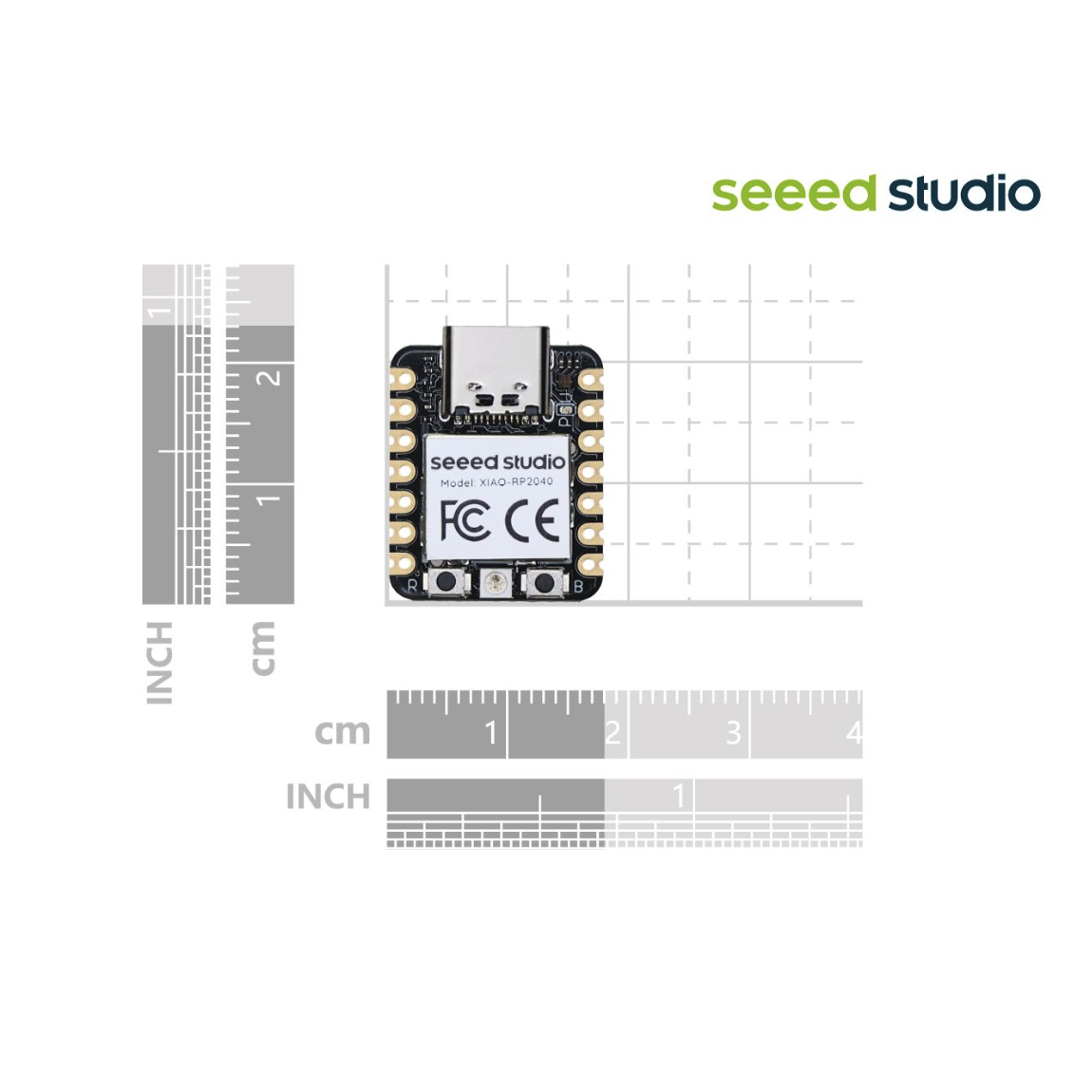

Dimensions	21x17.5 mm
