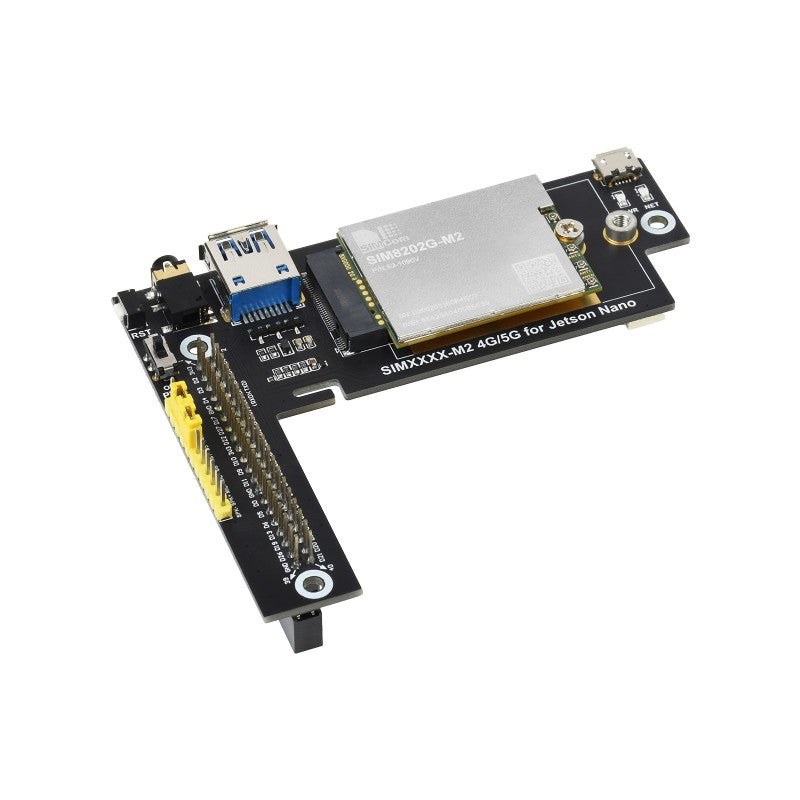

This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8202G-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL) / 500 Mbps (UL).

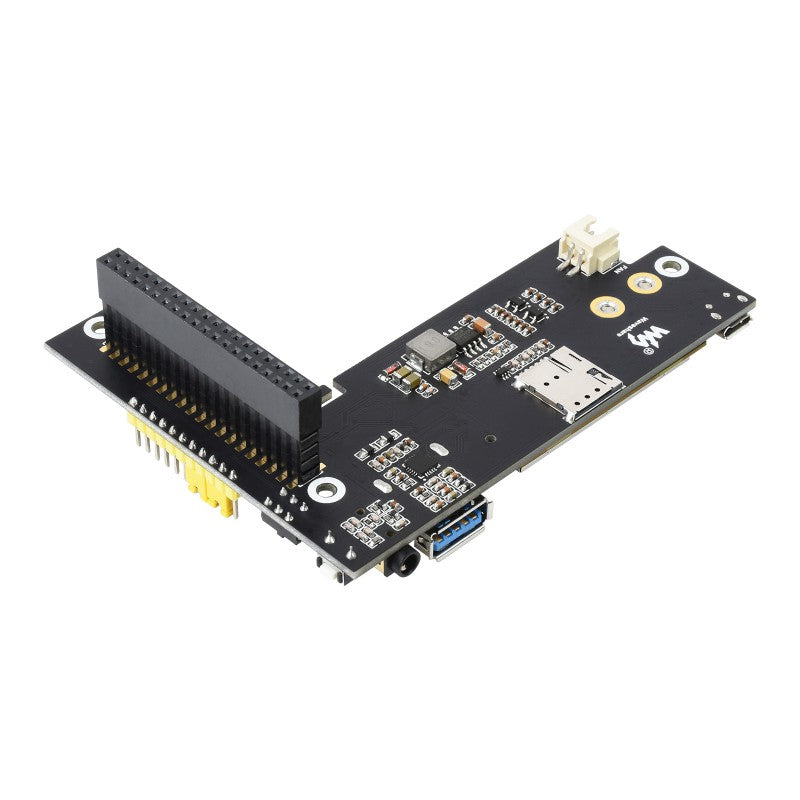

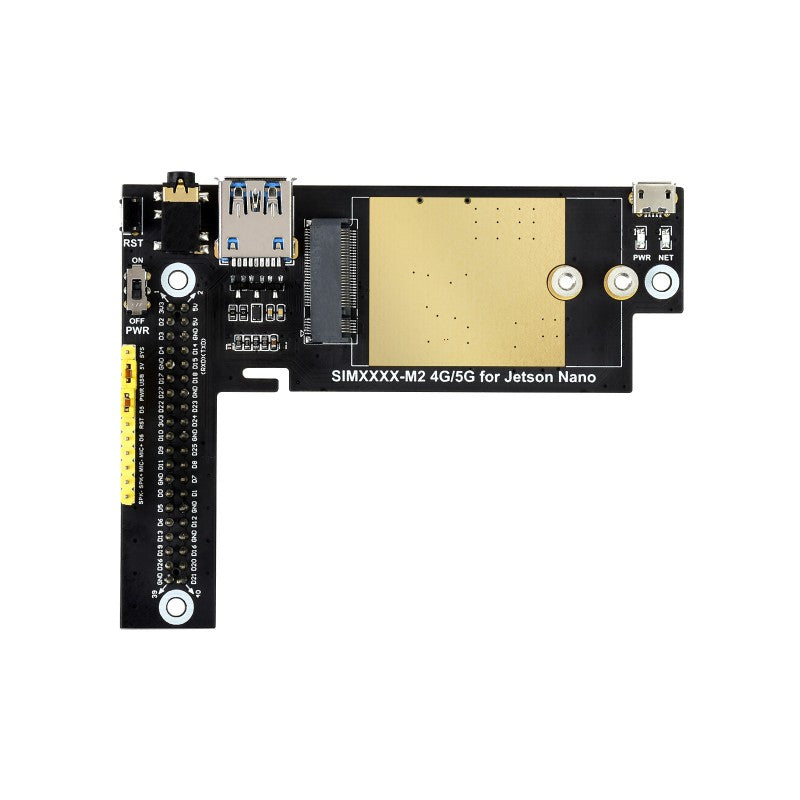

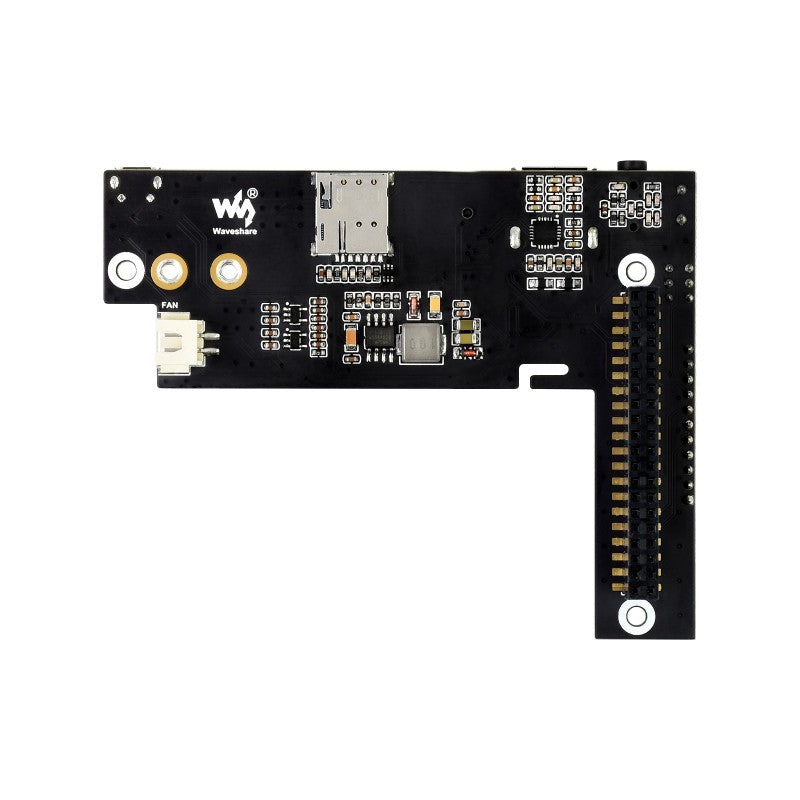

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.
Wiki: SIM8202G-M2_5G_for_Jetson_Nano
| SIM8200EA-M2 | SIM8202G-M2 | |
|---|---|---|
| Frequency band | ||
| Sub-6G (SA) | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2) | |
| Sub-6G (NSA) | n41, n77, n78, n79 (n79 is only available for SIM8202G-M2) | |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | |
| WCDMA | B1, B2, B3, B4, B5, B8 | |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | |
| Data rate | ||
| Sub-6G | 2.4 Gbps (DL) / 500 Mbps (UL) | |
| LTE | 1 Gbps (DL) / 200 Mbps (UL) | |
| HSPA | 42 Mbps (DL) / 5.76 Mbps (UL) | |
| Software functions | ||
| Operating systems | Windows/Linux/Android | |
| Communication protocols | TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 | |
| SMS | Supports MT, MO, CB, Text, PDU | |
| Firmware upgrade | Supports firmware upgrade via USB port | |
| Hardware info | ||
| SIM card | 1.8V/3.0V | |
| Power supply | 5V 3A | |
| Antenna connector | 6x IPEX-4 connector | 4x IPEX-4 connector |
| Module dimensions | 52.0×30.0×2.3mm | 42.0×30.0×2.3mm |
| Applications | ||
| Applicable regions | Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc. | |
| Application examples | CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security | |
Compatible Hardware Interface, Identical Software Function
SIM8200EA-M2 the 6x antennas version (left), SIM8202G-M2 the 4x antennas version (right)
Applicable For Most Of The Countries And Regions
Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), compatible with 4G/3G network.
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
Supports Windows/Android/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

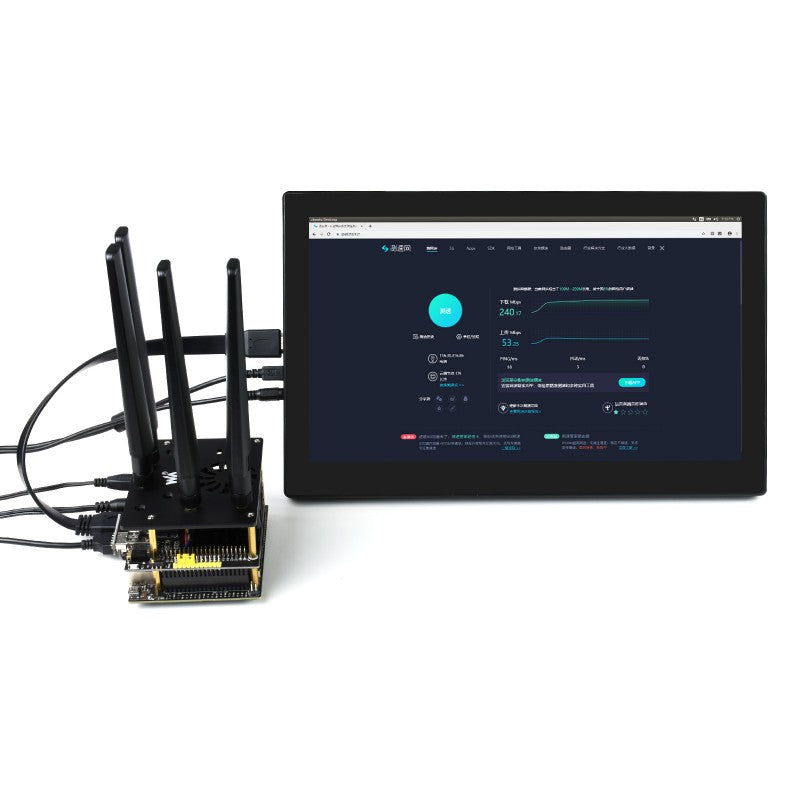

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Supported Communication Protocols: TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
Supports GPS, Beidou, Glonass, Galileo, QZSS, LBS
Allows Using AT Commands To Make Phone Call Or Send SMS
